RAB Lighting

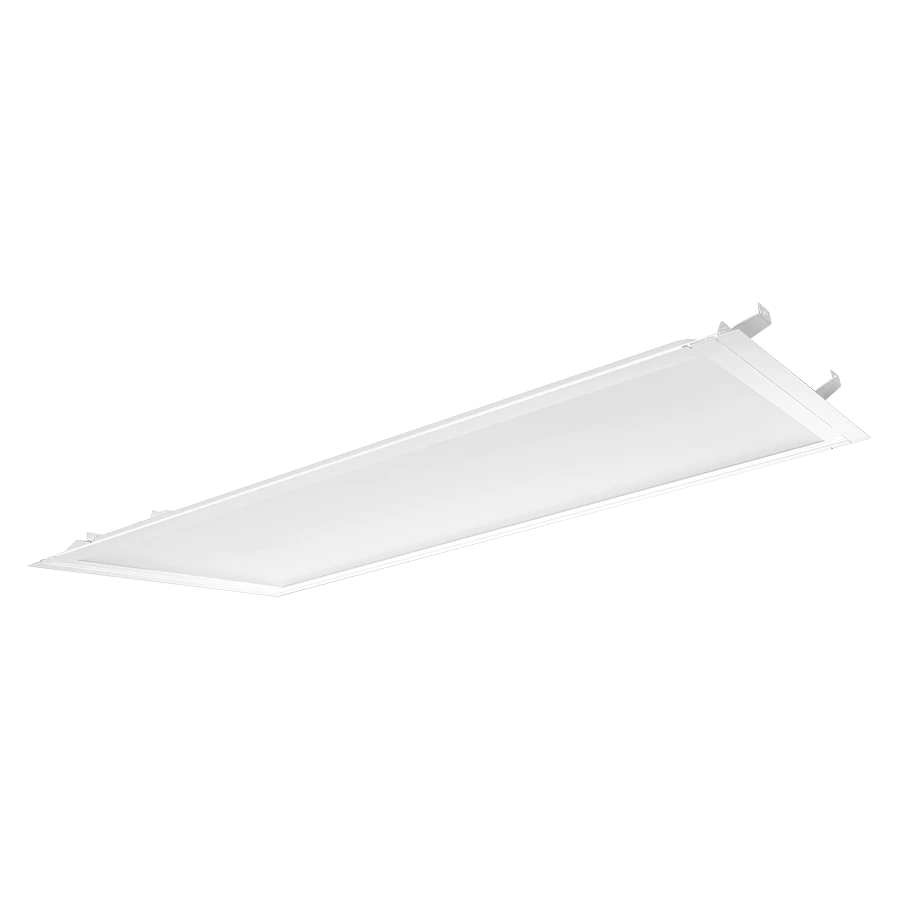

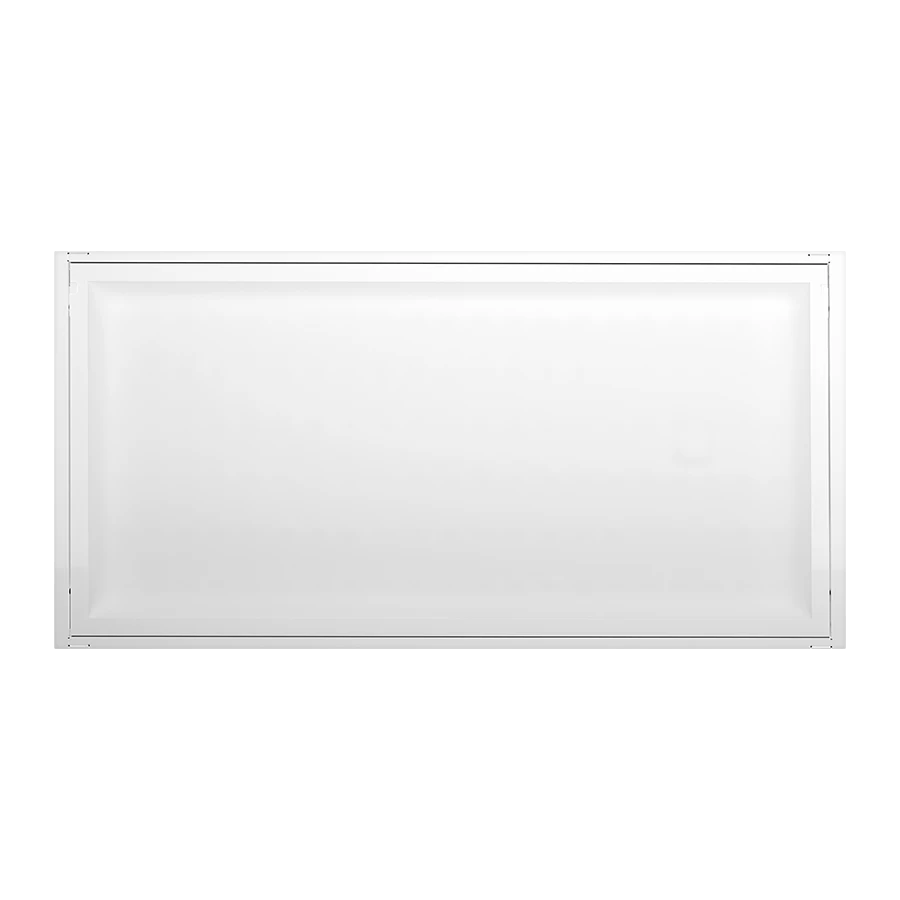

RAB RPLED2X4 35W LED 2X4 Retrofit Panel Selectable CCT/Wattage

RAB RPLED2X4 35W LED 2X4 Retrofit Panel Selectable CCT/Wattage

$108.00
$108.00
Sale Sold out
Shipping calculated at checkout.

35W Retrofit 2X4 Panel



RAB's RPLED2X4 35W LED 2X4 Retrofit Panel offers a convenient and cost-effective solution for updating your lighting. With selectable power and color temperature options, you have complete control over your lighting needs. The panel is available in three sizes, each with three wattage and color temperature choices, reducing the need for excessive inventory. This contractor-friendly option can be retrofitted in minutes, saving you time and labor costs. Plus, with an impressive efficacy of up to 148 lm/W and DLC Premium listing, it may qualify for utility rebates. And, with its elegant design and diffusion lens for even ambient lighting, it offers a budget-friendly upgrade without the need for expensive renovations. Experience the convenience, efficiency, and sophistication of RPLED.

  • Adjustable wattages: 35/30/25W (35W factory default)
  • Adjustable CCT: 3500/4000/5000K (4000K factory default)
  • Smart & non-smart sensor options
  • Battery backup option available
  • 5-year, limited warranty


Spec Sheets

Spec Sheet

Installation Instructions

Info


Wattage 35/30/25
Lumen 2,529-3,894 lm
Color Temp. 35K-40K-50K
Efficacy 127-142.6 lm/W
Voltage 120-277V
Dimming 0-10V
CRI 83-85 CRI
L70 Lifespan 100,000 Hours
Finish  Formulated for high durability and long-lasting color
Lens Frosted polystyrene
Mounting Mounting bracket: Two brackets and two decorative bars (Optional). Two steel clips provided, secured to the housing for securement of the mounting bracket.
Housing Galvanized sheet housing and aluminum frame

Additional Info


Safety Listing UL Listed Suitable for damp locations
IESNA LM-79 & LM-80 Testing RAB LED luminaires have been tested by an independent laboratory in accordance with IESNA LM-79 & LM-80
DLC Listed This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-CSN5NZ
Driver 35W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.28A, 208V: 0.17A, 240V: 0.15A, 277V: 0.12A
30W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.25A, 208V: 0.15A, 240V: 0.13A, 277V: 0.11A
20W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.21A, 208V: 0.12A, 240V: 0.11A, 277V: 0.10A
Dimming Driver Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD 8.42% at 120V, 8.39% at 277V
Power Factor 99.5% at 120V, 98.3% at 277V
