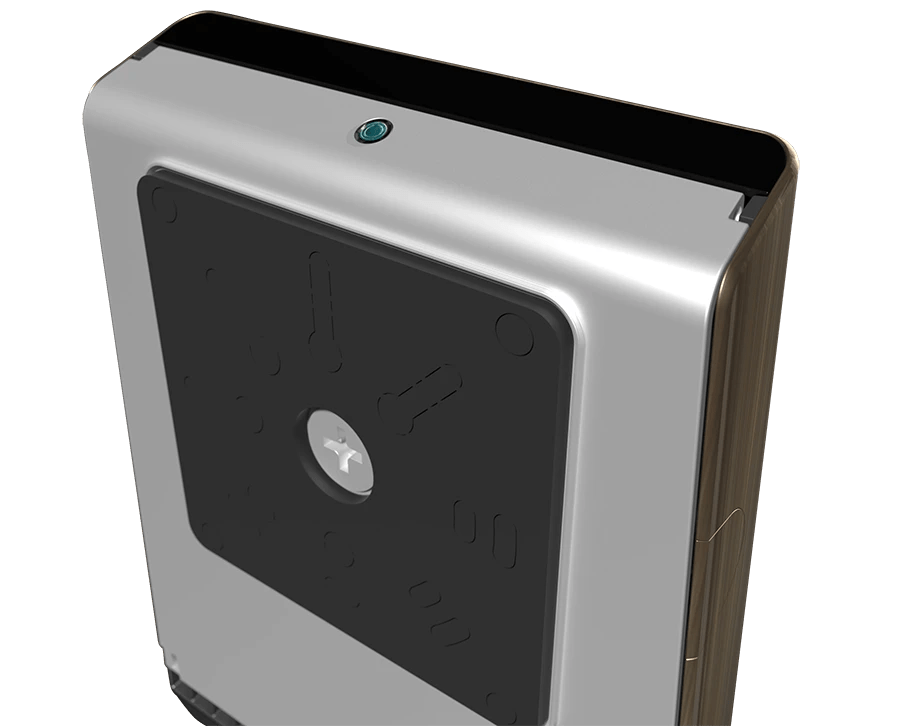

SLIM 26W Wall Pack Selectable CCT/Wattage



Experience the ultimate wall pack solution with the new and improved RAB SLIM 26W LED Wallpack Field Adjustable Selectable Wattage/CCT. Its sleek design is smaller, lighter, more efficient, and now field adjustable, reducing the need for multiple SKUs. With 3 selectable wattages and color temperatures, you have the freedom to customize your lighting. Plus, backed by a 10-year warranty, your investment is protected for years to come. Choose from three finishes, including sustainable brass, for a durable and environmentally-friendly option. With a heavy-duty mounting bracket and "kick stand" feature, installation is a breeze. Upgrade to RAB SLIM for a superior wall pack experience!



• Available with adjustable wattages:
  26W/18W/12W - Factory default 26W

• Field-adjustable CCT: 3000K/4000K/5000K - Factory default 4000K

• Integrated on/off photocell

• 0-10V dimming

• UL rated for wet location

• IP65 rated

• Easy Install
• 100,000-Hour LED lifespan
• 10-year no-compromise warranty



Spec Sheet

Spec Sheet

Installation Instructions

Info

Product Type	Wall Pack
Efficacy	135.1-150.6 lm/W
Wattage	Selectable 26/18/12W
Lumen	2,175-4,389 lm
Color Temp.	3000K/4000K/5000K
CRI	82-85 CRI
Lifespan	100,000 Hours
Finish	Bronze/White/Brass

Additional Info

Construction

Housing Aluminum alloy Mounting Heavy-duty mounting bracket with spring-hinged housing and "kick stand" allow for easy installations. Conduit entries on back and both sides. Lens Acrylonitrile styrene acrylate (ASA) /Acrylonitrile butadiene styrene (ABS) Reflector Mirror finish on polycarbonate Max/Min Temperature The minimum starting temperature is -40°C (-40°F) Suitable for use in up to 40°C (104°F) Finish Formulated for high durability and long-lasting color

Compliance UL Listed Suitable for wet locations

Electrical THD 26W: 3.4% at 120V, 4.68% at 277V 18W: 2.95% at 120V, 5.3% at 277V 12W: 3% at 120V, 8.42% at 277V Power Factor 26W: 99.8% at 120V, 96.5% at 277V 18W: 99.7% at 120V, 94.6% at 277V 12W: 99.4% at 120V, 89.6% at 277V Driver Constant Current, Class 2, 120-277V, 50/60 Hz 26W: 120V: 0.26A, 208V: 0.13A, 240V: 0.12A, 277V: 0.11A 18W: 120V: 0.20A, 208V: 0.10A, 240V: 0.09A, 277V: 0.08A 12W: 120V: 0.13A, 208V: 0.07A, 240V: 0.06A, 277V: 0.06A Dimming Driver Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%. Photocell 120-277V selectable photocell that can be turned on and off. Surge Protection 4kV
