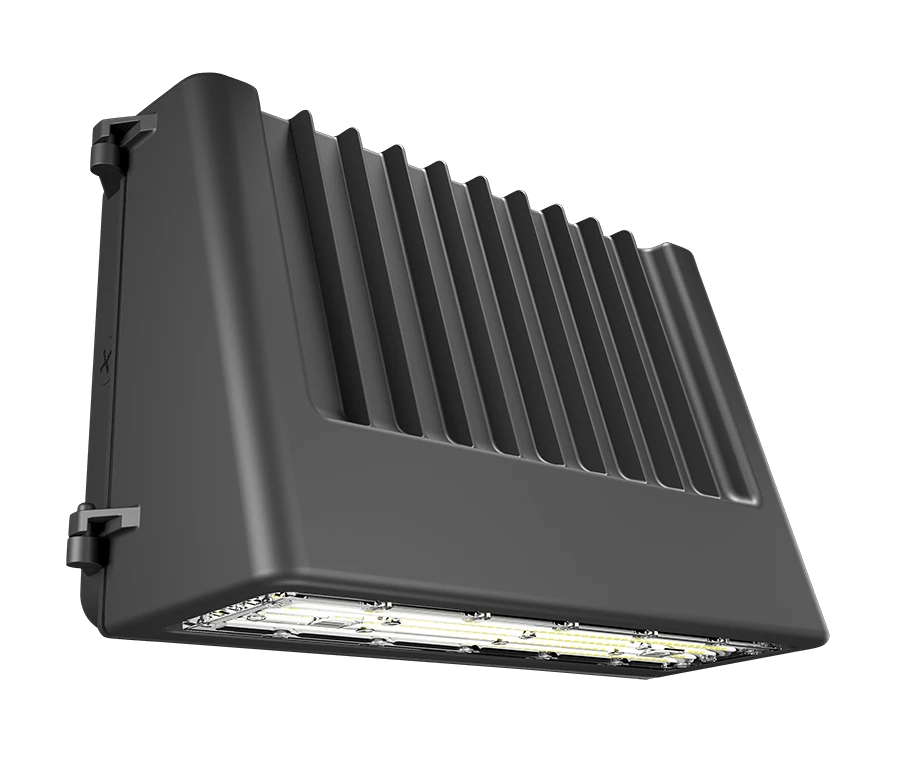

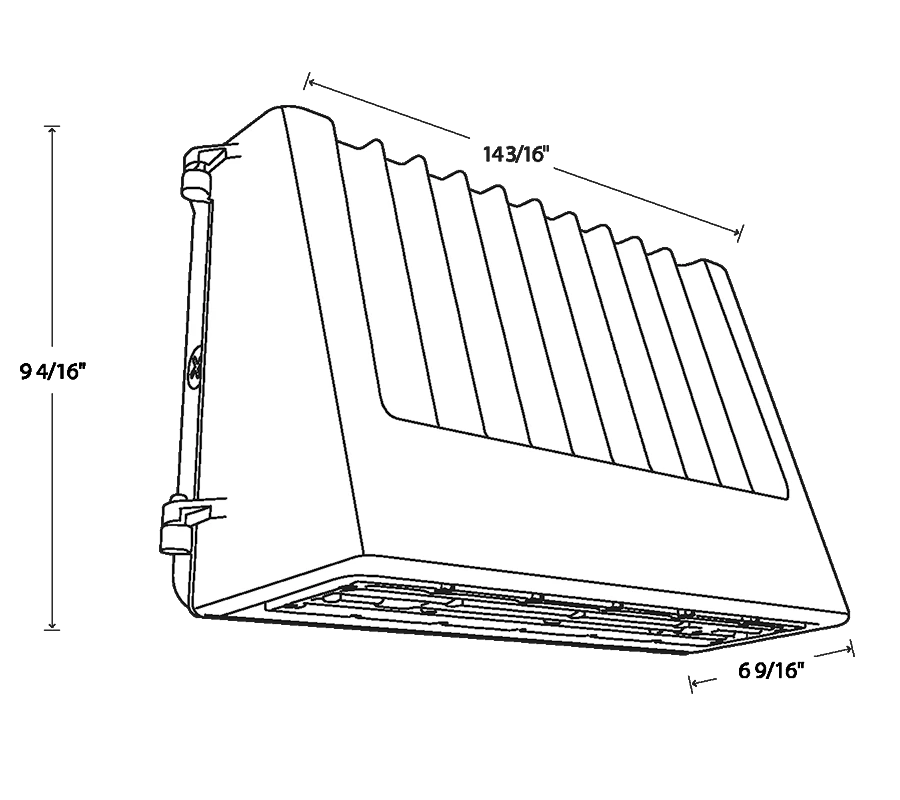

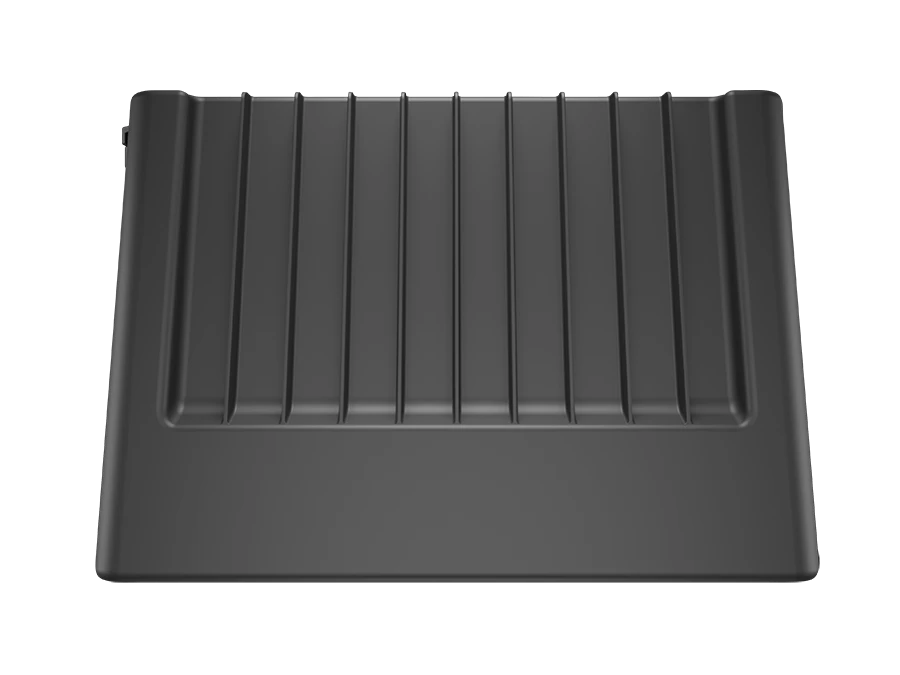

RAB SLIM17FAFC40 40W LED Full Cutoff Wallpack Selectable CCT
RAB SLIM17FAFC40 40W LED Full Cutoff Wallpack Selectable CCT
Regular price
$129.00
Regular price
Sale price
$129.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
40W Full Cutoff Wall Pack Selectable CCT
Choose between 3000, 4000, and 5000K with the field-adjustable CCT switch on the side of the SLIM17 ultra-economy wall pack. The integrated, selectable, on/off photocell allows for automatic control, reducing energy usage. Available in various wattages and with 80+ CRI and up to 145 lm/W efficacy, the full cutoff SLIM17 is Dark Sky friendly and offers easy installation with hinged wiring access and multiple conduit entries.
- Adjustable CCT: 3000/4000/5000K (Default 4000K)
- Selectable on/off photocell
- 0-10V dimming, standard
- 120-277V
- 5-year limited warranty
- Full cutoff
Spec Sheet
Spec Sheet
Sell Sheet
Installation Instructions
Info
| Product Type | Full Cutoff Wallpack |
| Efficacy | 121.9/141.8/126.5 lm/W |
| Wattage | 40W |
| Lumen | 4595/5421/4826 lm |
| Color Temp. | 3000/4000/5000K |
| CRI | 80 CRI |
| Cutoff | Full cutoff (0°) |
| Lifespan | 100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations |
| Finish | Bronze/White |
| Field Adjustability |
Color Temperature Selectable: 3000K, 4000K and 5000K (factory default 4000K) |
| UL Listed | Suitable for wet locations |
Additional Info
| Dimming Driver | Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%. |
| Driver |
Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.40A, 208V: 0.30A, 240V: 0.20A, 277V: 0.15A |
| Photocell |
120-277V selectable photocell that can be turned on and off.
|
| Surge Protection |
L-N:4kV, L/N-GND:4KV
|
