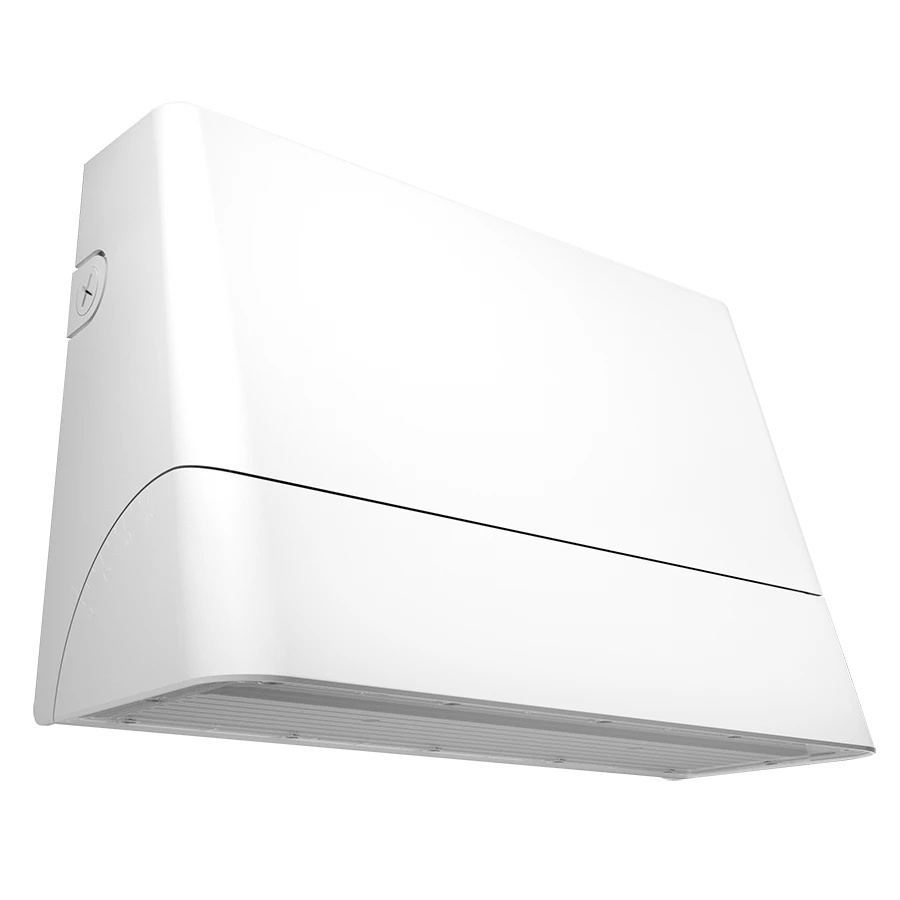

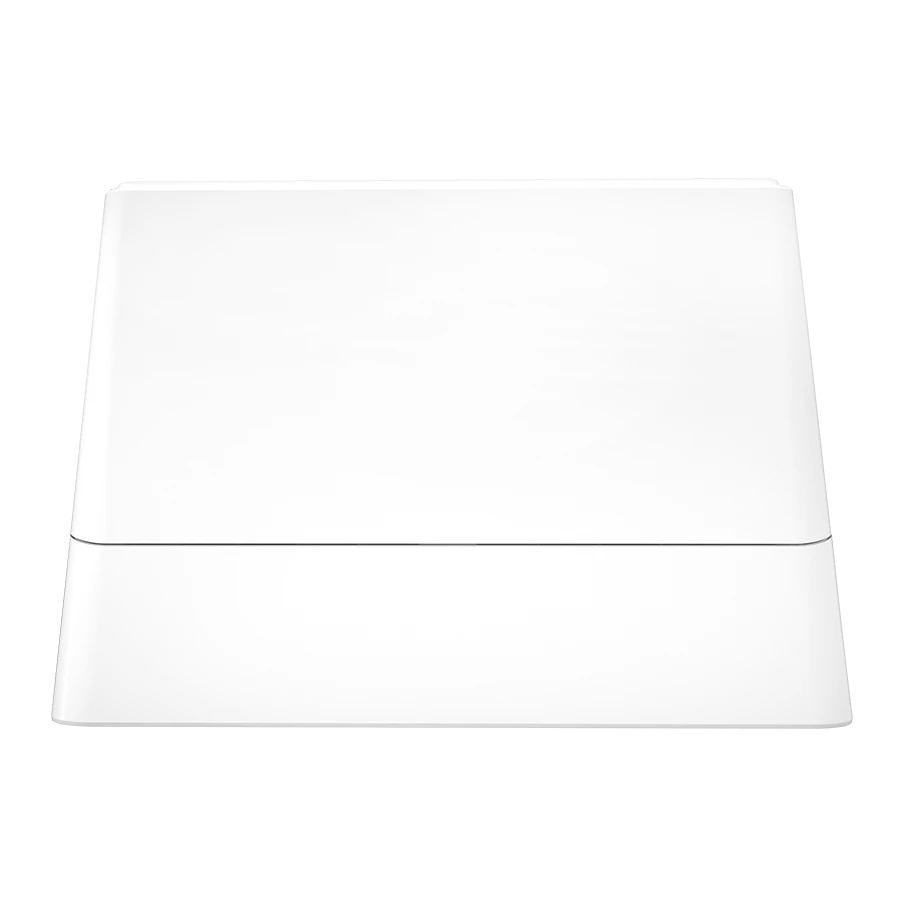

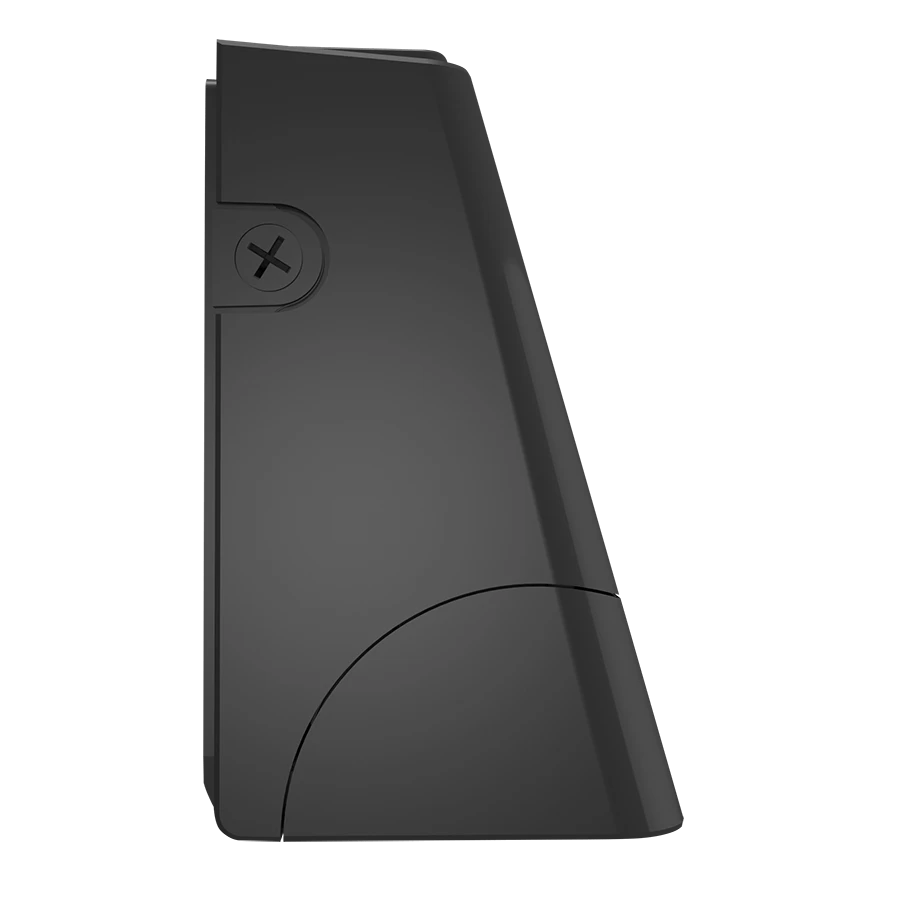

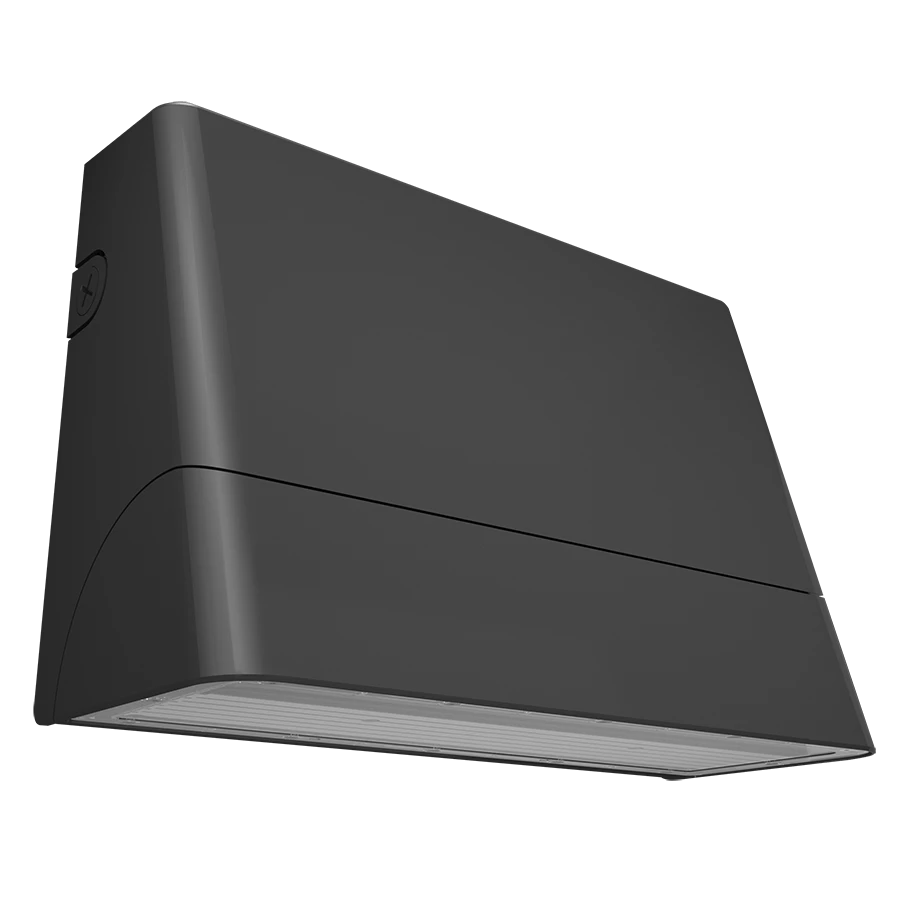

RAB SLIM22-L-150 150W LED Wallpack Selectable Wattage CCT & Throw

RAB SLIM22-L-150 150W LED Wallpack Selectable Wattage CCT & Throw

$265.00
$265.00
Sale Sold out
Shipping calculated at checkout.
Color: Bronze
Wattage
Color Temerperature

SLIM22 150W Wall Pack Selectable CCT, Wattage, Throw.

RAB's SLIM22-L-150 LED Wallpack offers selectable wattage options of 75/100/125/150W and customizable color temperature settings of 3000K/4000K/5000K. This versatile fixture also features an adjustable optic with four beam angle choices: 0 degrees, 15 degrees, 30 degrees, and 45 degrees, all in a durable bronze or white finish.

  • SLIM22-L-150 : 150/125/100/75W (Default 150W)
  • Adjustable CCT: 3000/4000/5000K (Default 4000K)
  • On/Off Photocell
  • Selectable forward throw: 45°/30°/15°/0° (Default 0°)
  • Battery backup option available
  • IP65 rated
  • 5-year limited warranty

  Field Adjustable Logo Field Adjustable Logo



Spec Sheet

Spec Sheet

Family Spec Sheet

Sell Sheet

Installation Instructions

Info
Product Type  Adjustable Throw Wall Pack
Efficacy 124.4-169.2 lm/W
Wattage Selectable 150/125/100/75W
Lumen 11,462-21,727 lm
Color Temp. 3000/4000/5000K
CRI 83-86 CRI
Lifespan 100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Finish  Bronze/White
Field Adjustability Field Adjustable Light Output:
150W/125W/100W/75W (factory default 150W)
Color Temperature Selectable:
3000K, 4000K and 5000K (factory default 4000K)
Wattage Equivalency
 150W: Replaces up to 750W Metal Halide (MH) or 400W High Pressure Sodium (HPS)
125W: Replaces up to 750W Metal Halide (MH) or 400W High Pressure Sodium (HPS)
100W: Replaces up to 400W Metal Halide (MH) or 400W High Pressure Sodium (HPS)
75W: Replaces up to 400W Metal Halide (MH) or 310W High Pressure Sodium (HPS)



    Additional Info
    THD 150W: 4.31% at 120V, 6.45% at 277V
    125W: 4.3% at 120V, 6.76% at 277V
    100W: 4.17% at 120V, 7.78% at 277V
    75W: 4.4% at 120V, 9.89% at 277V
    Power Factor 150W: 99.8% at 120V, 96.4% at 277V
    125W: 99.8% at 120V, 95.6% at 277V
    100W: 99.7% at 120V, 93.8% at 277V
    75W: 99.5% at 120V, 89.9% at 277V
    Dimming Driver Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
    Driver
    		 150W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 1.41A, 208V: 0.84A, 240V: 0.76A, 277V: 0.68A
    125W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 1.20A, 208V: 0.74A, 240V: 0.64A, 277V: 0.59A
    100W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.94A, 208V: 0.60A, 240V: 0.54A, 277V: 0.50A
    75W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.69A, 208V: 0.45A, 240V: 0.43A, 277V: 0.40A
    Photocell
    120-277V selectable photocell that can be turned on and off.
    Surge Protection
    DM(L/N): 6KV, CM(L/N-PE): 6KV
