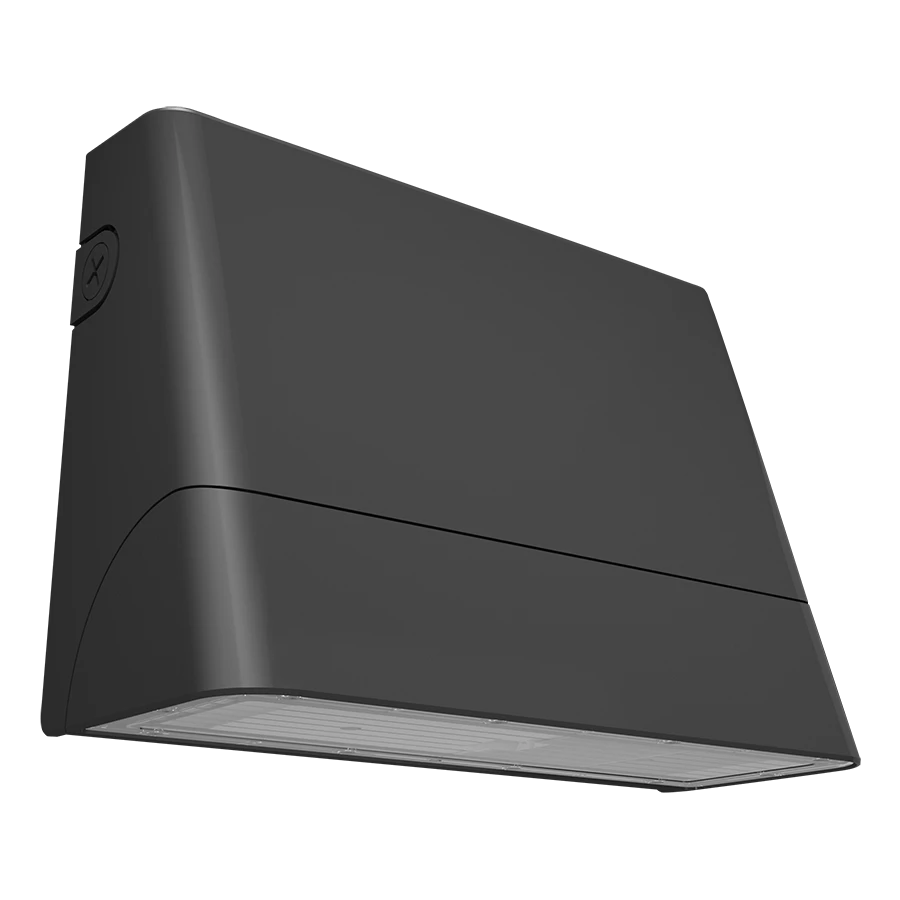

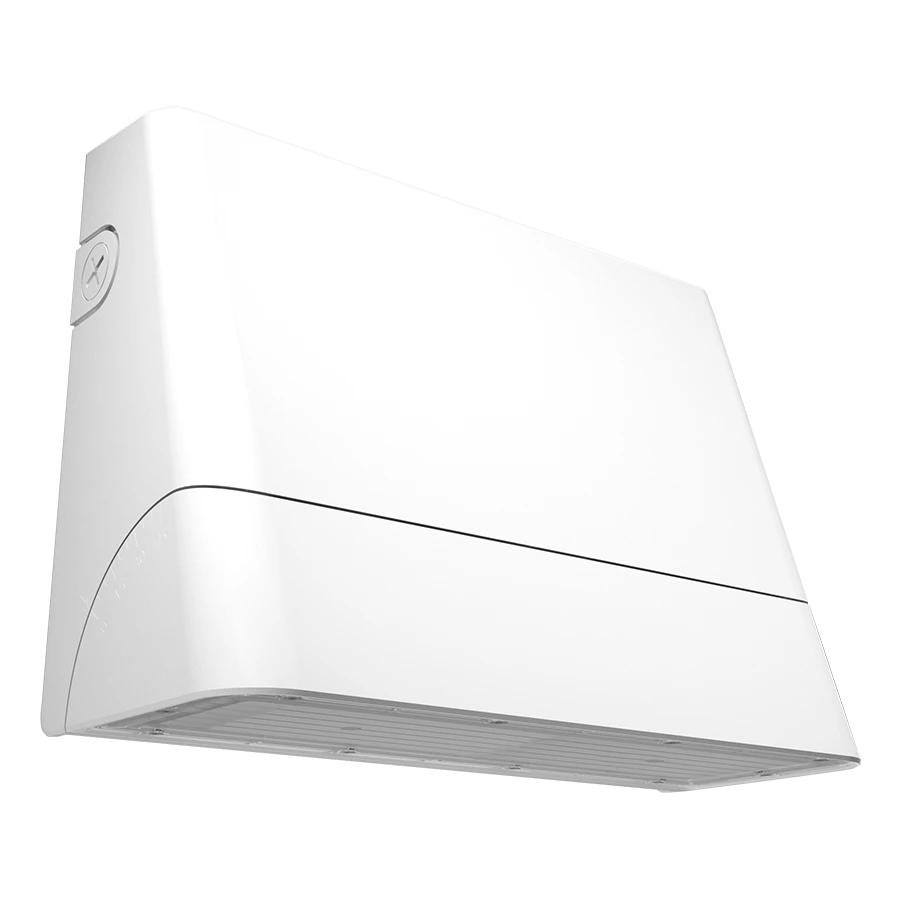

RAB SLIM22-M-100 100W LED Wallpack Selectable Wattage CCT & Throw

RAB SLIM22-M-100 100W LED Wallpack Selectable Wattage CCT & Throw

$208.00
$208.00
Sale Sold out
Shipping calculated at checkout.
Color: Bronze
Wattage
Color Temerperature

SLIM22 100W Wall Pack Selectable CCT, Wattage, Throw.

RAB's SLIM22-M-100 LED Wallpack offers selectable wattage options of 50/70/85/100W and customizable color temperature settings of 3000K/4000K/5000K. This versatile fixture also features an adjustable optic with four beam angle choices: 0 degrees, 15 degrees, 30 degrees, and 45 degrees, all in a durable bronze or white finish.

  • SLIM22-M-100 : 100/85/70/50W (Default 100W)
  • Adjustable CCT: 3000/4000/5000K (Default 4000K)
  • On/Off Photocell
  • Selectable forward throw: 45°/30°/15°/0° (Default 0°)
  • Battery backup option available
  • IP65 rated
  • 5-year limited warranty

  Field Adjustable Logo Field Adjustable Logo



Spec Sheet

Spec Sheet

Family Spec Sheet

Sell Sheet

Installation Instructions

Info
Product Type  Adjustable Throw Wall Pack
Efficacy 123.1-169.3 lm/W
Wattage Selectable 30/40/50/60W
Lumen 7,219-14,382 lm
Color Temp. 3000/4000/5000K
CRI 83-86 CRI
Lifespan 100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Finish  Bronze/White
Field Adjustability Field Adjustable Light Output:
100W/85W/70W/50W (factory default 100W)
Color Temperature Selectable:
3000K, 4000K and 5000K (factory default 4000K)
Wattage Equivalency 100W: Replaces up to 400W Metal Halide (MH) or 310W High Pressure Sodium (HPS)
85W: Replaces up to 400W Metal Halide (MH) or 310W High Pressure Sodium (HPS)
70W: Replaces up to 400W Metal Halide (MH) or 250W High Pressure Sodium (HPS)
50W: Replaces up to 350W Metal Halide (MH) or 200W High Pressure Sodium (HPS)



    Additional Info
    THD 100W: 3.12% at 120V, 5.81% at 277V
    85W: 3.23% at 120V, 6.81% at 277V
    70W: 3.43% at 120V, 8.85% at 277V
    50W: 3.92% at 120V, 14.72% at 277V
    Power Factor 100W: 99.8% at 120V, 94.9% at 277V
    85W: 99.7% at 120V, 93.6% at 277V
    70W: 99.6% at 120V, 91.5% at 277V
    50W: 99.2% at 120V, 83.3% at 277V
    Dimming Driver Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
    Driver
    		 100W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.94A, 208V: 0.56A, 240V: 0.51A, 277V: 0.46A
    85W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.80A, 208V: 0.48A, 240V: 0.43A, 277V: 0.40A
    70W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.66A, 208V: 0.39A, 240V: 0.36A, 277V: 0.35A
    50W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.47A, 208V: 0.30A, 240V: 0.28A, 277V: 0.26A
    Photocell
    120-277V selectable photocell that can be turned on and off.
    Surge Protection
    DM(L/N): 6KV, CM(L/N-PE): 6KV
