RAB Lighting

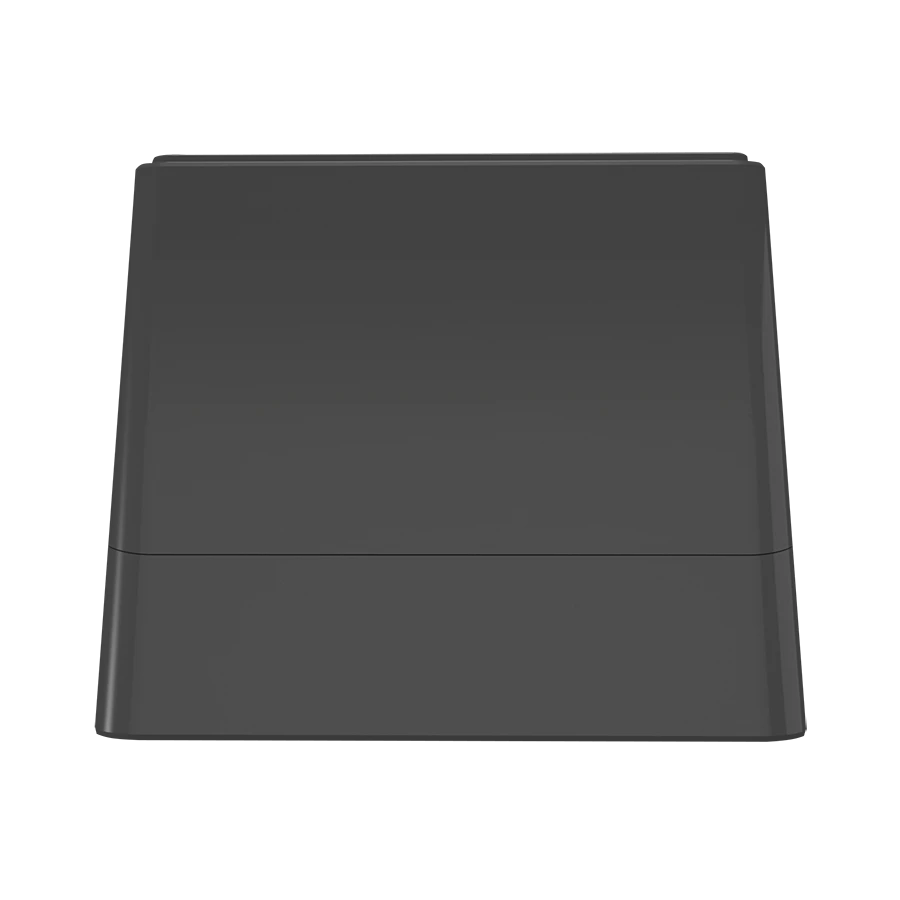

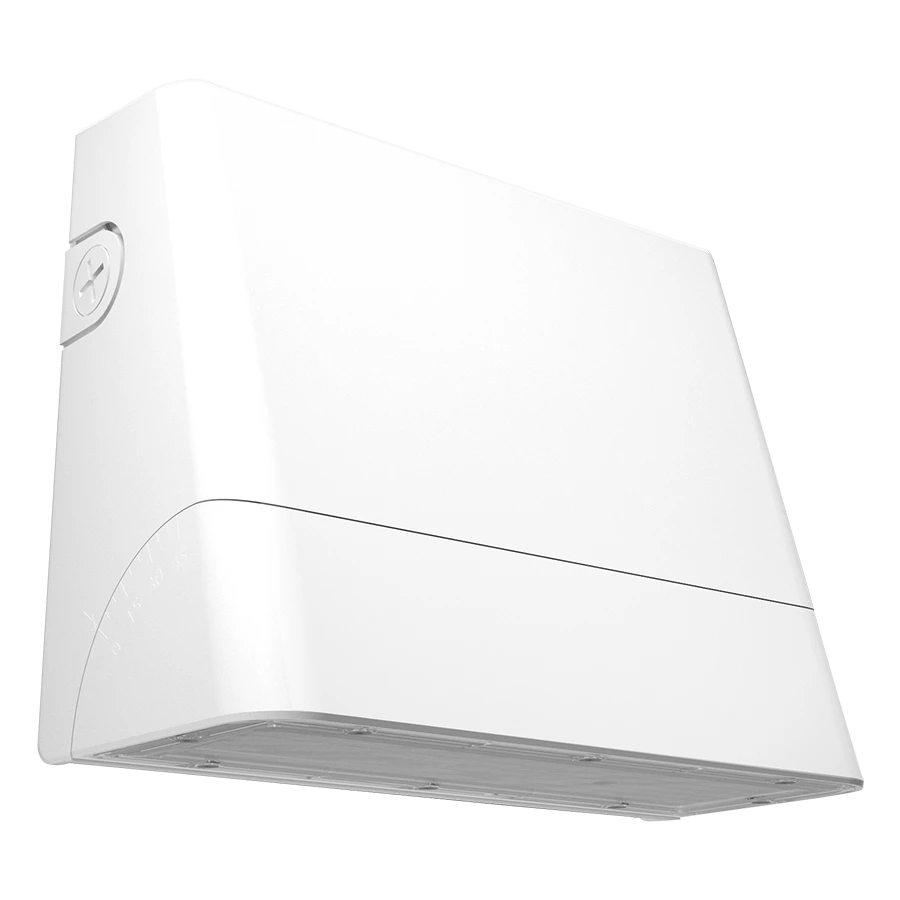

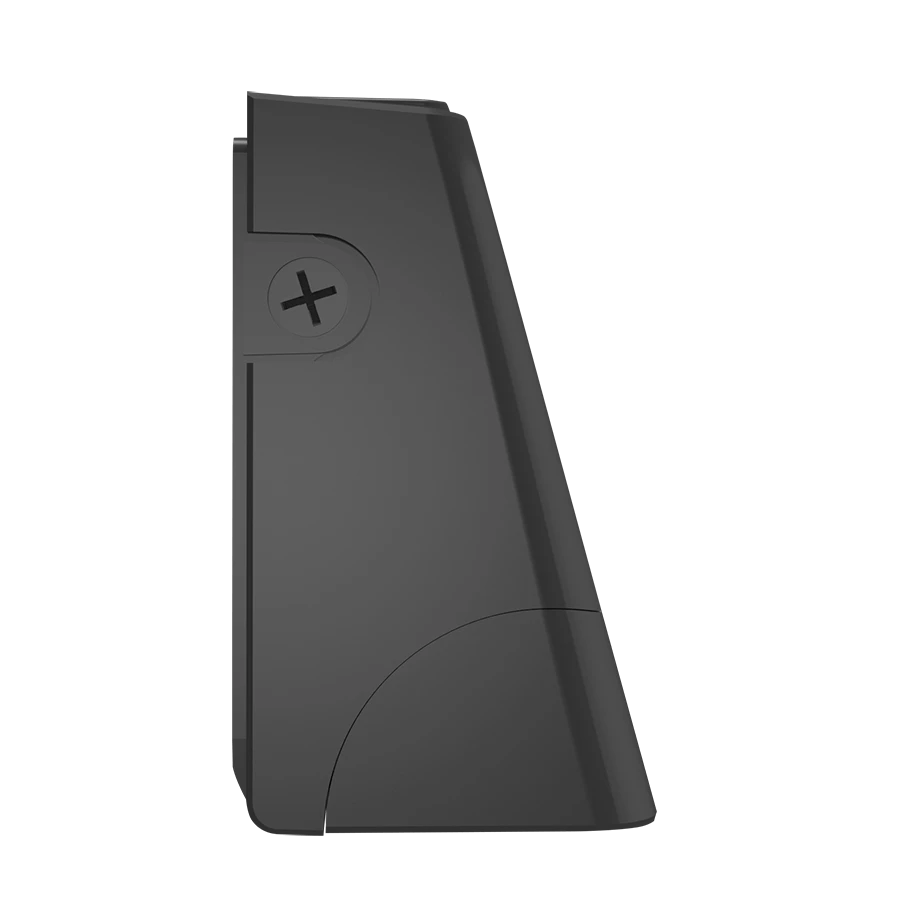

RAB SLIM22-S-30 30W LED Wallpack Selectable Wattage CCT & Throw

RAB SLIM22-S-30 30W LED Wallpack Selectable Wattage CCT & Throw

$143.00
$143.00
Sale Sold out
Shipping calculated at checkout.
Color: Bronze
Wattage
Color Temerperature

SLIM22 30W Wall Pack Selectable CCT, Wattage, Throw.

RAB's SLIM22-S-30 LED Wallpack offers selectable wattage options of 30/25/20/15W and customizable color temperature settings of 3000K/4000K/5000K. This versatile fixture also features an adjustable optic with four beam angle choices: 0 degrees, 15 degrees, 30 degrees, and 45 degrees, all in a durable bronze or white finish.

  • SLIM22-S-30 : 30/25/20/15W (Default 30W)
  • Adjustable CCT: 3000/4000/5000K (Default 4000K)
  • On/Off Photocell
  • Selectable forward throw: 45°/30°/15°/0° (Default 0°)
  • Battery backup option available
  • IP65 rated
  • 5-year limited warranty

  Field Adjustable Logo Field Adjustable Logo



Spec Sheet

Spec Sheet

Family Spec Sheet

Sell Sheet

Installation Instructions

Info
Product Type  Adjustable Throw Wall Pack
Efficacy 135.9-158.5 lm/W
Wattage Selectable 15/20/25/30W
Lumen 2,199-4,833 lm
Color Temp. 3000/4000/5000K
CRI 83-86 CRI
Lifespan 50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Finish  Bronze/White
Field Adjustability Field Adjustable Light Output:
30W/25W/20W/15W (factory default 30W)
Color Temperature Selectable:
3000K, 4000K and 5000K (factory default 4000K)
Wattage Equivalency 30W: Replaces up to 175W Metal Halide (MH) or 150W High Pressure Sodium (HPS)
25W: Replaces up to 175W Metal Halide (MH) or 150W High Pressure Sodium (HPS)
20W: Replaces up to 125W Metal Halide (MH) or 100W High Pressure Sodium (HPS)
15W: Replaces up to 100W Metal Halide (MH) or 70W High Pressure Sodium (HPS)



    Additional Info
    THD 30W: 6.63% at 120V, 12.67% at 277V
    25W: 7.49% at 120V, 14.45% at 277V
    20W: 9.13% at 120V, 16.84% at 277V
    15W: 11.81% at 120V, 20.66% at 277V
    Dimming Driver Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
    Driver
    		 30W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.28A, 208V: 0.17A, 240V: 0.15A, 277V: 0.13A
    25W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.24A, 208V: 0.14A, 240V: 0.13A, 277V: 0.11A
    20W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.19A, 208V: 0.12A, 240V: 0.11A, 277V: 0.09A
    15W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.14A, 208V: 0.09A, 240V: 0.085A, 277V: 0.08A
    Photocell
    120-277V selectable photocell that can be turned on and off.
    Surge Protection
    DM(L/N): 6KV, CM(L/N-PE): 6KV
