RAB Lighting

RAB SLIM22-S-60 60W LED Wallpack Selectable Wattage CCT & Throw

RAB SLIM22-S-60 60W LED Wallpack Selectable Wattage CCT & Throw

$165.00
$165.00
Sale Sold out
Shipping calculated at checkout.

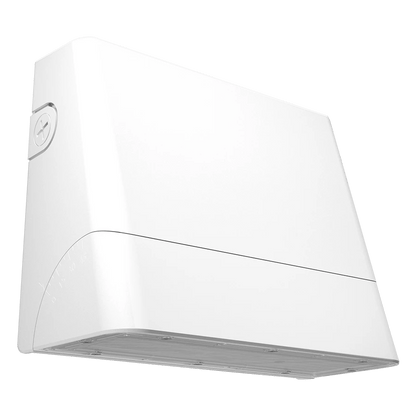

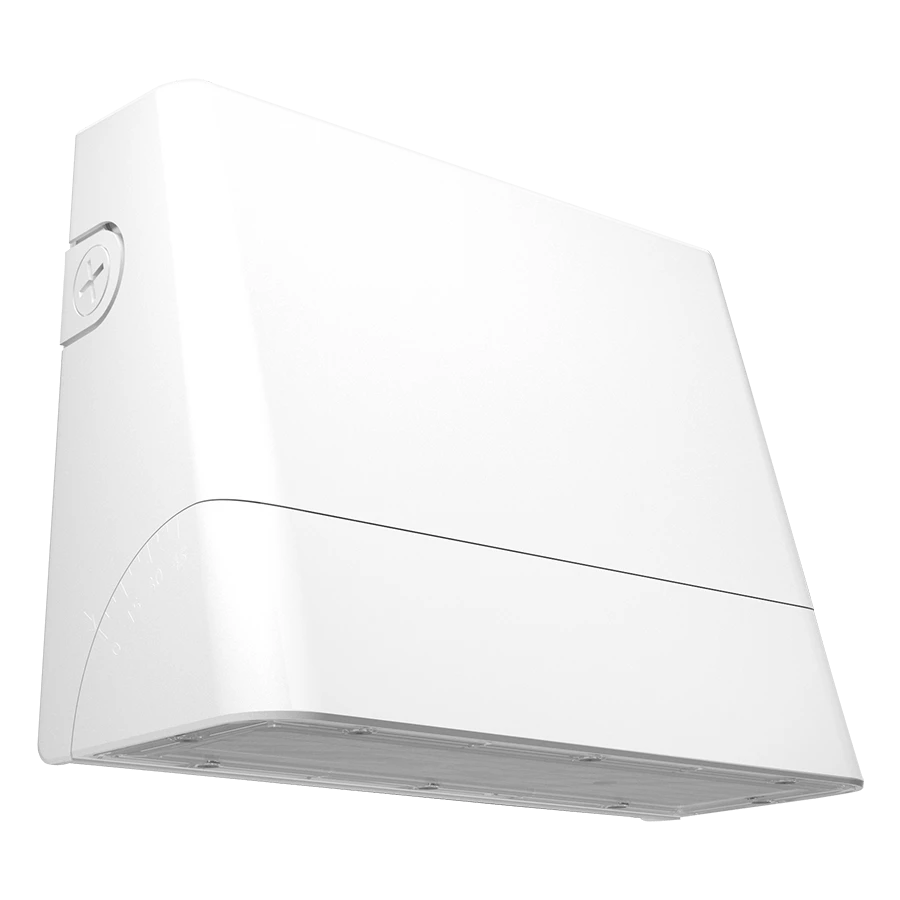

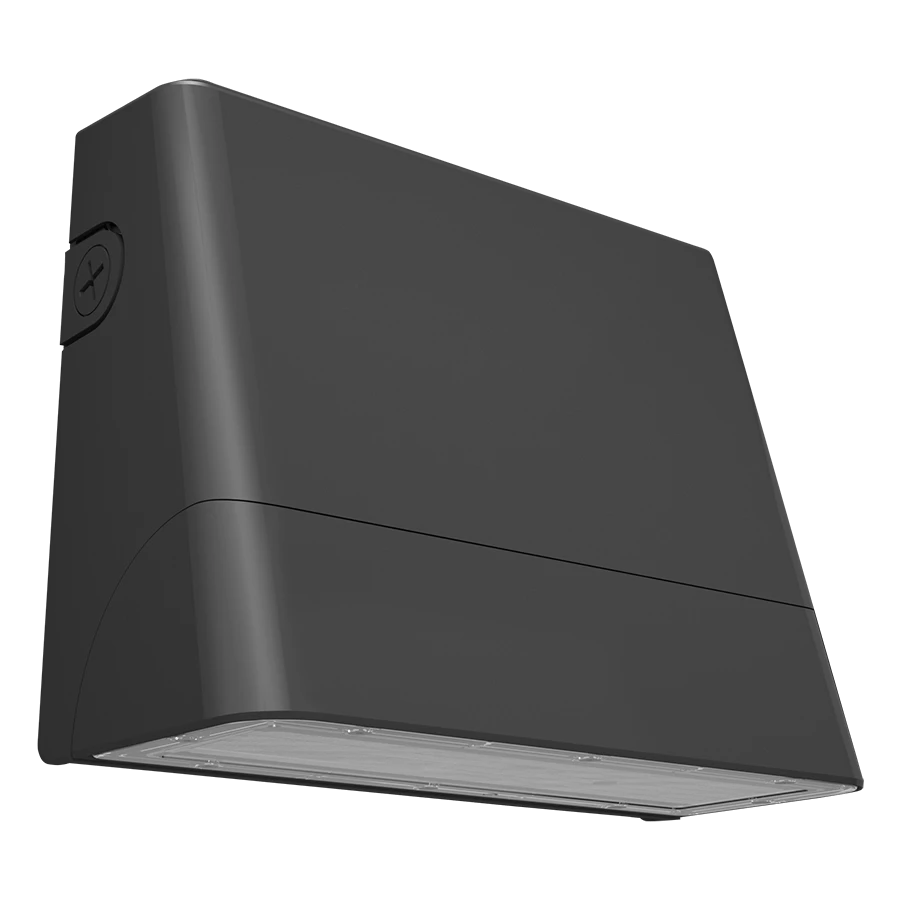

Color: Bronze
Wattage
Color Temerperature

SLIM22 60W Wall Pack Selectable CCT, Wattage, Throw.

RAB's SLIM22-S-60 LED Wallpack offers selectable wattage options of 30/40/50/60W and customizable color temperature settings of 3000K/4000K/5000K. This versatile fixture also features an adjustable optic with four beam angle choices: 0 degrees, 15 degrees, 30 degrees, and 45 degrees, all in a durable bronze or white finish.

  • SLIM22-S-60 : 60/50/40/30W (Default 60W)
  • Adjustable CCT: 3000/4000/5000K (Default 4000K)
  • On/Off Photocell
  • Selectable forward throw: 45°/30°/15°/0° (Default 0°)
  • Battery backup option available
  • IP65 rated
  • 5-year limited warranty

  Field Adjustable Logo Field Adjustable Logo



Spec Sheet

Spec Sheet

Family Spec Sheet

Sell Sheet

Installation Instructions

Info
Product Type  Adjustable Throw Wall Pack
Efficacy 128.7-167.3 lm/W
Wattage Selectable 30/40/50/60W
Lumen 4,418-8,862 lm
Color Temp. 3000/4000/5000K
CRI 83-86 CRI
Lifespan 100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Finish  Bronze/White
Field Adjustability Field Adjustable Light Output:
60W/50W/40W/30W (factory default 60W)
Color Temperature Selectable:
3000K, 4000K and 5000K (factory default 4000K)
Wattage Equivalency 50W: Replaces up to 250W Metal Halide (MH) or 200W High Pressure Sodium (HPS)
40W: Replaces up to 250W Metal Halide (MH) or 200W High Pressure Sodium (HPS)
30W: Replaces up to 175W Metal Halide (MH) or 150W High Pressure Sodium (HPS)



    Additional Info
    THD 60W: 4.53% at 120V, 10.6% at 277V
    50W: 4.93% at 120V, 11.91% at 277V
    40W: 5.74% at 120V, 14.66% at 277V
    30W: 7.54% at 120V, 19.61% at 277V
    Power Factor 60W: 99.7% at 120V, 94.6% at 277V
    50W: 99.6% at 120V, 93.5% at 277V
    40W: 99.4% at 120V, 91.4% at 277V
    30W: 99% at 120V, 87% at 277V
    Dimming Driver Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
    Driver
    		 60W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.56A, 208V: 0.34A, 240V: 0.30A, 277V: 0.27A
    50W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.47A, 208V: 0.30A, 240V: 0.25A, 277V: 0.23A
    40W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.38A, 208V: 0.24A, 240V: 0.21A, 277V: 0.19A
    30W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.29A, 208V: 0.19A, 240V: 0.17A, 277V: 0.14A
    Photocell
    120-277V selectable photocell that can be turned on and off.
    Surge Protection
    DM(L/N): 6KV, CM(L/N-PE): 6KV
