RAB SLIM37 37W LED Cutoff Wall Pack 30K/40K/50K

RAB SLIM37 37W LED Cutoff Wall Pack 30K/40K/50K

$408.00
$429.99 $408.00
Sale Sold out
Shipping calculated at checkout.
Color
Wattage
Color Temperature

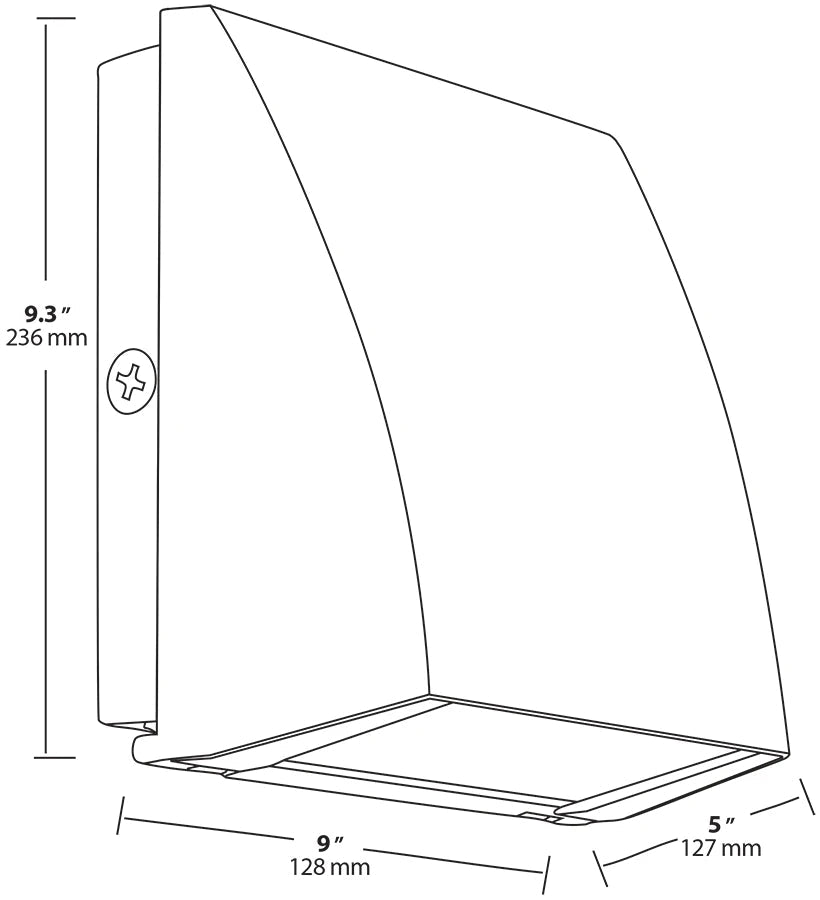

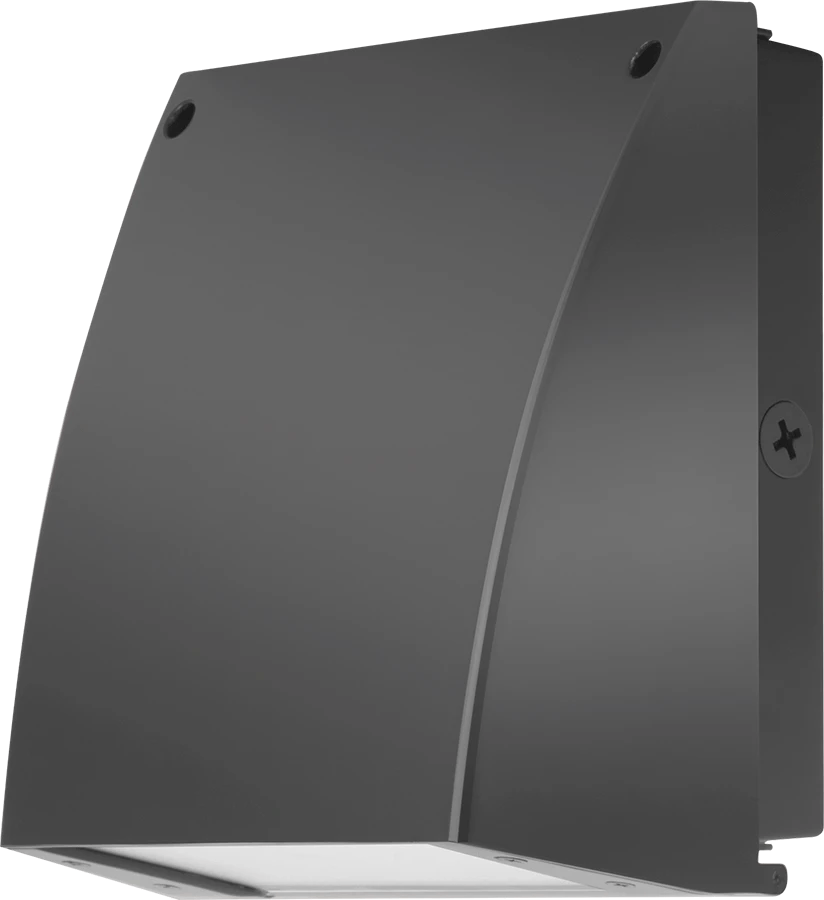

SLIM37 Wall Pack

37 Watt SLIM Wall packs are designed to cover the footprint of most traditional wall packs. They are suitable for mounting heights from 20' to 30', and replace HID Wattages from 200W MH to 320W MH. These ultra-high efficiency fixtures are available in cutoff or full cutoff models

  • Full cutoff, fully shielded LED wall pack
  • Can be used as a downlight or uplight
  • Contractor friendly features for easy installation
  • 100,000-hour LED Life
  • 5-Year, No-Compromise Warranty


Spec Sheet
Color Temp. Stock as of 10/24/22
30K Spec Sheet 91
40K Spec Sheet 121
50K Spec Sheet 1300


Installation Instructions

Info
Product Type  Flood Light
Wattage 37W
Lumen 3600-3900
Color Temp. 30K/40K/50K
CRI 71/73
L70 Lifespan 100,000
Housing Material Precision die-cast aluminum housing
Finish  White
Mounting Die-cast back box with four (4) conduit entry points and knockout pattern for junction box or direct wall mounting. Hinged housing and bubble level for easy installation.
Lens Microprismatic diffusion glass lens reduces glare and has smooth and even light distribution
LED Multi-chip, long-life LED
IP Rating Ingress protection rating of IP66 for dust and water
Cutoff Cutoff (10°)
     Additional Info
                                                    Compliance
    UL Listed Suitable for wet locations. Suitable for ground mounting
    IESNA LM-79 & LM-80 Testing RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80
    DLC Listed

    This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product Code:

    30K- PS6VFB6R

    40K- P9BJASW7

    50K-PYVKJZ59
                                                      Electrical
    Driver Constant Current, 100-277V. 50/60Hz, 100-277VAC 0.6A, 4kV Surge Protection, 700mA, Power Factor 99.4%.
    THD 22.1% at 347V
