RAB Lighting

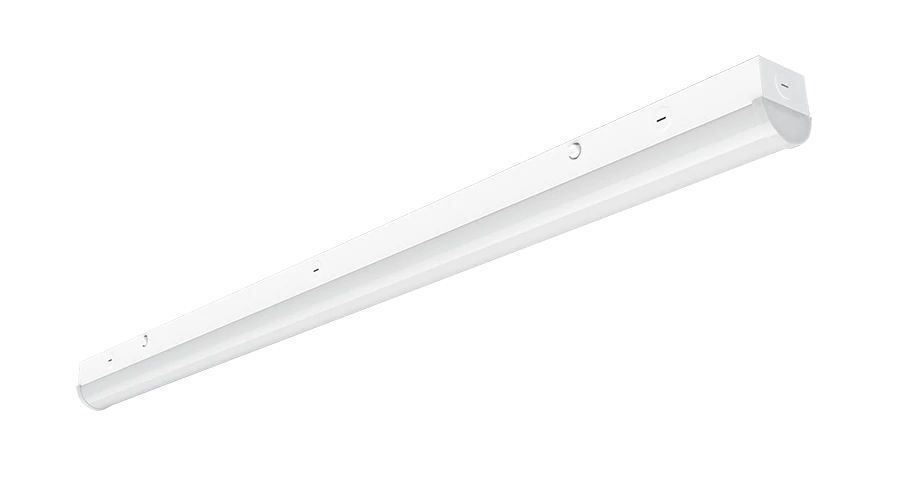

RAB SR4L 4FT 28W Strip Light Selectable Wattage & CCT

RAB SR4L 4FT 28W Strip Light Selectable Wattage & CCT

Regular price $73.00
Regular price Sale price $73.00
Sale Sold out
Shipping calculated at checkout.
Size
Color Temperature
Wattage

4FT 28W Strip Light

The SR strip light offers a wide range of options, making it suitable for various applications. With three field-adjustable wattages and CCTs (3500/4000/5000K) and 2ft, 4ft, and 8ft models available, this versatile light is ideal for both general purpose and low-bay use. Whether surface-mounted or suspended with accessories like V-hooks and 40" chains, the SR is adaptable to different locations. Plus, the joiner bracket accessory allows for easy continuous-run mounting.

  • 4 Ft (28/21/14W)
  • Field-adjustable CCT: 3500/4000/5000K
  • All models are compatible with Lightcloud Blue-enabled microwave or passive infrared occupancy sensor
  • Standard J-Box adapter. V-hooks are optional accessory for suspended mounting and Joiner Kit available for daisy chain use.
  • UL Listed for damp locations
  • 0-10V dimming
  • 5-Year, limited warranty
Spec Sheets

Spec Sheet

Family Spec Sheet

Sell Sheet

Installation Instructions

Info

Wattage 14/21/28W
Lumen 2,082-4,135 lm
Color Temp. 3500K-5000K
Efficacy 2,082-4,135 lm
CRI 84-85
L70 Lifespan 50,000 Hrs
Lens Polycarbonate lens
Mounting Surface mounting standard. V-Hooks and Chain mounting available (ordered separately, SR VHOOK KIT).
Housing Sheet Metal
Finish Formulated for high durability and long-lasting color
Additional Info
Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
Power Factor 99.4% at 120V, 97.2% at 277V
THD
6.99% at 120V, 15.63% at 277V
Surge Protection L-N 1KV, L/N-G 2KV
