RAB Lighting

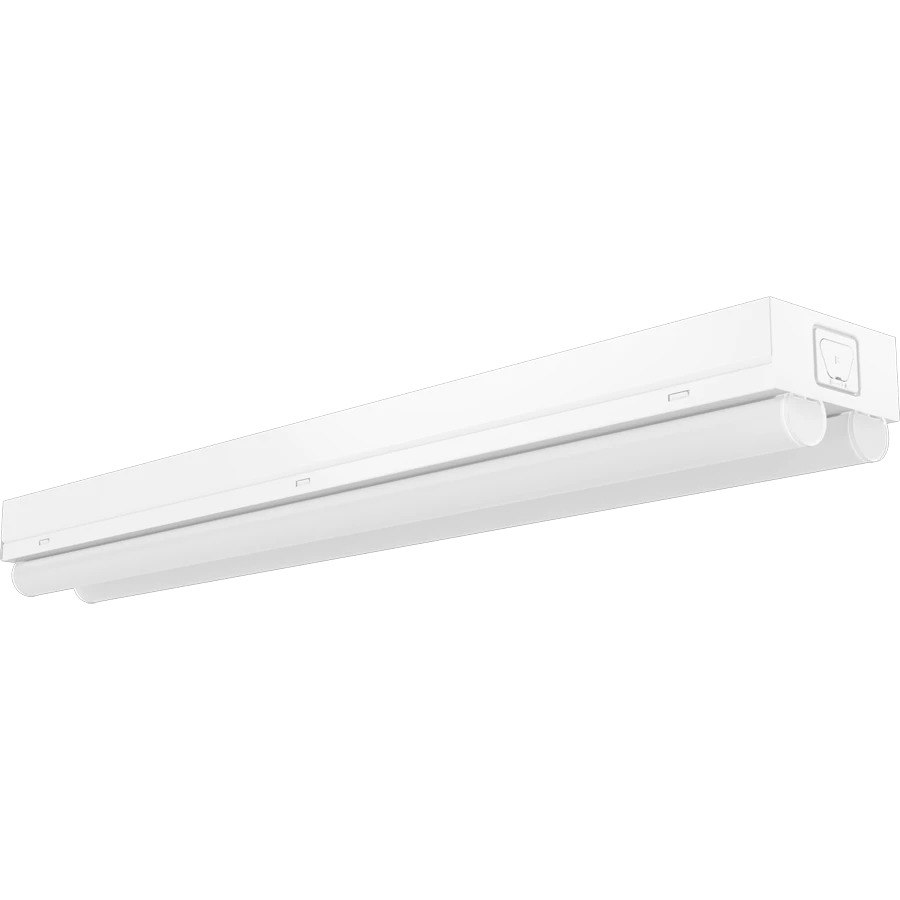

RAB STRP2H 20W 2FT Double Tube Strip Light Selectable CCT + Wattage

RAB STRP2H 20W 2FT Double Tube Strip Light Selectable CCT + Wattage

$56.00
$56.00
Sale Sold out
Shipping calculated at checkout.

RAB STRP2 – 2ft Field Adjustable LED Strip Light (10/8/6W)

The RAB STRP2 delivers powerful illumination in a slim 2ft housing. Ideal for small commercial, utility, and residential spaces, it features field-adjustable wattage and color temperature for maximum flexibility on-site.

  • Selectable Wattage: 10W / 8W / 6W
  • Selectable CCT: 3500K / 4000K / 5000K (Default 4000K)
  • Output: Up to 1,558 lumens
  • High Efficiency: Up to 152 lm/W
  • Voltage: 120–277V
  • 0–10V Dimmable
  • Damp Location Rated
  • 100,000-Hour Lifespan
Spec Sheet

Spec Sheet

Family Spec Sheet

Sell Sheet

Installation Instructions

Info
Watts 10/8/6W
Color Temp 3500K/4000K/5000K
Lumens 881-1558 lm
Efficacy 137.6-152.8 lm/W
Color Accuracy 83-85 CRI
L70 Lifespan 100,000 Hours
Additional Info


Driver

Constant Current, Class 2, 120-277V, 50/60 Hz:

10W: 120V: 0.083A, 208V: 0.048A, 240V: 0.042A, 277V: 0.036A
8W: 120V: 0.667A, 208V: 0.038A, 240V: 0.333A, 277V: 0.029A
6W: 120V: 0.050A, 208V: 0.029A, 240V: 0.025A, 277V: 0.022A
Dimming Driver Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD 6.37% at 120V, 10.43% at 277V
Power Factor 99.4% at 120V, 92.4% at 277V
Aux Power Supply Yes
Dim to Off Yes
Surge Protection DM: 1 kV
CM: 2 kV
