RAB Lighting

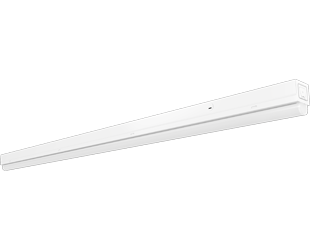

RAB STRP4 20W 4FT Strip Light Selectable CCT + Wattage

RAB STRP4 20W 4FT Strip Light Selectable CCT + Wattage

$70.00
$70.00
Sale Sold out
Shipping calculated at checkout.
Size
Color Temperature
Wattage

RAB STRP4 – 4ft Field Adjustable LED Strip Light (20/15/10W)

The RAB STRP4 delivers powerful illumination in a slim 4ft housing. Ideal for small commercial, utility, and residential spaces, it features field-adjustable wattage and color temperature for maximum flexibility on-site.

  • Selectable Wattage: 20W/15W/10W
  • Selectable CCT: 3500K / 4000K / 5000K (Default 4000K)
  • Output: Up to 3109 lumens
  • High Efficiency: Up to 152 lm/W
  • Voltage: 120–277V
  • 0–10V Dimmable
  • Damp Location Rated
  • 100,000-Hour Lifespan
Spec Sheet

Spec Sheet

Family Spec Sheet

Sell Sheet

Installation Instructions

Info
Watts 20/15/10W (factory default 20W)
Color Temp 3500K/4000K/5000K (factory default 4000K)
Lumens 1558-3109 lm
Efficacy 148.4-161.1 lm/W
Color Accuracy 83-85 CRI
L70 Lifespan 100,000 Hours
Additional Info


Driver



Constant Current, Class 2, 120-277V, 50/60 Hz:
20W: 120V: 0.167A, 208V: 0.096A, 240V: 0.083A, 277V: 0.072A
15W: 120V: 0.125A, 208V: 0.072A, 240V: 0.063A, 277V: 0.054A
10W: 120V: 0.083A, 208V: 0.048A, 240V: 0.042A, 277V: 0.036A


Dimming Driver Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD 6.37% at 120V, 10.43% at 277V
Power Factor 99.4% at 120V, 92.4% at 277V
Aux Power Supply Yes
Dim to Off Yes
Surge Protection DM: 1 kV
CM: 2 kV
