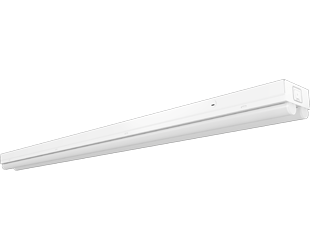

RAB STRP4H – 4ft Field Adjustable LED Strip Light (40/30/20W)

The RAB STRP4H delivers powerful illumination in a slim 4ft housing. Ideal for small commercial, utility, and residential spaces, it features field-adjustable wattage and color temperature for maximum flexibility on-site.

  • Selectable Wattage: 40/30/20W
  • Selectable CCT: 3500K / 4000K / 5000K (Default 4000K)
  • Output: Up to 3109 lumens
  • High Efficiency: Up to 152 lm/W
  • Voltage: 120–277V
  • 0–10V Dimmable
  • Damp Location Rated
  • 100,000-Hour Lifespan
Spec Sheet

Spec Sheet

Family Spec Sheet

Sell Sheet

Installation Instructions

Info
Watts 40/30/20W(factory default 40W)
Color Temp 3500K/4000K/5000K (factory default 4000K)
Lumens 2924-5815 lm
Efficacy 146.4-160.1 lm/W
Color Accuracy 83-85 CRI
L70 Lifespan 100,000 Hours
Additional Info

Driver Constant Current, Class 2, 120-277V, 50/60 Hz:
40W: 120V: 0.333A, 208V: 0.192A, 240V: 0.167A, 277V: 0.144A
30W: 120V: 0.250A, 208V: 0.144A, 240V: 0.125A, 277V: 0.108A
20W: 120V: 0.167A, 208V: 0.096A, 240V: 0.083A, 277V: 0.072A
Dimming Driver Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD 6.37% at 120V, 10.43% at 277V
Power Factor 99.4% at 120V, 92.4% at 277V
Aux Power Supply Yes
Dim to Off Yes
Surge Protection DM: 1 kV
CM: 2 kV
