RAB Lighting

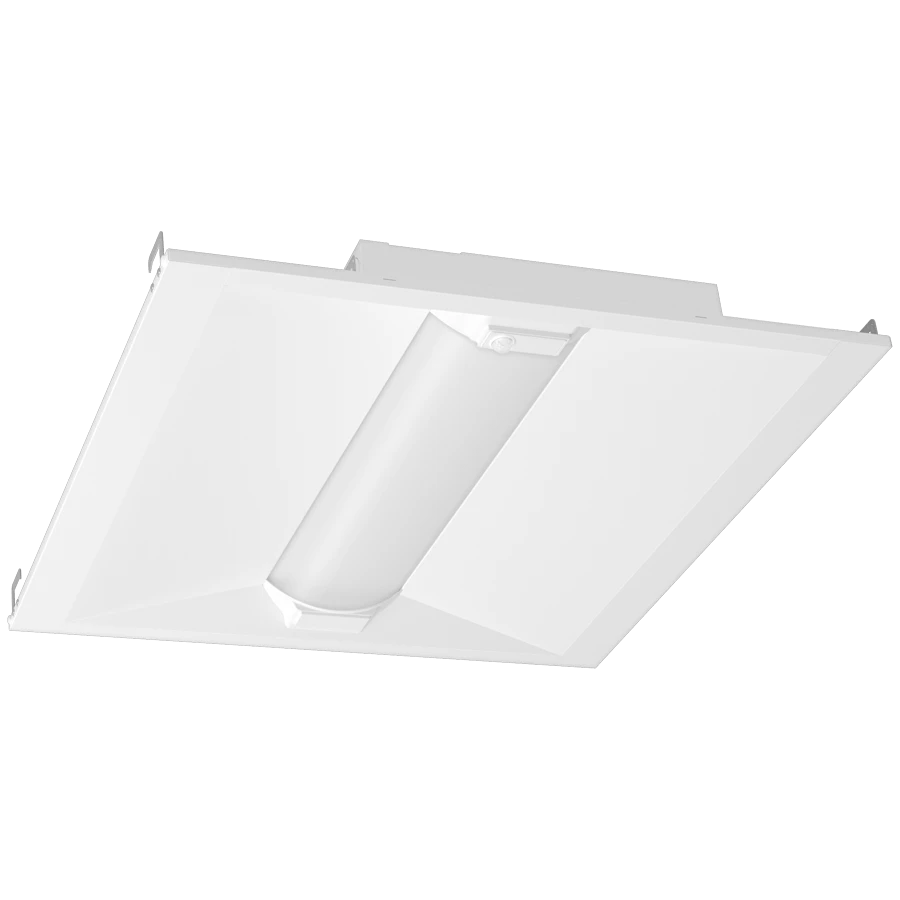

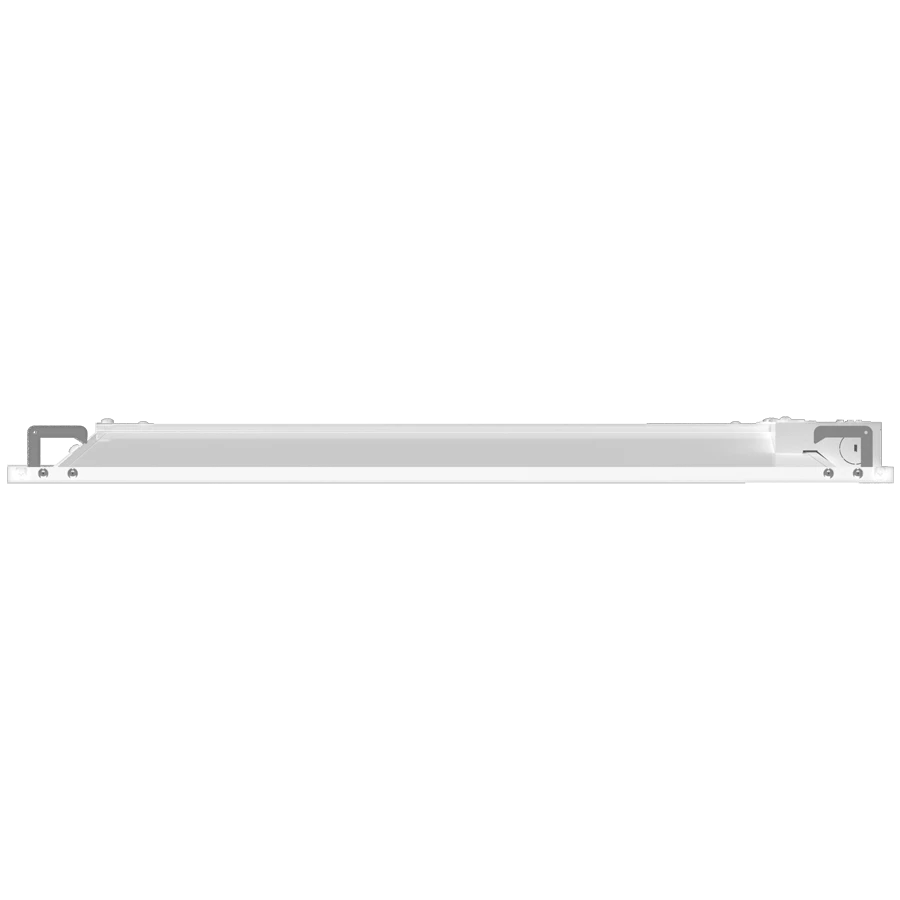

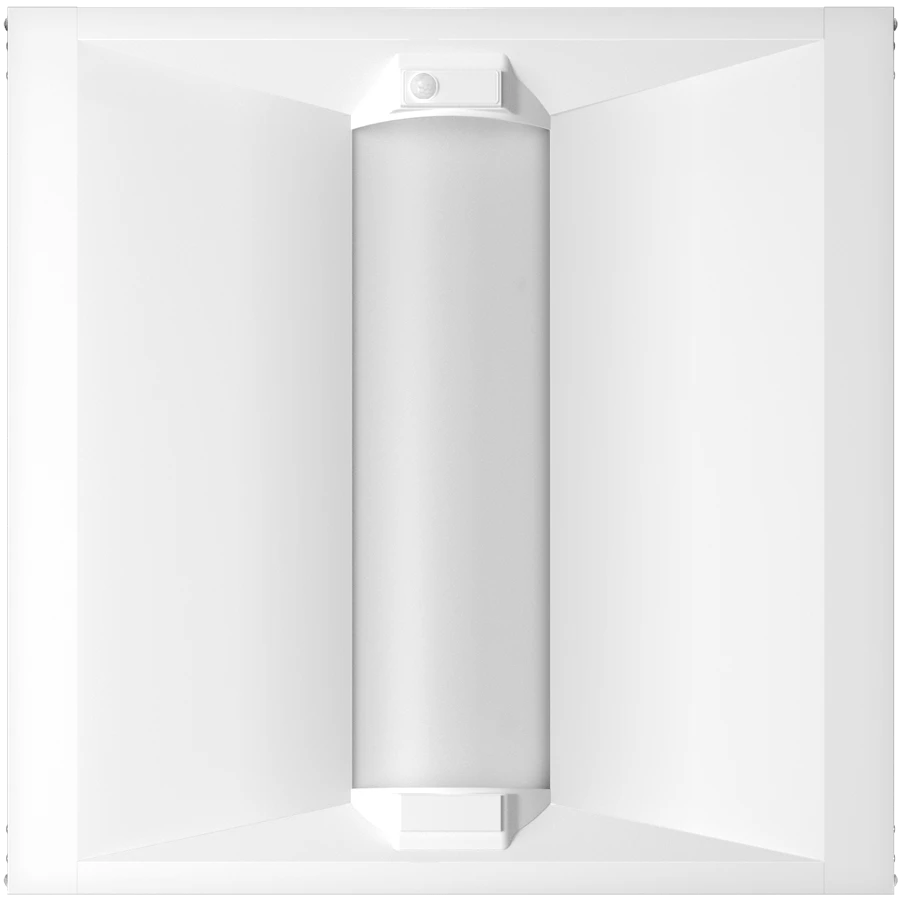

RAB SWISH34-2X2 30W LED Troffer 2FT X 2FT Selectable CCT/Wattage

RAB SWISH34-2X2 30W LED Troffer 2FT X 2FT Selectable CCT/Wattage

Regular price $75.00
Regular price Sale price $75.00
Sale Sold out
Shipping calculated at checkout.
Size
Color Temperature
Wattage

30W 2X2 Troffer

The updated SWISH34 offers even more value for your money with field-adjustable lumen output and color temperature to meet a variety of lighting needs. This versatile fixture simplifies inventory organization and suits a wide range of spaces, from corporate boardrooms to hospital hallways. Its sleek design and intelligent controls make it a suitable choice for commercial environments, while its customizable output makes it well-suited for educational, office, and healthcare facilities.

  • SWISH34-2X2: 18/25/30W - Factory default: 30W
  • Field-Adjustable CCT: 3500/4000/5000K - Factory default: 4000K
  • Voltage rating: 120-277V
  • Suitable for damp locations
  • Suitable for direct contact with insulation
  • Available with standard or Lightcloud Blue-enabled PIR/MVS sensors.
  • Battery backup available
  • 5-Year, limited warranty
Spec Sheets

Spec Sheet

Family Spec Sheet

Sell Sheet

Installation Instructions

Info
Wattage 18/25/30W
Lumen 2,397-3,700 lm
Color Temp. 3500/4000/5000K
Efficacy 125.3-135.5 lm/W
CRI 85-86
L70 Lifespan 100,000 Hours
Mounting Recessed into T-grid ceiling. Surface and recessed mounting kits available for drywall ceilings.
Additional Info

Driver
30W: Constant Current, Isolated/Class 2, 120-277V, 50/60 Hz, 120V: 0.25A, 208V: 0.14A, 240V: 0.13A, 277V: 0.11A
25W: Constant Current, Isolated/Class 2, 120-277V, 50/60 Hz, 120V: 0.21A, 208V: 0.12A, 240V: 0.10A, 277V: 0.09A
18W: Constant Current, Isolated/Class 2, 120-277V, 50/60 Hz, 120V: 0.15A, 208V: 0.09A, 240V: 0.08A, 277V: 0.06A
Dimming Driver Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD 3.74% at 120V, 4.41 % at 277V
Power Factor 99.7% at 120V, 96.2% at 277V
Aux Power Supply Yes
Dim to Off Yes
Surge Protection L-N:2.5KV,L/N-GND:2.5KV
