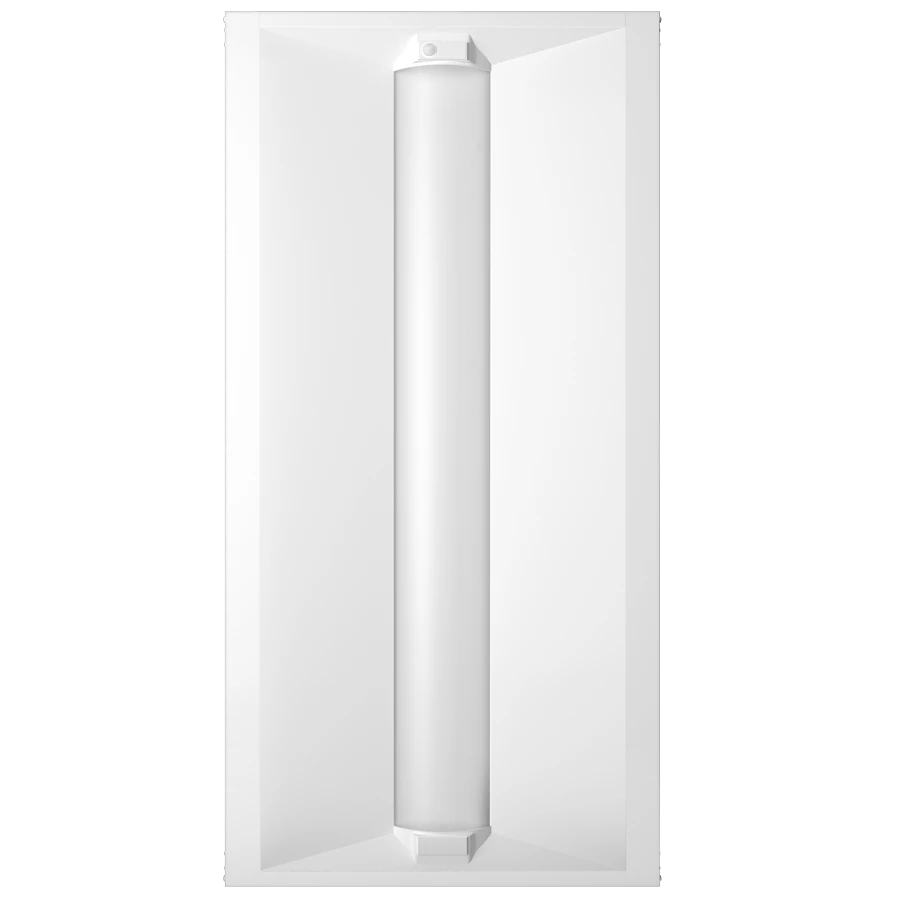

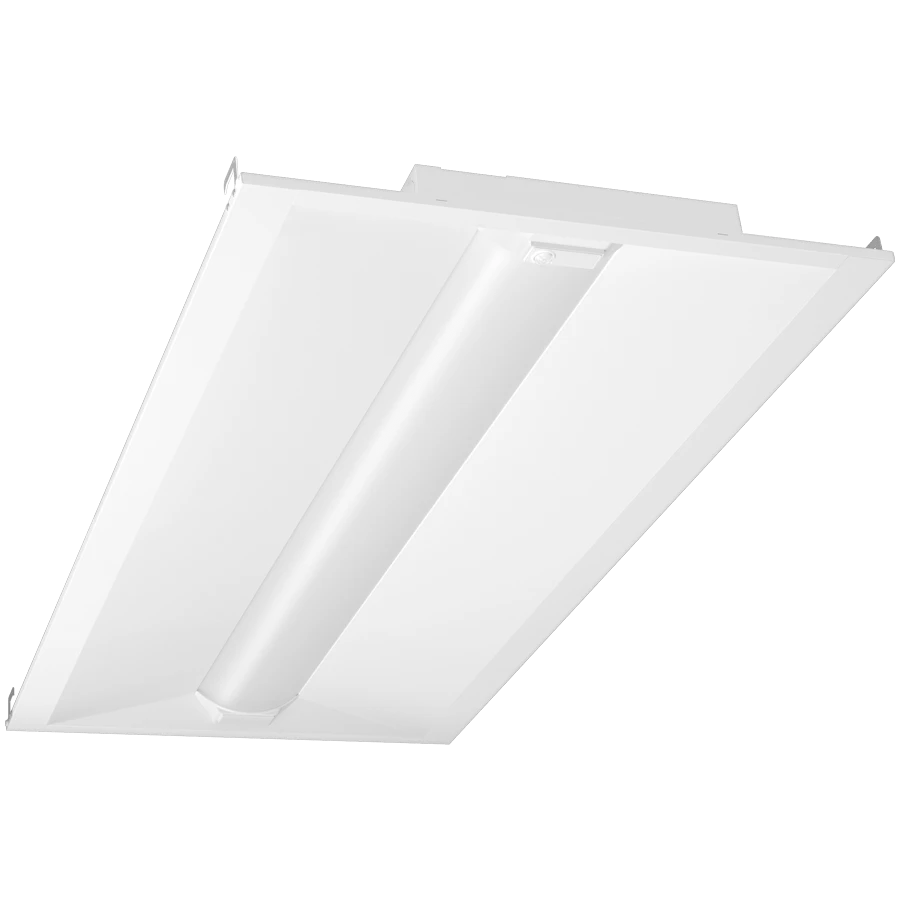

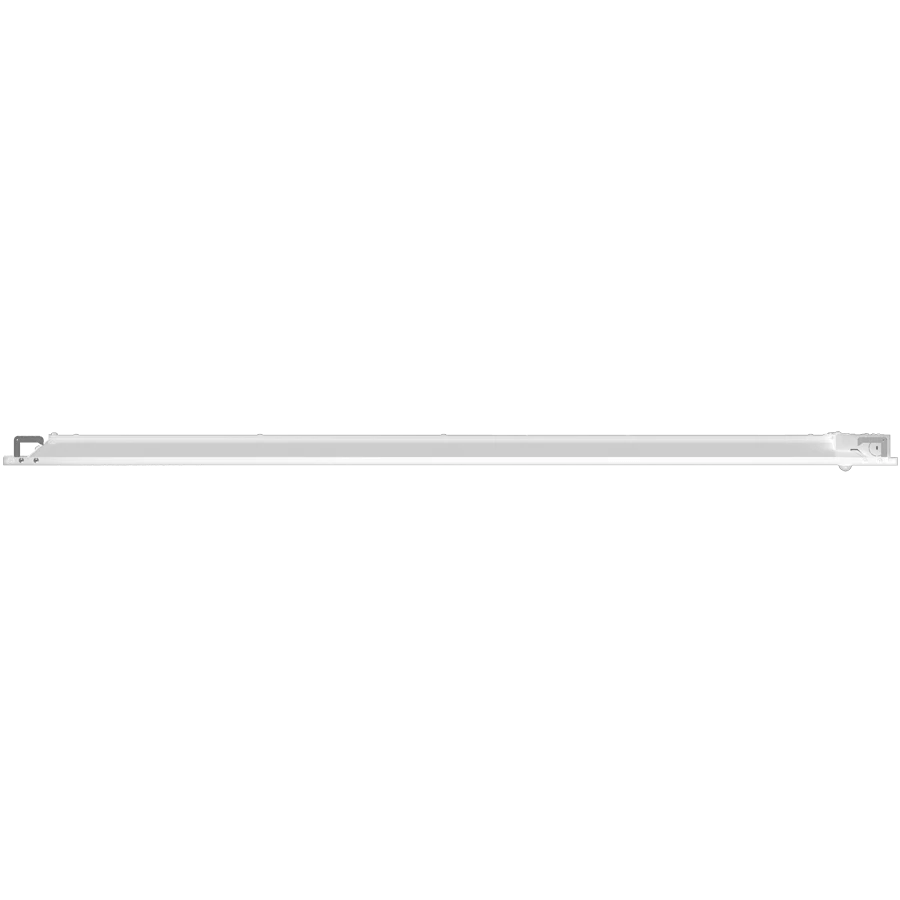

RAB SWISH34-2X4 40W LED Troffer 2FT X 4FT Selectable CCT/Wattage

RAB SWISH34-2X4 40W LED Troffer 2FT X 4FT Selectable CCT/Wattage

Regular price $93.00
Regular price Sale price $93.00
Sale Sold out
Shipping calculated at checkout.
Size
Color Temperature
Wattage

40W 2X4 Troffer

The updated SWISH34 offers even more value for your money with field-adjustable lumen output and color temperature to meet a variety of lighting needs. This versatile fixture simplifies inventory organization and suits a wide range of spaces, from corporate boardrooms to hospital hallways. Its sleek design and intelligent controls make it a suitable choice for commercial environments, while its customizable output makes it well-suited for educational, office, and healthcare facilities.

  • SWISH34-2X4: 40/35/30W - Factory default: 40W
  • Field-Adjustable CCT: 3500/4000/5000K - Factory default: 4000K
  • Voltage rating: 120-277V
  • Suitable for damp locations
  • Suitable for direct contact with insulation
  • Available with standard or Lightcloud Blue-enabled PIR/MVS sensors.
  • Battery backup available
  • 5-Year, limited warranty
Spec Sheets

Spec Sheet

Family Spec Sheet

Sell Sheet

Installation Instructions

Info
Wattage 30/35/40
Lumen 4,140-5,509 lm
Color Temp. 27K-50K
Efficacy 130.3-145 lm/W
CRI 84-85
L70 Lifespan 50,000
Mounting Recessed into T-grid ceiling. Surface and recessed mounting kits available for drywall ceilings.
Additional Info

Driver 40W: Constant Current, Isolated/Class 2, 120-277V, 50/60 Hz, 120V: 0.33A, 208V: 0.19A, 240V: 0.17A, 277V: 0.14A
35W: Constant Current, Isolated/Class 2, 120-277V, 50/60 Hz, 120V: 0.29A, 208V: 0.17A, 240V: 0.15A, 277V: 0.13A
30W: Constant Current, Isolated/Class 2, 120-277V, 50/60 Hz, 120V: 0.25A, 208V: 0.14A, 240V: 0.13A, 277V: 0.11A
Dimming Driver Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD 6.22% at 120V, 4.49% at 277V
Power Factor 99.6% at 120V, 96.4% at 277V
Aux Power Supply Yes
Dim to Off Yes
Surge Protection L-N:2.5KV,L/N-GND:2.5KV
