RAB TK22L TRACK22 30W LargeTrack Light Selectable CCT + Beam Adjustable
RAB TK22L TRACK22 30W LargeTrack Light Selectable CCT + Beam Adjustable
Regular price
$136.00
Regular price
Sale price
$136.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
RAB TK22L Track Lighting

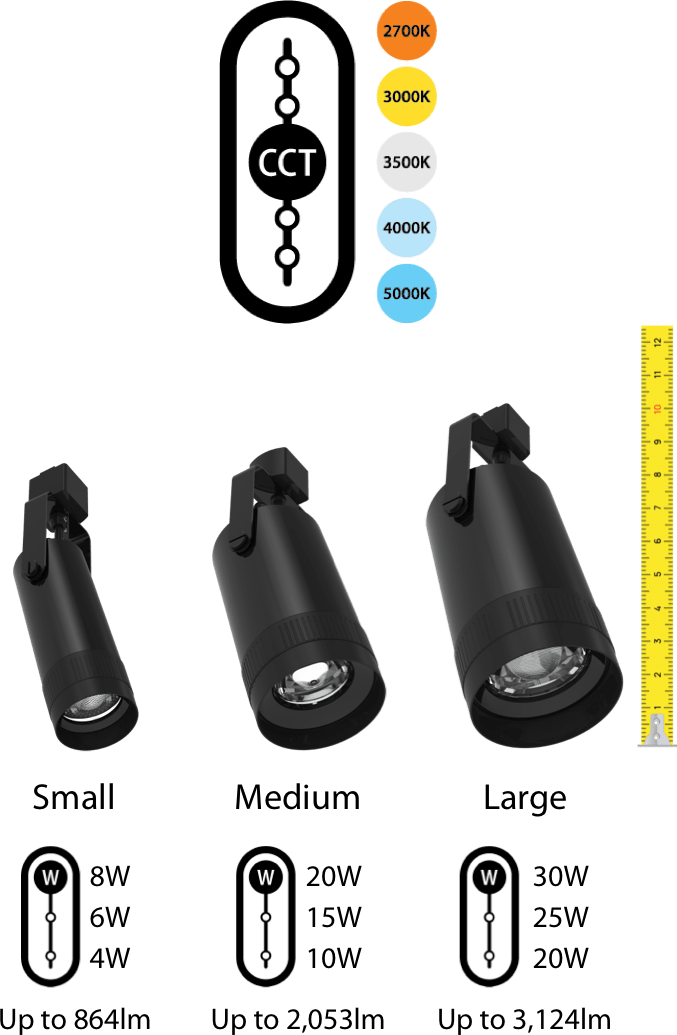

Experience precision lighting with the RAB TK22L TRACK22 30W Large Track Light, featuring selectable color temperatures and adjustable beam angles. Its sleek design offers unmatched flexibility with three sizes, three wattage options, and five CCT settings, letting you craft the ideal atmosphere. Enjoy precise control with tunable optics—from 15° to 55° beam angles—plus 350° rotation and 180° swing to direct light exactly where needed. Operating on standard 120V with TRIAC dimming, it delivers vibrant color accuracy (90+ CRI) and durable PMMA lenses. Customize further with a range of accessories and seamless compatibility with H-type track systems for a complete lighting solution.
- Selectable wattage: 30W, 25W, 20W
- Beam angle: 15° to 55°
- 5 CCT options: 2700K to 5000K
- High CRI of 90+
- TRIAC dimming capable
Spec Sheet
Spec Sheet
Family Spec Sheet
Installation Instructions
Sell Sheet
Info
| Type | Field Adjustable Track Light |
| Field Adjustability | Field Adjustable Light Output: 30/25/20W (factory default 30W) Color temperature selectable 27K-50K (factory default 40K) Beam angle selectable by 15°, 20°, 30°, 40°, and 55° (factory default 55°) |
| Watts | 30/25/20W |
| Color Temp | 2700/3000/3500/4000/5000K |
| Lumens | 1840-3124 lm |
| Efficacy | 86.7-116.5 lm/W |
| Color Accuracy | 94-98 CRI |
| L70 Lifespan | 100,000 Hours |
Additional Info
| Driver | Constant Current, Class 1, 120V, 60 Hz, 120V: 0.33A |
| Dimming Driver | 120V TRIAC Dimmers |
| Surge Protection | L-N:2.5 kV,LN-PE 2.5 kV |
| Aux Power Supply | No |
