RAB Lighting
RAB TK22M TRACK22 20W Medium Track Light Selectable CCT + Beam Adjustable
RAB TK22M TRACK22 20W Medium Track Light Selectable CCT + Beam Adjustable
Regular price
$93.00
Regular price
Sale price
$93.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

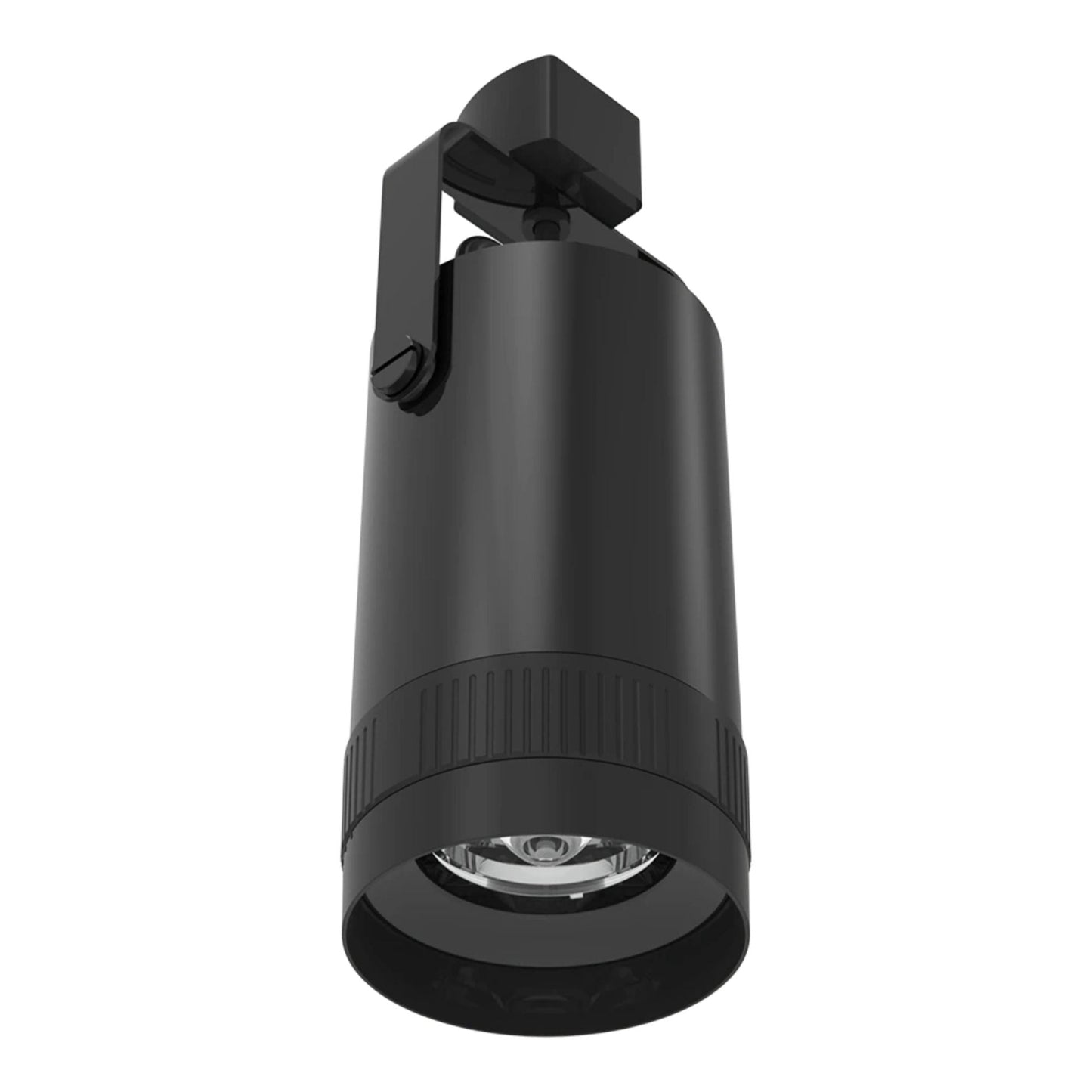

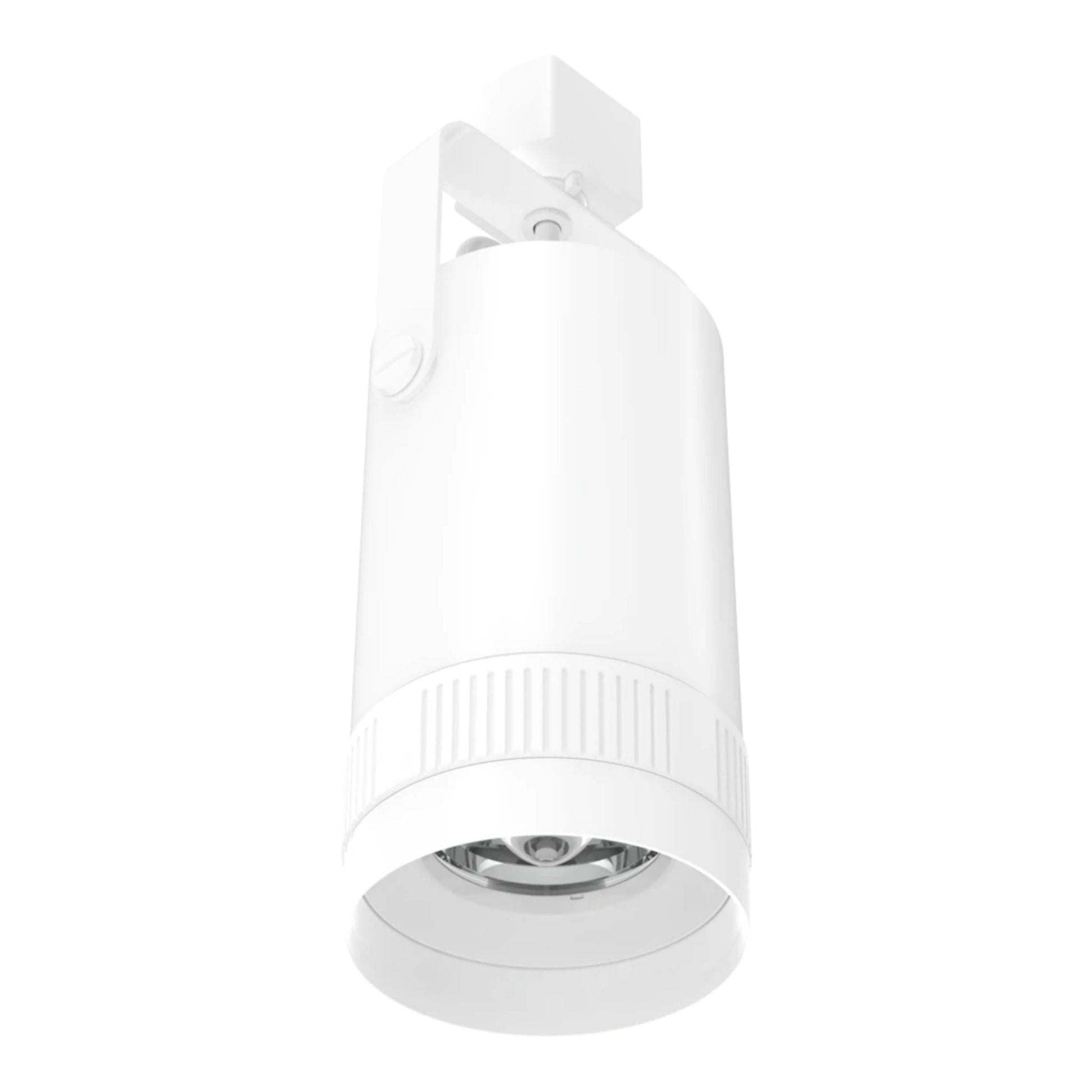

RAB TRACK22 Field-Adjustable Track Light

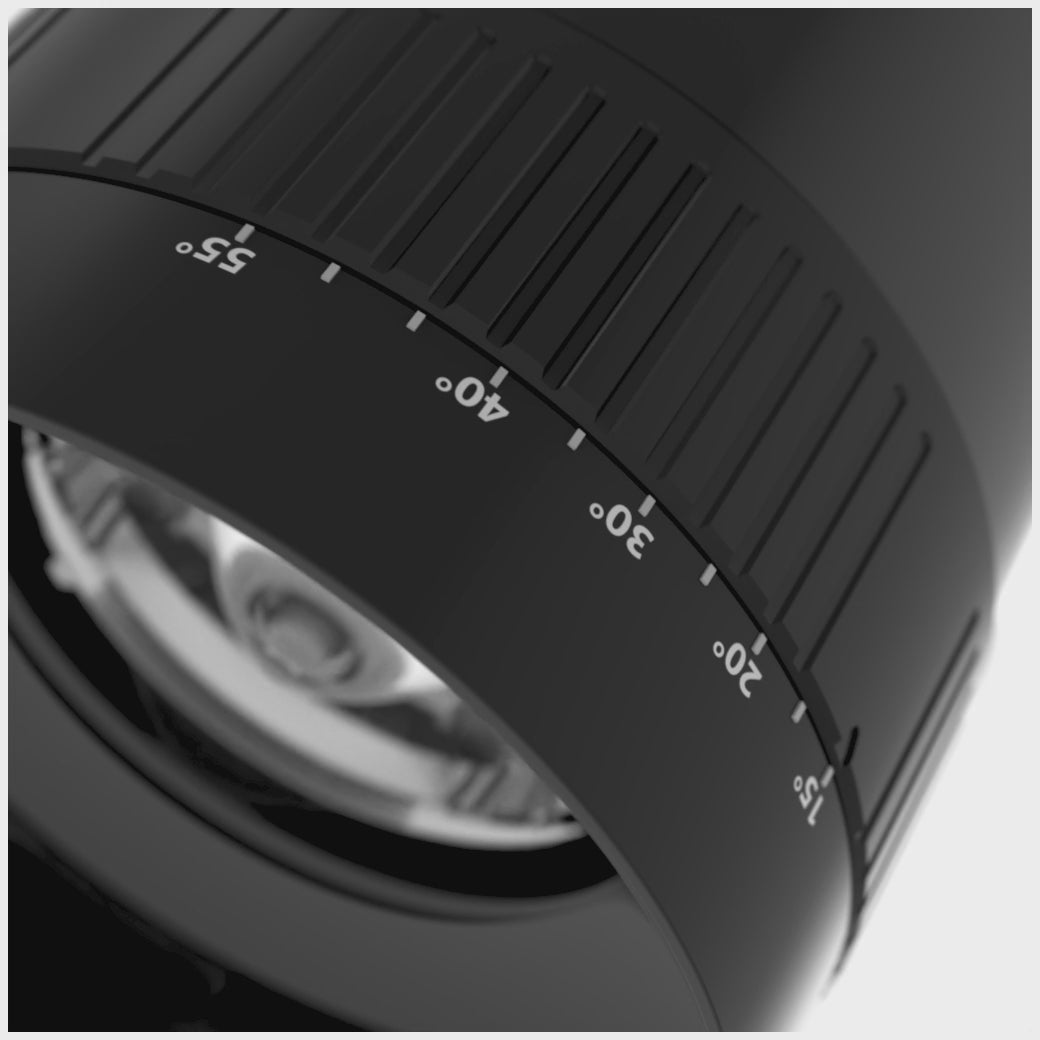

The RAB TRACK22 series offers unparalleled flexibility for any lighting application, featuring selectable wattage and five CCT options. This track light is designed for precision with beam angles adjustable from 15° to 55°, allowing for customized lighting setups. With a high color rendering index of 90+, it ensures accurate color representation, ideal for retail or gallery installations. The fixture's 350° rotation and 180° swing provide extensive aiming capabilities, making it suitable for versatile environments.
- Selectable Wattage & CCT
- Tunable Optics for precise control
- High 90+ CRI for true color representation
- Compatible with H-track systems
- TRIAC dimmable
Spec Sheet
Spec Sheet
Family Spec Sheet
Installation Instructions
Sell Sheet
Info
| Type | Field Adjustable Track Light |

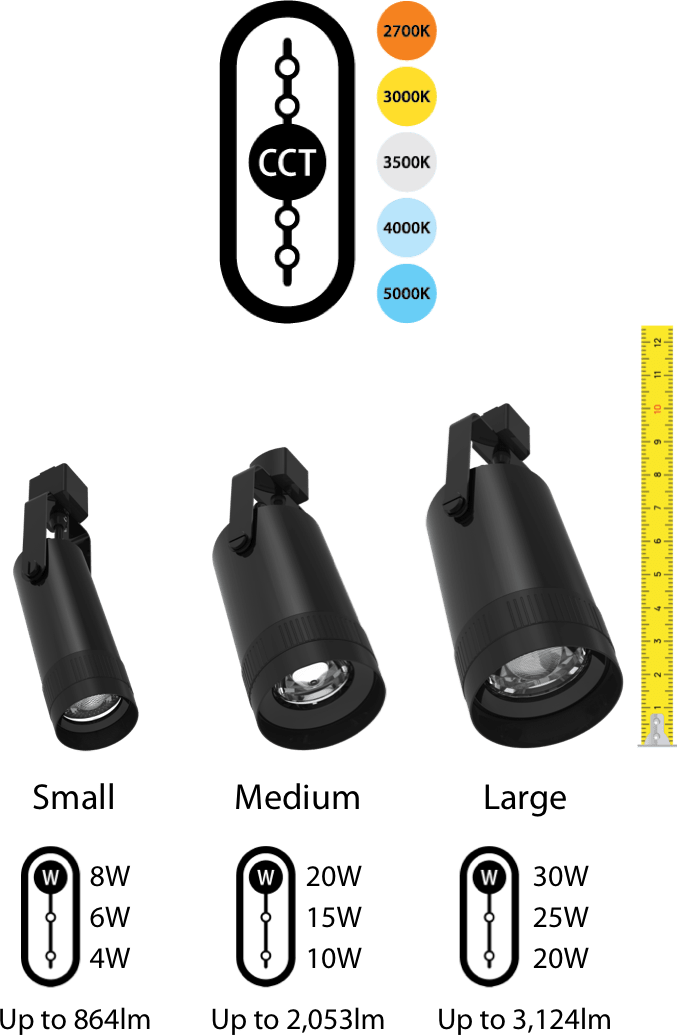

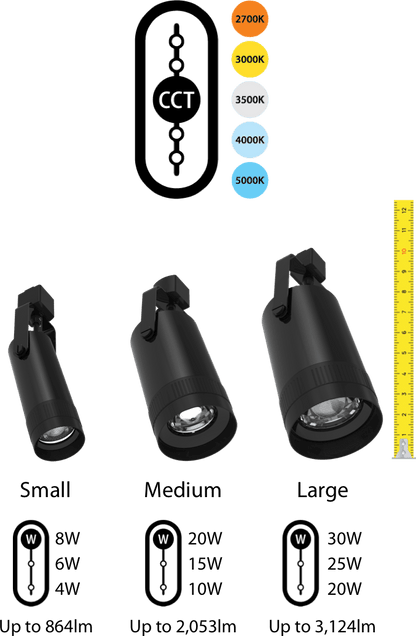

| Field Adjustability | Field Adjustable Light Output: 20/15/10W (factory default 20W) Color temperature selectable 27K-50K (factory default 40K) Beam angle selectable by 15°, 20°, 30°, 40°, and 55° (factory default 55°) |
| Watts | 20/15/10W |
| Color Temp | 2700/3000/3500/4000/5000K |
| Lumens | 948-2053 Lm |
| Efficacy | 86.7-116.5 lm/W |
| Color Accuracy | 94-98 CRI |
| L70 Lifespan | 100,000 Hours |
Additional Info
| Driver | Constant Current, Class 1, 120V, 60 Hz, 120V: 0.33A |
| Dimming Driver | 120V TRIAC Dimmers |
| Surge Protection | L-N:2.5 kV,LN-PE 2.5 kV |
| Aux Power Supply | No |
