RAB Lighting

RAB TOMO-4 4FT 48W Linear Pendant Mount Selectable CCT/Wattage

RAB TOMO-4 4FT 48W Linear Pendant Mount Selectable CCT/Wattage

$258.00
$258.00
Sale Sold out
Shipping calculated at checkout.
Size
Color Temperature
Wattage

4FT 48W Linear Pendant Mount

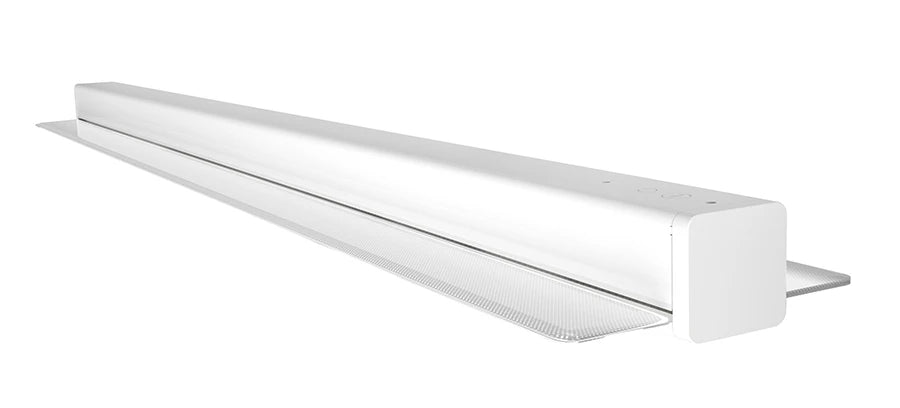

Combining standard wrap performance and high-end linear lighting, TOMO offers adjustable wattage and CCT options for an affordable price. Featuring "wing" lenses with dot-matrix patterns, TOMO offers 30% uplight and reduced glare for a contemporary look. The fixture comes with aircraft cable for suspended mounts and a stainless bracket for junction box mounting.

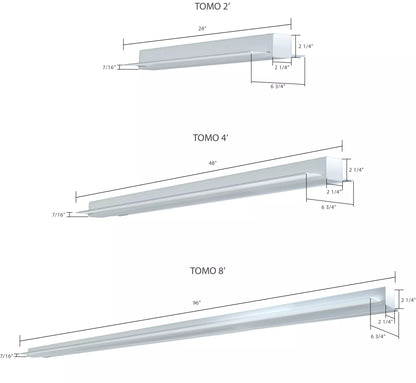

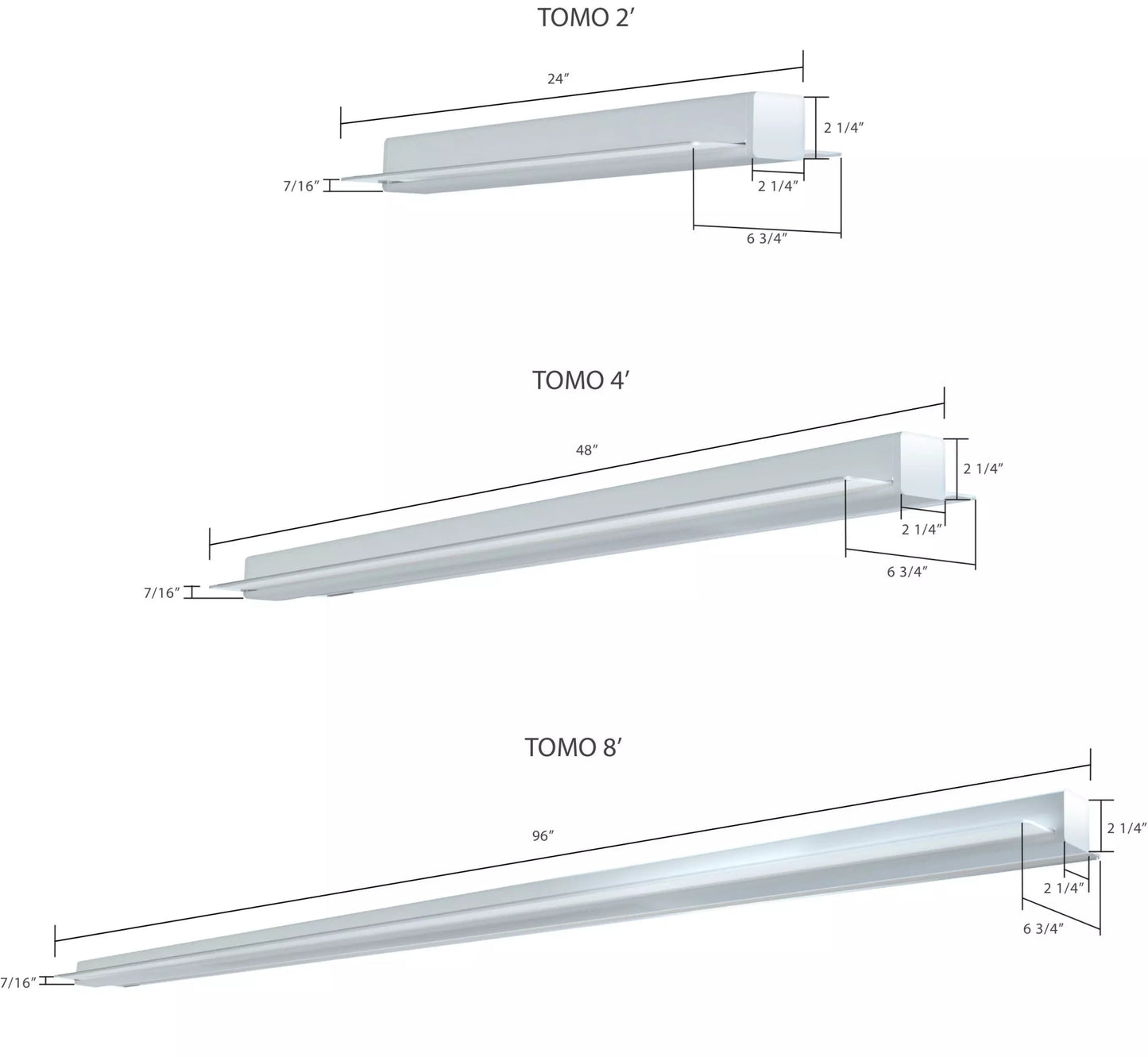

  • Available in following sizes / selectable wattages:
    TOMO2: 2FT - 24/18/12W (Factory default 18W)
    TOMO4: 4FT - 48/36/24W (Factory default 36W)
    TOMO8: 8FT - 96/72/48W (Factory default 72W)
  • Available field-adjustable CCTs: 5000/4000/3500/3000K
  • End-to-end connector available for continuous run mounting
  • 5-Year, No-Compromise Warranty
  • UL listed for damp locations
  • DLC listed


Spec Sheets

Spec Sheet

Installation Instructions

Info


Wattage 48W
Lumen 2888-6603 lm
Color Temp. 30K-50K
Efficacy 122.2-135.4 lm/w
Lifespan 100,000-Hour LED lifespan based on IES LM-80
results and TM-21 calculations
Lighting Pattern 70% downlight, 30% uplight
Lens Diffused Polymethyl Methacrylate (PMMA)
Finish  Formulated for high durability and long-lasting color
Mounting Comes standard with two mounting accessories:
aircraft cable for secure, suspended mounts and a
stainless bracket for easy mounting to junction
boxes
Finish Formulated for high durability and long-lasting color
Additional Info

 Compliance

Safety Listing UL Listed Suitable for damp locations
Environment/Fixture Rating Damp Location
DLC Listed This product is on the Design Lights Consortium
(DLC) Qualified Products List and is eligible for
rebates from DLC Member Utilities. Designed to
meet DLC 5.1 requirements.
DLC Product Code: S-6KWZJ1
Electrical
Driver 24W: Constant Current, Class 2, 120-277V, 50/60Hz, 120V: 0.20A, 208V: 0.12A, 240V: 0.10A, 277V: 0.09A
36W: Constant Current, Class 2, 120-277V, 50/60Hz, 120V: 0.30A, 208V: 0.18A, 240V: 0.15A, 277V: 0.13A
48W: Constant Current, Class 2, 120-277V, 50/60Hz, 120V: 0.40A, 208V: 0.23A, 240V: 0.20A, 277V: 0.18A
THD

6.6% at 120V, 11.4% at 277V
Dimming Driver Driver includes dimming control wiring for 0-10V
dimming systems. Requires separate 0-10V DC
dimming circuit. Dims down to 5%.
Power Factor 99.6% at 120V, 96.9% at 277V
Operating Temperature -30°C (-22°F) to 40°C (104°F)
