RAB Lighting

RAB TOMO-4WM 4FT 48W Linear Wall Mount Selectable CCT/Wattage

RAB TOMO-4WM 4FT 48W Linear Wall Mount Selectable CCT/Wattage

Regular price $258.00
Regular price Sale price $258.00
Sale Sold out
Shipping calculated at checkout.
Size
Color Temperature
Wattage

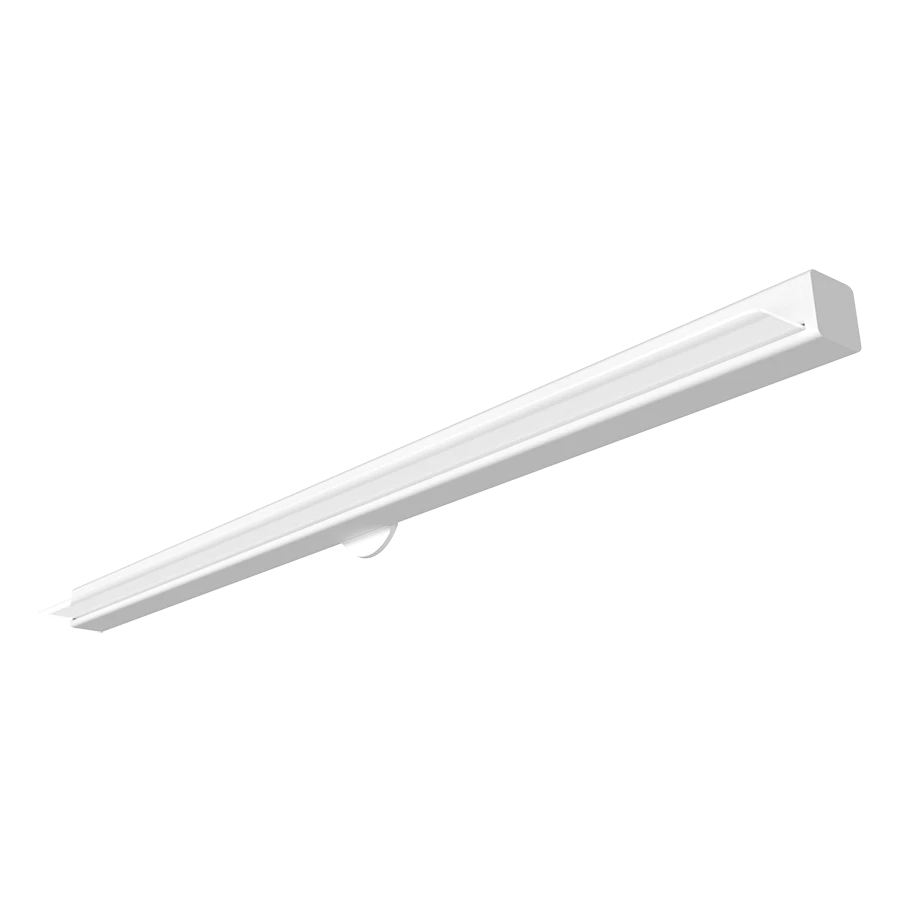

4FT 48W Linear Wall Mount

Combining standard wrap performance and high-end linear lighting, TOMO offers adjustable wattage and CCT options for an affordable price. Featuring "wing" lenses with dot-matrix patterns, TOMO offers 30% up light and reduced glare for a contemporary look.

  • Available in following sizes / selectable wattages:
    TOMO2WM: 2FT - 6/9/12W (Factory default 9W)
    TOMO4WM: 4FT - 12/18/24W (Factory default 18W)
    TOMO8WM: 8FT - 24/36/48W (Factory default 36W)
  • Available field-adjustable CCTs: 5000/4000/3500/3000K
  • End-to-end connector available for continuous run mounting
  • 5-Year, No-Compromise Warranty
  • UL listed for damp locations
  • DLC listed


Spec Sheets

Spec Sheet

Family Spec Sheet

Installation Instructions

Info

Wattage 12/18/24W
Lumen 1,617-3,285 lm
Color Temp. 30K-50K
Efficacy 122.2-135.4 lm/w
Lifespan 100,000-Hour LED lifespan based on IES LM-80
results and TM-21 calculations
Lighting Pattern 70% downlight, 30% uplight
Lens Diffused Polymethyl Methacrylate (PMMA)
Finish  Formulated for high durability and long-lasting color
Mounting Wall Mount
Finish Formulated for high durability and long-lasting color
Additional Info

 Compliance

Safety Listing UL Listed Suitable for damp locations
Environment/Fixture Rating Damp Location
DLC Listed This product is on the Design Lights Consortium
(DLC) Qualified Products List and is eligible for
rebates from DLC Member Utilities. Designed to
meet DLC 5.1 requirements.
DLC Product Code: S-QVC7KF
Electrical
Driver 24W: Class 2, Class P, Constant Current, 120-277V, 50/60 Hz, 120V: 0.20A, 208V: 0.13A, 240V: 0.10A, 277V: 0.09A
18W: Class 2, Class P, Constant Current, 120-277V, 50/60 Hz, 120V: 0.14A, 208V: 0.10A, 240V: 0.08A, 277V: 0.07A
12W: Class 2, Class P, Constant Current, 120-277V, 50/60 Hz, 120V: 0.10A, 208V: 0.07A, 240V: 0.06A, 277V: 0.05
THD 8.63% at 120V, 8.7% at 277V
Dimming Driver Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 5%.
Power Factor 97.4% at 120V, 92.9% at 277V
Operating Temperature -30°C (-22°F) to 40°C (104°F)
