RAB Lighting

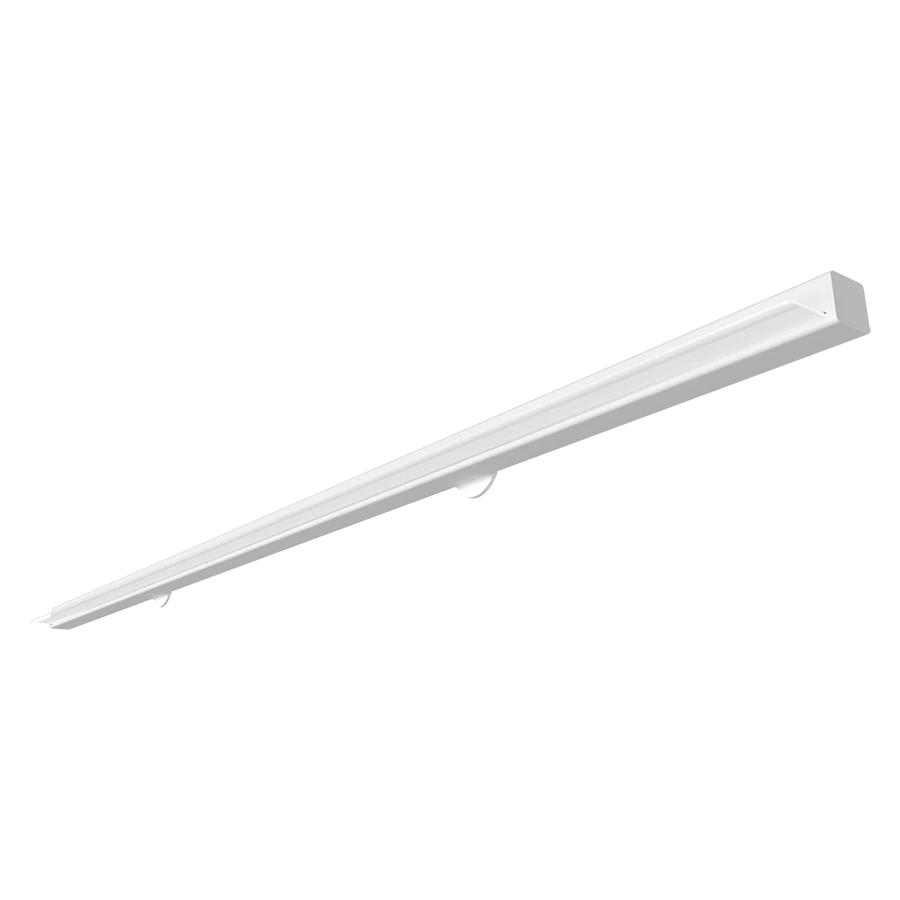

RAB TOMO-8WM 8FT 48W Linear Wall Mount Selectable CCT/Wattage

RAB TOMO-8WM 8FT 48W Linear Wall Mount Selectable CCT/Wattage

$465.00
$465.00
Sale Sold out
Shipping calculated at checkout.
Size
Color Temperature
Wattage

8FT 48W Linear Wall Mount

Combining standard wrap performance and high-end linear lighting, TOMO offers adjustable wattage and CCT options for an affordable price. Featuring "wing" lenses with dot-matrix patterns, TOMO offers 30% up light and reduced glare for a contemporary look.

  • Available in following sizes / selectable wattages:
    TOMO2WM: 2FT - 6/9/12W (Factory default 9W)
    TOMO4WM: 4FT - 12/18/24W (Factory default 18W)
    TOMO8WM: 8FT - 24/36/48W (Factory default 36W)
  • Available field-adjustable CCTs: 5000/4000/3500/3000K
  • End-to-end connector available for continuous run mounting
  • 5-Year, No-Compromise Warranty
  • UL listed for damp locations
  • DLC listed


Spec Sheets

Spec Sheet

Family Spec Sheet

Installation Instructions

Info


Wattage 24/36/48W
Lumen 3,028-6,468 lm
Color Temp. 30K-50K
Efficacy 122.2-135.4 lm/w
Lifespan 100,000-Hour LED lifespan based on IES LM-80
results and TM-21 calculations
Lighting Pattern 70% downlight, 30% uplight
Lens Diffused Polymethyl Methacrylate (PMMA)
Finish  Formulated for high durability and long-lasting color
Mounting Comes standard with two mounting accessories:
aircraft cable for secure, suspended mounts and a
stainless bracket for easy mounting to junction
boxes
Finish Formulated for high durability and long-lasting color
Additional Info

 Compliance

Safety Listing UL Listed Suitable for damp locations
Environment/Fixture Rating Damp Location
DLC Listed This product is on the Design Lights Consortium
(DLC) Qualified Products List and is eligible for
rebates from DLC Member Utilities. Designed to
meet DLC 5.1 requirements.
DLC Product Code: S-YPV9J4
Electrical
Driver 48W: Class 2, Class P, Constant Current, 120-277V, 50/60 Hz, 120V: 0.40A, 208V: 0.24A, 240V: 0.20A, 277V: 0.18A
36W: Class 2, Class P, Constant Current, 120-277V, 50/60 Hz, 120V: 0.30A, 208V: 0.18A, 240V: 0.15A, 277V: 0.13A
24W: Class 2, Class P, Constant Current, 120-277V, 50/60 Hz, 120V: 0.20A, 208V: 0.13A, 240V: 0.10A, 277V: 0.09A
THD 7.14% at 120V, 10.03% at 277V
Dimming Driver Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 5%.
Power Factor 99.6% at 120V, 96.9% at 277V
Operating Temperature -30°C (-22°F) to 40°C (104°F)
