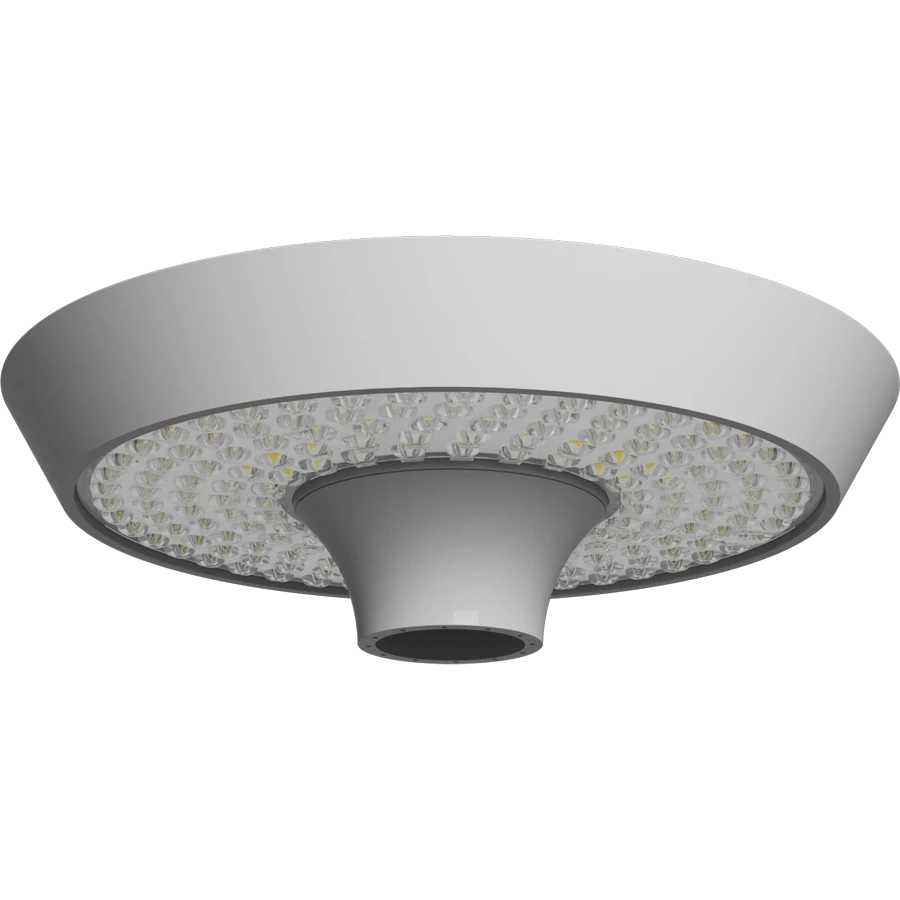

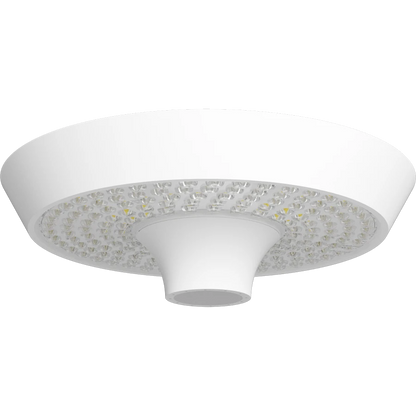

VAL 113W Post Top Area Light

• Field-Adjustable Settings: Allows you to dial in your light output with field-adjustable wattage and correlated color temperature (CCT).
• Light Distribution: Employs a Type V round distribution pattern to provide even, omnidirectional coverage without leaving dark gaps.

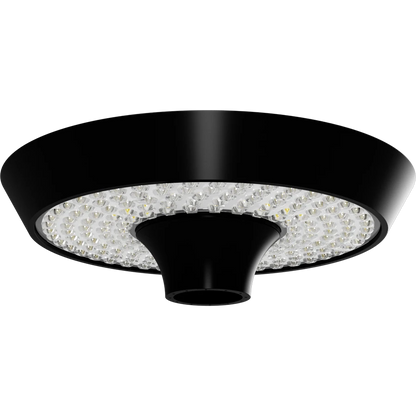

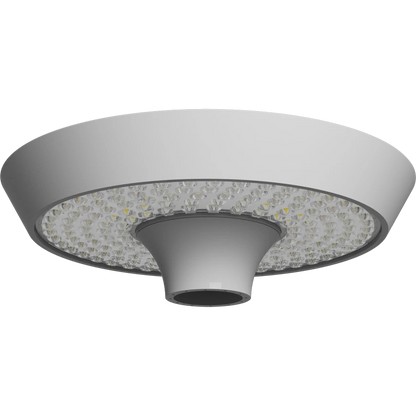

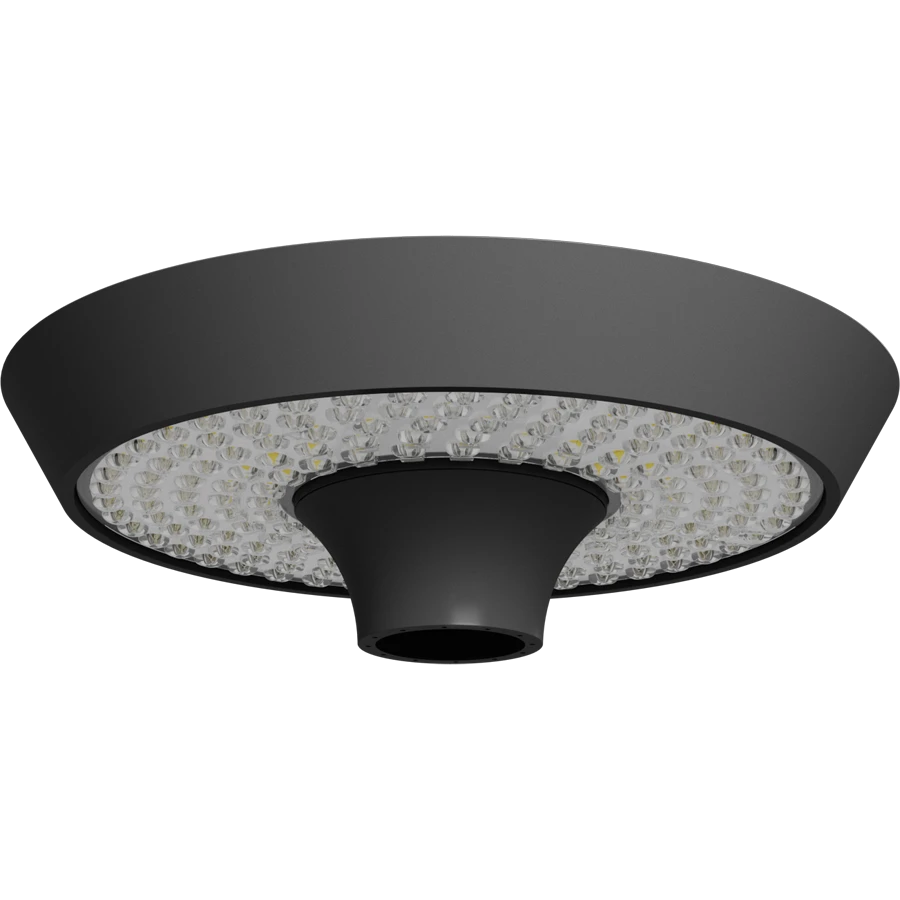

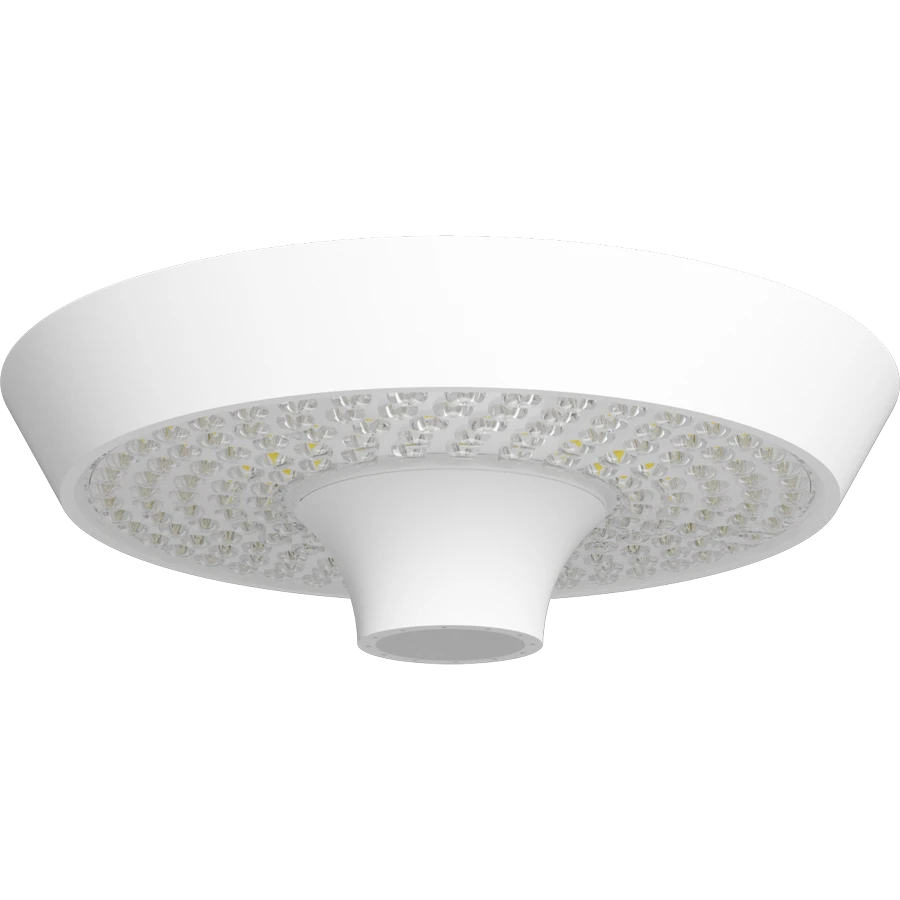

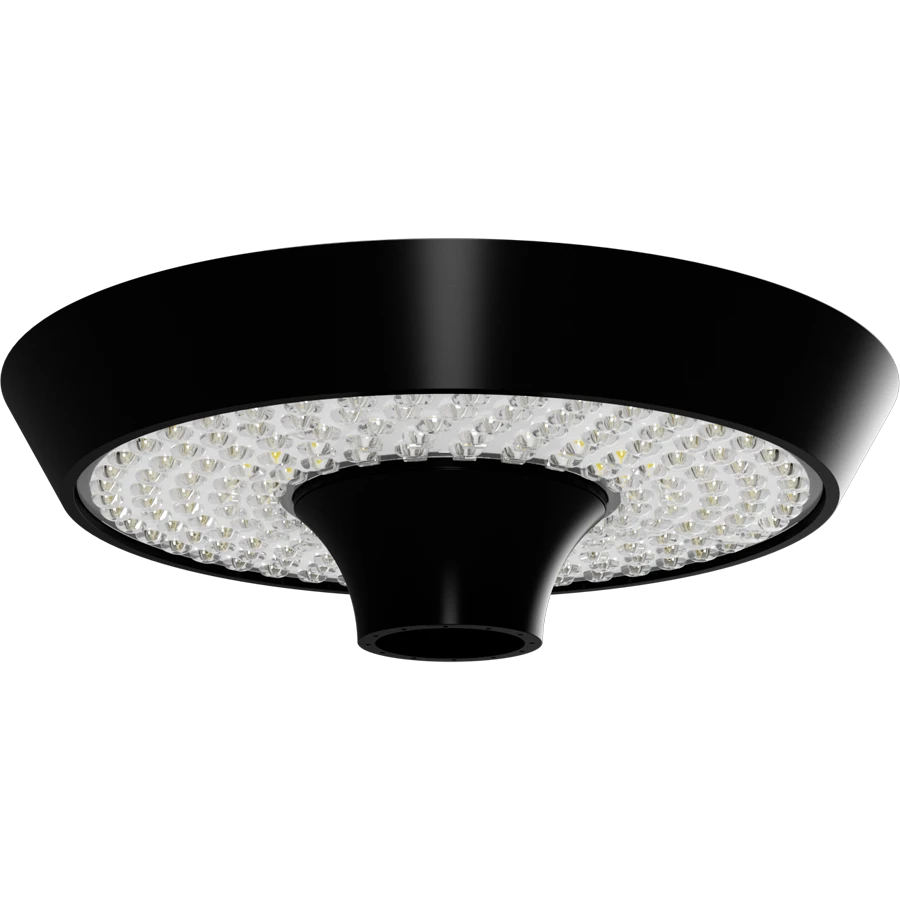

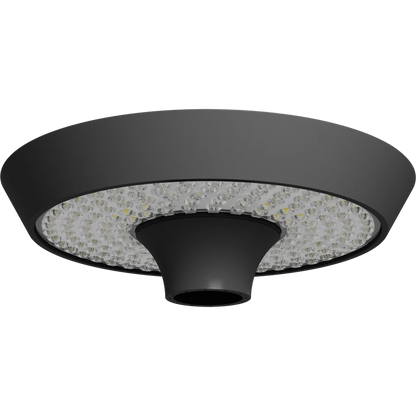

• Finish Options: Available in four color finishes including Bronze, White, Black, and Roadway Gray.
• Control-Ready: Offers built-in compatibility options to add separately purchased control accessories, including Lightcloud Blue wireless lighting control systems.

• Wattage & Efficiency: Offers select models running from 40W up to 113W, generating a brightness range of roughly 6,385 to 18,637 Lumens with high efficacy (up to 181.7 lm/W).
• Color Temperature (CCT): Adjustable settings for 3000K, 4000K, or 5000K color temperatures.
• Lifespan: The LEDs are rated for a 100,000-hour lifespan, which equates to roughly 27 years of operation at 10 hours of daily use
• Durability: Features a rugged IP65-rated housing for dust and water protection, 3G vibration compliance for high-movement environments like bridges, and 10kV surge protection.
• Voltage Compatibility: Models are available for standard universal voltage (120-277V) as well as high-voltage systems (480V).
• Warranty: Includes a comprehensive 10-year limited warranty from RAB covering driver performance, housing components, and the paint finish.

• Field-adjustable 40W / 65W / 100W / 130W wattage
• Selectable 3000K / 4000K / 5000K color temperature

• Up to 18,637 lumens
• High efficacy up to 181.7 lm/W
• Type V wide light distribution
• 120-277V and 480V models available
• 0-10V dimming standard
• Sensor-ready options for photocells and occupancy sensors
• IP65 rated for wet locations
• 100,000-hour rated LED lifespan
• 10-year manufacturer warranty
