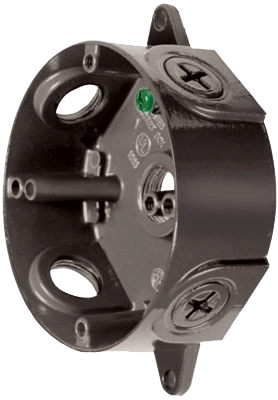

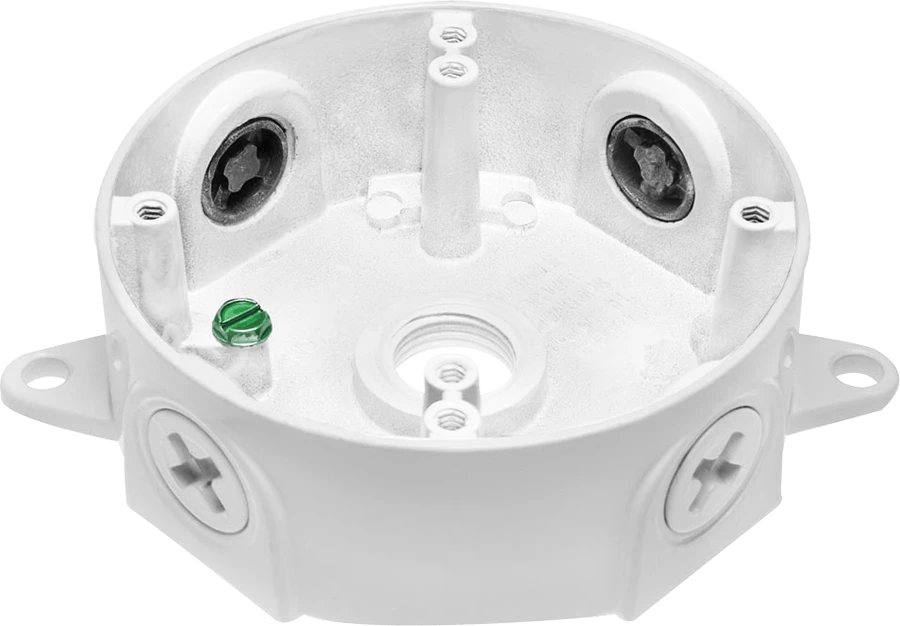

RAB Round FS Box
Die cast aluminum wiring box with ground screw, and two sturdy lugs for wall or ceiling mounting. Supplied with four color matched close-up plugs.
- Stainless steel screws
- Green hex slotted washer head ground screw in pre-tapped hole
- Heavy die cast aluminum
- Close-up plugs allow Phillips or slotted screwdrivers for easy installation
Spec Sheet
Spec Sheet
Info
| Product Type | Round FS Box |
| Outlet Holes | 5 |
| Hole Size | 1/2" |
| Color | Black, Bronze, White |
| UL Listed | Suitable for wet locations |
| Construction Box Material | Precision die cast aluminum |
| Screws | #10-24 Stainless steel Round Head Phillips/slotted |
| Ground Screw | #10-24 Green corrosion protected steel slotted washer head screw provided in pre-tapped hole |
| Box Diameter | 4" |
| Side Hole Thread Size | 1/2" |
| Weight Capacity | If the fixture you are using weighs more than 20 lbs., use an XC cover plate instead of a C103 |
