RAB Lighting

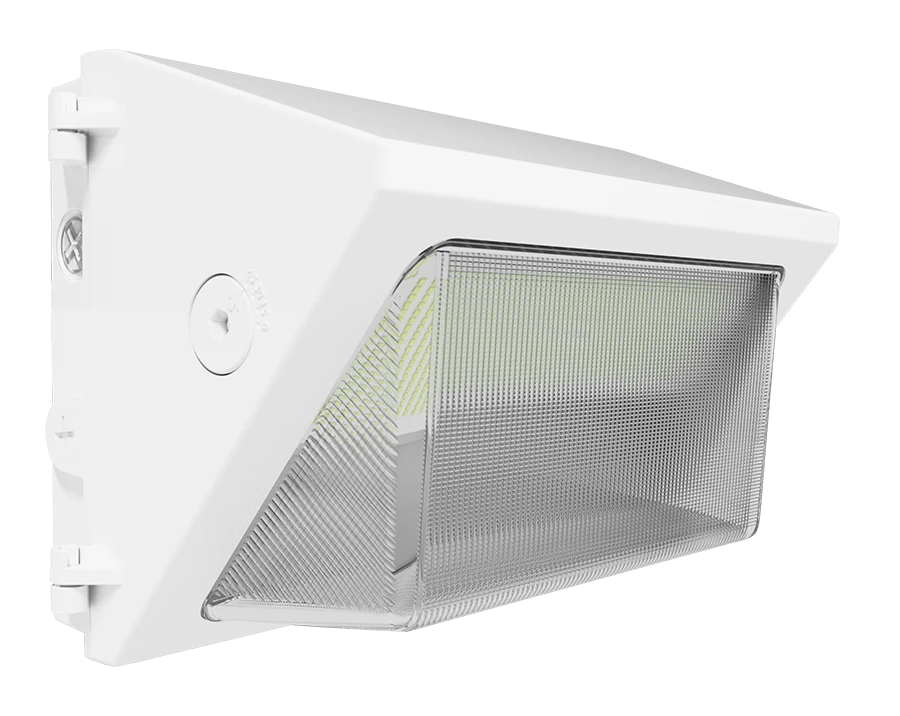

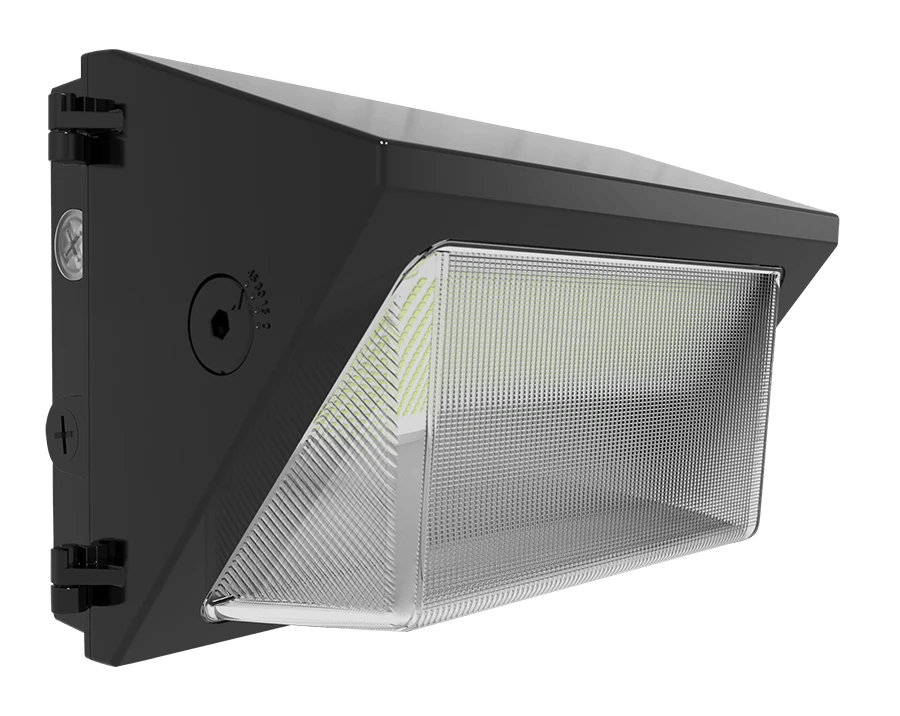

RAB W22 Medium 60W LED Wall pack Adjustable Throw Selectable Wattage/CCT

RAB W22 Medium 60W LED Wall pack Adjustable Throw Selectable Wattage/CCT

Regular price $165.00
Regular price $195.00 Sale price $165.00
Sale Sold out
Shipping calculated at checkout.
Color Temperature


Bronze on Backorder Until May 10th, 2024

All models of the W22 include a tiltable light engine that allows you to adjust the forward throw. Choose from 0, 15, 30, or 45° to control where the light gets thrown.

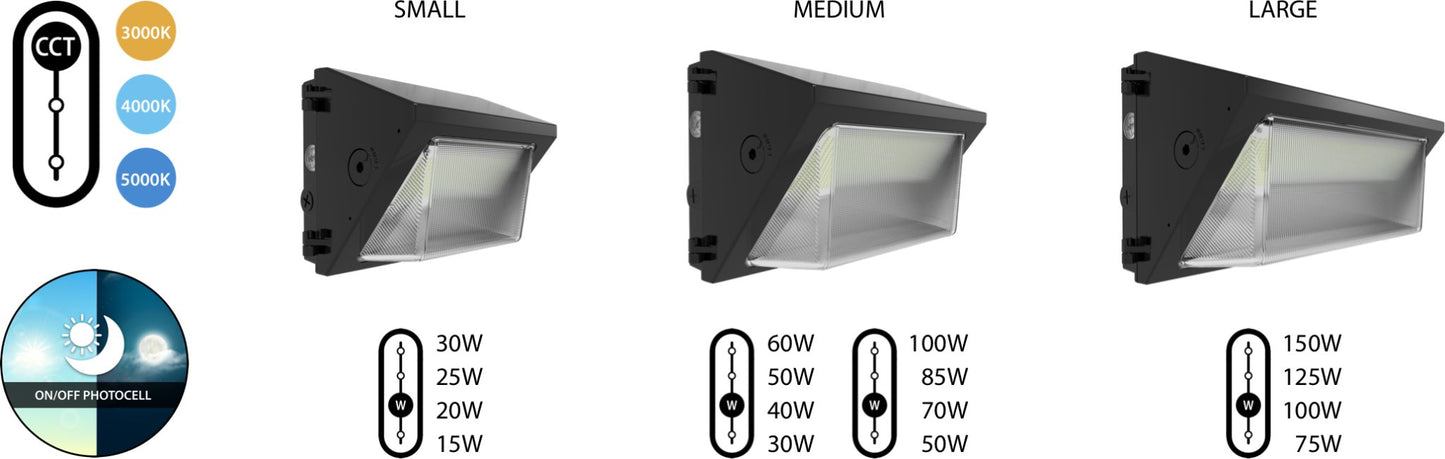

The W22 wall pack offers adjustable throw capabilities, allowing you to put light right where it's needed. Its versatile design adapts to any environment, giving you control with a simple spin of a dial. Along with forward throw adjustment options of 0, 15, 30, or 45°, this innovative product also offers four selectable wattages and three CCTs, as well as an optional on/off photocell. Take your outdoor lighting to the next level with W22!

WALLPACK Medium 60/50/40/30W 3000K/4000K/5000K ADJUSTABLE THROW

  • 100,000-Hour LED lifespan
  • 0-10V dimming standard
  • 5-Year, limited warranty
  • Adjustable Throw
   Field Adjustable Logo Field Adjustable Logo


Spec Sheet

Spec Sheet

Installation Instructions

Product Type  Wall Pack
Cutoff Adjustability  45°, 30°, 15° and 0° (factory default 45°)
Wattage Selectable 60/50/40/30W
Lumen 3,727-9,105 lm
Color Temp. 3000K/4000K/5000K
CRI 82-85 CRI
Lifespan 100,000 Hours
Finish  Bronze/White


    Additional Info
    Housing Die-cast aluminum
    Mounting Suface mount for recessed junction box; 3 conduit entry points
    Lens Glass
    Reflector Aluminum
    Max/Min Temperature
    The minimum starting temperature is -40°C (-40°F)
    Suitable for use in up to 40°C (104°F)
    Green Technology
    Mercury and UV free. RoHS-compliant components.
    Formulated for high durability and long-lasting color

    UL Listed Suitable for wet locations
    Driver Constant Current, Class 1, 120-277V, 50/60 Hz:
    60W: 120V: 0.50A, 208V: 0.29A, 240V: 0.25A, 277V: 0.22A
    50W: 120V: 0.41A, 208V: 0.24A, 240V: 0.21A, 277V: 0.19
    40W: 120V: 0.34A, 208V: 0.20A, 240V: 0.18A, 277V: 0.15A
    30W: 120V: 0.25A, 208V: 0.15A, 240V: 0.13A, 277V: 0.11A
    Dimming Driver Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
    Integrated photocell included with on/off switch
    Surge Protection
    DM 4KV+ CM 6KV
