RAB Lighting

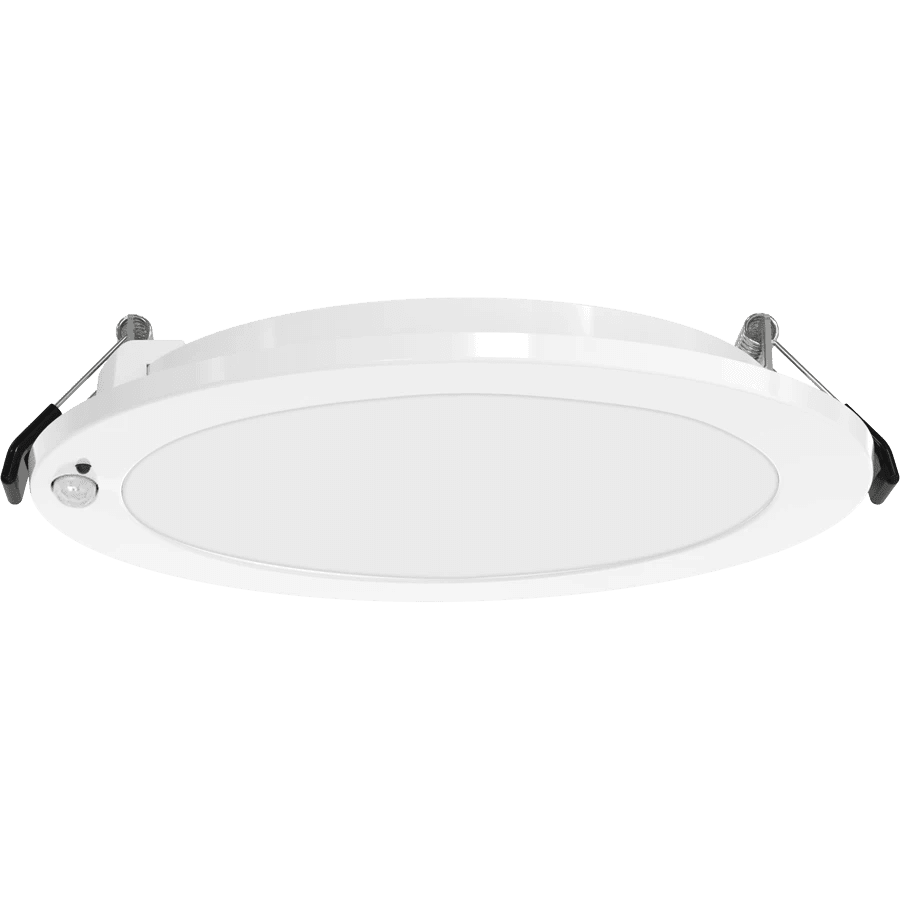

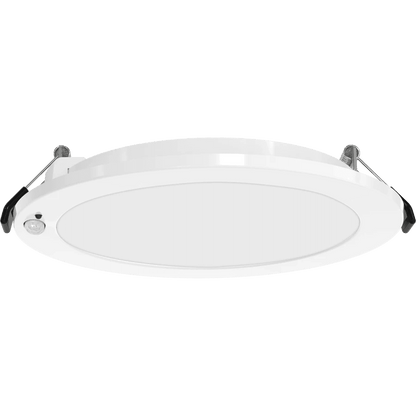

RAB WFR-6R/PIR 13W LED 6" Round Edge-Lit Wafer Selectable CCT W/ PIR

RAB WFR-6R/PIR 13W LED 6" Round Edge-Lit Wafer Selectable CCT W/ PIR

$28.60
$28.60
Sale Sold out
Shipping calculated at checkout.
Size
Style
Color Temperature

4" Edge-Lit Wafer - Field Adjustable PIR Sensor

The WFR Edge-Lit Wafer with Integrated Motion Sensor from RAB Lighting combines energy-efficient LED performance with built-in smart controls. Featuring an integrated passive infrared (PIR) motion sensor, these downlights automatically turn on when motion is detected and shut off when the space is vacant—helping reduce energy waste in hallways, bathrooms, closets, and storage areas.

Designed to maximize savings, the WFR wafer operates only when needed, making it ideal for both residential and commercial applications. Three selectable motion modes allow you to customize operation based on your space and preferences.

Available in 4” and 6” low-profile models with a smooth trim, the WFR supports 120–277V universal voltage and is wet-rated for indoor or outdoor use, including covered patios and entryways. With 90+ CRI for accurate color rendering and 5 selectable color temperatures (2700K, 3000K, 3500K, 4000K, 5000K), this fixture delivers flexibility, performance, and energy savings in one streamlined design.

  • 5 color temperatures in 1 SKU (2700K, 3000K, 3500K, 4000K, 5000K)
  • Super slim edge-Lit fixture for thin fixture depth
  • No recessed housing or j-box required
  • New construction or retrofit applications
  • UL wet location rated
  • Smooth diffused uniform light distribution
  • Dimmable down to 5% on compatible dimmers
  • Spring-loaded retention clips
  • Robust, die cast aluminum construction
  • IC and airtight rated
  • 5-Year, No-Compromise Warranty
Spec Sheets

Spec Sheet

Family Spec Sheet

Installation Instructions

Sell Sheet

Info
 Product Type  Wafer direct mount
Wattage 13W
Lumen 1100
Color Temp. Field Adjustable
CRI 90
L70 Lifespan 50,000
Housing Material Plastic Housing
Finish  White Trim
Style Smooth | Baffle
LED Edge-lit LED
Beam Angle 110°
Motion Modes Auto (default): Light OFF during the day, stays OFF at night, turns ON at 100% brightness when motion is detected and stays on until the specified hold time expires and the light turns OFF.

Bi-Level: Light OFF during the day, stays OFF at night, turns ON at 100% brightness when motion is detected and stays on until the specified hold time expires, light reduces to 50% brightness until the specified hold time expires and the light turns OFF.

Off: Motion detection is disabled.
Hold Times 30 seconds (default), 5 minutes, 10 minutes
Photocell Dawn to Dusk
Additional Info
                                               Compliance
 Safety Listing UL Listed
 Environment/Fixture Rating Wet Location, Enclosed fixture rating
T24 JA8 Compliant Yes
Lawful for sale in California Yes
IC Rated Yes
Energy Star Compliant Yes
Air Tight Yes
FCC Complies with Part 15 of the FCC Rules
RoHS Mercury and UV free. RoHS-compliant components
                                               Electrical
THD ≤20%
 Power Factor ≥0.9
Input Voltage 120V
Operating Frequency 60Hz
Operating Temperature -30°C to 40°C
Dimming TRIAC and ELV dimming compatibility

  Note All values are typical (tolerance +/- 10%)
