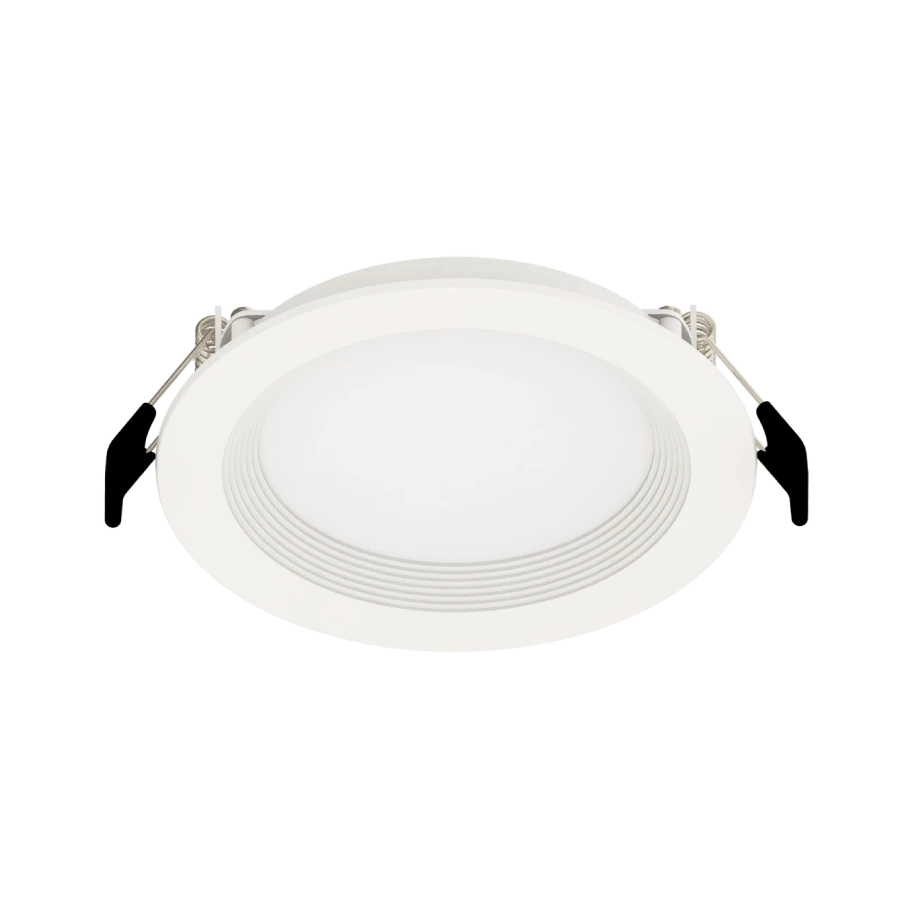

RAB WFRL4R 9W LED 4" Round Edge-Lit Bluetooth Wafer Selectable CCT Baffle Trim
RAB WFRL4R 9W LED 4" Round Edge-Lit Bluetooth Wafer Selectable CCT Baffle Trim
Regular price
$51.21
Regular price
Sale price
$51.21
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
4" Edge-Lit Wafer - Field Adjustable Bluetooth Enabled
This canless wafer has an ultra low profile design making them a flexible solution for both new construction and retrofit applications. With museum quality CRI and Lightcloud Blue-enabled features this is the ideal solution for museums, galleries, residential, and retail applications.
- Direct connect to the Lightcloud Blue mobile app via Bluetooth; no Gateway or Hub required
- Use mobile device to configure features for On/Off Control, Dim Level, Color Temperature, Schedules, Scenes, SmartShift and more
- Tunable White 2700 - 6500K with smooth transition between color temperatures
- SmartShift technology syncs with local sunrise/sunset for healthier circadian lighting
- Natural Spectrum technology mimics natural light that renders color accurately
Spec Sheets
Spec Sheet
Installation Instructions
Info
| Product Type | Edge-Lit Wafer |
| Wattage | 9W |
| Lumen | 550 |
| Color Temp. | Field Adjustable |
| CRI | 90 |
| L70 Lifespan | 50,000 |
| Housing Material | Metal and Plastic |
| Finish | White Trim |
| Style | Baffle |
| LED | Edge-lit LED |
| Beam Angle | 110° |
| Lens | Acrylic light guide distributes light evenly and smoothly for general lighting applications |
| Gaskets | Gasket included can achieve restrictive airflow and wet location without any additional gasket or caulk |
| Mounting | Recessed |
| Remote Driver/Junction Box | Stamping formed galvanized steel driver / junction box with captive hinged junction box cover. Recessed CCT Selectable dip-switch. Listed for (6) #12 AWG 90°C splice conductors. 2-in, 2-out plus 2-ground. (4) 1/2" conduit pry-outs. (3) Push in connectors for quick and reliable line voltage connections. Integral mounting facilitates direct mounting to building structure or mounting frame |
Additional Info
| Lightcloud Blue | Lightcloud Blue is a Bluetooth mesh wireless lighting control system that allows you to control RAB's various compatible devices. With RAB's patentpending Rapid Provisioning technology, devices can be quickly and easily commissioned for residential and large commercial applications using the Lightcloud Blue mobile app. Each device in a system can communicate with any other device, eliminating the need for a Gateway or Hub and maximizing the control system's reach. Learn more at www.lightcloud.com |
| Gateway Required | No |
| Communication Protocol | Bluetooth mesh |
| SmartShift | SmartShift is the most advanced - yet easiest to use - circadian lighting system, which syncs white color tuning with the local sunrise and sunset |
| Range |
Up to 60 feet between standard building materials. Building materials such as brick, concrete, and steel construction may require additional Lightcloud Blue devices to extend around an obstruction. Up to 200 feet clear line of sight |
| Spacing Criteria | Lightcloud Blue devices should be placed within the specified range to communicate within the Bluetooth Mesh network. |
| Factory Reset | Method 1: Delete from App Open the app and access the device settings for the paired device. Be sure that the downlight is online and select 'Delete'. Method 2: Manual Power the downlight off and on 5x consecutively. Do not allow less than 4s to elapse from switching off to on. Do not allow more than 2s to elapse from switching on to off. The downlight will flash 3x, then reset to 100% brightness at default CCT. Method 3: Rapid Reset Tool The Rapid Reset process must be done by a professional electrician qualified by RAB. Reach out to your RAB sales manager to request a Rapid Reset Tool. The tool simply needs to be placed directly on the small Lightcloud Blue logo on the device for 2s or until the lamp/luminaire flashes 3x, then resets to 100% brightness at the default CCT |
