RAB Lighting

RAB WFRL4R9 9W LED 4" Round Edge-Lit Wafer Selectable CCT

RAB WFRL4R9 9W LED 4" Round Edge-Lit Wafer Selectable CCT

$16.00
$16.00
Sale Sold out
Shipping calculated at checkout.
Size
Style
Color Temperature

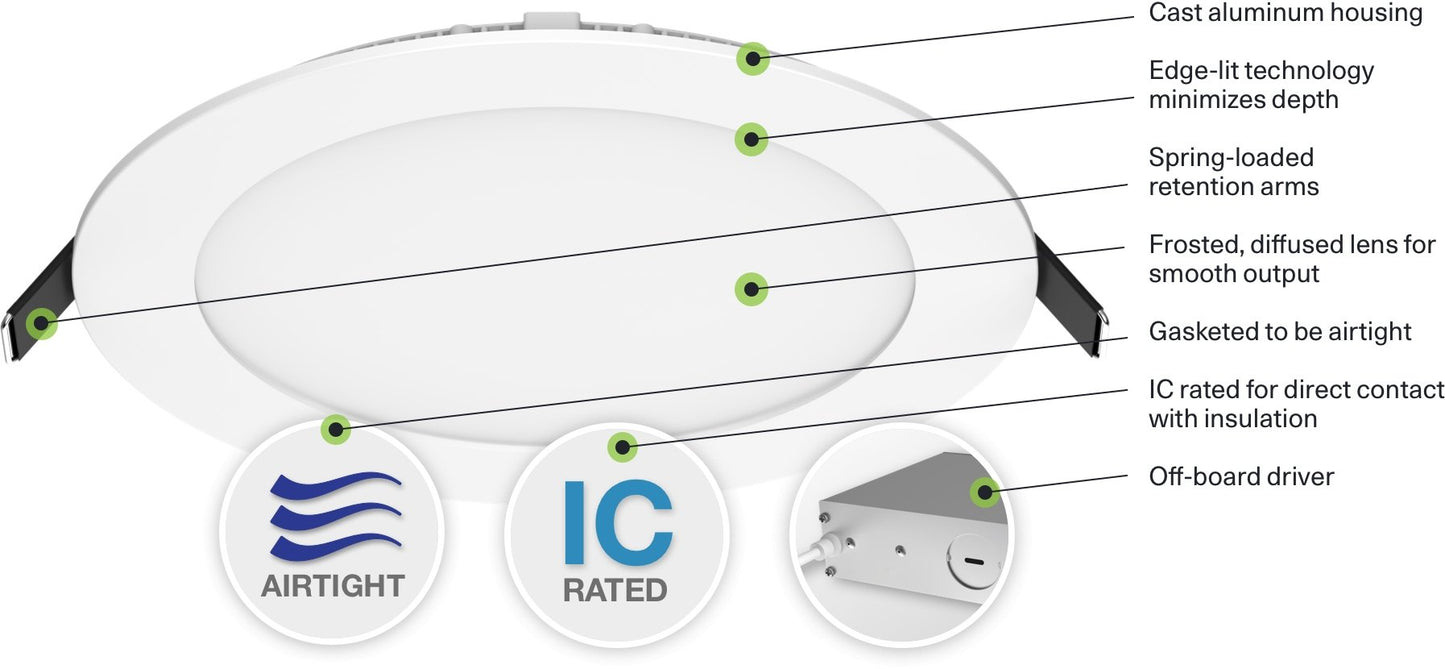

4" Edge-Lit Wafer - Field Adjustable

  • 5 color temperatures in 1 SKU (2700K, 3000K, 3500K, 4000K, 5000K)
  • Super slim edge-Lit fixture for thin fixture depth
  • No recessed housing or j-box required
  • New construction or retrofit applications
  • UL wet location rated
  • Smooth diffused uniform light distribution
  • Dimmable down to 5% on compatible dimmers
  • Spring-loaded retention clips
  • Robust, die cast aluminum construction
  • IC and airtight rated
  • 5-Year, No-Compromise Warranty
Spec Sheets

Spec Sheet

Installation Instructions

Info
 Product Type  Wafer direct mount
Wattage 9W
Lumen 600 | 650
Color Temp. Field Adjustable
CRI 90
L70 Lifespan 50,000
Housing Material Plastic Housing
Finish  White Trim

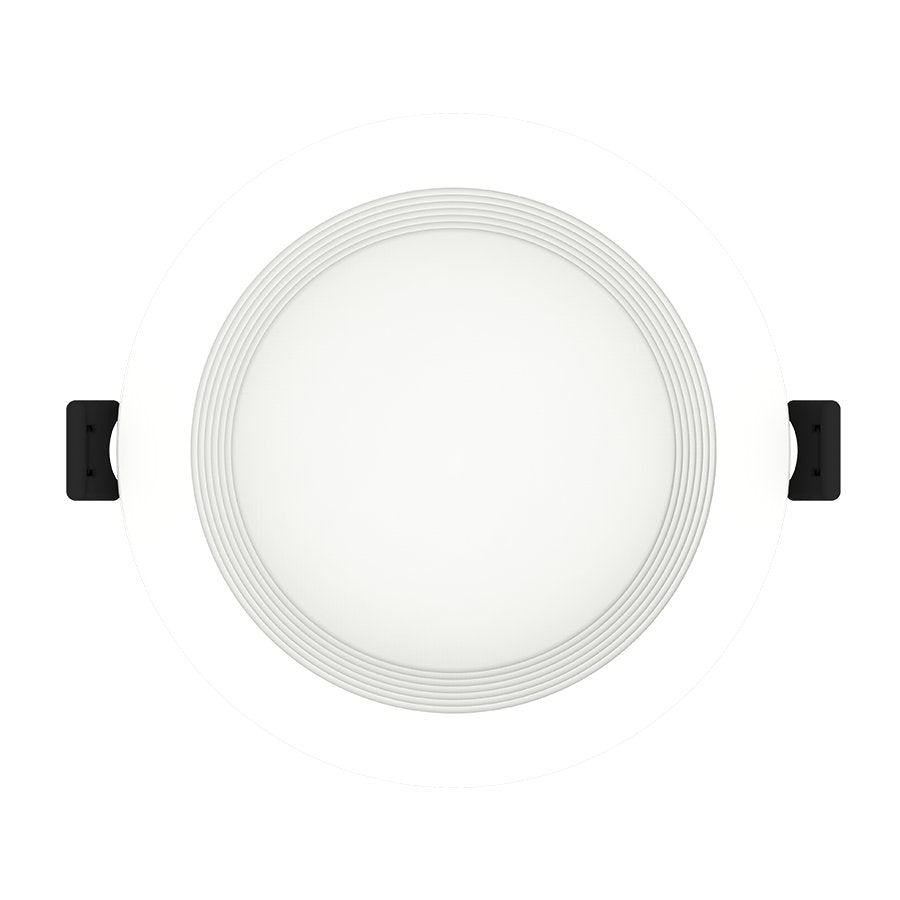

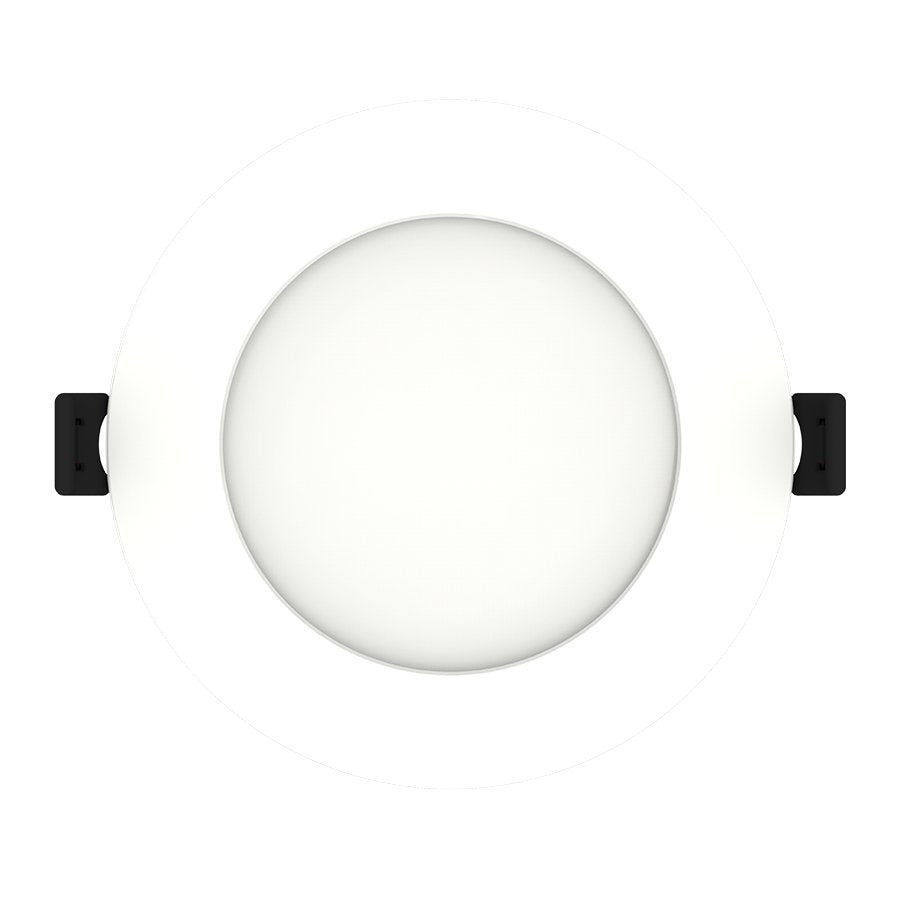

Style Smooth | Baffle
LED Edge-lit LED
Beam Angle 110°
Lens Acrylic light guide distributes light evenly and smoothly for general lighting applications
Gaskets Gasket included can achieve restrictive airflow and wet location without any additional gasket or calk

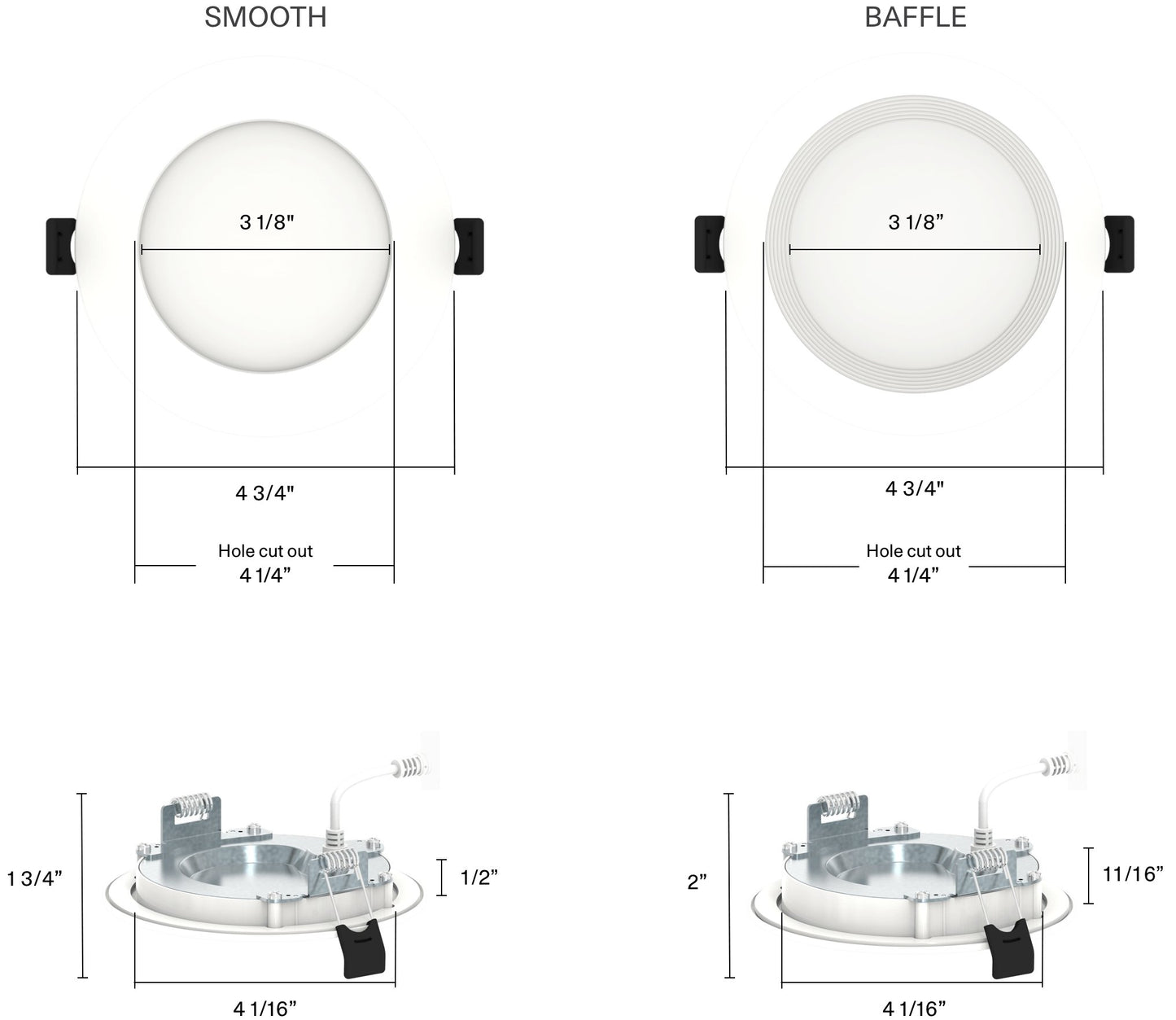

Mounting Tall spring towers allow to be installed in 3/8” up to 5/8” thick ceilings Round ceiling cutout template provided in box Heat treated springs hold fixture fitting securely in the ceiling eliminating light leaks Housing is less than ½” thick Can be removed from below the ceiling for service or replacement
Remote Driver/Junction Box Die formed metal driver / junction box with captive hinged junction box cover Recessed CCT Selectable  dip-switch Listed for (6) #12 AWG 90˚ C splice conductors,2-in, 2-out plus (2) ground (4) ½” conduit pry-outs (3) wire nuts for quick and reliable line voltage connections Integral mounting facilitates direct mounting to building structure or mounting frame
Additional Info
                                               Compliance
 Safety Listing UL Listed
 Environment/Fixture Rating Wet Location, Enclosed fixture rating
T24 JA8 Compliant Yes
Lawful for sale in California Yes
IC Rated Yes
Energy Star Compliant Yes
Air Tight Yes
FCC Complies with Part 15 of the FCC Rules
RoHS Mercury and UV free. RoHS-compliant components
                                               Electrical
THD ≤20%
 Power Factor ≥0.9
Input Voltage 120V
Operating Frequency 60Hz
Operating Temperature -30°C to 40°C
Dimming TRIAC and ELV dimming compatibility

  Note All values are typical (tolerance +/- 10%)
