RAB Lighting

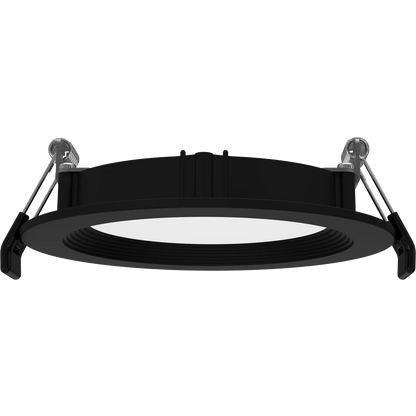

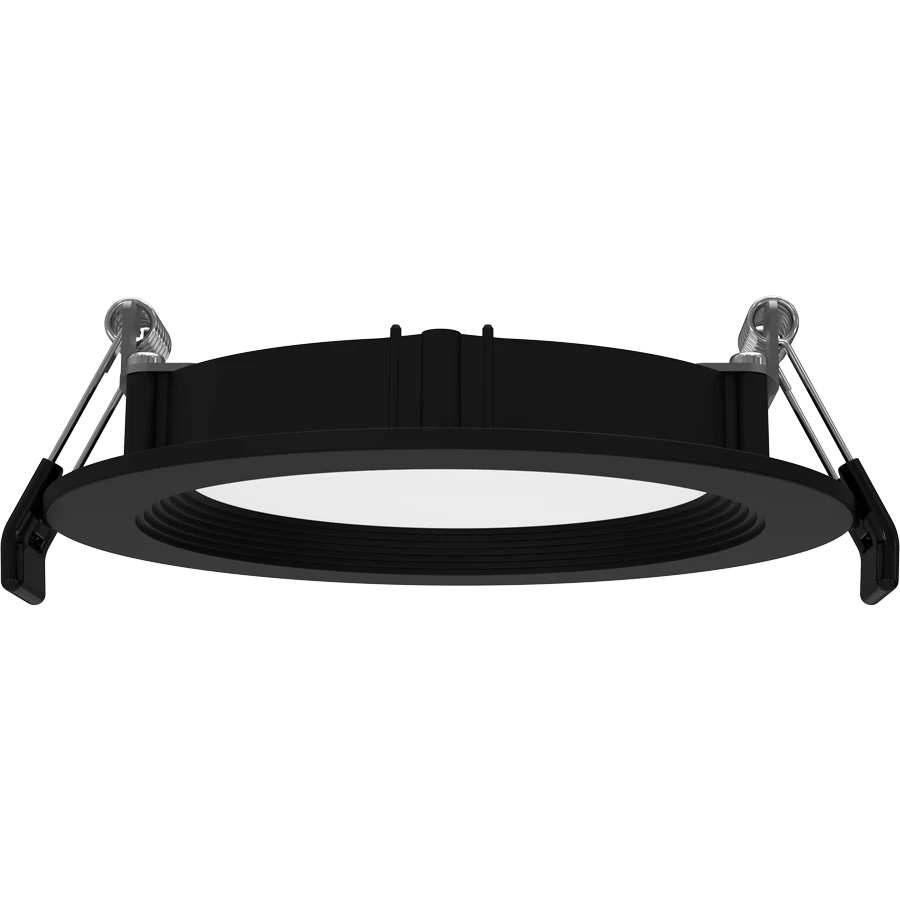

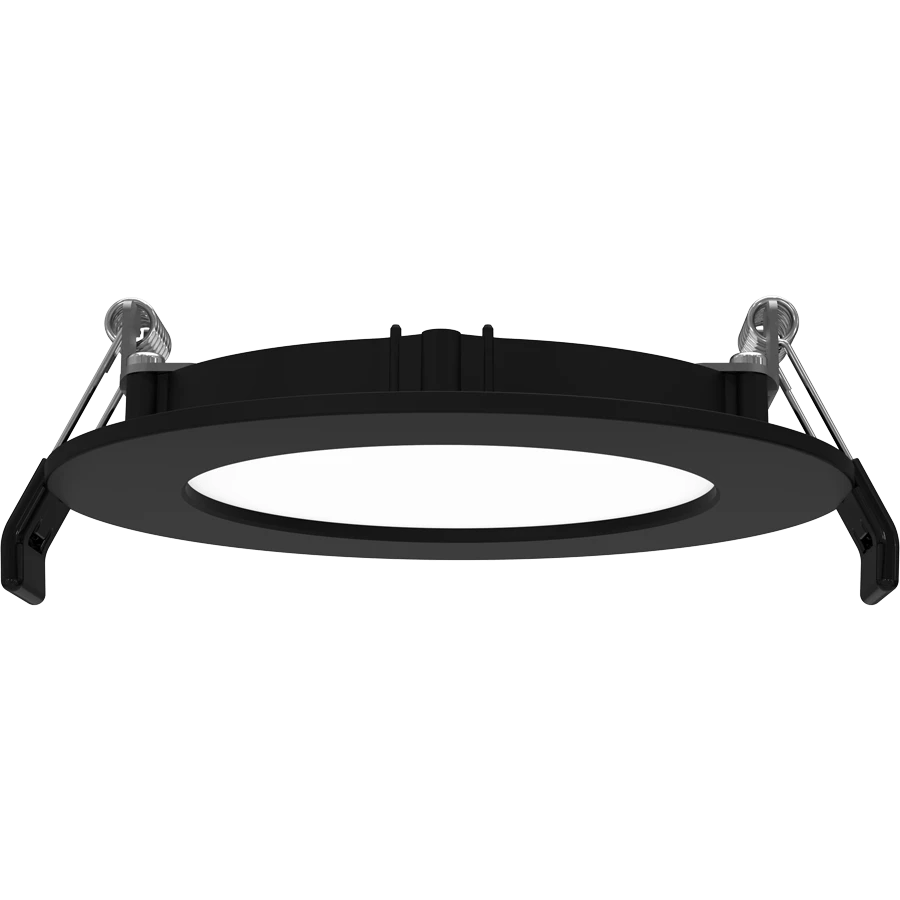

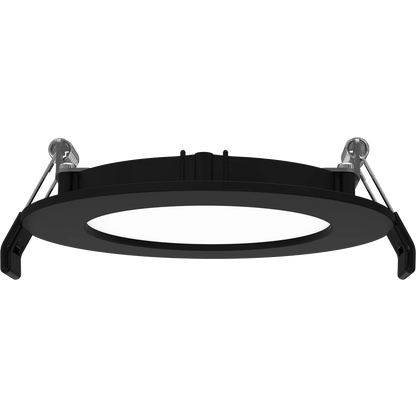

RAB WFRL4R9 9W LED 4" Round Black Edge-Lit Wafer Selectable CCT

$18.00

Sale Sold out

Shipping calculated at checkout.

Size 4"

Style Smooth Baffle

Color Temperature Selectable CCT

Quantity

4" Edge-Lit Wafer - Field Adjustable

The RAB WFRL4R9 is a versatile 9W LED 4" round wafer with a sleek black edge-lit design. Easily switch color temperatures to suit any space, from traditional to modern styles. Compatible with most dimmers and suitable for dry, damp, or wet locations, it delivers reliable, high-quality light with excellent color accuracy. Perfect for new builds or remodels, this wafer combines flexibility and performance in one efficient package.

5 color temperatures in 1 SKU (2700K, 3000K, 3500K, 4000K, 5000K)
Super slim edge-Lit fixture for thin fixture depth
No recessed housing or j-box required
New construction or retrofit applications
UL wet location rated
Smooth diffused uniform light distribution
Dimmable down to 5% on compatible dimmers
Spring-loaded retention clips
Robust, die cast aluminum construction
IC and airtight rated
5-Year, No-Compromise Warranty

Spec Sheets

Smooth / Baffle

Family Spec Sheet

Sell Sheet

Installation Instructions

Info

Product Type	Wafer direct mount
Wattage	9W
Lumen	800
Color Temp.	Field Adjustable
CRI	90
L70 Lifespan	50,000
Housing Material	Plastic Housing
Finish	Black Trim
Style	Smooth \| Baffle
LED	Edge-lit LED
Beam Angle	110°
Lens	Acrylic light guide distributes light evenly and smoothly for general lighting applications
Gaskets	Gasket included can achieve restrictive airflow and wet location without any additional gasket or calk

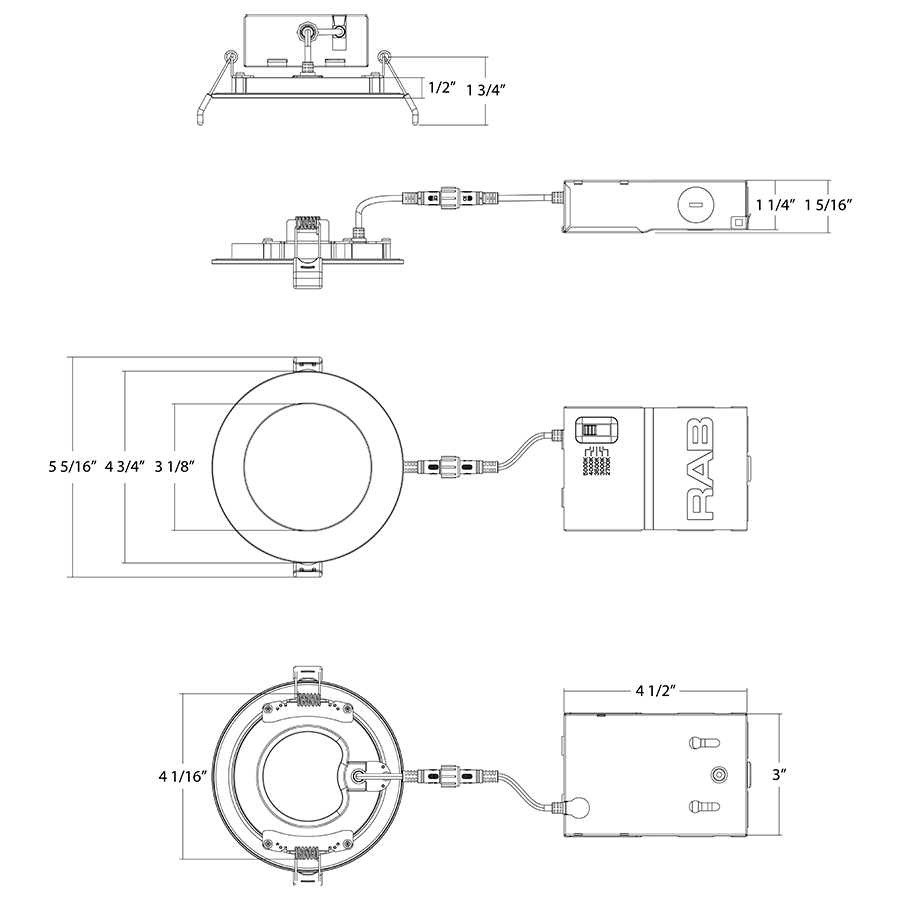

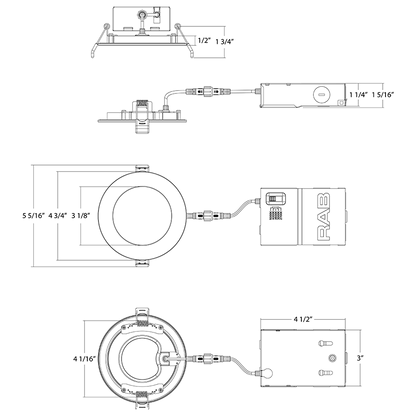

Mounting	Tall spring towers allow to be installed in 3/8” up to 5/8” thick ceilings Round ceiling cutout template provided in box Heat treated springs hold fixture fitting securely in the ceiling eliminating light leaks Housing is less than ½” thick Can be removed from below the ceiling for service or replacement

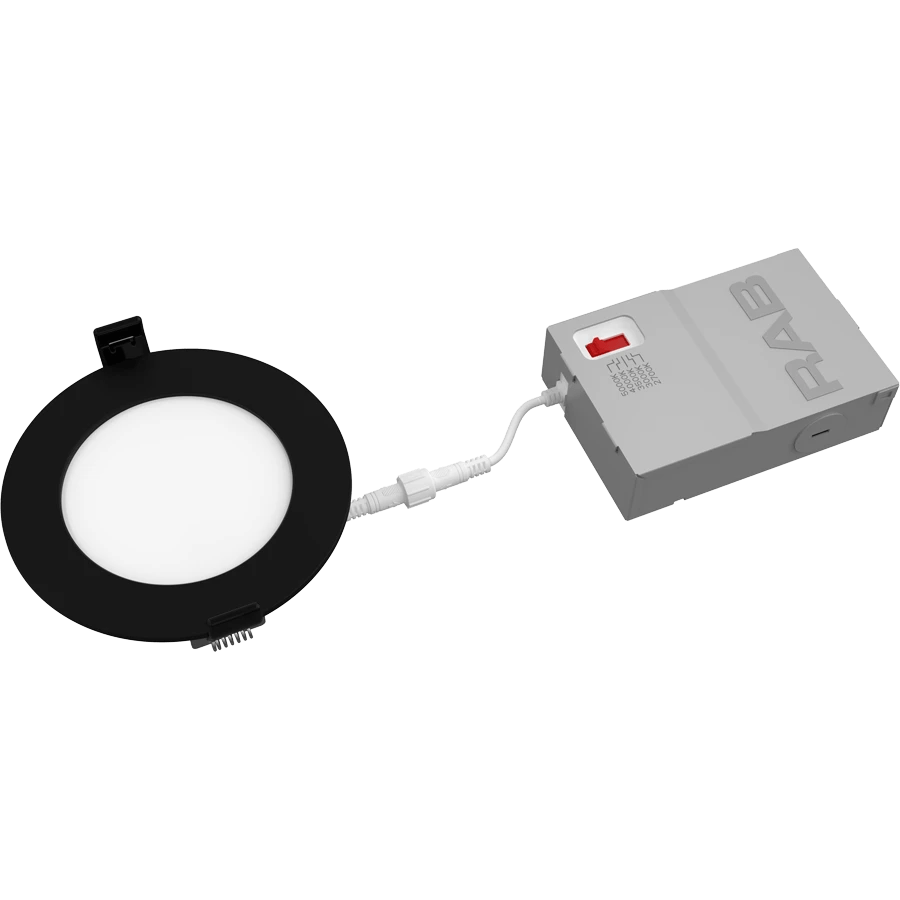

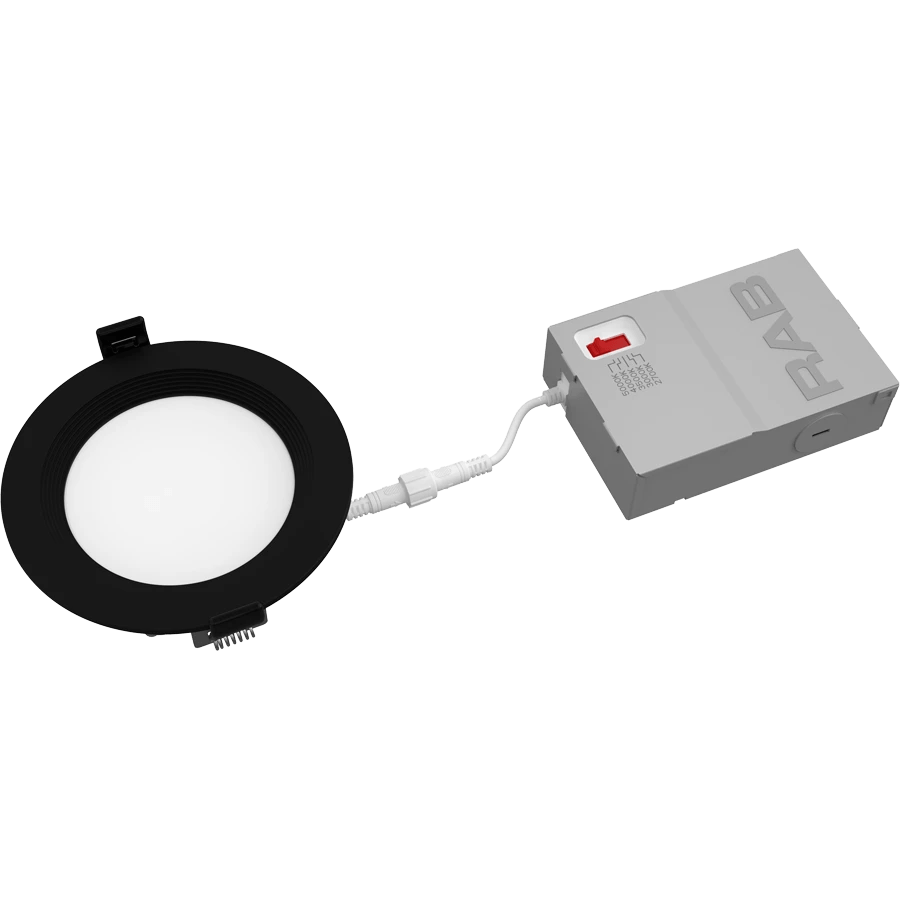

Remote Driver/Junction Box	Die formed metal driver / junction box with captive hinged junction box cover Recessed CCT Selectable dip-switch Listed for (6) #12 AWG 90˚ C splice conductors,2-in, 2-out plus (2) ground (4) ½” conduit pry-outs (3) wire nuts for quick and reliable line voltage connections Integral mounting facilitates direct mounting to building structure or mounting frame

Additional Info

Compliance

Safety Listing	UL Listed
Environment/Fixture Rating	Wet Location, Enclosed fixture rating
T24 JA8 Compliant	Yes
Lawful for sale in California	Yes
IC Rated	Yes
Energy Star Compliant	Yes
Air Tight	Yes
FCC	Complies with Part 15 of the FCC Rules
RoHS	Mercury and UV free. RoHS-compliant components
