RAB Lighting
RAB WFRL8 23W LED 8" Round Edge-Lit Wafer Selectable CCT 120-277V
RAB WFRL8 23W LED 8" Round Edge-Lit Wafer Selectable CCT 120-277V
Regular price
$50.00
Regular price
Sale price
$50.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

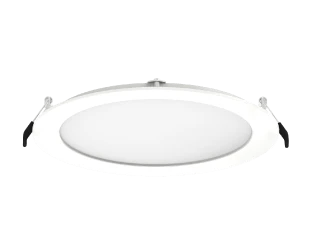

8" Edge-Lit Wafer - Field Adjustable

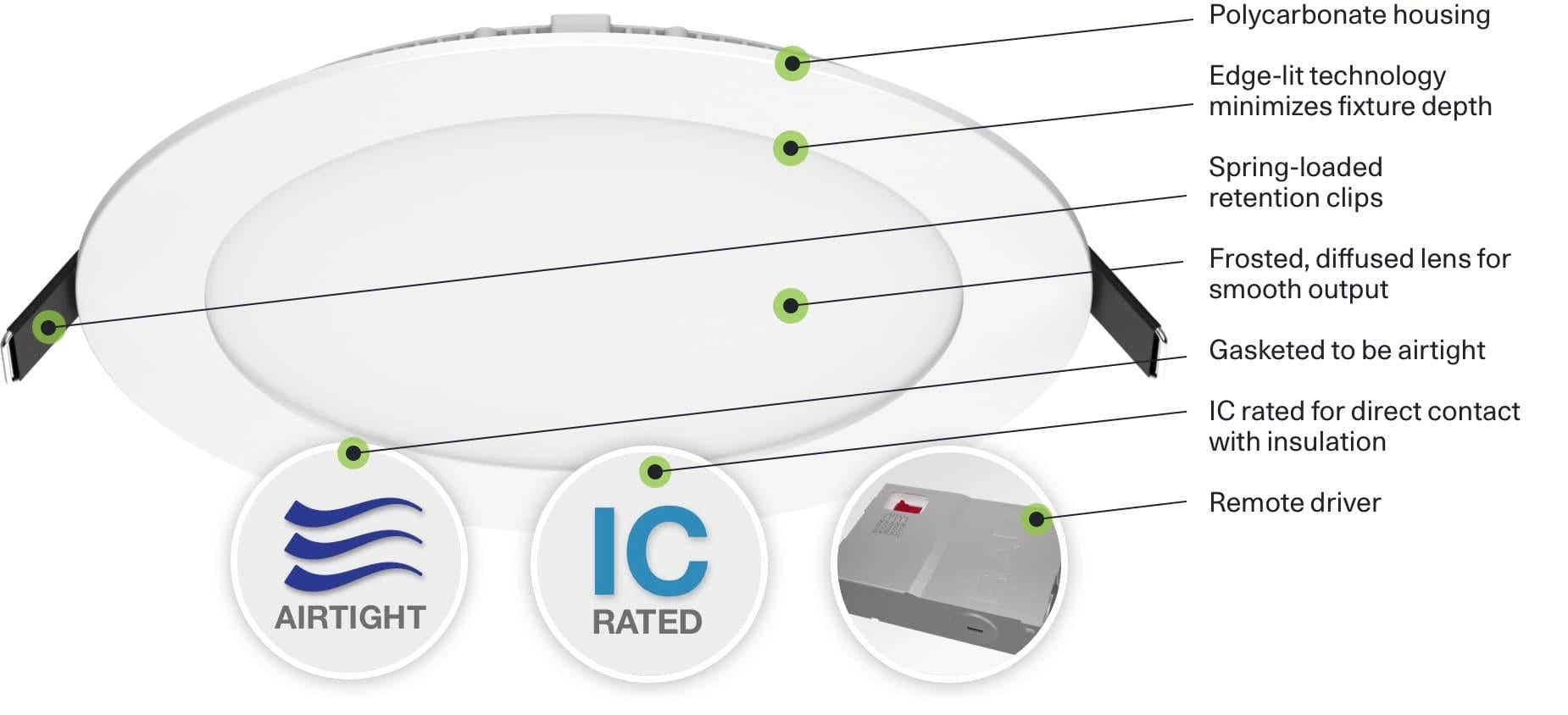

This 8-inch canless wafer downlight has an ultra low-profile design and 5 field adjustable color temperatures making them a flexible solution for both new construction and retrofit applications. The remote driver box has quick connectors, knockouts, and plenty of space for daisy chain wiring or adding an emergency backup unit.
- 5 color temperatures in 1 SKU (2700K, 3000K, 3500K, 4000K, 5000K)
- Super slim edge-Lit fixture for thin fixture depth
- No recessed housing or j-box required
- New construction or retrofit applications
- UL wet location rated
- Smooth diffused uniform light distribution
- Dimmable down to 5% on compatible dimmers
- Spring-loaded retention clips
- Robust, die cast aluminum construction
- 120-277V
- IC and airtight rated
- 5-Year, No-Compromise Warranty
Spec Sheets
Smooth Spec Sheet
Baffle Spec Sheet
Family Spec Sheet
Sell Sheet
Installation Instructions
Info
Product Type | Wafer direct mount 120/277V |
Wattage | 23W |
Lumen | 1800 |
Color Temp. | Field Adjustable |
CRI | 90 |
L70 Lifespan | 50,000 |
Housing Material | Plastic Housing |
Finish | White Trim |

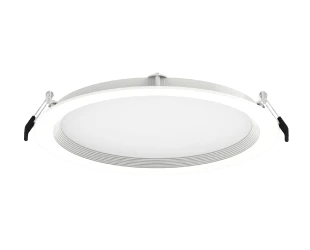

Style | Smooth | Baffle |
LED | Edge-lit LED |
Beam Angle | 110° |
Lens | Acrylic light guide distributes light evenly and smoothly for general lighting applications |
Gaskets | Gasket included can achieve restrictive airflow and wet location without any additional gasket or calk |

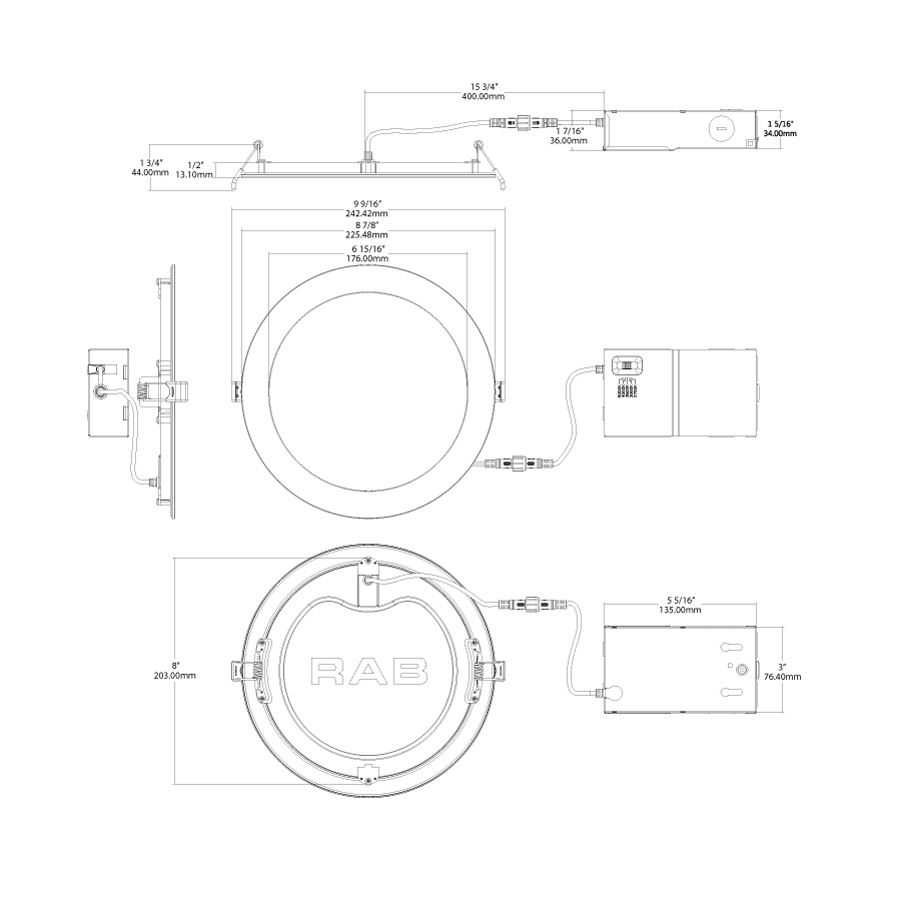

Mounting | Tall spring towers allow to be installed in 3/8” up to 5/8” thick ceilings Round ceiling cutout template provided in box Heat treated springs hold fixture fitting securely in the ceiling eliminating light leaks Housing is less than ½” thick Can be removed from below the ceiling for service or replacement |
Remote Driver/Junction Box | Die formed metal driver / junction box with captive hinged junction box cover Recessed CCT Selectable dip-switch Listed for (6) #12 AWG 90˚ C splice conductors,2-in, 2-out plus (2) ground (4) ½” conduit pry-outs (3) wire nuts for quick and reliable line voltage connections Integral mounting facilitates direct mounting to building structure or mounting frame |
Additional Info
Compliance
|
||||||||||||||||||
Electrical
|
Note All values are typical (tolerance +/- 10%)
