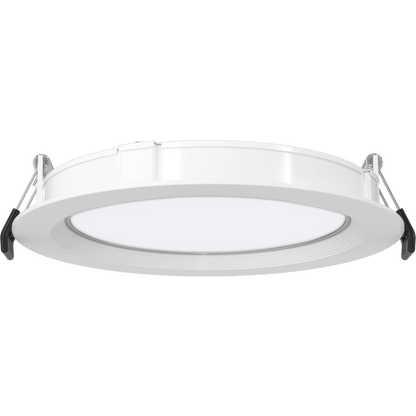

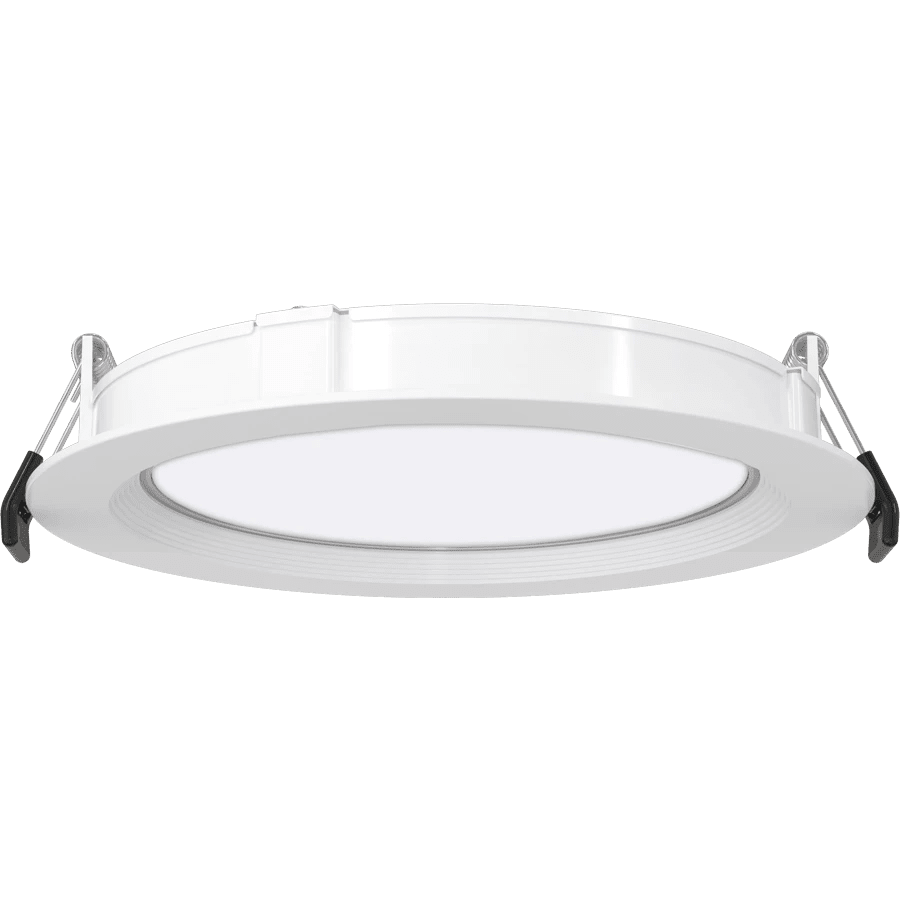

6" Edge-Lit Wafer With Night Light- Field Adjustable CCT/DTW + Wattage

The WFRX Dim-to-Warm LED Wafer with Nightlight from RAB Lighting delivers two lights in one sleek, low-profile fixture. Designed for maximum versatility, this innovative recessed wafer combines 5CCT selectable color temperature, dim-to-warm technology (3000K–1800K), and a dedicated integrated nightlight—giving you complete control over ambiance and functionality in a single install.

Select from five preset color temperatures or enjoy smooth dim-to-warm performance that mimics the cozy glow of incandescent lighting as it dims to a soft amber tone. When subtle illumination is needed, the built-in nightlight provides gentle, low-level lighting—perfect for bedrooms, bathrooms, hallways, and nurseries.

Each fixture includes three selectable lumen outputs for additional brightness control, making one SKU flexible for multiple applications. Wet-rated for indoor and outdoor use, the WFRX is ideal for living areas, covered patios, entryways, and porches.

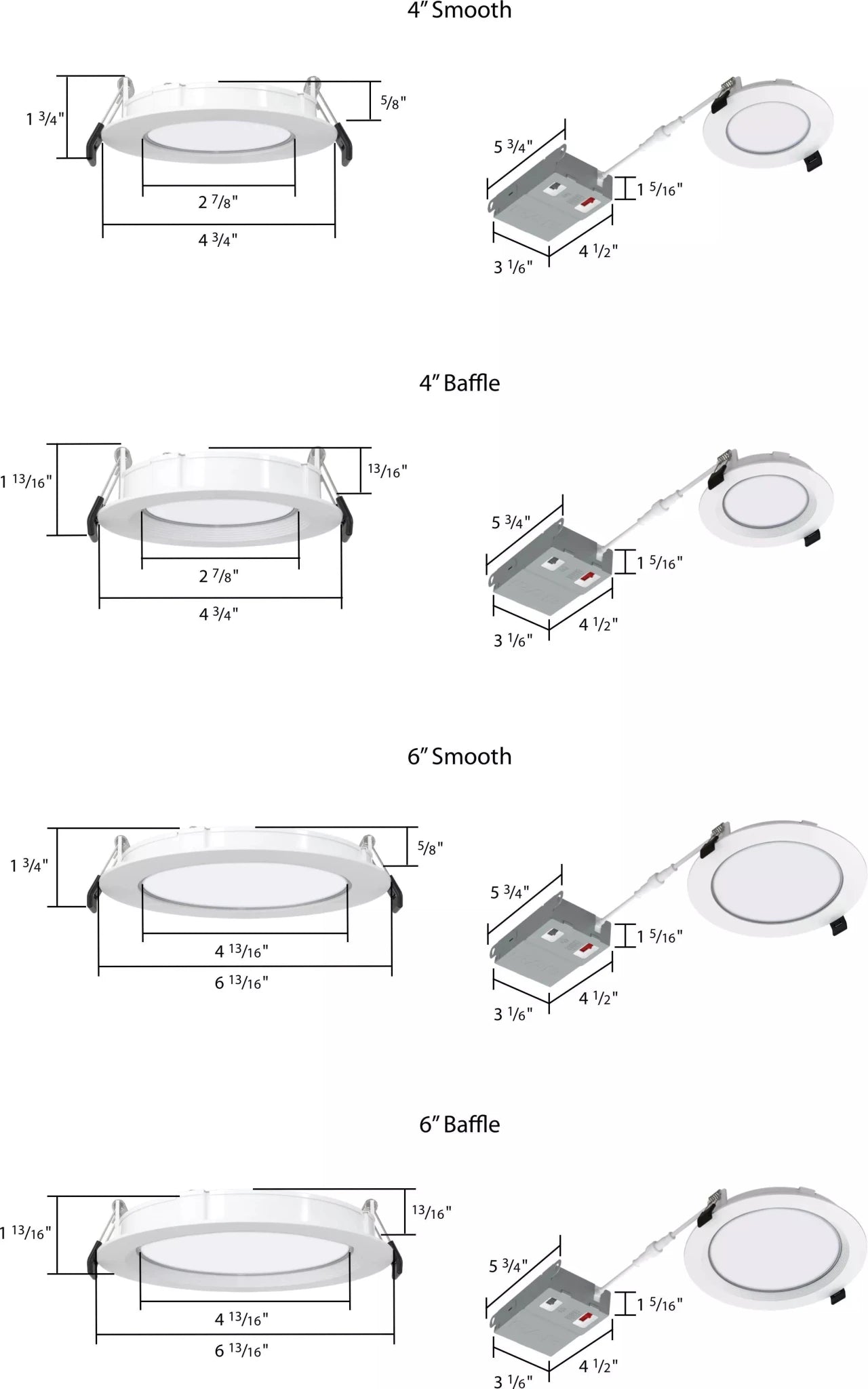

Available in 4” and 6” sizes with smooth or baffle trim options, this IC-rated wafer features an off-board driver for fast installation—no recessed housing required. Designed for 120V and compatible with most TRIAC/ELV dimmers, it’s a premium, contractor-friendly lighting solution built for performance and simplicity.

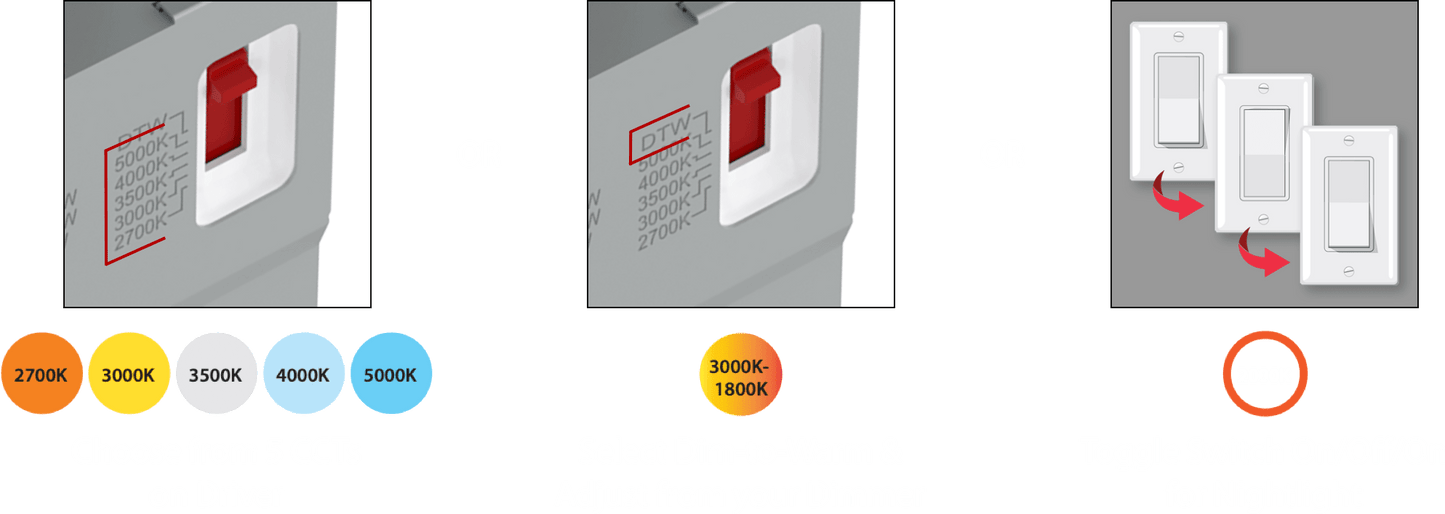

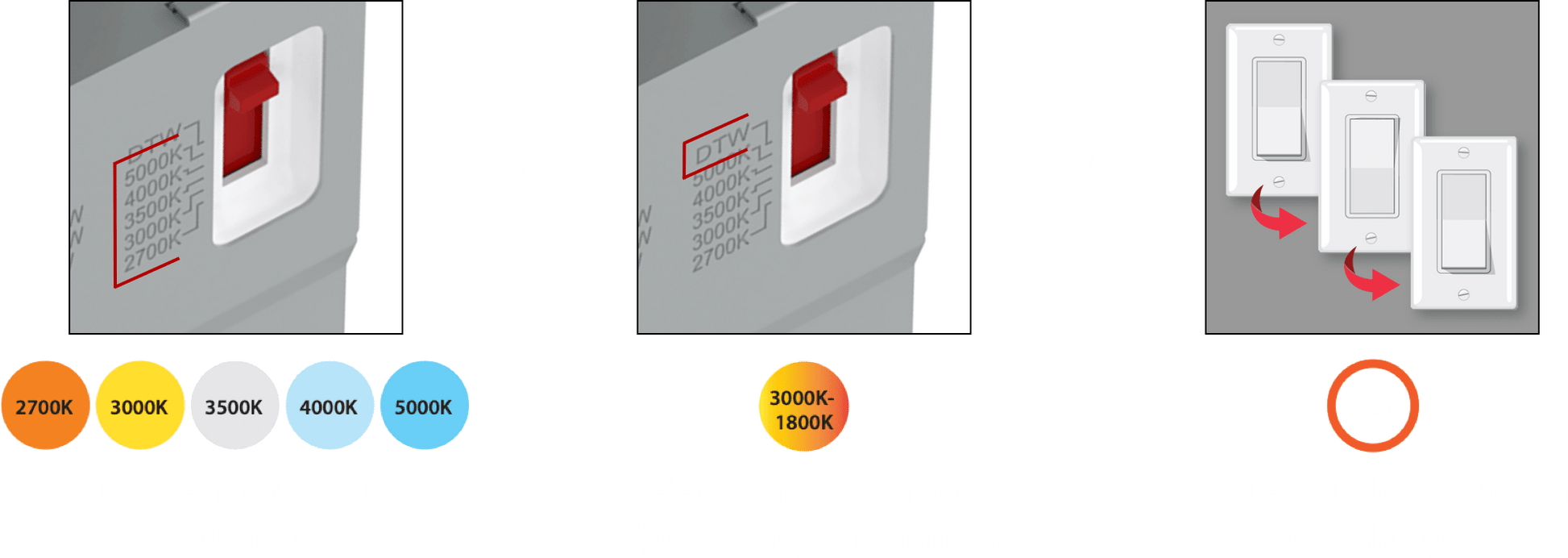

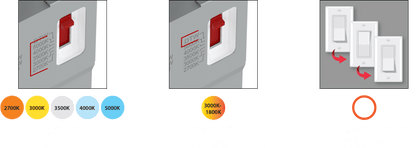

• Field-adjustable power and color temperature
• Dimmable using TRIAC/ELV, see dimmer compatibility list
• No recessed housing or j-box required
• 2000K amber white nightlight ring located on the inside of the trim cone
• 50,000 hrs, 5-year no-compromise warranty

Spec Sheets

Spec Sheet

Family Spec Sheet

Sell Sheet

Installation Instructions

Info

Additional Info

  Note All values are typical (tolerance +/- 10%)
