RAB Lighting

RAB WHALE2H 135W 2FT LED Wide Vapor Tight Washdown Selectable Wattage/CCT

RAB WHALE2H 135W 2FT LED Wide Vapor Tight Washdown Selectable Wattage/CCT

Regular price $243.00
Regular price Sale price $243.00
Sale Sold out
Shipping calculated at checkout.
Size
Color Temperature
Wattage

2FT 135W Washdown Vaportight

We know you'll love the convenience and versatility of RAB WHALE2. With its adjustable wattage and CCT, you can customize the lighting to meet your specific needs. And with up to 19,000 lumens, this industrial-strength lighting is sure to provide the brightness you need in even the most demanding environments. Plus, with IP67/IK10 protection, you can trust that this product is durable and long-lasting. And don't forget about the smart control options and easy installation - it's a complete package for all your lighting needs!

  •  70/100/135, factory default 135W
  • NSF certified for use in food-preparation facilities
  • 100,000-Hour LED lifespan
  • DLC Premium Listed
  • IP67 Rated for Wet Locations
  • 5-Year, limited warranty
Spec Sheets

Spec Sheet

Family Spec Sheet

Sell Sheet

Installation Instructions

Info


Wattage 70/100/135W
Lumen 10,310-19,460L
Color Temp. 3500K-5000K
Efficacy 147.2-163.7 lm/W
CRI 84-86
L70 Lifespan 100,000 hours
Lens Diffuse polycarbonate lens for low glare and maximum protection
Gaskets High-temperature silicone gaskets

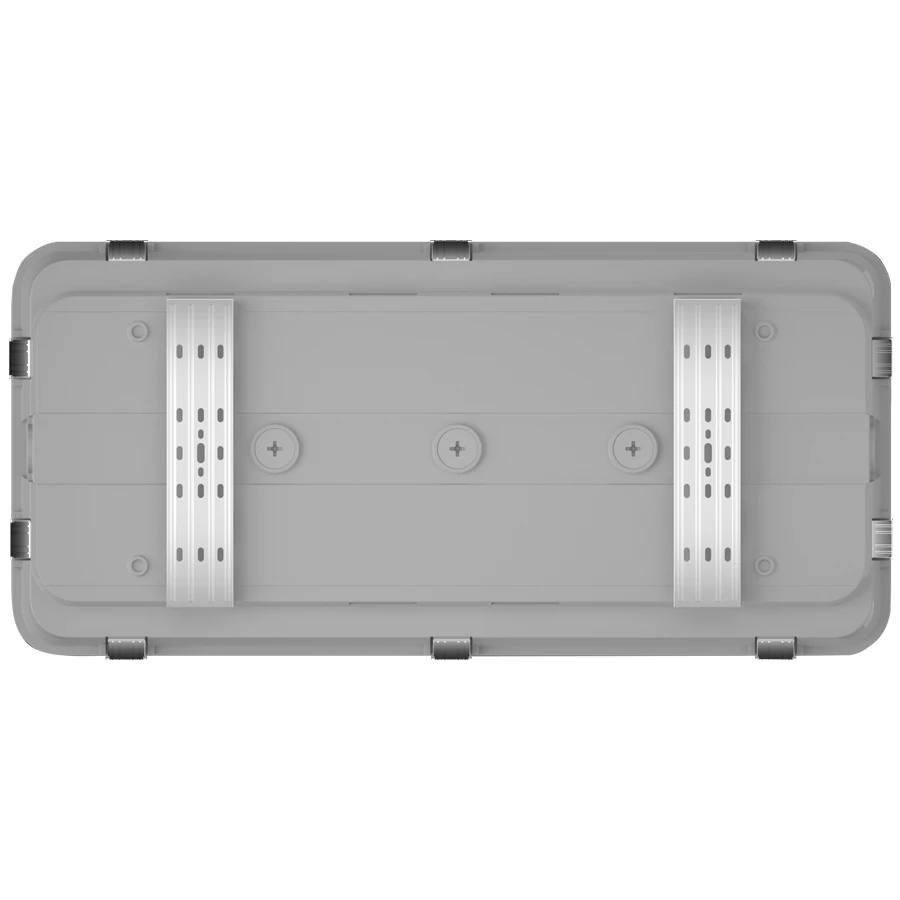

Mounting Quick-mount, stainless steel snap on brackets supplied for surface mounting. V-Hook brackets supplied standard for suspending the fixture.
Housing Impact-resistant polycarbonate* with stainless steel door clips. 1/2" NPS opening for conduit and bushing/cord entry. *Polycarbonate is affected by cleaning agents or other liquids containing partial solvents such as low molecular weight aldehydes and ethers, ketones, esters, aromatic hydrocarbons and perchlorinated hydrocarbons. Click here for a detailed list of damaging chemicals.
Installation Tether Cables are provided for easy installation. Quick connector may be used for quick and easy wiring.
Additional Info
DLC Listing This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-DC3JVX (Stairwell and Passageway Luminaires)
DLC Product Code: S-WZCD7L (High-Bay Luminaires for Commercial and Industrial Buildings)
Power Factor 99.8% at 120V, 94.9% at 277V
THD
4.24% at 120V, 8.35% at 277V
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
Surge Protection Ringwave LN4kV/LN-GND 6kV
