RAB Lighting

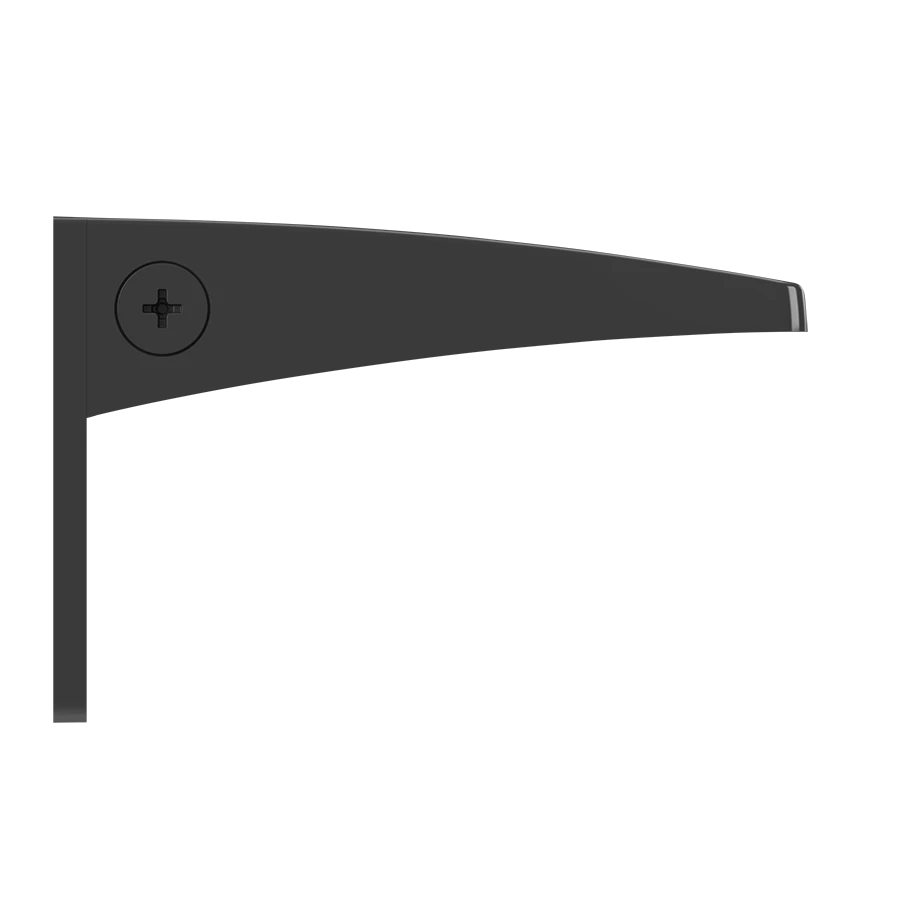

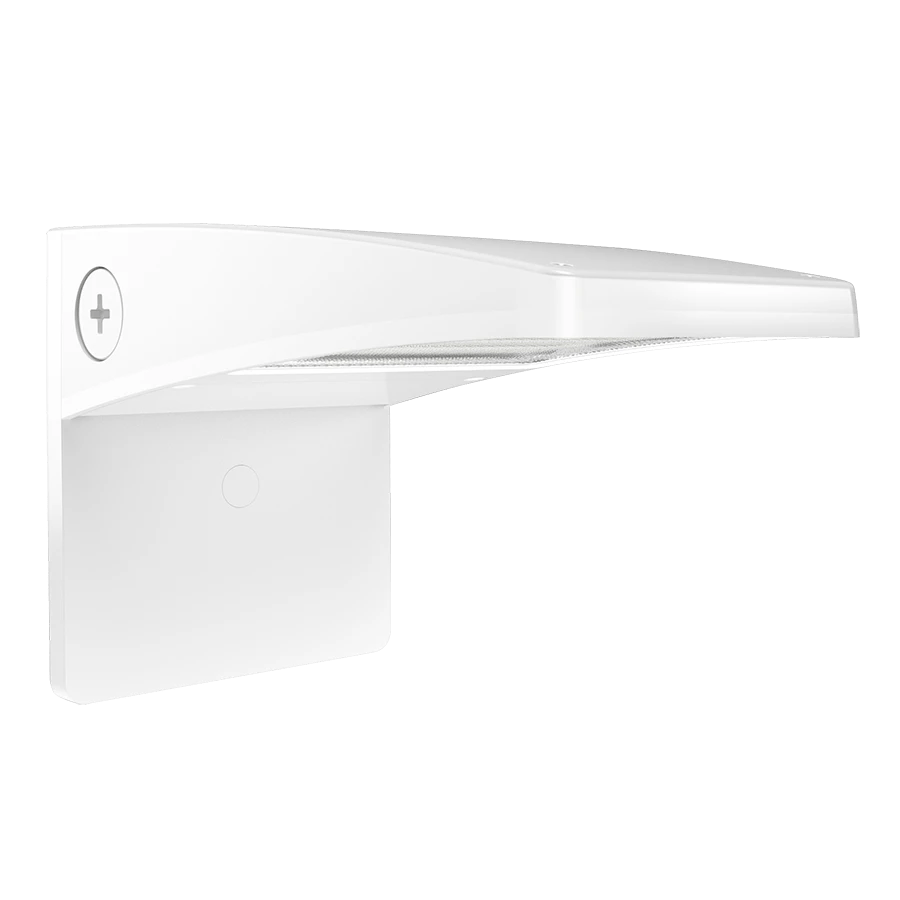

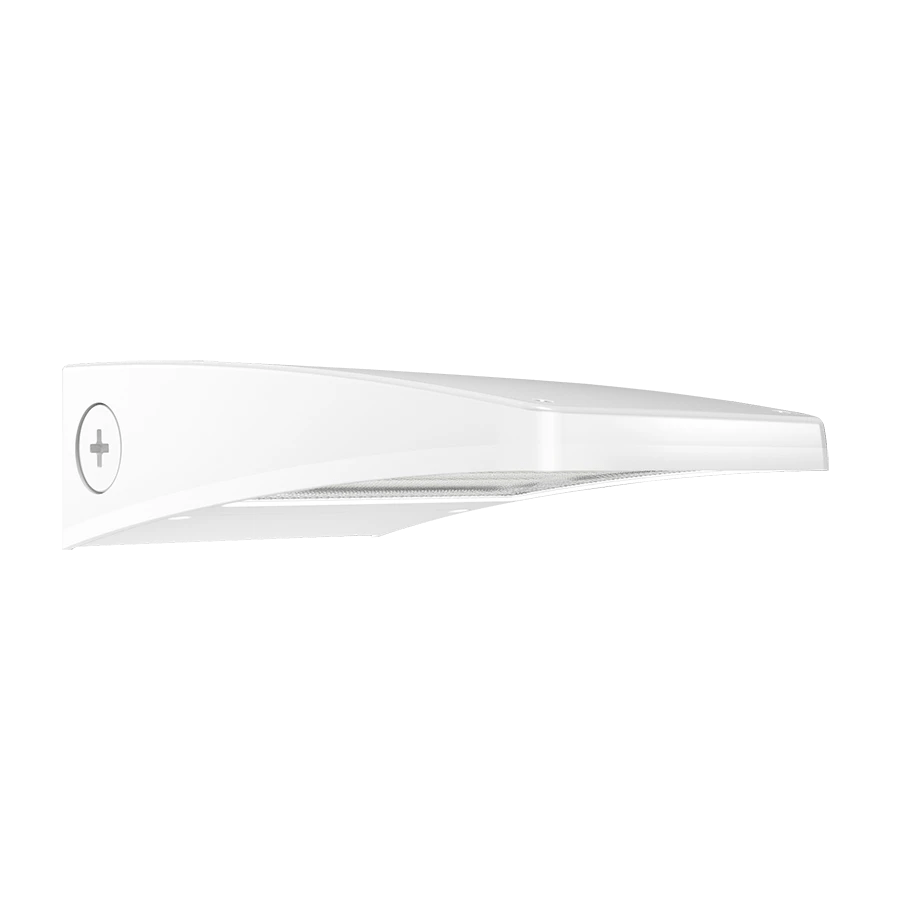

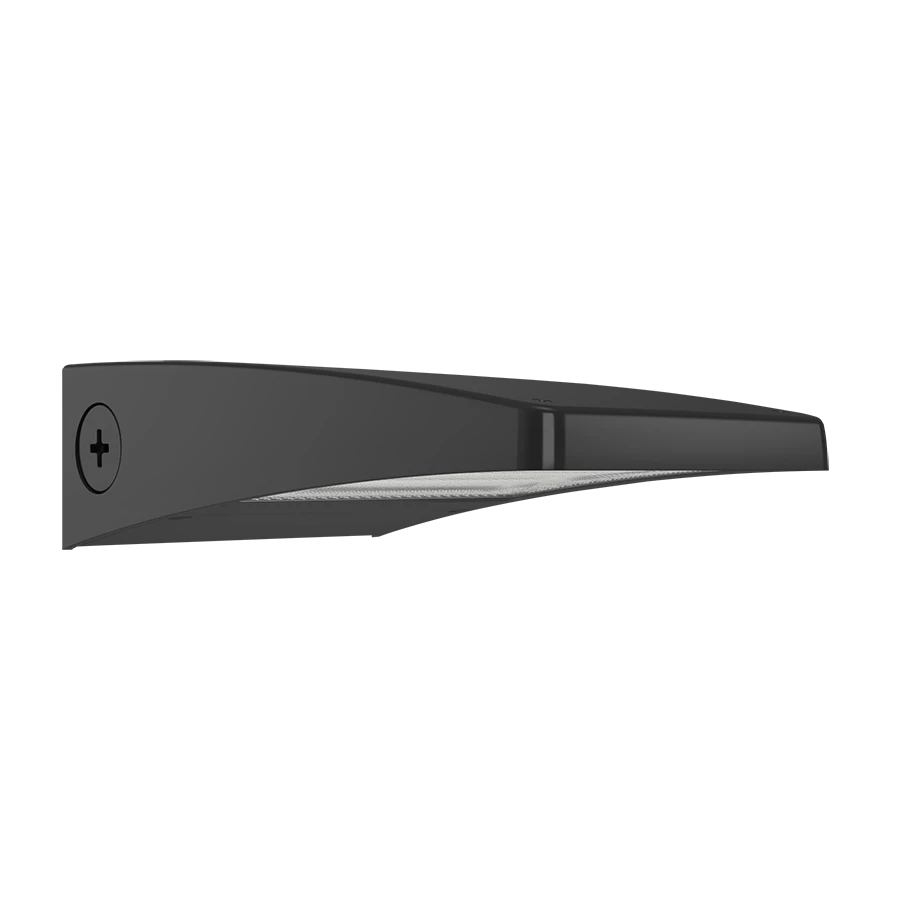

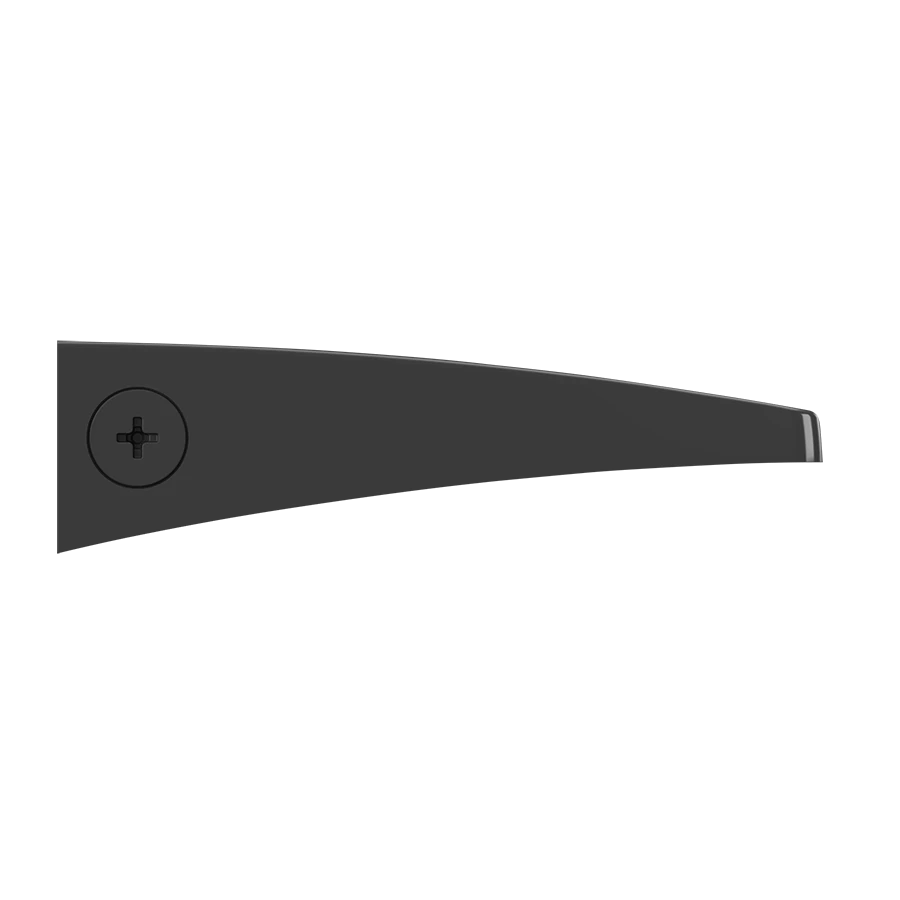

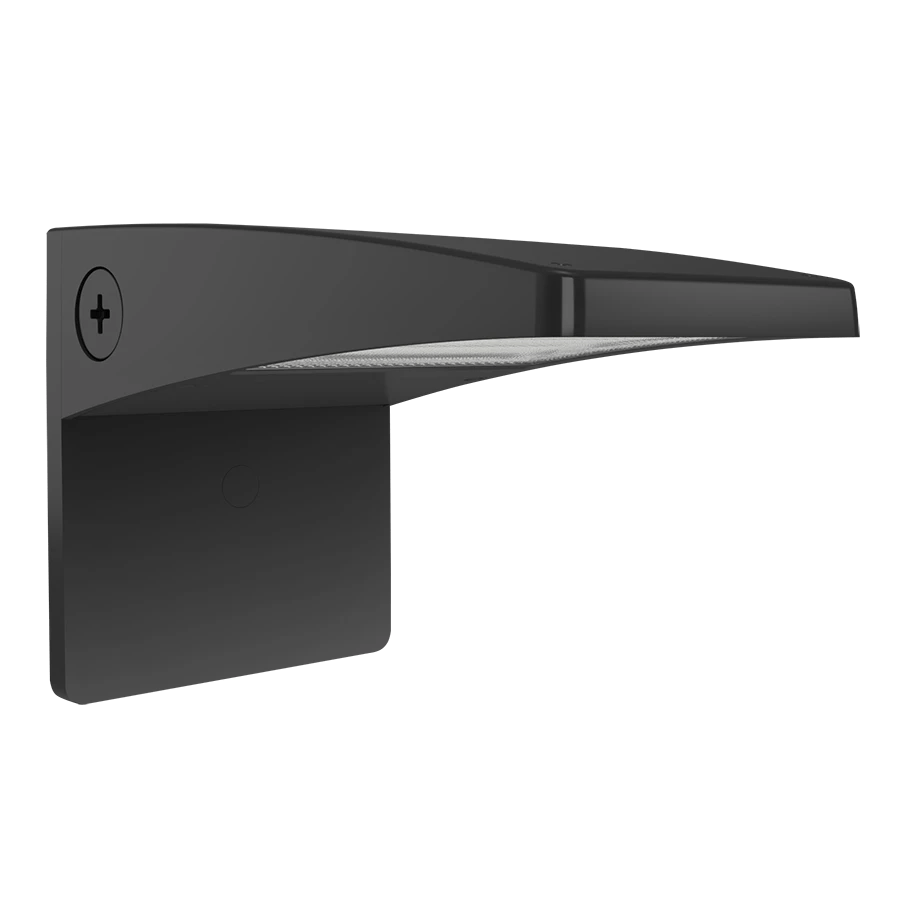

RAB WPLEDS 13W LED Wallpack Selectable Wattage & CCT

RAB WPLEDS 13W LED Wallpack Selectable Wattage & CCT

$113.00
$113.00
Sale Sold out
Shipping calculated at checkout.
Color: Bronze
Wattage
Color Temerperature

WPLEDS 13W CCT Adjustable Wallpack

The redesigned LPACK offers a more compact and sustainable design that is 50% lighter and has a smaller overall form size. It also features selectable wattage and color temperature, eliminating the need for multiple SKUs. With an included photocell and easy installation options, the LPACK provides eco-friendly lighting with reduced glare and light pollution.

  • Selectable wattages:
    WPLEDS: 13W/10W/6W WPLEDM: 32W/24W/16W
  • Selectable CCT: 3000K/4000K/5000K
  • Selectable on/off photocell
  • Voltage ratings: 120-277V
  • Comes with integrated junction box
  • Suitable for wet locations for downlight application
  • 5-Year, no-compromise warranty

  Field Adjustable Logo



Spec Sheet

Spec Sheet

Family Spec Sheet

Sell Sheet

Installation Instructions

Info
Product Typ  Wall Pack
Wattage Selectable 6/10/13W
Efficacy 135.5-148.3 lm/W
Lumen 830-1720
Color Temp. 3000/4000/5000K
CRI 83-84 CRI
Lifespan 100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Finish  Bronze
Full Cutoff Allows for conformance to the IDA's fully shielding requirement, emitting no light above 90 degrees.
Housing
 Die-cast aluminum
Lens Acrylic lens
Reflector
High reflection polycarbonate
Mounting
Integrated j-box and an optional wall plate included.



    Additional Info
    THD 4.02% at 120V, 14.83% at 277V
    Power Factor 99.5% at 120V, 92.1% at 277V
    Dimming Driver Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
    Driver
    		 13W: Constant Current, Class 2, 120-277V, 50/60 Hz,120V: 0.10A, 208V: 0.07A, 240V: 0.06A, 277V: 0.05A
    10W: Constant Current, Class 2, 120-277V, 50/60 Hz,120V: 0.70A, 208V: 0.05A, 240V: 0.04A, 277V: 0.04A
    6W: Constant Current, Class 2, 120-277V, 50/60 Hz,120V: 0.05A, 208V: 0.03A, 240V: 0.03A, 277V: 0.03A
    Photocell
    Integrated photocell included with on/off switch
    Surge Protection
    L-L 2kV; L-G 4kV
    Dim to Off
    Yes
