RAB Lighting

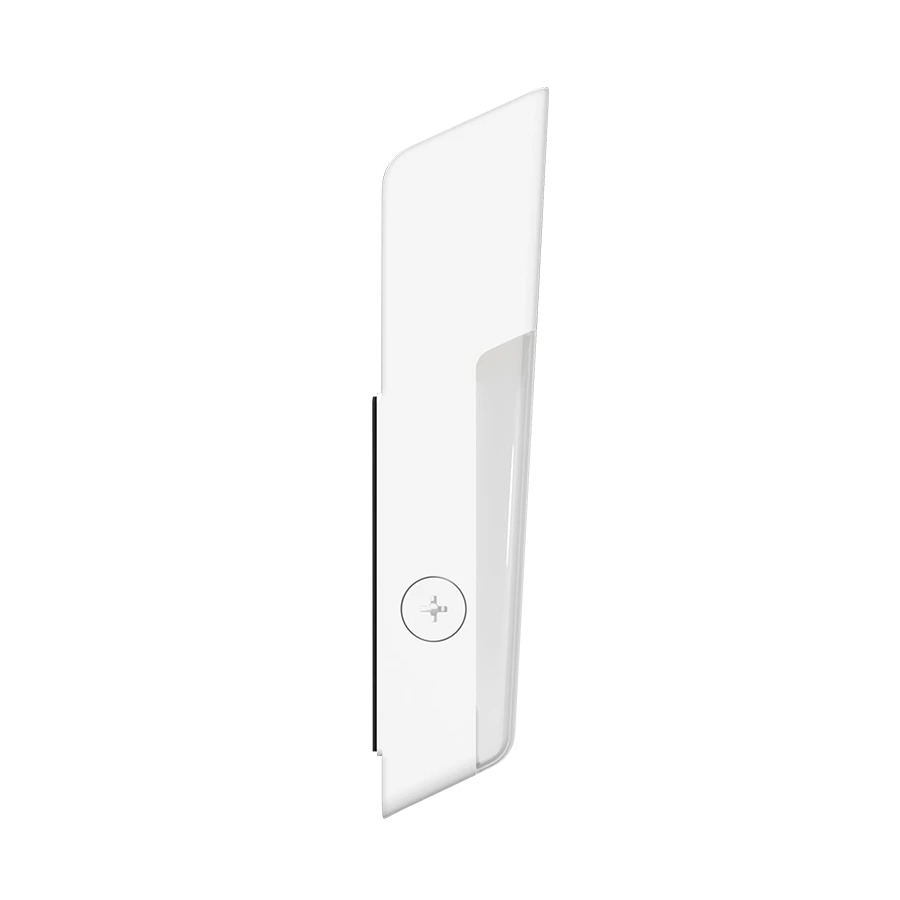

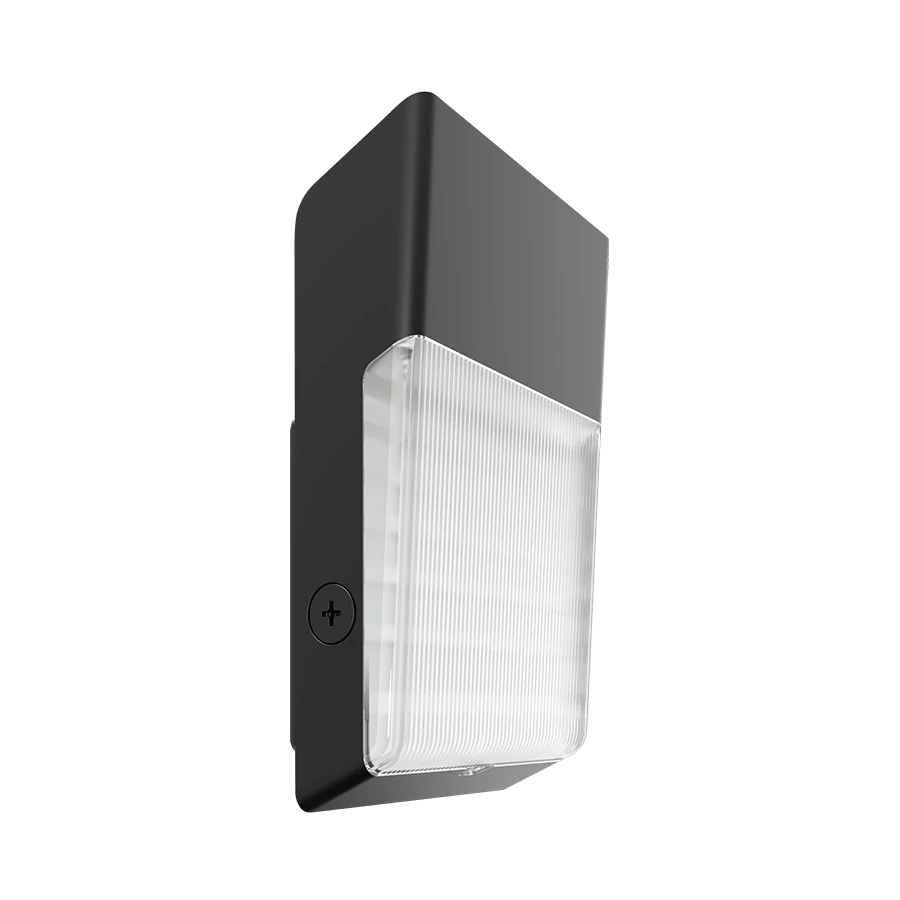

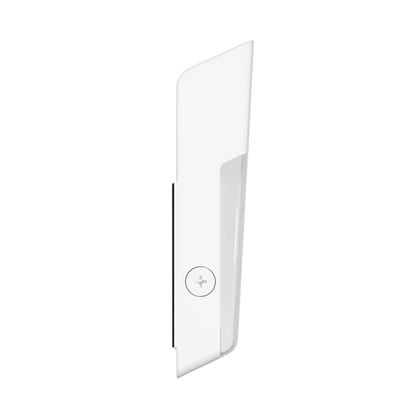

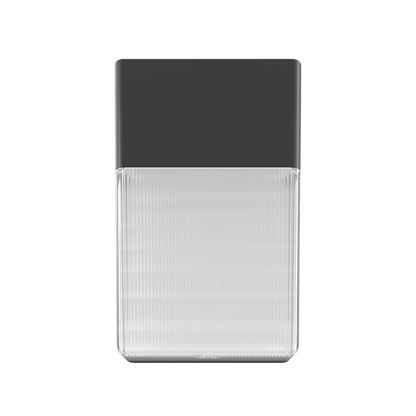

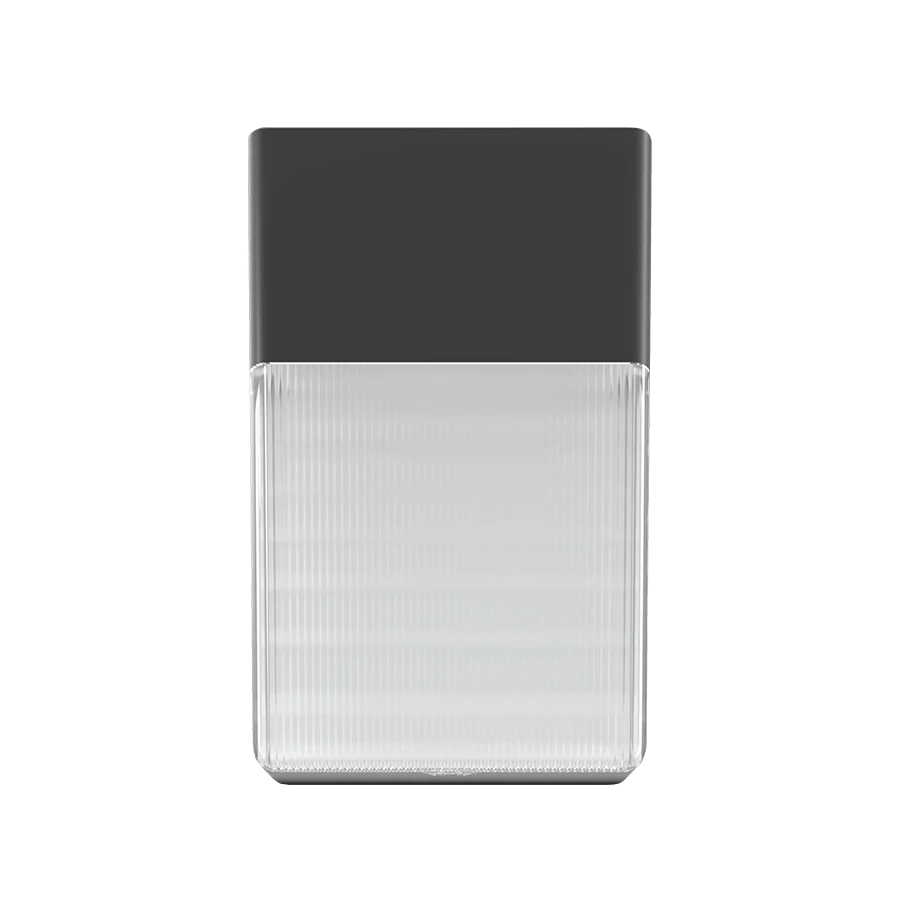

RAB WPT 40W Tall Wallpack Selectable Wattage + CCT + Photocell

RAB WPT 40W Tall Wallpack Selectable Wattage + CCT + Photocell

$154.00
$154.00
Sale Sold out
Shipping calculated at checkout.
Color: Bronze
Wattage
Color Temperature

40W Tall Wall Pack Selectable Wattage /CCT & Photocell

The RAB WPT 40W Tall Wallpack offers adjustable wattage and color temperature to customize your lighting needs. Its built-in photocell saves energy by automatically turning the light on and off. Made from recycled materials, it’s lighter and more eco-friendly than older models. Designed for durability, it resists water, dirt, and impact, making it ideal for commercial and industrial use at lower mounting heights. Upgrade to a versatile, efficient, and sustainable lighting solution.

  • Field-adjustable: 40/25/15W (Default 40W)
    Adjustable CCT: 30/40/50K (Default 4000K)
  • Voltage ratings: 120-277V
  • Comes with selectable on/off photocell
  •  Models available with smart controls
  • Battery backup option available
  • Suitable for wet locations
  • IP65 rated
  • 5-Year, limited warranty

  Field Adjustable Logo

Spec Sheet

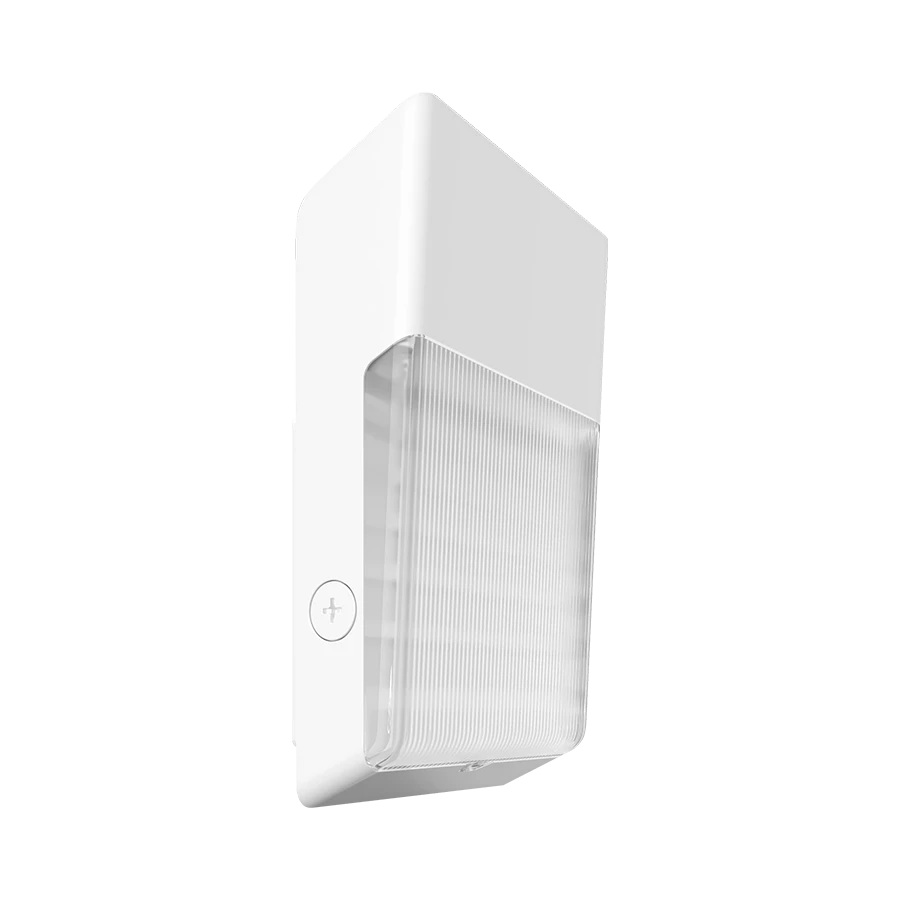

White / Bronze

Family Spec Sheet

Sell Sheet

Installation Instructions

Info

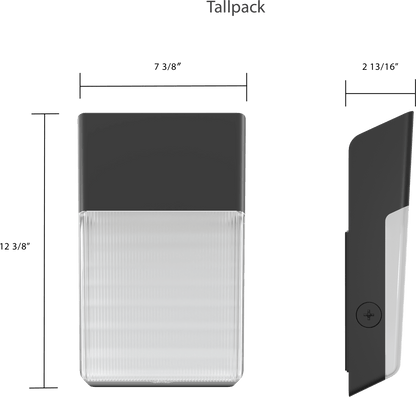

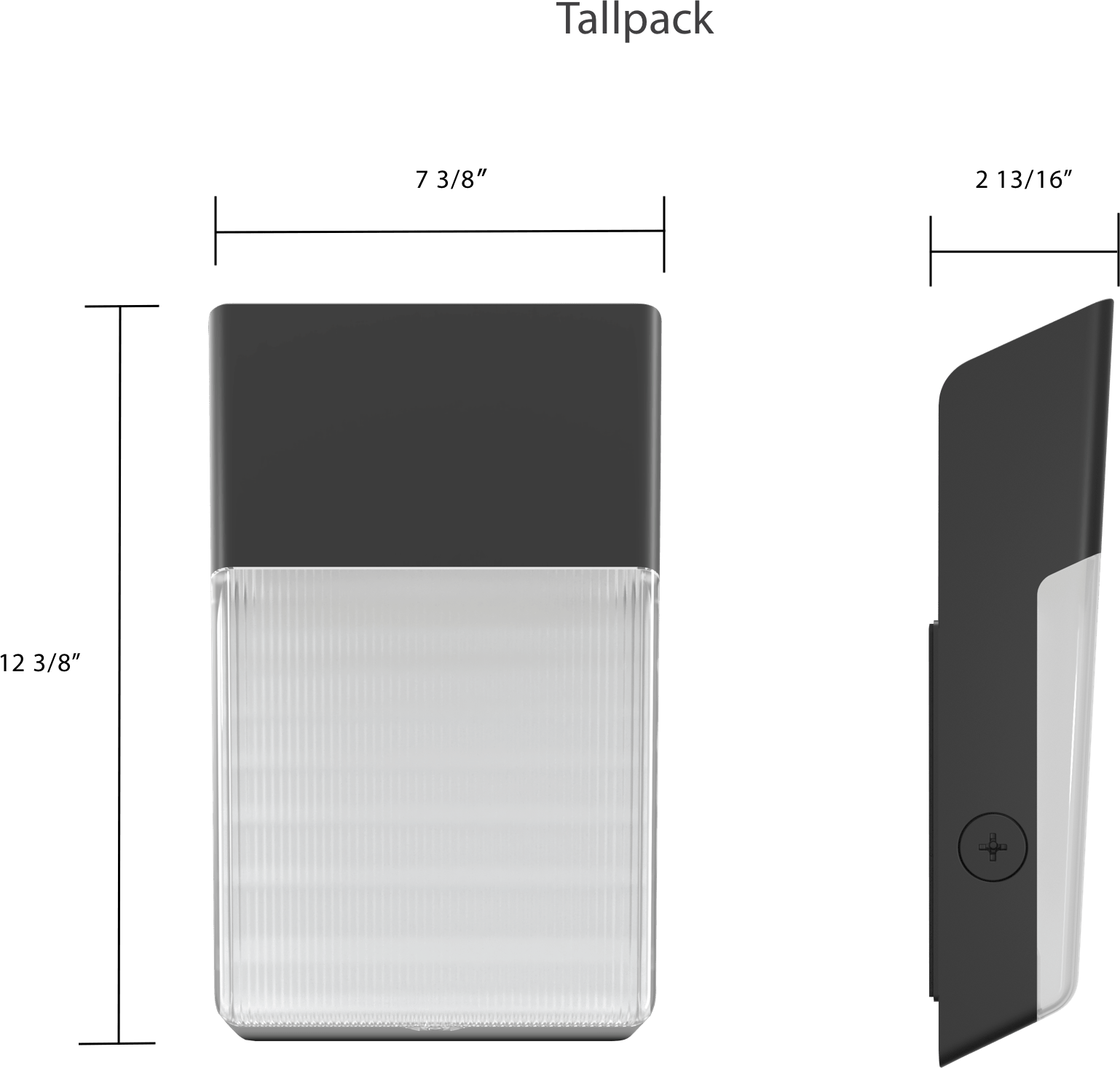

Product Type  Tall Wall Pack
Efficacy 126.7-146.1 lm/W
Wattage 15/25/40W
Lumen 2,162-5,345 lm
Color Temp. 30K/40K/50K
CRI 83-84 CRI
Lifespan 100,000 Hours
Finish  Bronze/White
DLC Listed This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-5323T1



    Additional Info
    THD 9.94% at 120V, 9.42% at 277V
    Power Factor 99.5% at 120V, 98.1% at 277V
    Driver Constant Current, Class 1, 120-277V, 50/60 Hz:
    40W: 120V: 0.33A, 208V: 0.19A,240V: 0.17A, 277V: 0.14A
    25W: 120V: 0.21A, 208V: 0.12A,240V: 0.10A, 277V: 0.09A
    15W: 120V: 0.13A, 208V: 0.07A,240V: 0.06A, 277V: 0.05A
    Dimming Driver
    Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
    Photocell
    Integrated photocell included with on/off switch
    Surge Protection
    4KV
    Aux Power Supply
    Yes
