RAB Lighting

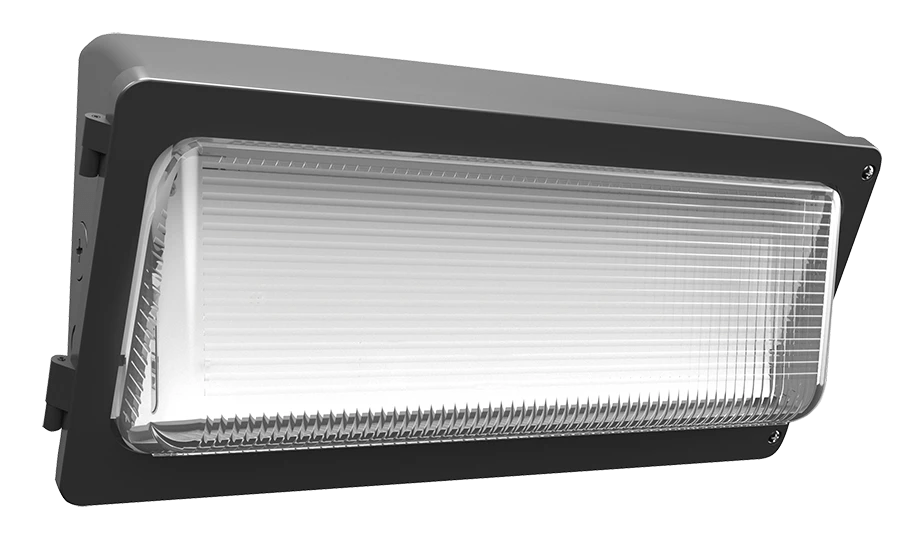

RAB WPX3 130W LED Wallpack Selectable Wattage/CCT

RAB WPX3 130W LED Wallpack Selectable Wattage/CCT

Regular price $299.00
Regular price Sale price $299.00
Sale Sold out
Shipping calculated at checkout.
Color: Bronze
Wattage
Color Temperature

WPX3

  • 100,000-Hour LED lifespan
  • 10-Year, no-compromise warranty
  • Premium wall pack available in three different sizes and selectable wattages: WPX1: 30/20/15W WPX2: 80/60/40W WPX3: 130/100/65W
  • CCT Adjustable: 3000/4000/5000K
  • Selectable on/off photocell 120-277V & 480V
  • 0-10V dimming standard
  • Battery backup available for 120-277V models
  • Available with smart controls.
  • Multi-sensor remote sold separately
   Field Adjustable Logo



Spec Sheet

Spec Sheet

Family Spec Sheet

Installation Instructions

Info
Product Type  Wall Pack
Efficacy
130-156.4 lm/W
Wattage Selectable 130/100/65W
Lumen 9,509-18,635 lm
Color Temp. 3000K/4000K/5000K
CRI 83-86 CRI
Lifespan 100,000 Hours
Finish  Bronze/White



    Additional Info
     Construction
    Housing Aluminum alloy

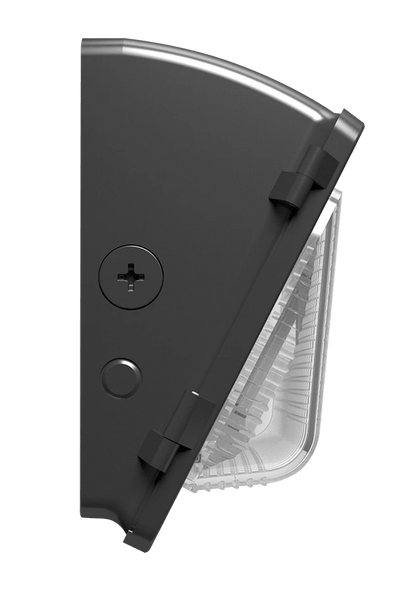

    Mounting Hinged wiring access and conduit entries on the back sides, top and bottom make installation a snap
    Lens Prismatic, heat-resistant borosilicate glass
    Reflector Aluminum
    Max/Min Temperature
    The minimum starting temperature is -40°C (-40°F)
    Suitable for use in up to 40°C (104°F)
    Gaskets High-temperature silicone
    Finish
    Formulated for high durability and long-lasting color
                                                    Compliance
    UL Listed Suitable for wet locations
                                                      Electrical
    Driver

    Constant Current, Class 1, 120-277V, 50/60 Hz
    130W: 120V: 1.10A 208V: 0.63A, 240V: 0.55A, 277V: 0.48A
    100W: 120V: 0.84A 208V: 0.48A, 240V: 0.42A, 277V: 0.37A
    65W: 120V: 0.55A 208V: 0.32A, 240V: 0.27A, 277V: 0.26A

    Dimming Driver Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
    Photocell
    Integrated photocell included with on/off switch
    Surge Protection
    6kV
