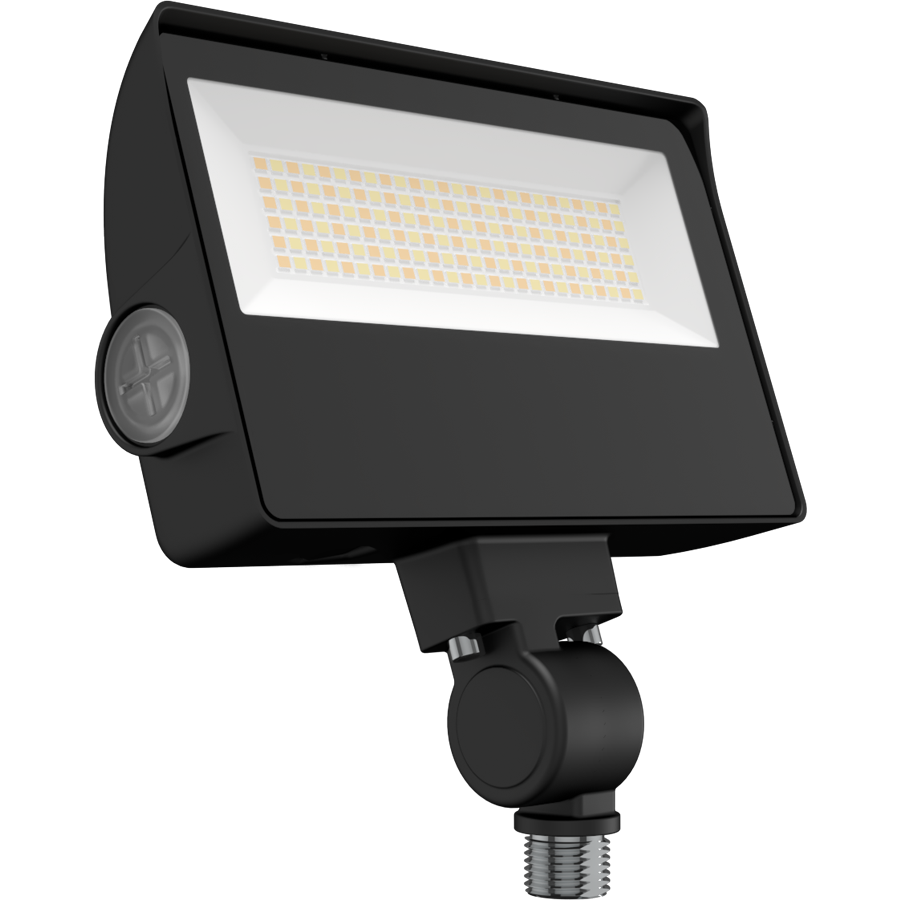

RAB X15-30 LED Flood Light, 30/25/20W Selectable, 3CCT

RAB X15-30 LED Flood Light, 30/25/20W Selectable, 3CCT

$56.00
$56.00
Sale Sold out
Shipping calculated at checkout.
Color

RAB X15-30 LED Flood Light, 30/25/20W Selectable, 3CCT

The RAB X15-30 is a field-adjustable LED floodlight with selectable wattage (30/25/20W, default 30W) and adjustable color temperature (3000/4000/5000K, default 4000K), availableknuckle mount only. An integrated ON/OFF photocell, 0-10V dimming and an IP66 wet-rated, IK07 impact-resistant die-cast aluminum housing make it a set-and-forget replacement for HID floods.

  • Selectable wattage: 30/25/20W (factory default 30W)
  • Adjustable CCT: 3000/4000/5000K (default 4000K)
  • Integrated ON/OFF photocell (default off)
  • 0-10V dimming down to 10%
  • 120-277V input
  • IP66 wet location rated, IK07 impact rated
  • 100,000-hour L70 LED lifespan
  • DLC listed; UL wet location listed
  • 3G vibration rating per ANSI C136.31
  • Die-cast aluminum housing, glass lens
  • 5-year limited warranty
Spec Sheets

Spec Sheet

Family Spec Sheet

Installation Instructions

Sales Sheet

Info
Product Type LED floodlight, field-adjustable
Family RAB X15
Wattage (selectable) 30/25/20W (default 30W)
Lumens @ 30W (3000/4000/5000K) 4,327 / 4,617 / 4,512 lm
Lumens @ 25W (3000/4000/5000K) 3,637 / 3,881 / 3,792 lm
Lumens @ 20W (3000/4000/5000K) 3,016 / 3,218 / 3,145 lm
Color Temperature 3000/4000/5000K selectable (default 4000K)
CRI 80+
Input Voltage 120-277V, 50/60 Hz
Dimming 0-10V, dims to 10%
Photocell Integrated ON/OFF photocell
Beam / Distribution NEMA Type 7H x 7V
Mounting Knuckle mount

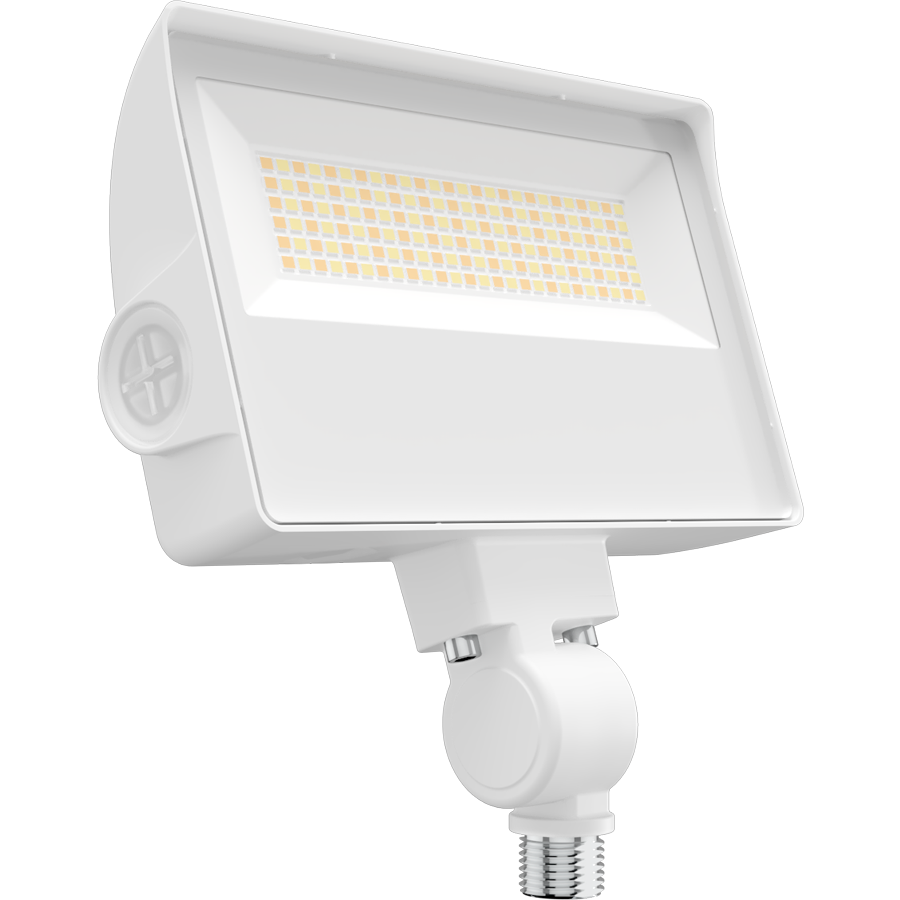

Finish Bronze or White
Housing Die-cast aluminum, glass lens
IP / IK Rating IP66 / IK07
BUG Rating 2-3-0
EPA Knuckle: 0.27
Vibration 3G per ANSI C136.31
Cold Weather Start -40°F (-40°C)
Max Ambient 122°F (50°C)
Surge Protection L-N 4kV, L/N-G 4kV
Lifespan 100,000 hours L70
Listings UL wet location, DLC listed, RoHS
Warranty 5-year limited
