RAB Lighting

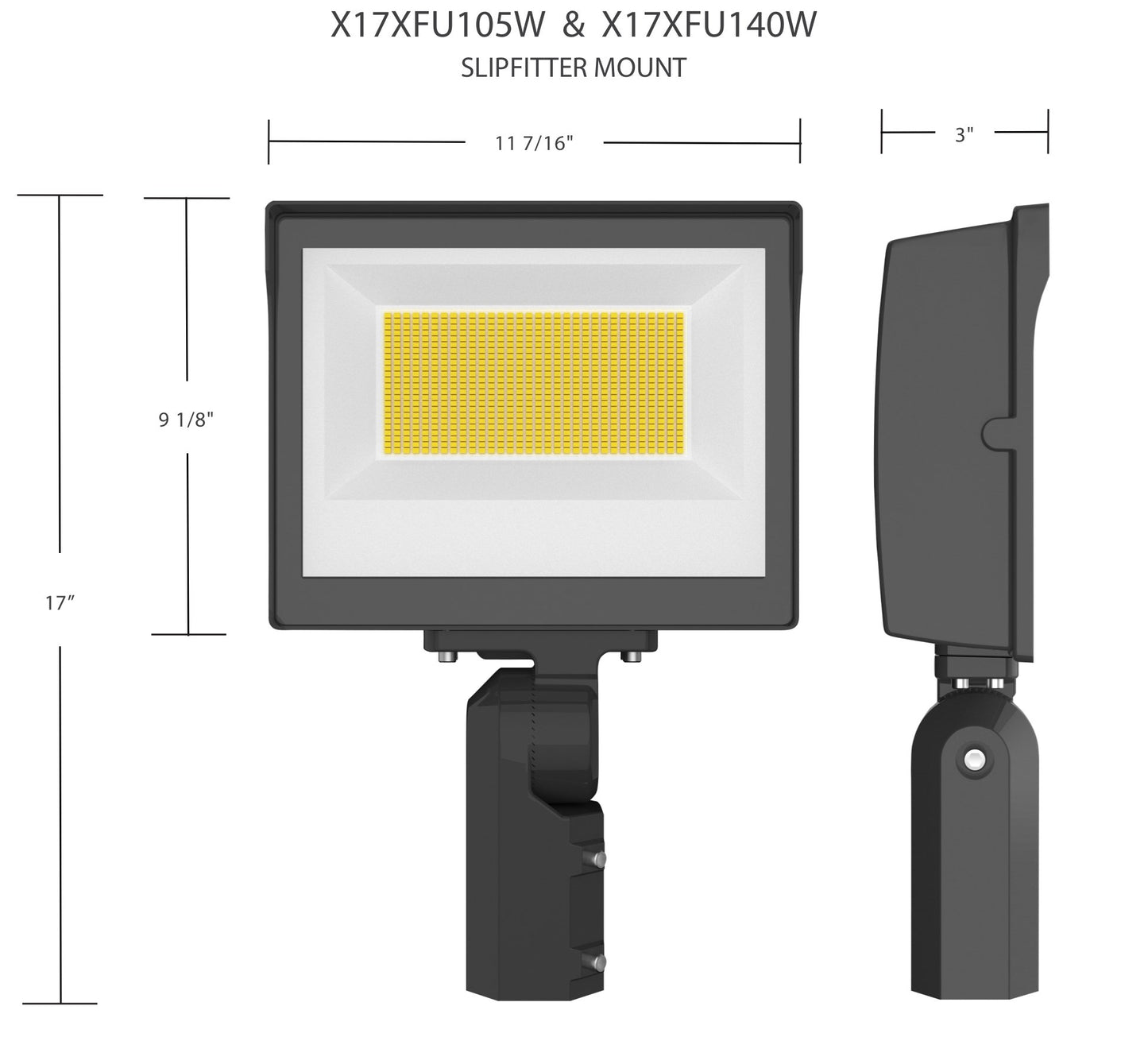

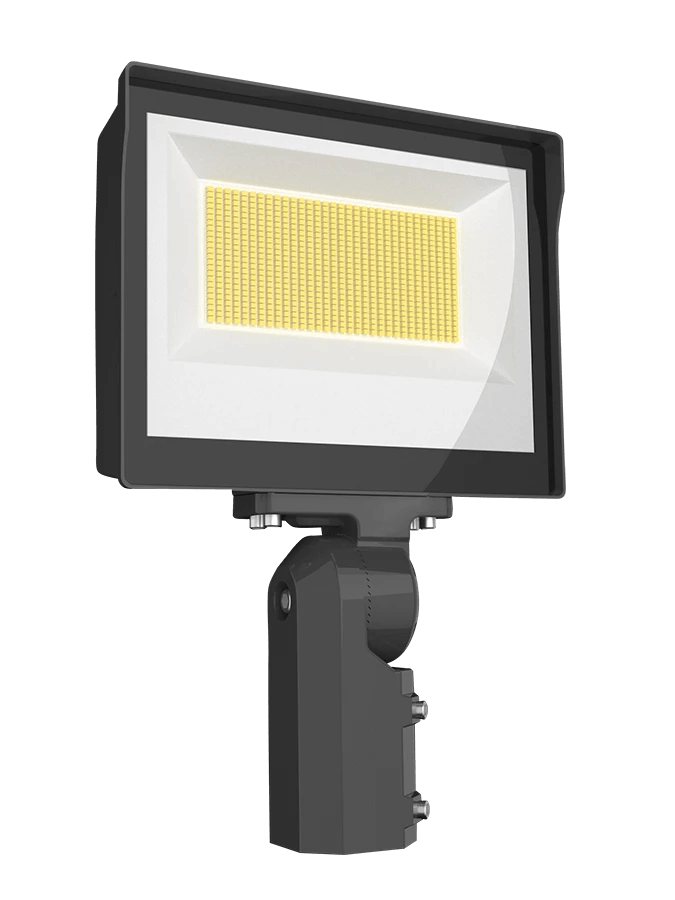

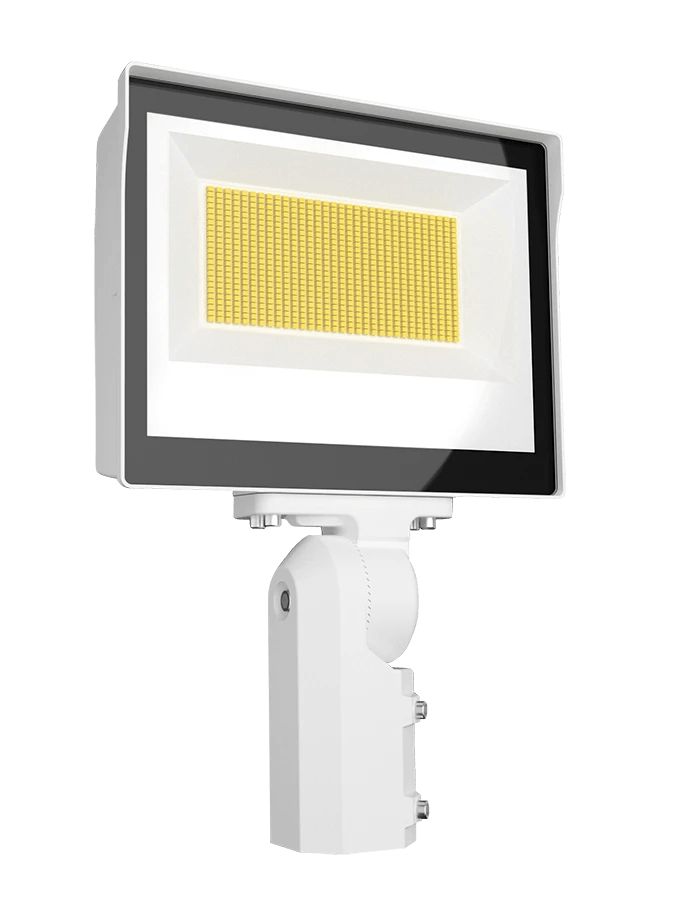

RAB X17 105W LED Flood Light Slipfitter Mount Selectable CCT

$238.00

Sale Sold out

Shipping calculated at checkout.

Color: Bronze

Mount Style Slipfitter Mount

Wattage 105W

Quantity

X17 50/75/105W 6304-14129 Lumen Flood Light 120-277V

X17XFU105SF / X17XFU105SFW

Field Adjustable Light Output:
50W/75W/105W (factory default 105W)
Color temperature (selectable by 3000K, 4000K and 5000K)

Product Type	Flood Light
Wattage	50W/75W/105W
Lumen	6304-14129
Efficacy	126.1-140.9 lm/W
Color Temp.	3000K 4000K 5000K
CRI	83-86 CRI
L70 Lifespan	100,000 Hours
Housing	Precision die-cast aluminum
Finish	White \| Bronze
Mounting	Slipfitter with 180° pivot available for mounting on 2 3/8" tenon
Tilt Increment	Rotates in 6 degree increments
Effective Projected Area	EPA=1.35
Lens	Tempered glass
Beam Angle	NEMA Beam Spread of 7H x 7V
IP Rating	Ingress protection rating of IP65 for dust and water
Shorting Cap	Shorting Cap for Twistlock Receptacle

Compliance

UL Listed	Suitable for wet locations
IESNA LM-79 & LM-80 Testing	RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80
DLC Listed	This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements. DLC Product Code: PS9H9M39

Electrical

Driver	Constant Current, Class 2, 120-277V, 50/60Hz,120V: 0.87A, 208V: 0.60A, 240V: 0.50A, 277V: 0.38A
THD	2.66% at 120V, 7.17% at 277V
Power Factor	99.7% at 120V, 95% at 277V
Dimming Driver	Driver includes wiring for 0-10V dimming systems. Dim as low as 10%
Photocell	120-277V selectable photocell that can be turned on and off
