RAB Lighting

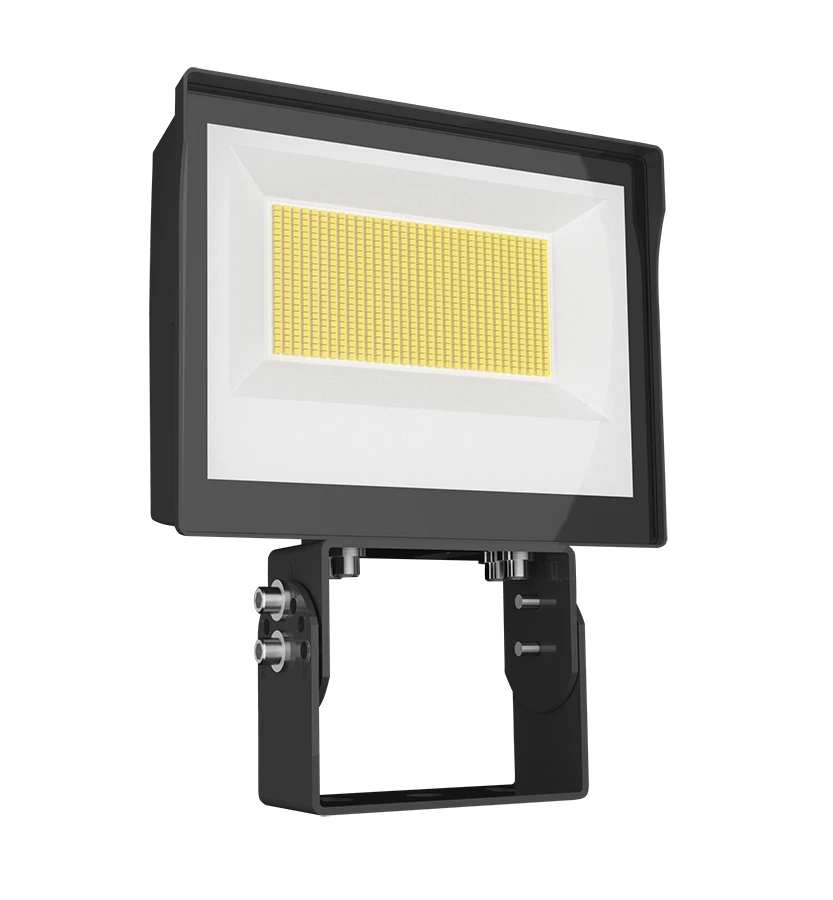

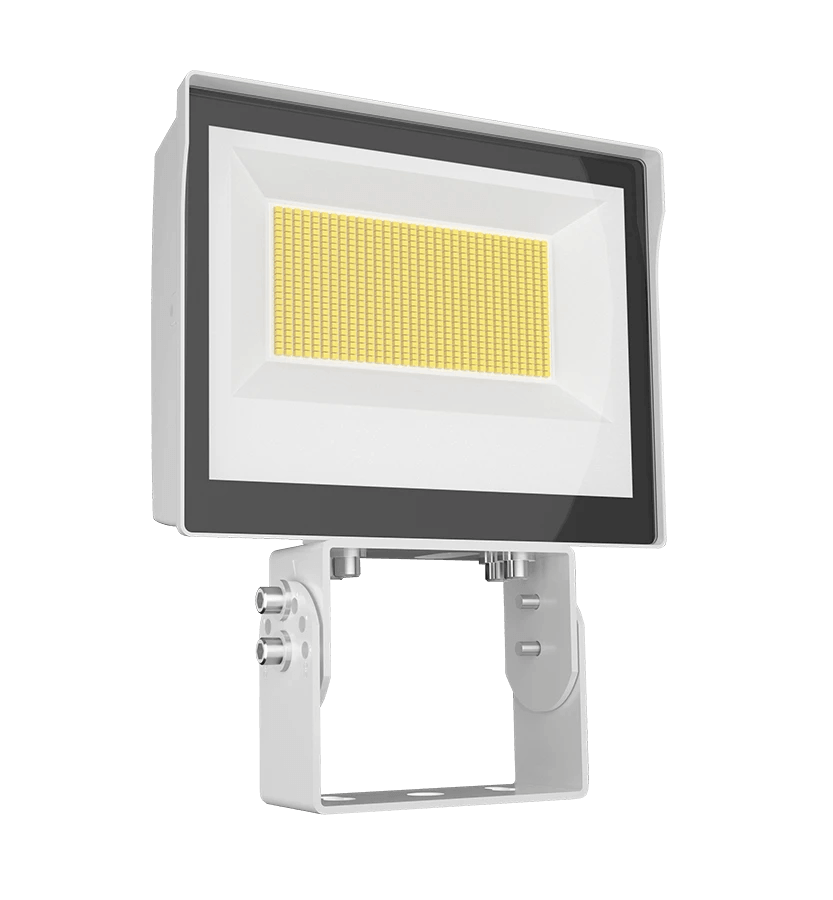

RAB X17 105W LED Flood Light Trunnion Mount Selectable CCT

RAB X17 105W LED Flood Light Trunnion Mount Selectable CCT

Regular price $220.00
Regular price Sale price $220.00
Sale Sold out
Shipping calculated at checkout.
Color
Mount Style
Wattage

X17 50/75/105W 6304-14129 Lumen Flood Light 120-277V

  • 0-10V Dimming, standard
  • 100,000-hour LED lifespan
  • Selectable photocell (on/off) included
  • 5-Year, Limited Warranty
  • Trunnion Mount




Spec Sheet

Bronze Spec / White Spec

Installation Instructions

Info
Product Type  Flood Light
Wattage 50W/75W/105W
Lumen 6304-14129
Efficacy 126.1-140.9 lm/W
Color Temp. 3000K 4000K 5000K
CRI 83-86 CRI
L70 Lifespan 100,000 Hours
Housing Precision die-cast aluminum
Finish  White | Bronze
Mounting Trunnion mount with stainless steel hardware
Tilt Increment
Rotates in 30 degree increments
Effective Projected Area EPA=1.35
Lens Tempered glass
Beam Angle NEMA Beam Spread of 7H x 7V
IP Rating Ingress protection rating of IP65 for dust and water
Additional Info



                                                Compliance
UL Listed Suitable for wet locations
IESNA LM-79 & LM-80 Testing RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80
DLC Listed This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements. DLC Product Code: PS9H9M39
                                                  Electrical
Driver Constant Current, Class 2, 120-277V, 50/60Hz,120V: 0.87A, 208V: 0.60A, 240V: 0.50A, 277V: 0.38A
THD 2.66% at 120V, 7.17% at 277V
Power Factor 99.7% at 120V, 95% at 277V
Dimming Driver Driver includes wiring for 0-10V dimming systems. Dim as low as 10%
Photocell 120-277V selectable photocell that can be turned on and off
