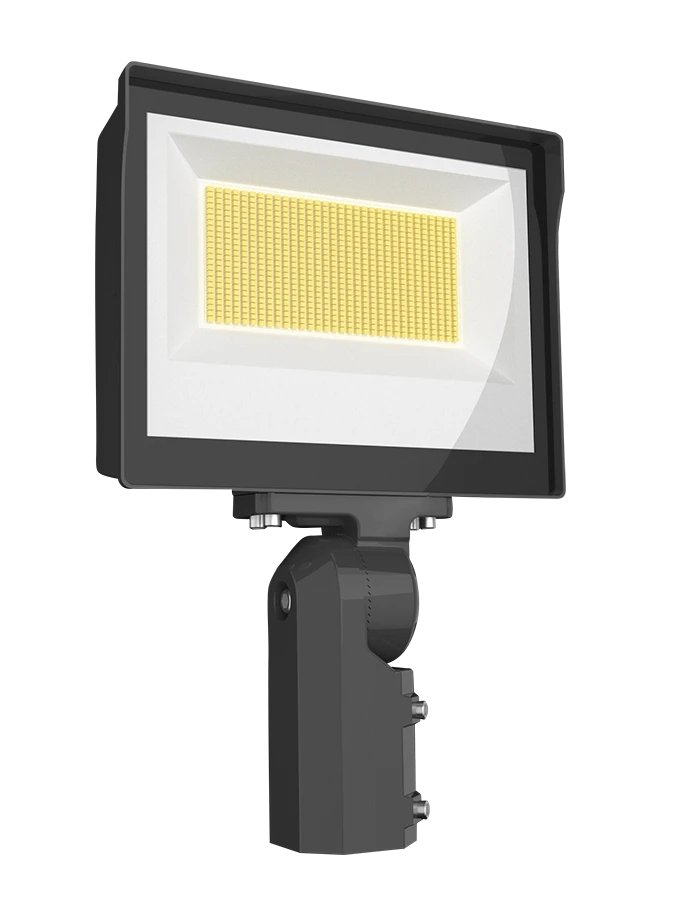

RAB X17 140W LED Flood Light Slipfitter Mount Selectable CCT

$335.00

Sale Sold out

Shipping calculated at checkout.

Color: Bronze

Mount Style Slipfitter Mount

Wattage 140W

Quantity

X17 70/100/140W 8947-19158 Lumen Flood Light 120-277V

X17XFU140SF / X17XFU140SFW

Field Adjustable Light Output:
70W/100W/140W (factory default 140W)
Color temperature (selectable by 3000K, 4000K and 5000K)

Product Type	Flood Light
Wattage	70W/100W/140W
Lumen	8947-19158
Efficacy	127.8-141.5 lm/W
Color Temp.	3000K 4000K 5000K
CRI	83-85 CRI
L70 Lifespan	100,000 Hours
Housing	Precision die-cast aluminum
Finish	White \| Bronze
Mounting	Slipfitter with 180° pivot available for mounting on 2 3/8" tenon
Tilt Increment	Rotates in 6 degree increments
Effective Projected Area	EPA=1.35
Lens	Tempered glass
Beam Angle	NEMA Beam Spread of 7H x 7V
IP Rating	Ingress protection rating of IP65 for dust and water
Shorting Cap	Shorting Cap for Twistlock Receptacle

Compliance

UL Listed	Suitable for wet locations
IESNA LM-79 & LM-80 Testing	RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80
DLC Listed	This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements. DLC Product Code: P596G73J

Electrical

Driver	Constant Current, Class 2, 120-277V, 50/60Hz,120V: 1.17A, 208V: 0.75A, 240V: 0.65A, 277V: 0.54A
THD	3.85% at 120V, 9.13% at 277V
Power Factor	99.9% at 120V, 93.2% at 277V
Dimming Driver	Driver includes wiring for 0-10V dimming systems. Dim as low as 10%
Photocell	120-277V selectable photocell that can be turned on and off
