RAB Lighting

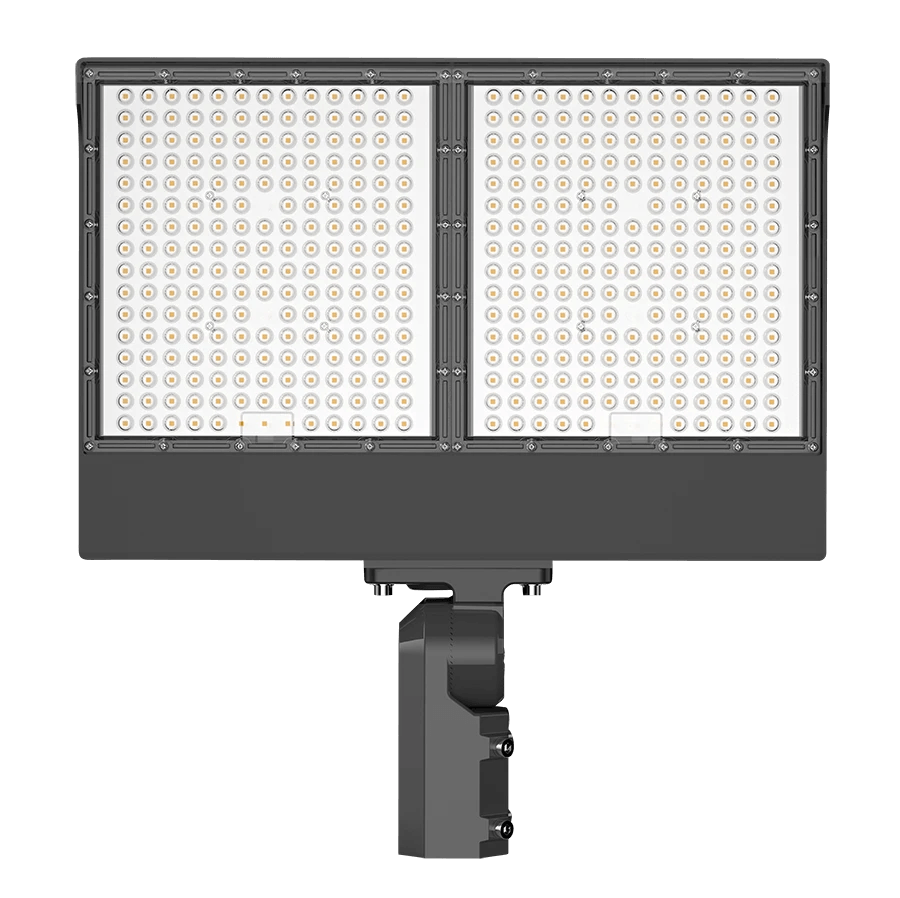

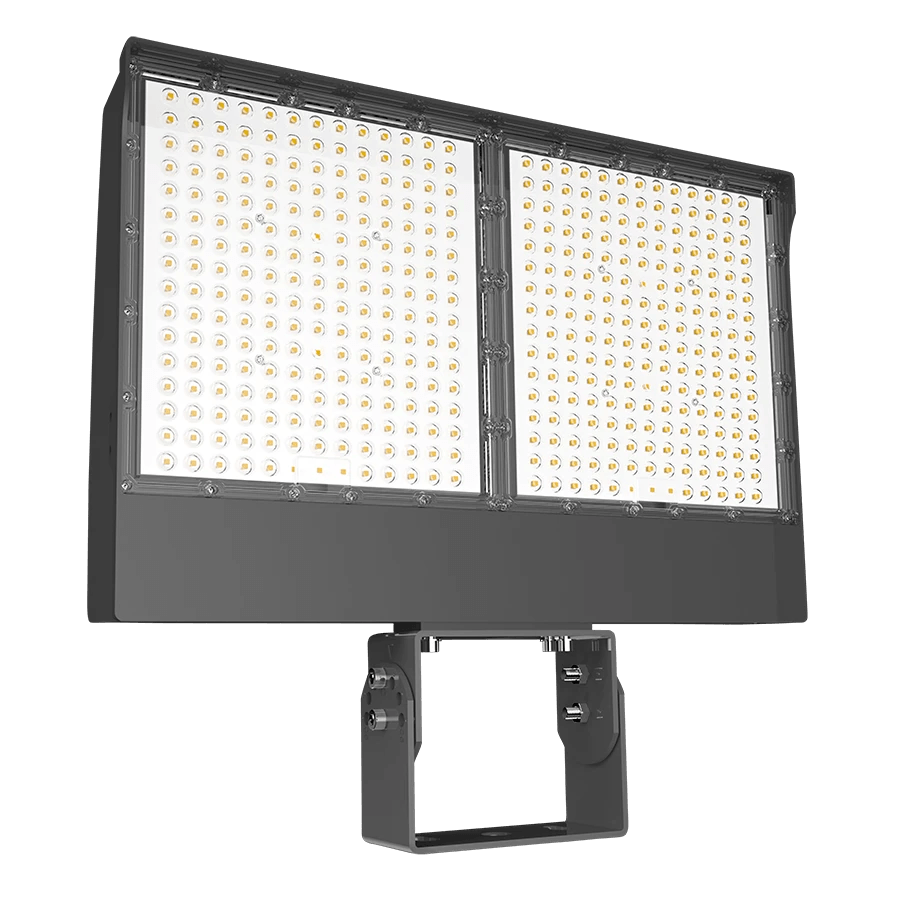

RAB X17 330W LED Flood Light Trunnion/Slipfitter Mount Selectable CCT

RAB X17 330W LED Flood Light Trunnion/Slipfitter Mount Selectable CCT

Regular price $679.00
Regular price Sale price $679.00
Sale Sold out
Shipping calculated at checkout.
Mount Style

X17 175/250/330W 23907-49228 Lumen Flood Light 120-277V

  • 0-10V Dimming, standard
  • 100,000-hour LED lifespan
  • Selectable photocell (on/off) included
  • 5-Year, Limited Warranty

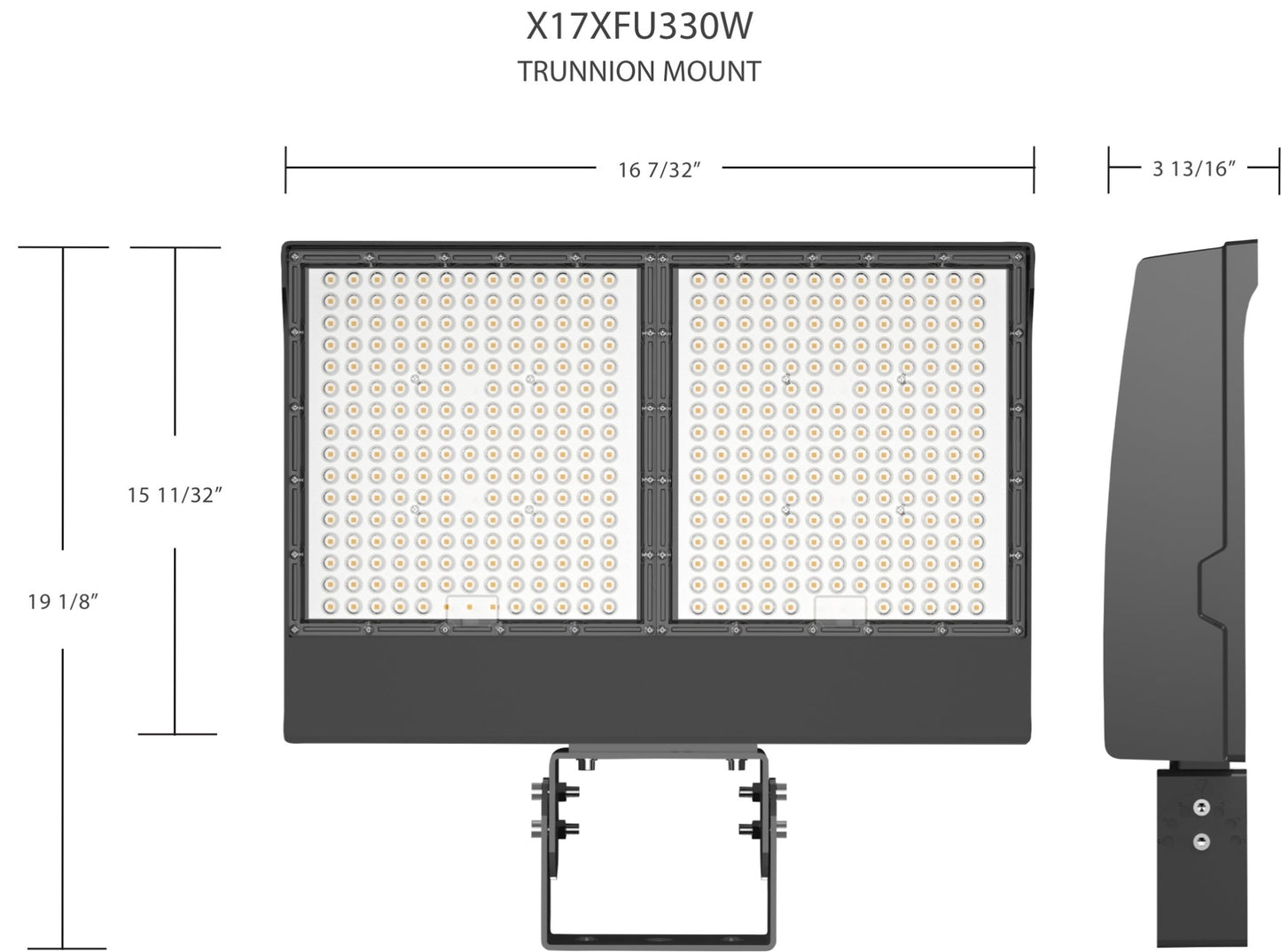

  • Trunnion Mount

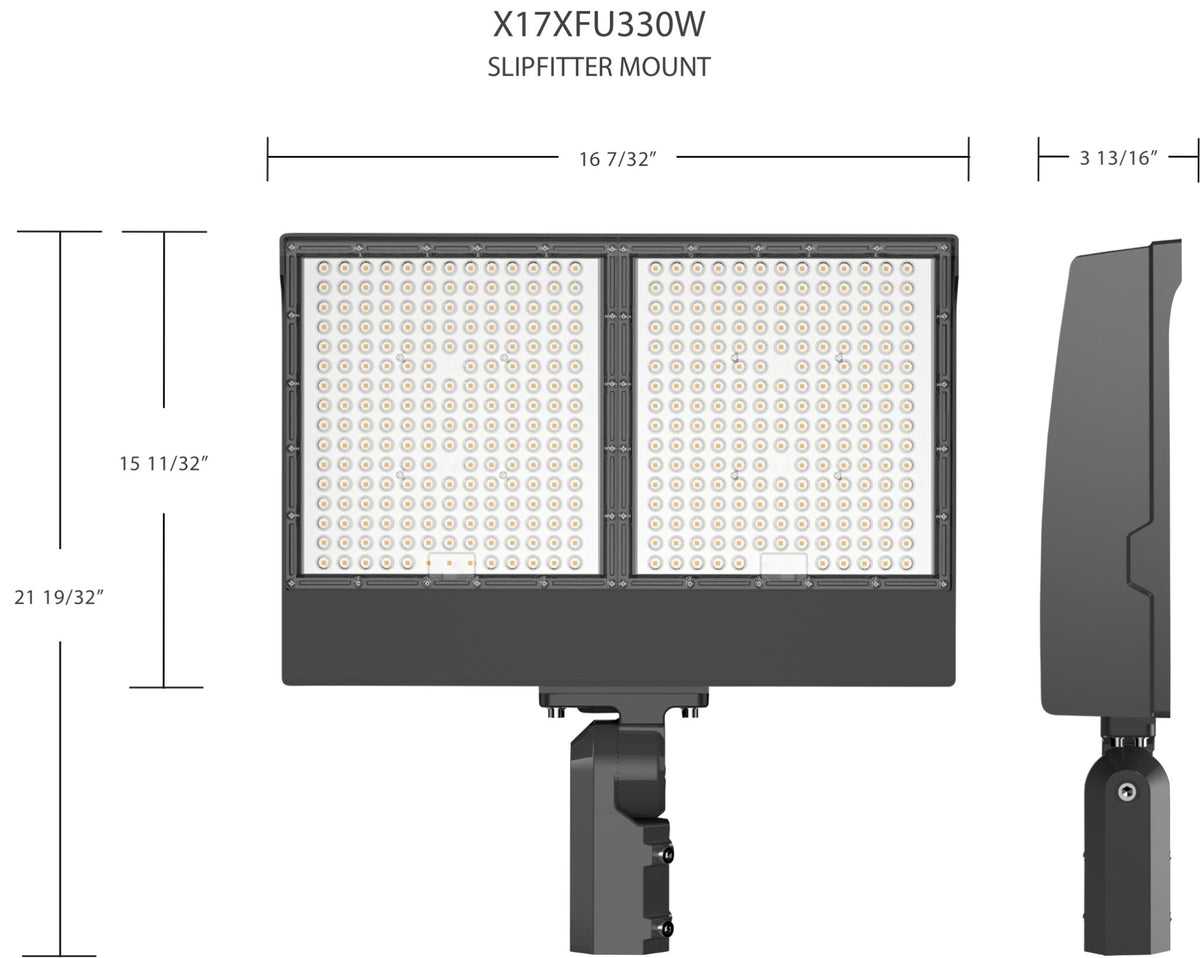

  • Slipfitter Mount


Spec Sheet

Trunnion Spec / Slipfitter Spec

Installation Instructions

Product Type  Flood Light
Wattage 175W/250W/330W
Lumen 23907-49228
Efficacy 136.6-153 lm/W
Color Temp. 3000K 4000K 5000K
CRI 71-73 CRI
L70 Lifespan 100,000 Hours
Housing Precision die-cast aluminum
Finish  Bronze

Trunnion mount with stainless steel hardware

Slipfitter with 180° pivot available for mounting on 2 3/8" tenon

Tilt Increment

Trunnion-Rotates in 30 degree increments

Slipfitter-Rotates in 6 degree increments

Effective Projected Area EPA=1.4
Lens Tempered glass
Beam Angle NEMA Beam Spread of 7H x 6V
IP Rating Ingress protection rating of IP65 for dust and water
Shorting Cap Shorting Cap for Twistlock Receptacle
Additional Info


UL Listed Suitable for wet locations
IESNA LM-79 & LM-80 Testing RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80
DLC Listed This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements. DLC Product Code: P9D60G7J
Driver Constant Current, Class 2, 120-277V, 50/60Hz,120V: 2.79A, 208V: 1.80A, 240V: 1.60A, 277V: 1.21A
THD 15.36% at 120V, 15.36% at 277V
Power Factor 99.8% at 120V, 96.9% at 277V
Dimming Driver Driver includes wiring for 0-10V dimming systems. Dim as low as 10%
Photocell 120-277V Twistlock photocell included. Photocell is compatible with 120-277V
