RAB Lighting

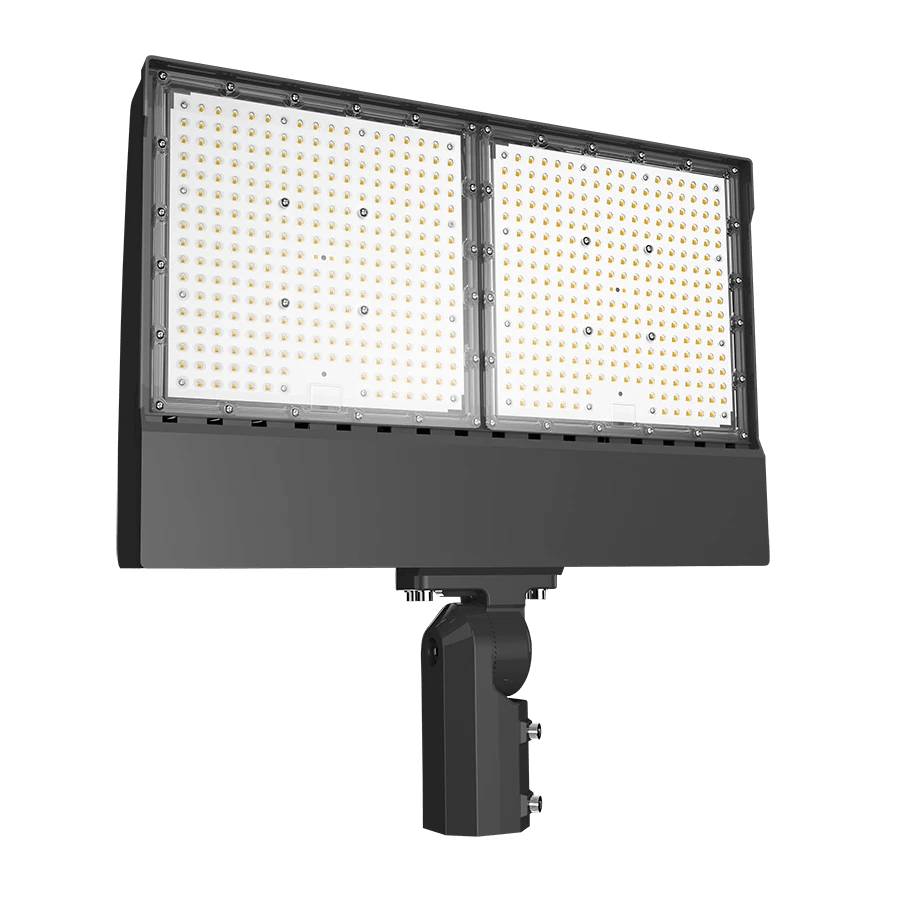

RAB X17 450W LED Flood Light Slipfitter Mount Bronze 40K/50K

RAB X17 450W LED Flood Light Slipfitter Mount Bronze 40K/50K

$822.00
$822.00
Sale Sold out
Shipping calculated at checkout.
Color Temperature
Mount Style
Wattage

X17 250/350/450W 36975-65733 Lumen Flood Light 120-277V

  • 0-10V Dimming, standard
  • 100,000-hour LED lifespan
  • Selectable photocell (on/off) included
  • 5-Year, Limited Warranty
  • Slipfitter Mount




Spec Sheet

40K Spec Sheet / 50K Spec Sheet

Installation Instructions

Info
Product Type  Flood Light
Wattage 250W/350W/450W
Lumen 36975-65733
Efficacy 147.9 -149.7 lm/W
Color Temp. 4000K 5000K
CRI 72 CRI
L70 Lifespan 100,000 Hours
Housing Precision die-cast aluminum
Finish  Bronze
Mounting Slipfitter with 180° pivot available for mounting on 2 3/8" tenon
Tilt Increment
 Rotates in 6 degree increments
Effective Projected Area EPA=2.4
Lens Tempered glass
Beam Angle NEMA Beam Spread of 7H x 6V
IP Rating Ingress protection rating of IP65 for dust and water
Shorting Cap Shorting Cap for Twistlock Receptacle
Additional Info



                                                Compliance
UL Listed Suitable for wet locations
IESNA LM-79 & LM-80 Testing RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80
DLC Listed This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements. DLC Product Code: 40K-PZLC5OM8 50K- PQMSQ576
                                                  Electrical
Driver Constant Current, Class 2, 120-277V, 50/60Hz,120V: 3.67A, 208V: 2.40A, 240V: 2.10A, 277V: 1.64A
THD

40K- 6.51% at 120V, 9.43% at 277V

50K- 6.74% at 120V, 9.29% at 277V
Power Factor 99.6% at 120V, 92.9% at 277V
Dimming Driver Driver includes wiring for 0-10V dimming systems. Dim as low as 10%
Photocell 120-277V Twistlock photocell included. Photocell is compatible with 120-277V.
