RAB Lighting

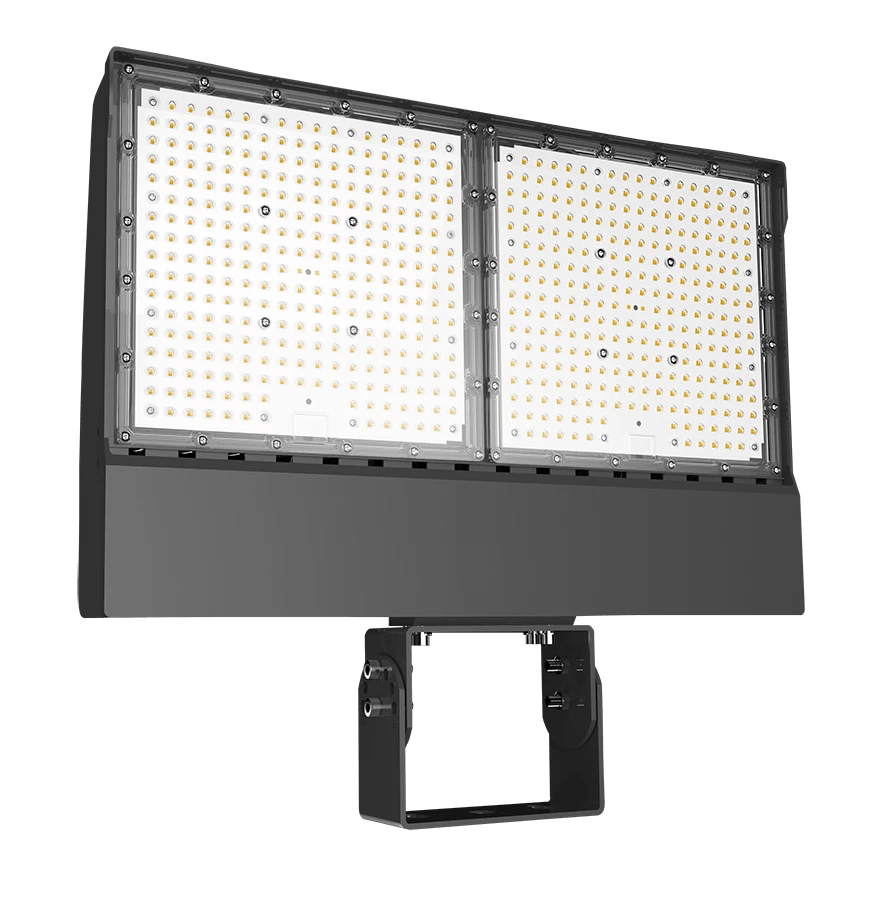

RAB X17 450W LED Flood Light Trunnion Mount Bronze 40K/50K

$822.00

Sale Sold out

Shipping calculated at checkout.

Color Temperature 40K 50K

Mount Style Trunnion Mount

Wattage 450W

Quantity

X17 250/350/450W 36975-65733 Lumen Flood Light 120-277V

X17PA450NT/PCT - X17PA450T/PCT

Field adjustable light output in 3 discrete steps:

250W/350W/450W (factory default 450W)

Product Type	Flood Light
Wattage	250W/350W/450W
Lumen	36975-65733
Efficacy	147.9 -149.7 lm/W
Color Temp.	4000K 5000K
CRI	72 CRI
L70 Lifespan	100,000 Hours
Housing	Precision die-cast aluminum
Finish	Bronze
Mounting	Trunnion mount with stainless steel hardware
Tilt Increment	Rotates in 30 degree increments
Effective Projected Area	EPA=2.4
Lens	Tempered glass
Beam Angle	NEMA Beam Spread of 7H x 6V
IP Rating	Ingress protection rating of IP65 for dust and water
Shorting Cap	Shorting Cap for Twistlock Receptacle

Compliance

UL Listed	Suitable for wet locations
IESNA LM-79 & LM-80 Testing	RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80
DLC Listed	This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements. DLC Product Code: 40K-PZLC5OM8 50K- PQMSQ576

Electrical

Driver	Constant Current, Class 2, 120-277V, 50/60Hz,120V: 3.67A, 208V: 2.40A, 240V: 2.10A, 277V: 1.64A
THD	40K- 6.51% at 120V, 9.43% at 277V 50K- 6.74% at 120V, 9.29% at 277V
Power Factor	99.6% at 120V, 92.9% at 277V
Dimming Driver	Driver includes wiring for 0-10V dimming systems. Dim as low as 10%
Photocell	120-277V Twistlock photocell included. Photocell is compatible with 120-277V.
