RAB Lighting

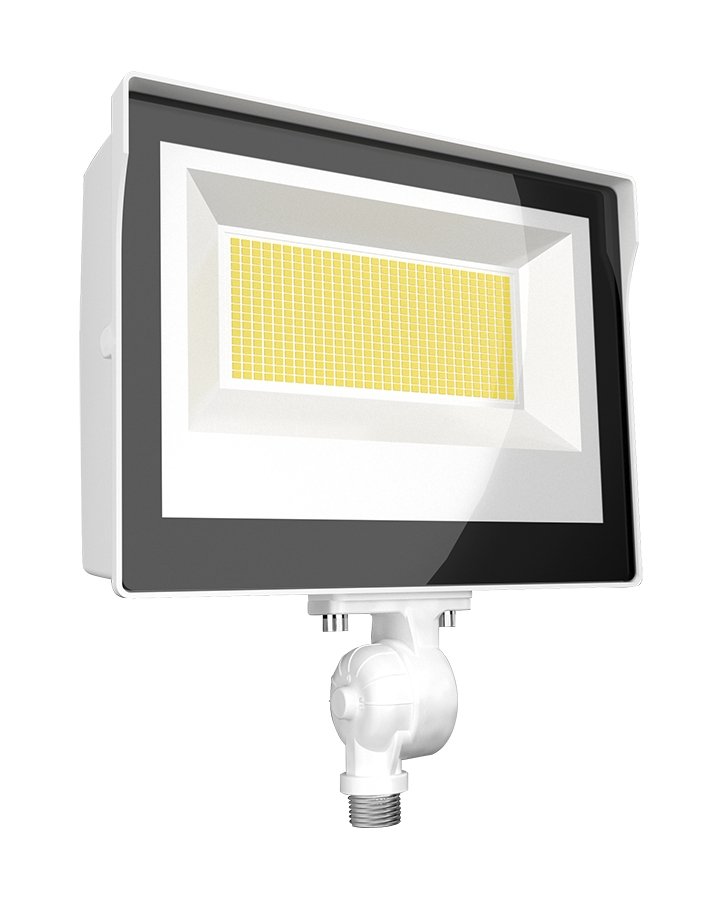

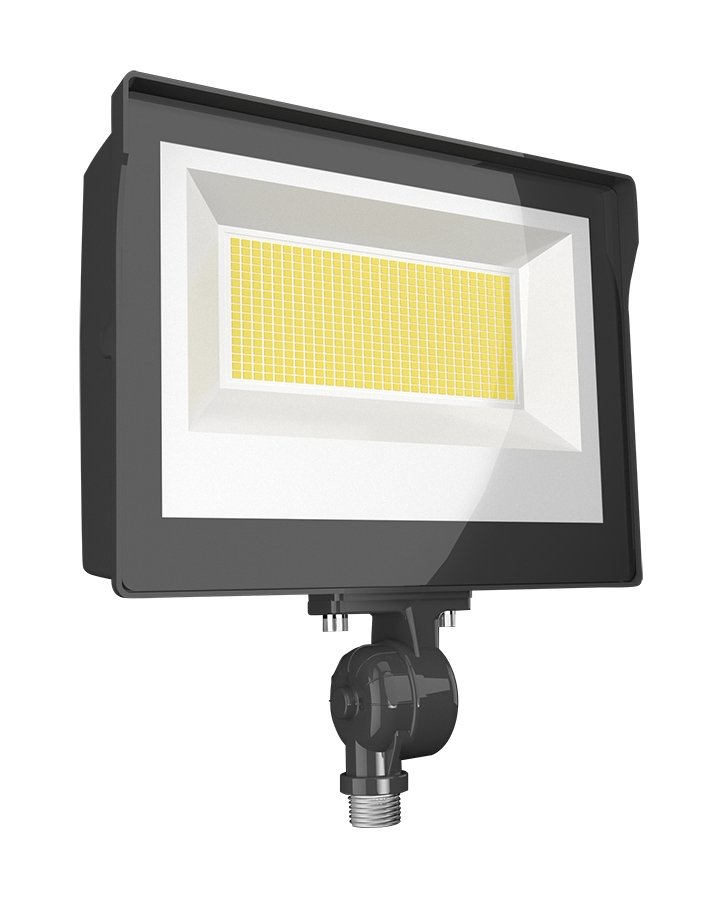

RAB X17 60W LED Flood Light Knuckle Mount Selectable CCT

$151.00

Sale Sold out

Shipping calculated at checkout.

Color Bronze White

Mount Style Knuckle Mount

Wattage 60W

Quantity

X17 30/50/60W 3891-8372 Lumen Flood Light 120-277V

X17XFU60 / X17XFU60W

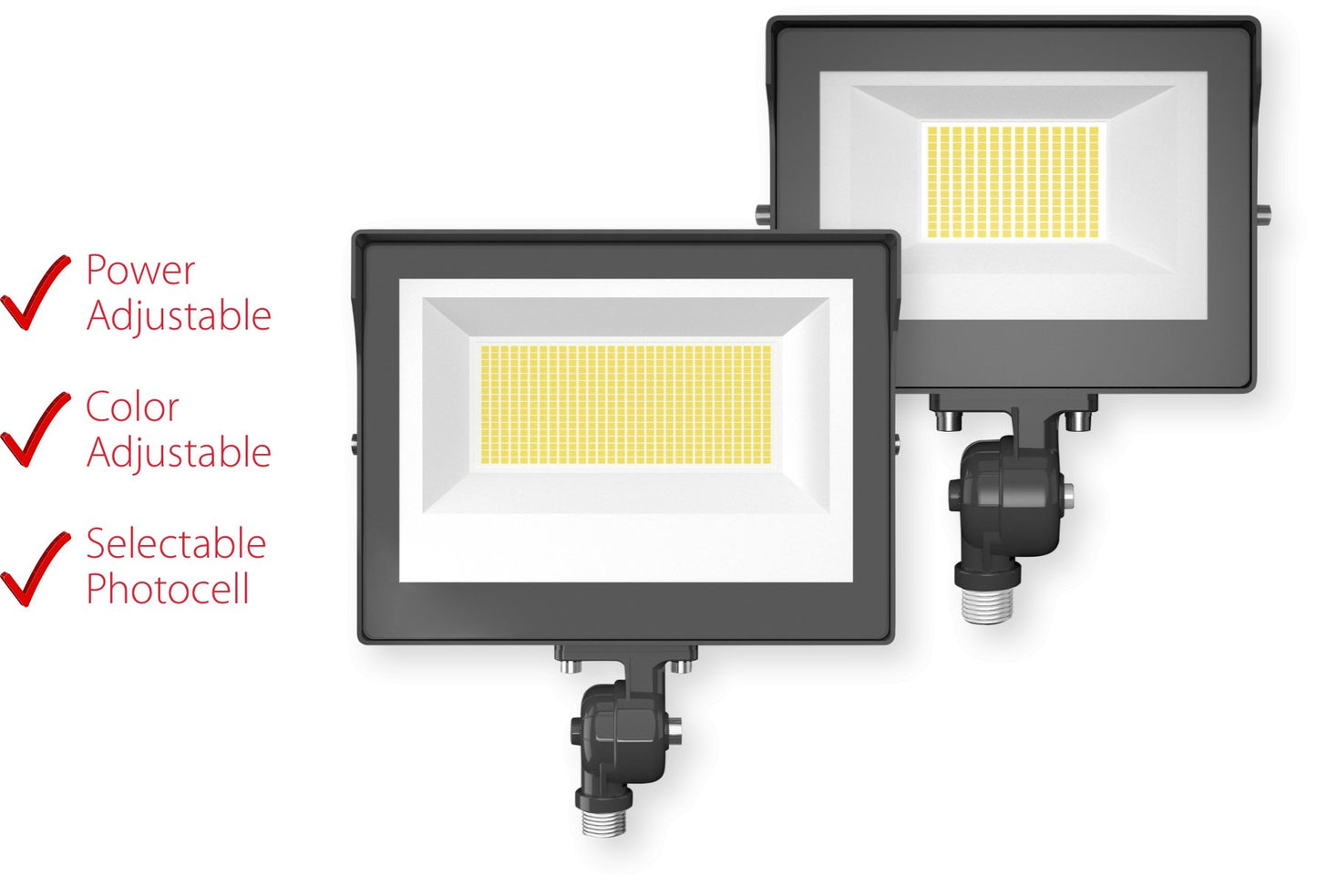

Field Adjustable Light Output:
30W/50W/60W (factory default 60W)
Color temperature (selectable by 3000K, 4000K and 5000K)

Click Here for Slipfitter Mount sold separately

Click Here for Trunnion Mount sold separately

Click Here for Wire Guard sold separately

Product Type	Flood Light
Wattage	30W/50W/60W
Lumen	3891-8372
Efficacy	129.7-146.4 lm/W
Color Temp.	3000K 4000K 5000K
CRI	83-85 CRI
L70 Lifespan	100,000 Hours
Housing	Precision die-cast aluminum
Finish	White \| Bronze
Mounting	Robust knuckle mount with 180° adjustable swivel arm. Tilt angle in 10° increments.
Style	Knuckle Mount
Lens	Tempered glass
Beam Angle	NEMA Beam Spread of 7H x 7V
IP Rating	Ingress protection rating of IP65 for dust and water

Compliance

UL Listed	Suitable for wet locations
IESNA LM-79 & LM-80 Testing	RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80
DLC Listed	This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements. DLC Product Code: PB84WJPW

Electrical

Driver	Constant Current, Class 2, 120-277V, 50/60Hz,120V: 0.35A, 208V: 0.20A, 240V: 0.16A, 277V: 0.14A
THD	10.97% at 120V, 10.75% at 277V
Power Factor	99.3% at 120V, 94.8% at 277V
Dimming Driver	Driver includes wiring for 0-10V dimming systems. Dim as low as 10%
Photocell	120-277V selectable photocell that can be turned on and off
