RAB Lighting

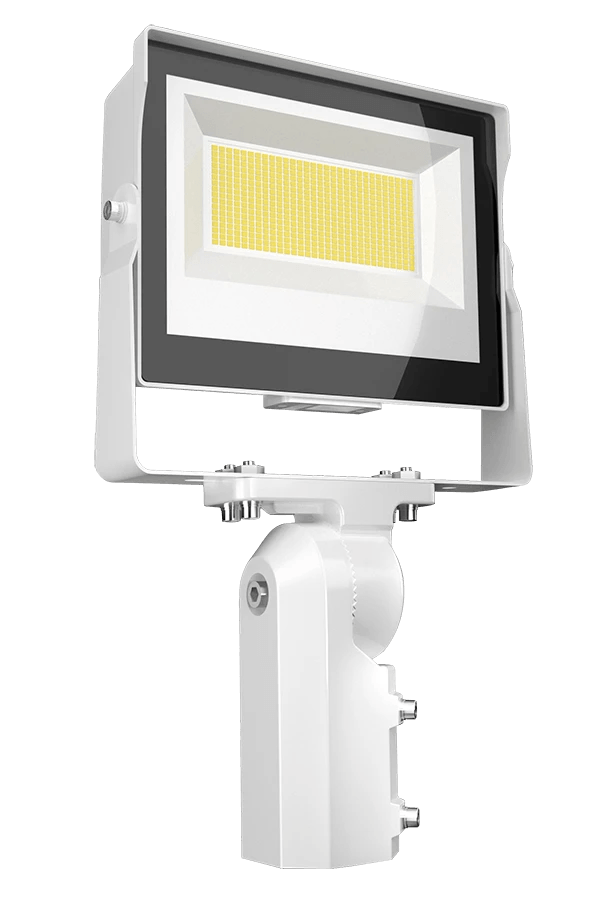

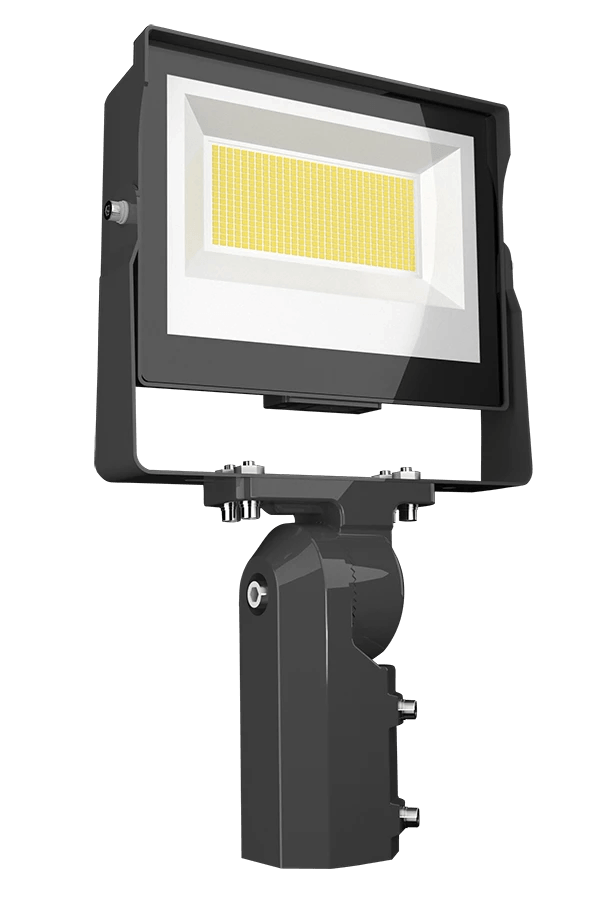

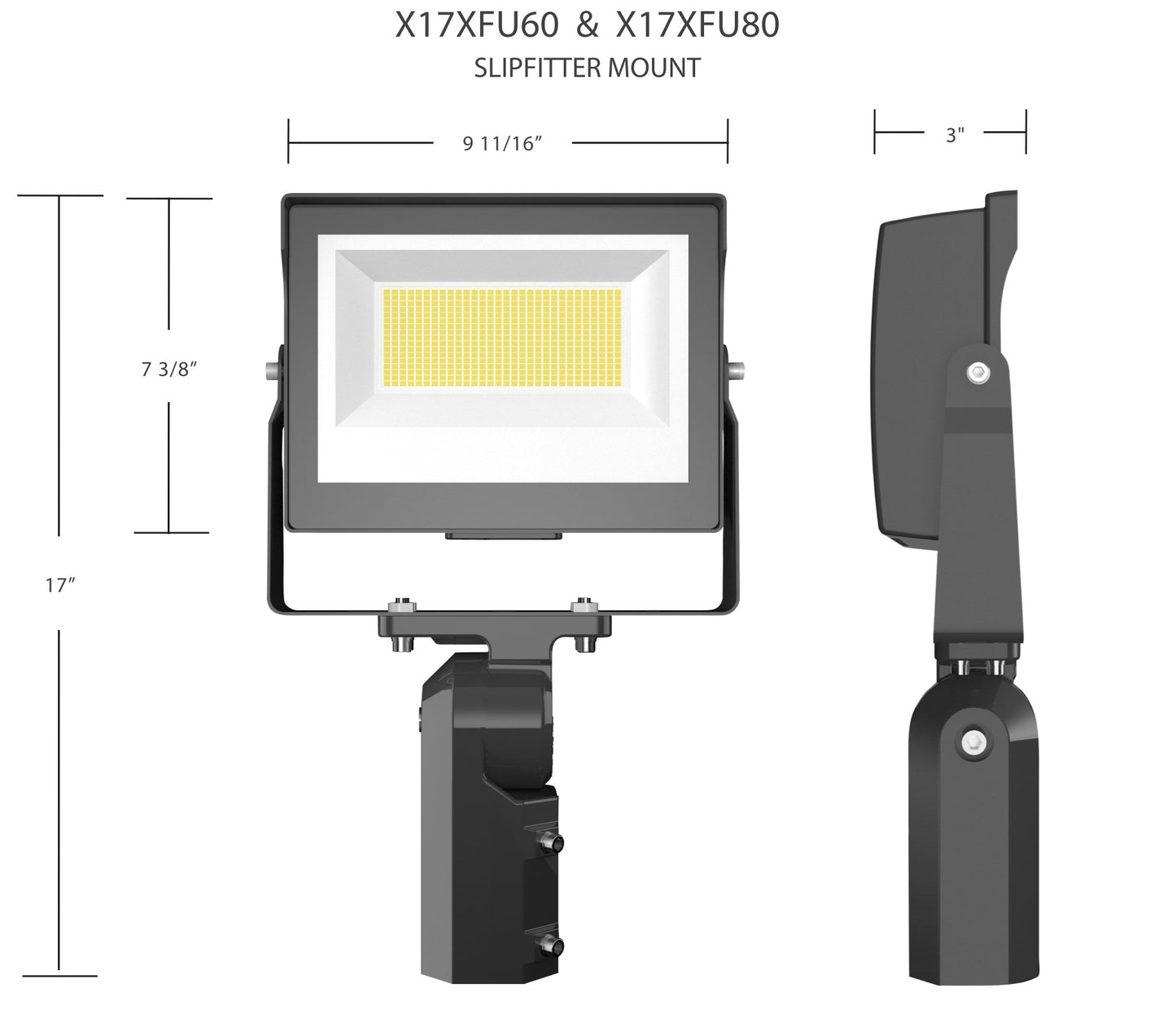

RAB X17 60W LED Flood Light Slipfitter Mount Selectable CCT

RAB X17 60W LED Flood Light Slipfitter Mount Selectable CCT

Regular price $173.00
Regular price Sale price $173.00
Sale Sold out
Shipping calculated at checkout.
Mount Style

X17 30/50/60W 3891-8372 Lumen Flood Light 120-277V

  • 0-10V Dimming, standard
  • 100,000-hour LED lifespan
  • Selectable photocell (on/off) included
  • 5-Year, Limited Warranty
  • Slipfitter Mount
Click Here for Wire Guard sold separately

    Spec Sheet

    Bronze Spec / White Spec

    Installation Instructions

    Product Type  Flood Light
    Wattage 30W/50W/60W
    Lumen 3891-8372
    Efficacy 129.7-146.4 lm/W
    Color Temp. 3000K 4000K 5000K
    CRI 83-85 CRI
    L70 Lifespan 100,000 Hours
    Housing Precision die-cast aluminum
    Finish  White | Bronze
    Mounting Slipfitter with 180° pivot available for mounting on 2 3/8" tenon
    Style Slipfitter Mount
    Tilt Increment Rotates in 6 degree increments
    Lens Tempered glass
    Beam Angle NEMA Beam Spread of 7H x 7V
    IP Rating Ingress protection rating of IP65 for dust and water
    Shorting Cap Shorting Cap for Twistlock Receptacle
    Additional Info


    UL Listed Suitable for wet locations
    IESNA LM-79 & LM-80 Testing RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80
    DLC Listed This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements. DLC Product Code: PB84WJPW
    Driver Constant Current, Class 2, 120-277V, 50/60Hz,120V: 0.35A, 208V: 0.20A, 240V: 0.16A, 277V: 0.14A
    THD 10.97% at 120V, 10.75% at 277V
    Power Factor 99.3% at 120V, 94.8% at 277V
    Dimming Driver Driver includes wiring for 0-10V dimming systems. Dim as low as 10%
    Photocell 120-277V selectable photocell that can be turned on and off


    View full details
