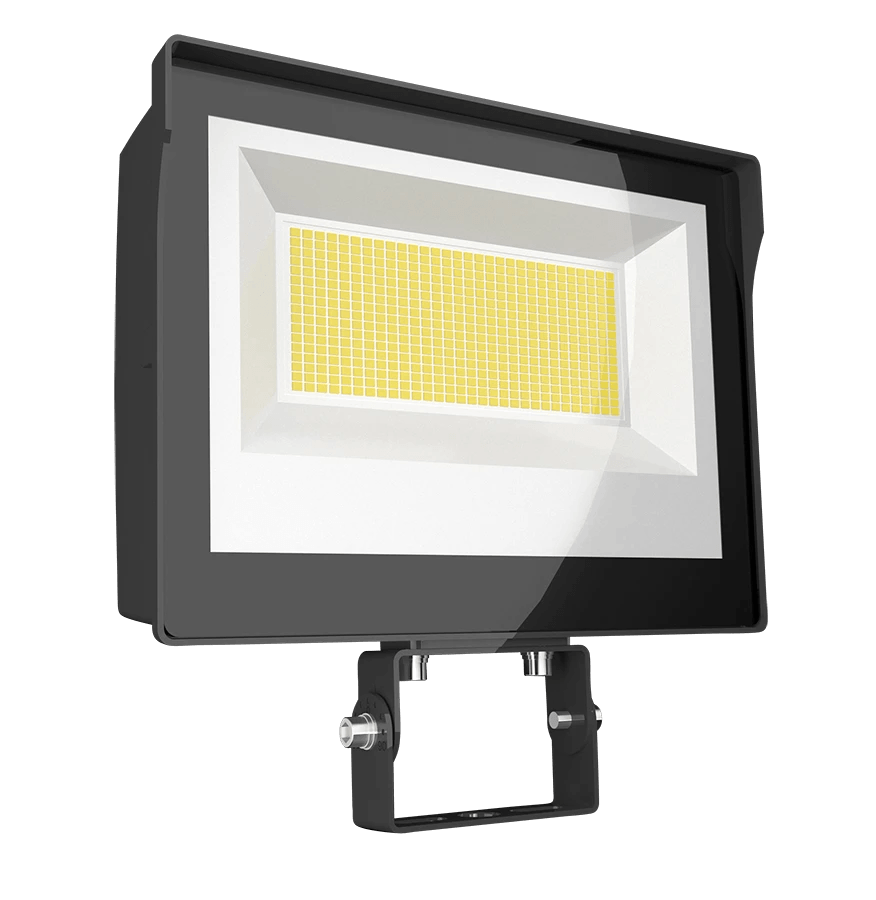

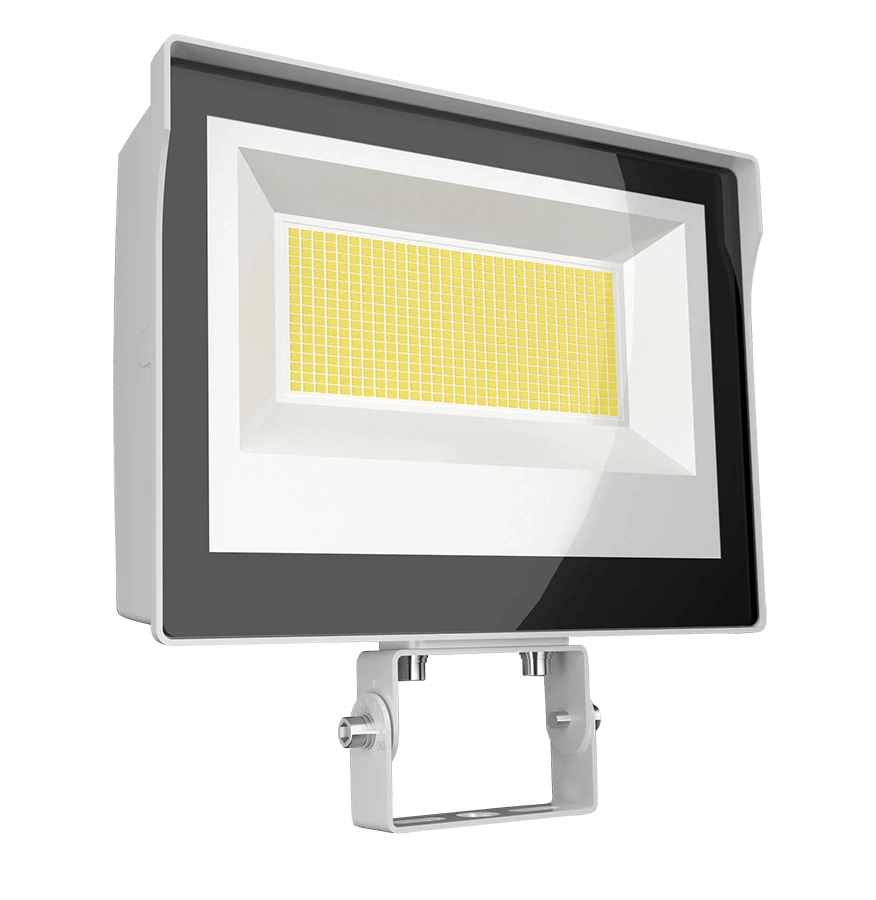

RAB X17 60W LED Flood Light Trunnion Mount Selectable CCT

$166.00

Sale Sold out

Shipping calculated at checkout.

Color Bronze White

Mount Style Trunnion Mount

Wattage 60W

Quantity

X17 30/50/60W 3891-8372 Lumen Flood Light 120-277V

White on Backorder. Please call before placing the order

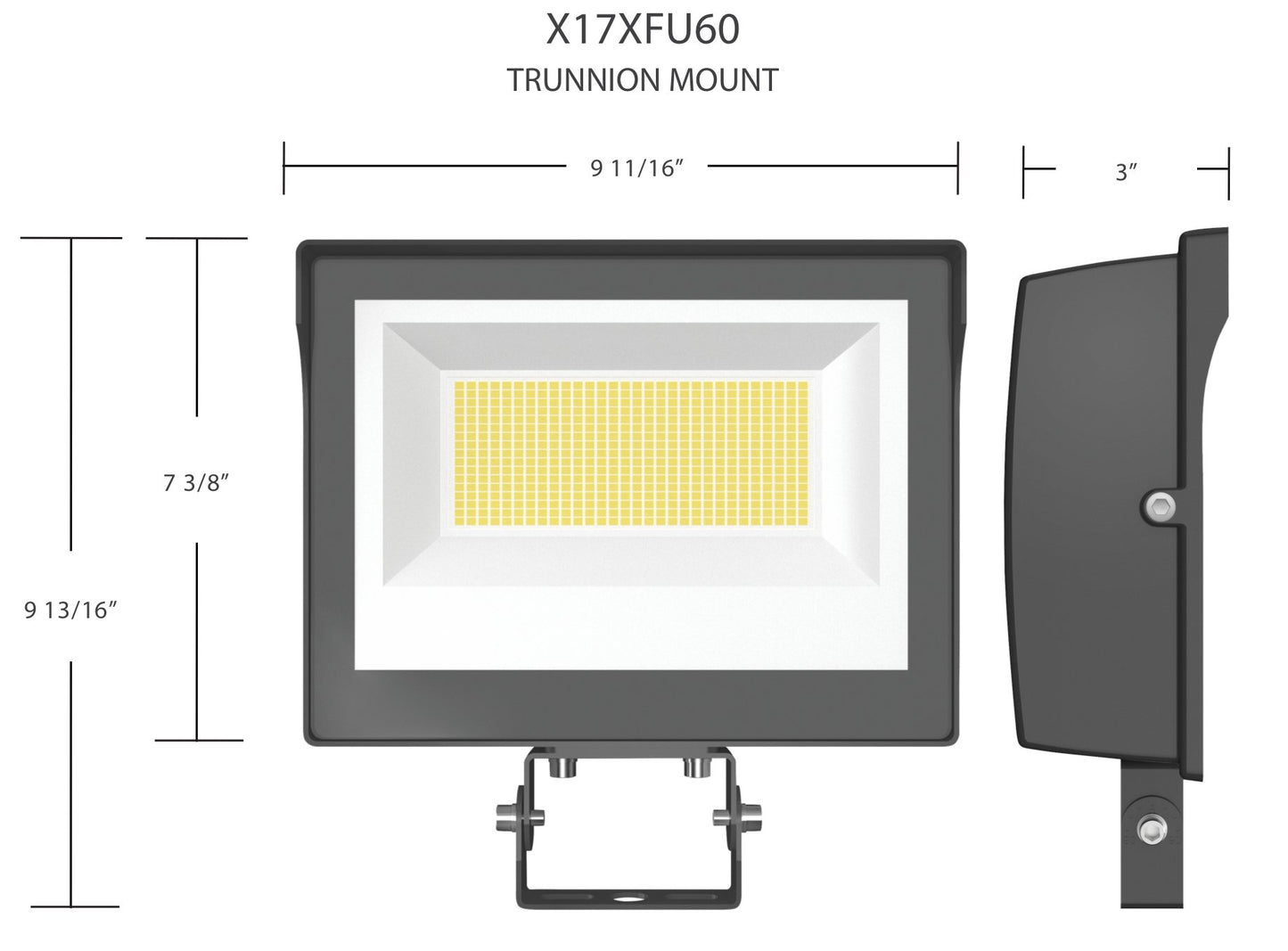

X17XFU60 / X17XFU60W

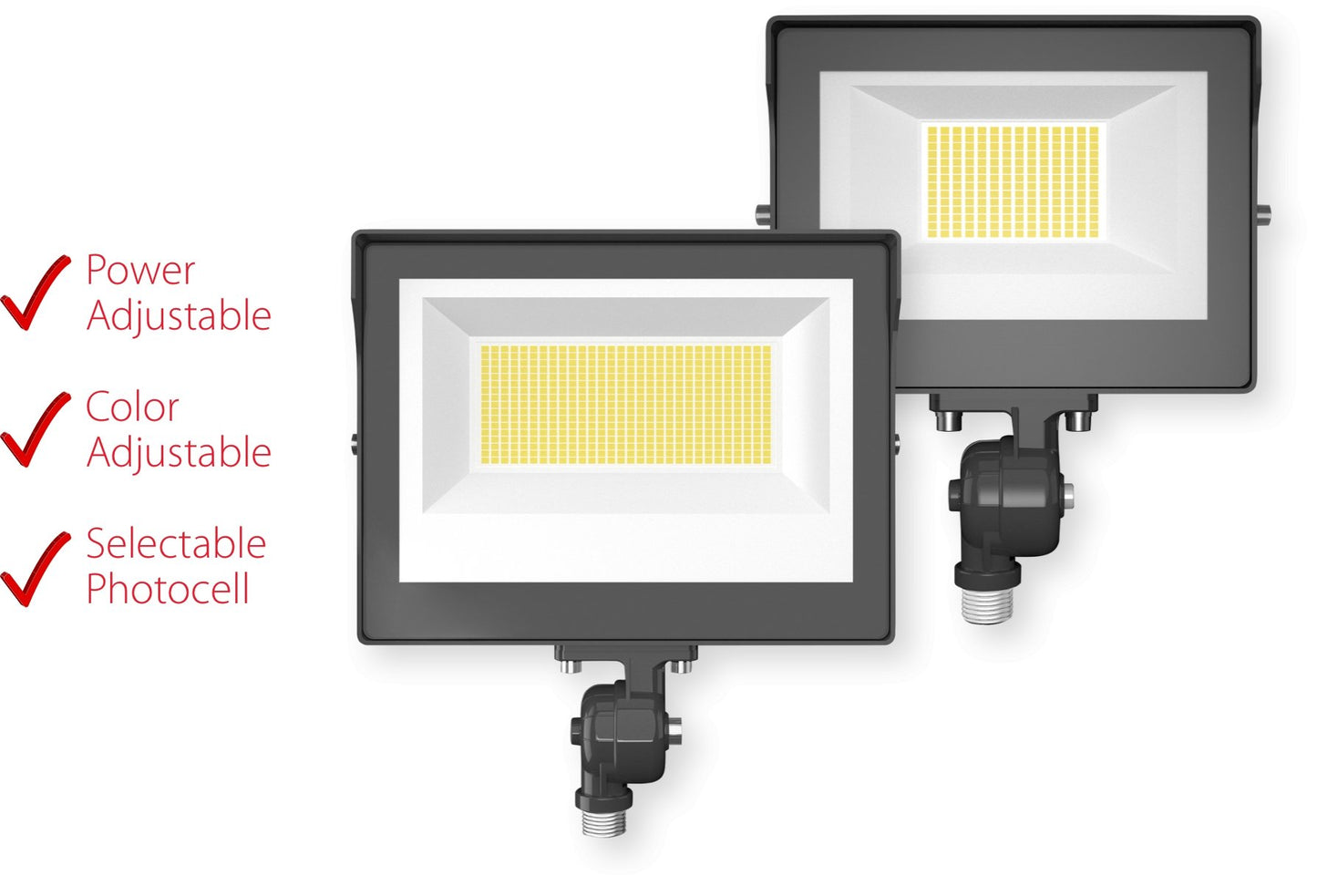

Field Adjustable Light Output:
30W/50W/60W (factory default 60W)
Color temperature (selectable by 3000K, 4000K and 5000K)

Click Here for Wire Guard sold separately

Product Type	Flood Light
Wattage	30W/50W/60W
Lumen	3891-8372
Efficacy	129.7-146.4 lm/W
Color Temp.	3000K 4000K 5000K
CRI	83-85 CRI
L70 Lifespan	100,000 Hours
Housing	Precision die-cast aluminum
Finish	White \| Bronze
Mounting	Trunnion mount with stainless steel hardware
Style	Trunnion Mount
Lens	Tempered glass
Beam Angle	NEMA Beam Spread of 7H x 7V
IP Rating	Ingress protection rating of IP65 for dust and water

Compliance

UL Listed	Suitable for wet locations
IESNA LM-79 & LM-80 Testing	RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80
DLC Listed	This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements. DLC Product Code: PB84WJPW

Electrical

Driver	Constant Current, Class 2, 120-277V, 50/60Hz,120V: 0.35A, 208V: 0.20A, 240V: 0.16A, 277V: 0.14A
THD	10.97% at 120V, 10.75% at 277V
Power Factor	99.3% at 120V, 94.8% at 277V
Dimming Driver	Driver includes wiring for 0-10V dimming systems. Dim as low as 10%
Photocell	120-277V selectable photocell that can be turned on and off
