RAB Lighting

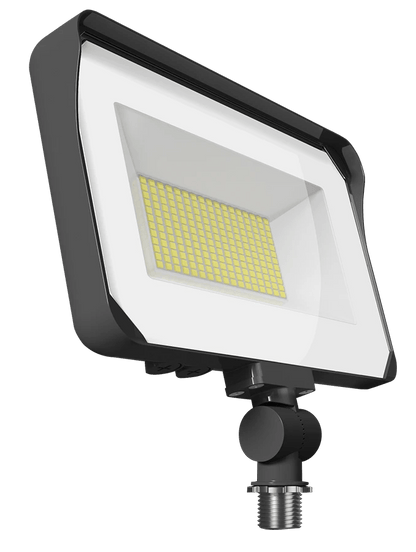

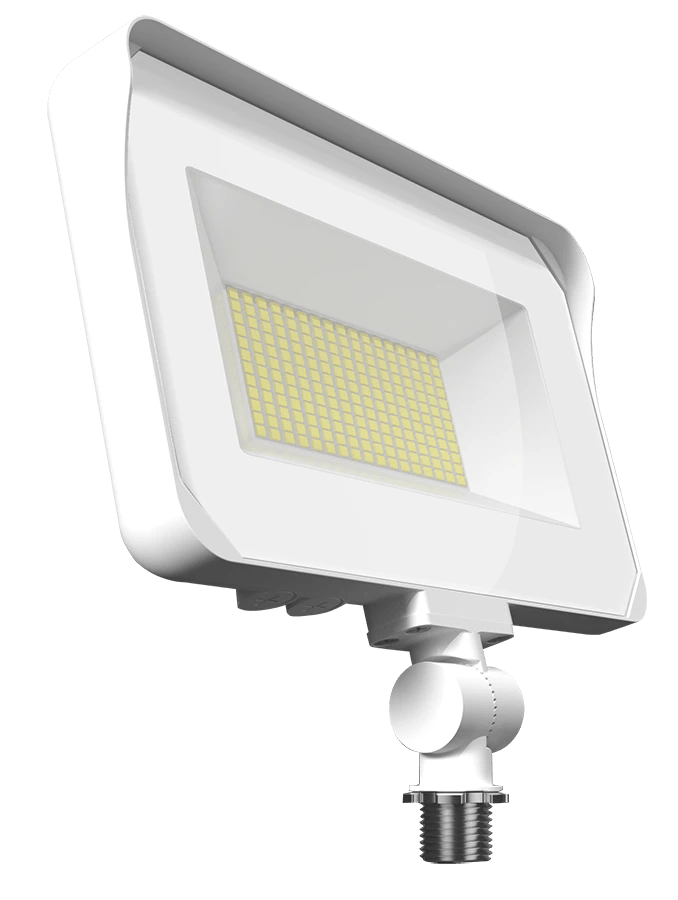

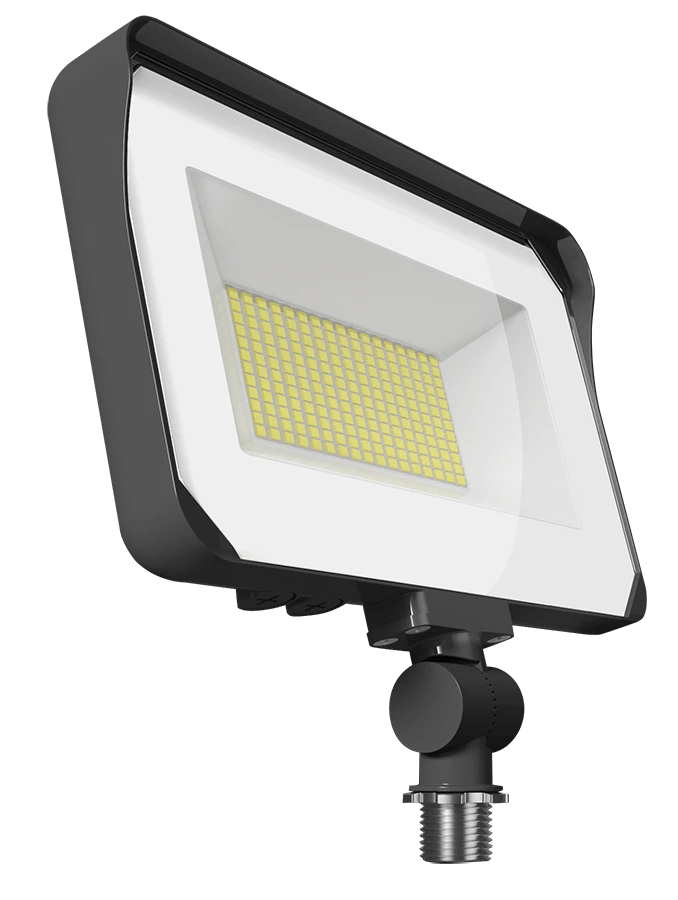

RAB X34M 65W LED Flood Light Selectable CCT/Wattage

RAB X34M 65W LED Flood Light Selectable CCT/Wattage

Regular price $142.00
Regular price Sale price $142.00
Sale Sold out
Shipping calculated at checkout.
Mount Style
Color Temperature

X34M 65W 9500 Lumen Flood Light Selectable CCT/Wattage


Spec Sheet

Family Spec Sheet

Bronze Spec Sheet
White Spec Sheet

Installation Instructions

 Product Type  Flood Light Field Adjustable
Wattage 65/55/45W
Lumen 6,346-9,718 lm
Color Temp. 3000K/4000K/5000K
CRI 80-83 CRI
L70 Lifespan 100,000 Hours
Housing Material Die-cast aluminum
Finish  White | Bronze
Mounting Knuckle mount
Reflector Polycarbonate
Lens Glass
Beam Angle NEMA Beam Spread of 7H x 7V

Additional Info
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
Ingress protection rating of IP65 for dust and water
DLC Listed This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-MZAHRW
 Driver Constant Current, Class 1, 120/277V, 50/60 Hz
65W: 120V: 0.60A, 277V: 0.24A
55W: 120V: 0.50A, 277V: 0.20A
45W: 120V: 0.37A, 277V: 0.17A
65W: 3.6% at 120V, 7.9% at 277V
55W: 4.2% at 120V, 12.2% at 277V
45W: 5.1% at 120V, 17.2% at 277V
Power Factor
65W: 99.8% at 120V, 96.4% at 277V
55W: 99.8% at 120V, 94.8% at 277V
45W: 99.6% at 120V, 92.8% at 277V
Surge Protection
Integrated photocell included with on/off switch
