RAB Lighting

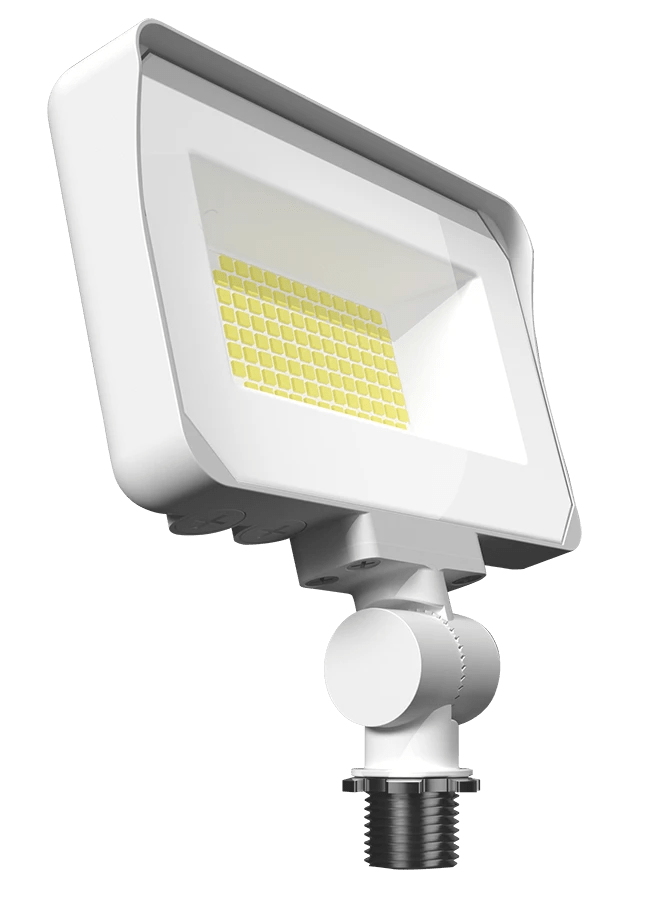

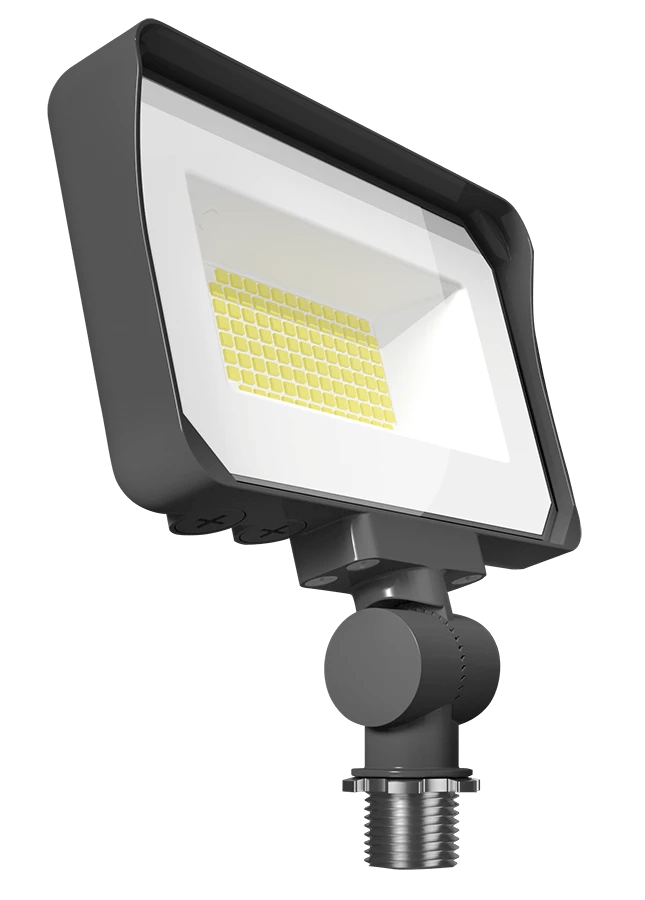

RAB X34S 35W LED Flood Light Selectable CCT/Wattage

RAB X34S 35W LED Flood Light Selectable CCT/Wattage

$101.00
$101.00
Sale Sold out
Shipping calculated at checkout.
Color
Mount Style
Color Temperature

X34S 35W 4500 Lumen Flood Light Selectable CCT/Wattage

The RAB X34S is built for contractors who need a reliable, versatile flood light that adapts to the job. Selectable wattage (35/25/20W) and selectable CCT (3000K/4000K/5000K) mean one SKU covers multiple applications — from parking lots and building perimeters to loading docks and walkways. Die-cast aluminum housing, IP65 protection, and a 100,000-hour L70 lifespan make this a set-it-and-forget-it solution.


Spec Sheet

Family Spec Sheet

Bronze Spec Sheet
White Spec Sheet

Installation Instructions

Info
 Product Type  Flood Light Field Adjustable
Wattage 35/25/20W
Lumen 2,685-4,677 lm
Color Temp. 3000K 4000K 5000K
CRI 81-84 CRI
L70 Lifespan 100,000 Hours
Housing Material Die-cast aluminum
Finish  White | Bronze
Mounting Knuckle mount
Reflector Polycarbonate
Lens Glass
Beam Angle NEMA Beam Spread of 7H x 7V


Additional Info
 Compliance
UL Listed
 Suitable for wet locations
IESNA LM-79 & LM-80 Testing
 RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
 Ingress protection rating of IP65 for dust and water
DLC Listed This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-T9KEIS
Electrical
 Driver Constant Current, Class 1, 120/277V, 50/60 Hz
35W: 120V: 0.30A, 277V: 0.13A
25W: 120V: 0.22A, 277V: 0.10A
20W: 120V: 0.18A, 277V: 0.08A
THD
 35W: 4.3% at 120V, 8.2% at 277V
25W: 5.0% at 120V, 16.8% at 277V
20W: 6.1% at 120V, 20.5% at 277V
Power Factor
 35W: 99.7% at 120V, 96.2% at 277V
25W: 99.7% at 120V, 91.7% at 277V
20W: 99.4% at 120V, 90.6% at 277V
Surge Protection
 2kV
Photocell
 Integrated photocell included with on/off switch
