RAB Lighting

RAB X34XL 130W LED Flood Light Selectable CCT/Wattage

Name: RAB X34XL 130W LED Flood Light Selectable CCT/Wattage
Brand: RAB Lighting
SKU: RAB-X34XL
Price: 228.0 USD
Availability: InStock

$228.00

Sale Sold out

Shipping calculated at checkout.

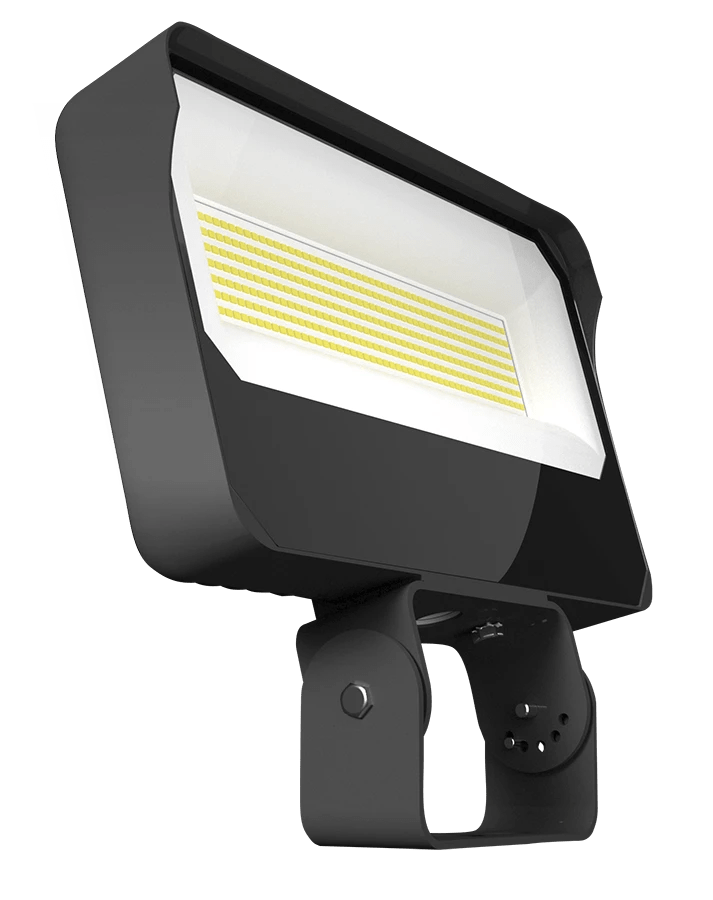

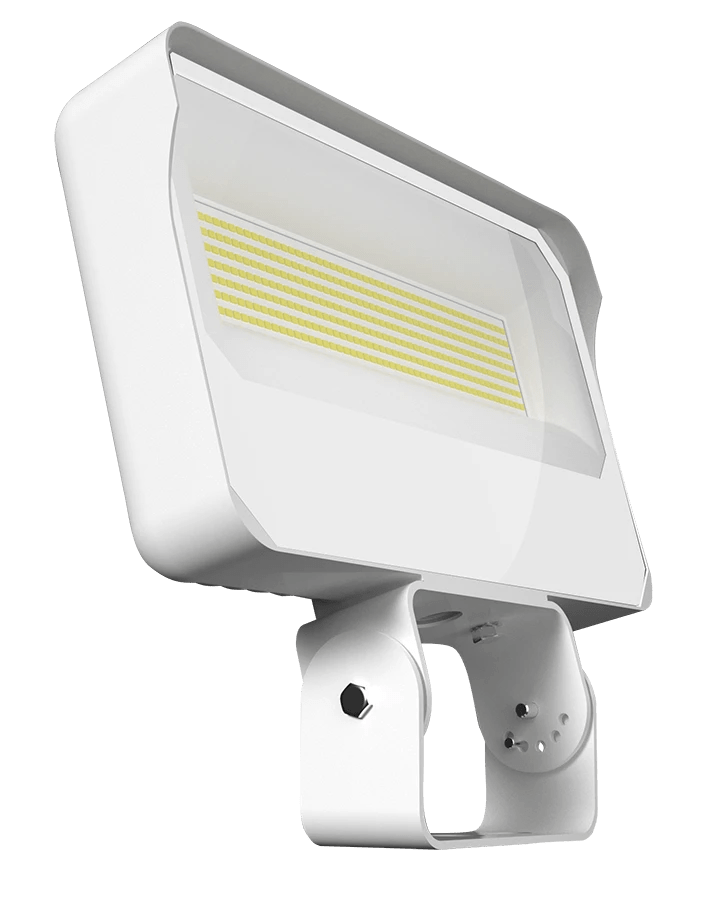

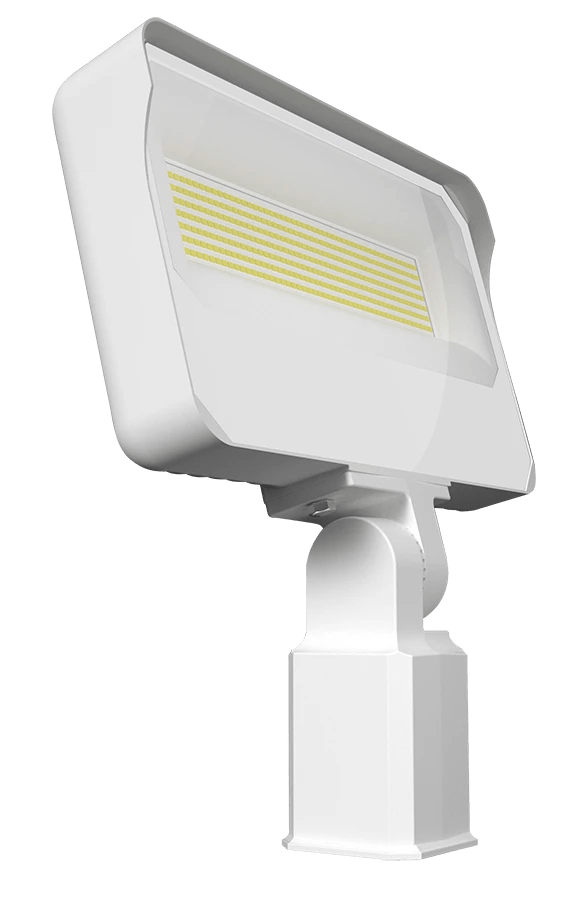

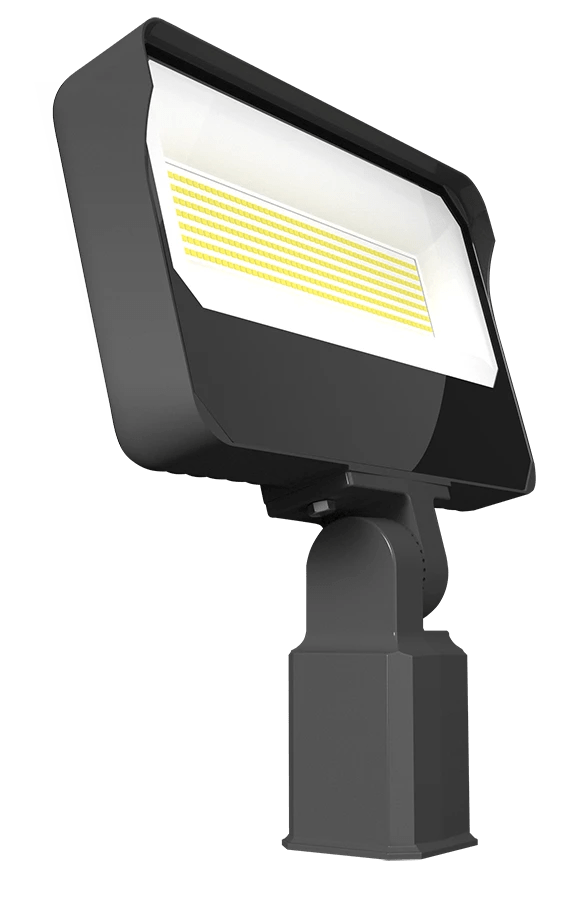

Color Bronze White

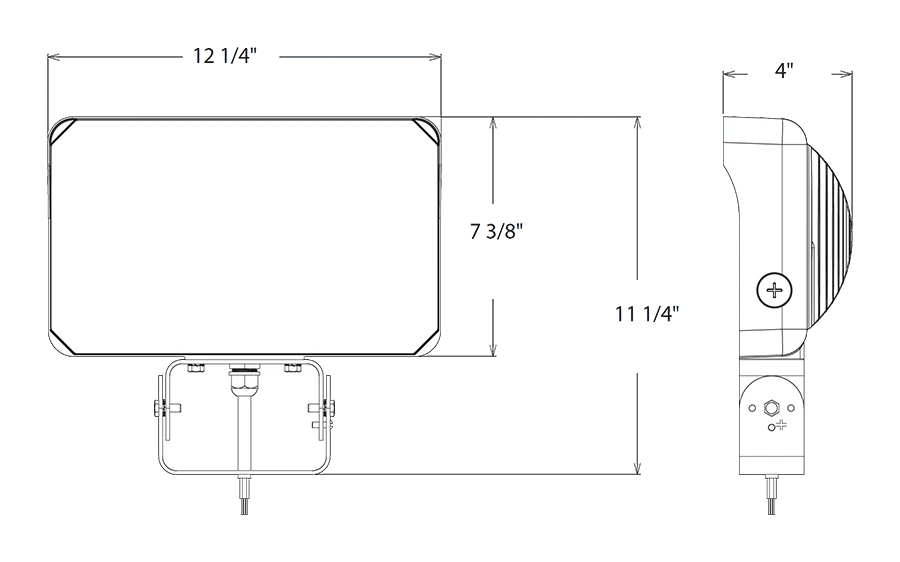

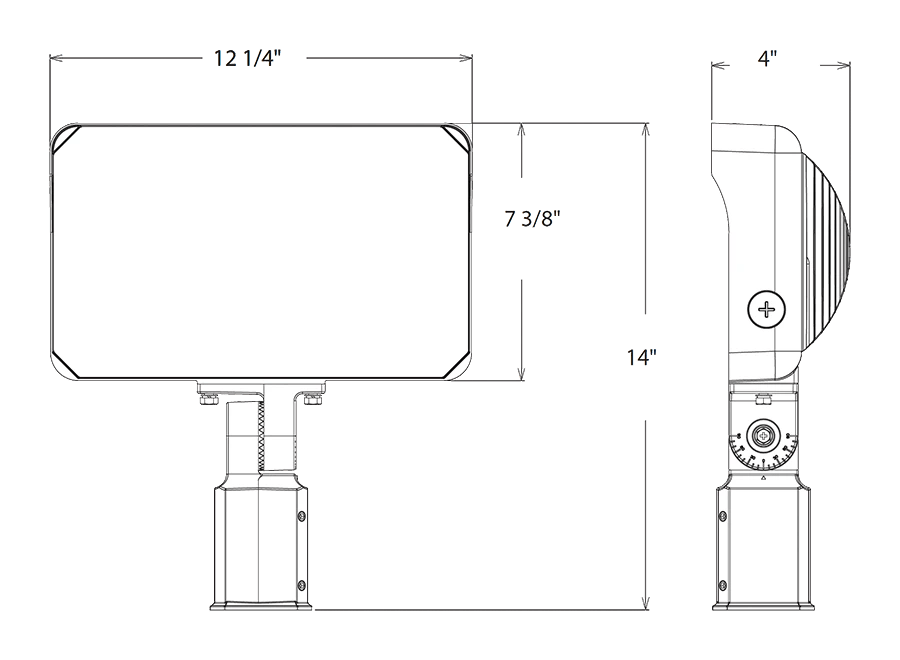

Mount Style SlipFitter Mount Trunnion Mount

Color Temperature Selectable CCT

Product variants

Quantity

X34XL 130W 20000 Lumen Flood Light Selectable CCT/Wattage

100,000-Hour LED lifespan
IP65 Rated
5-Year, limited warranty
General purpose floodlight
Very wide 7H x 7V NEMA distribution
Low profile and lightweight
IP65 rating protects against dust and water
White Or Bronze Finish

Spec Sheet

Family Spec Sheet

	Slipfitter	Trunnion
Bronze	Spec Sheet	Spec Sheet
White	Spec Sheet	Spec Sheet

Installation Instructions

Info

Product Type	Flood Light Field Adjustable
Wattage	130/110/95W
Lumen	14,615-20,065 lm
Color Temp.	3000K/4000K/5000K
CRI	83-85 CRI
L70 Lifespan	100,000 Hours
Housing Material	Die-cast aluminum
Finish	White \| Bronze
Mounting	Trunnion/Slipfitter with tilt angle in 10° increments
Tilt Increment	-90° to +90°
Reflector	Polyethylene Terephthalate (PET)
Lens	Glass
Beam Angle	NEMA Beam Spread of 7H x 7V

Additional Info

Compliance

UL Listed	Suitable for wet locations
IESNA LM-79 & LM-80 Testing	RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating	Ingress protection rating of IP65 for dust and water
DLC Listed	This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements. DLC Product Code: S-2HQ7D4

Electrical

Driver	Constant Current, Class 1, 120-277V, 50/60 Hz 130W: 120V: 1.13A 208V: 0.63A, 240V: 0.55A, 277V: 0.49A 110W: 120V: 0.98A 208V: 0.53A, 240V: 0.46A, 277V: 0.43A 95W: 120V: 0.85A 208V: 0.46A, 240V: 0.40A, 277V: 0.38A
Dimming Driver	Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD	130W: 4.1% at 120V, 7.2% at 277V 110W: 4.1% at 120V, 7.9% at 277V 95W: 4.0% at 120V, 8.8% at 277V
Power Factor	130W: 99.8% at 120V, 96% at 277V 110W: 99.8% at 120V, 95.1% at 277V 95W: 99.7% at 120V, 93.9% at 277V
Surge Protection	2kV
Photocell	Integrated photocell included with on/off switch
