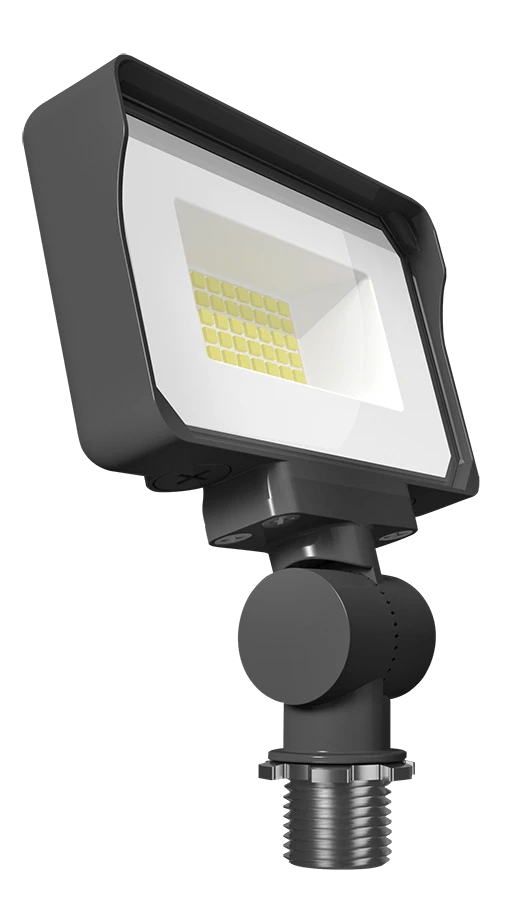

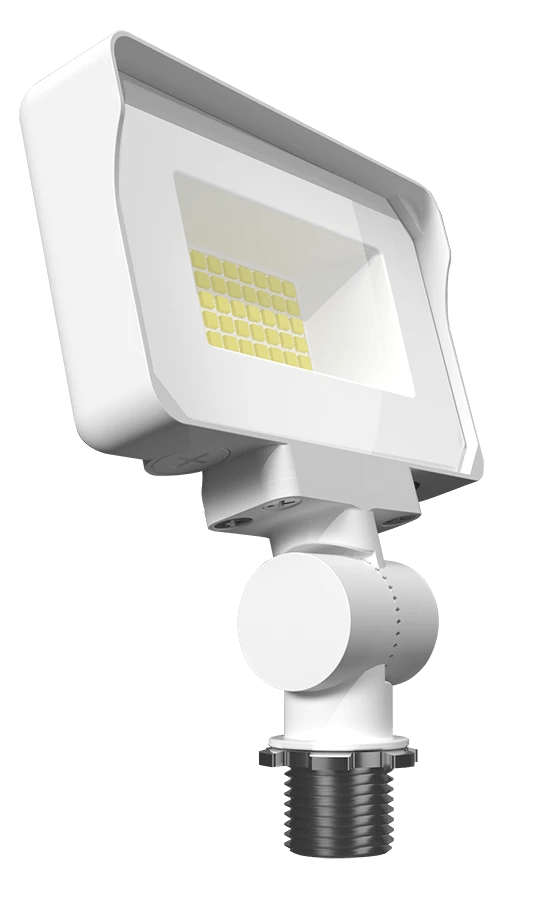

RAB X34XS 16W LED Flood Light Selectable CCT/Wattage

RAB X34XS 16W LED Flood Light Selectable CCT/Wattage

$56.00
$56.00
Sale Sold out
Shipping calculated at checkout.
Color
Mount Style
Color Temperature

X34XS 16W 2300 Lumen Flood Light


Spec Sheet

Family Spec Sheet

Bronze Spec Sheet
White Spec Sheet

Installation Instructions

Info
 Product Type  Flood Light Field Adjustable
Wattage 16/13/10W
Lumen 1,468-2,353 lm
Color Temp. 3000K 4000K 5000K
CRI 81-84 CRI
L70 Lifespan 100,000 Hours
Housing Material Die-cast aluminum
Finish  White | Bronze
Mounting Knuckle mount
Reflector Polycarbonate
Lens Glass
Beam Angle NEMA Beam Spread of 7H x 7V


Additional Info
 Compliance
UL Listed
 Suitable for wet locations
IESNA LM-79 & LM-80 Testing
 RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
 Ingress protection rating of IP65 for dust and water
DLC Listed This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-P1Q64R
Electrical
 Driver Constant Current, Class 1, 120/277V, 50/60 Hz
16W: 120V: 0.14A, 277V: 0.06A
13W: 120V: 0.12A, 277V: 0.05A
10W: 120V: 0.08A, 277V: 0.04A
THD
 16W: 14.3% at 120V, 16.2% at 277V
13W: 14.0% at 120V, 16.4% at 277V
10W: 14.6% at 120V, 14.8% at 277V
Power Factor
 16W: 98.2% at 120V, 92.9% at 277V
13W: 98.6% at 120V, 90.5% at 277V
10W: 98.3% at 120V, 87.8% at 277V
Surge Protection
 2kV
Photocell
 Integrated photocell included with on/off switch
