RAB Lighting

RAB XDIM In-Wall Dimmer With Bluetooth Option

RAB XDIM In-Wall Dimmer With Bluetooth Option

$55.90
$55.90
Sale Sold out
Shipping calculated at checkout.
Style

XDIM

Maximized compatibility. No longer must you purchase separate TRIAC or ELV dimmers as the XDIM enables you to select either forward or reverse phase and can even detect the option automatically if you're unsure. Noteworthy 3-way control. The XDIM can be wired for either single pole or 3-way dimming, demonstrating one dimmer can manage it all, and the Lightcloud Blue model doesn't even require a 3-way traveler wire!

Control Lightcloud Blue devices wirelessly? No problem. Control standard wired devices? You bet. Control both wired and wireless at the same time? Easy peasy. The Lightcloud Blue XDIM can tackle it all!



  • In-wall device for switching and dimming
  • Dimming features both fade on/off and rapid full-on
  • Set the max trim level for a zone or fixture to save energy
  • Switches/dims local load (ELV/MLV)
  • Dimming features both fade on/off and rapid full-on
  • Includes mounting hardware to replace single-gang wall switch
  • Connect to the Lightcloud Blue mobile app to wireless control
    Spec Sheet

    Standard | Bluetooth

    Installation Instructions

    Bluetooth Installation Instructions

    Lightcloud Blue Brochure

    Info
    Product Type  Wall Dimmer
    Power Rating 500W
    Load Switching Capacity LED/CFL: 300W
    INC/HAL/ELV: 500W
    MLV: 400VA
    Multi Gang Derating When combining controls in the same wallbox, derating is required.
    LED/CFL
    Not Ganged: 300W max load
    End of Gang: 250W max load
    Middle of Gang: 200W max load
    INC/HAL/ELV/MLV
    Not Ganged: 500W max load
    End of Gang: 400W max load
    Middle of Gang: 300W max load

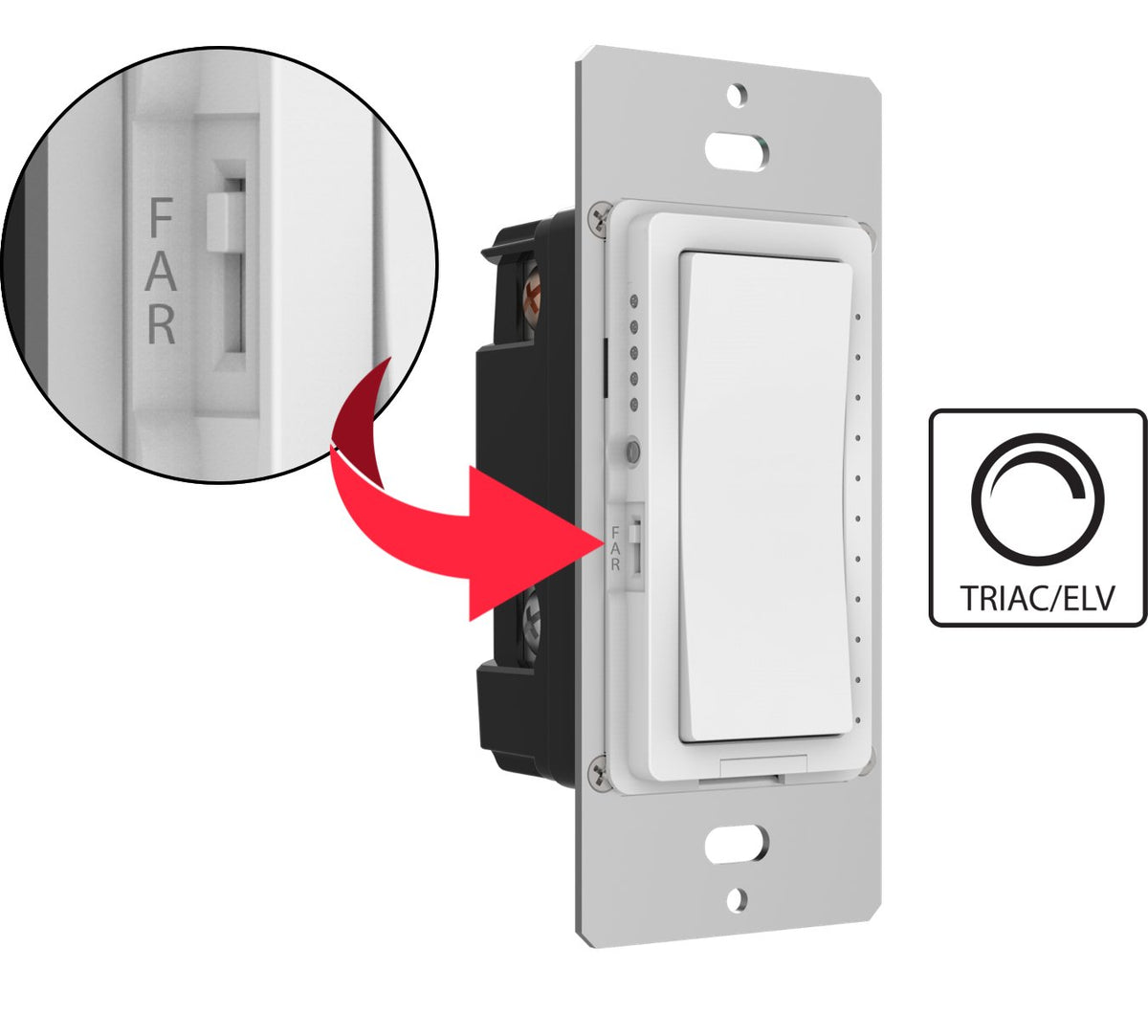

    Self Calibration
    Via dip switch choose a sef calibration option based on the fixtures being controlled:
    F - forward phase
    A - auto-detect forward/reverse phase
    R - reverse phase

    Note: after dip switch adjustment, power device off and then power on again.
    Power Cut Off Switch
    Push in to connect to line voltage.
    Pull out to disconnect to line voltage.
    Note: after dip switch adjustment, power device off and then power on again.
    Input Voltage
    120V
    Finish  Matte White
    Application Type
    		 Single-pole
    3-way mechanical switch
    3-way application with normal toggle switch.
    Additional Info
    Construction
    Housing Material
    		 Plastic
    Shape Rectangle
    Key Type Paddle
    Package Includes
    (1) Dimmer
    (1) Face plate bracket
    (1) Back plate
    (2) Mounting screws
    (1) Jumper wire
    (2) 5-pin wiring terminals
    (3) 2-pin wiring terminals
    (5) Connection wires
    Electrical
    Safety Listing
    		 UL 1472
    Environment Suitable for indoor use in dry and environments
    Model Number for Certification
    • XDIM
    • XDIM/LCB
    T20 Compliant
    Not Applicable
    California Title 24 JA8 Compliant
    Not Applicable
    California Energy Commission (CEC) Status
    Lawful for Sales in California
    FCC
    Complies with Part 15B of the FCC Rules
