Rayhil Lucid 4" 9W LED Square Downlight Selectable CCT
Rayhil Lucid 4" 9W LED Square Downlight Selectable CCT
Regular price
$15.99
Regular price
Sale price
$15.99
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

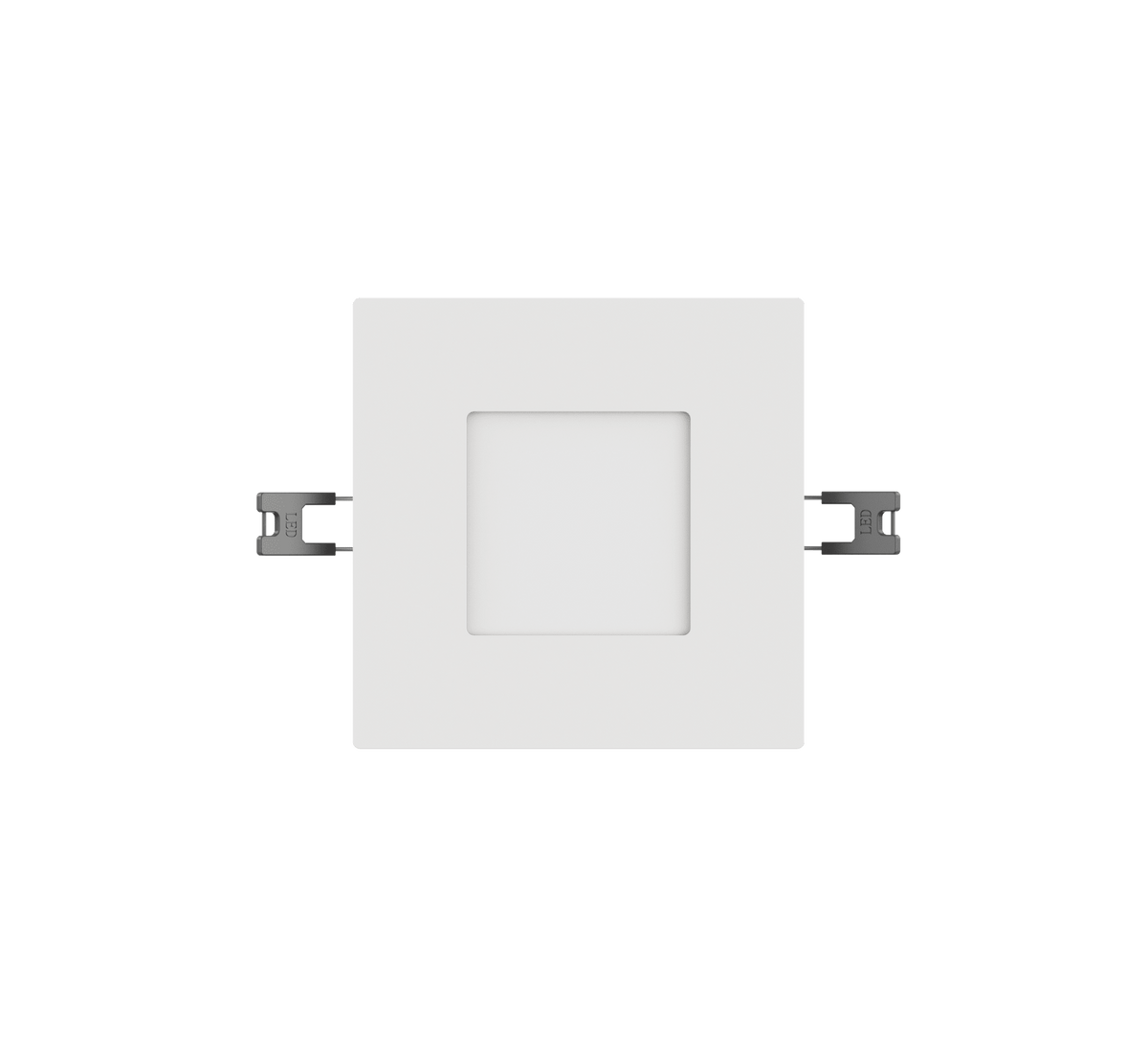

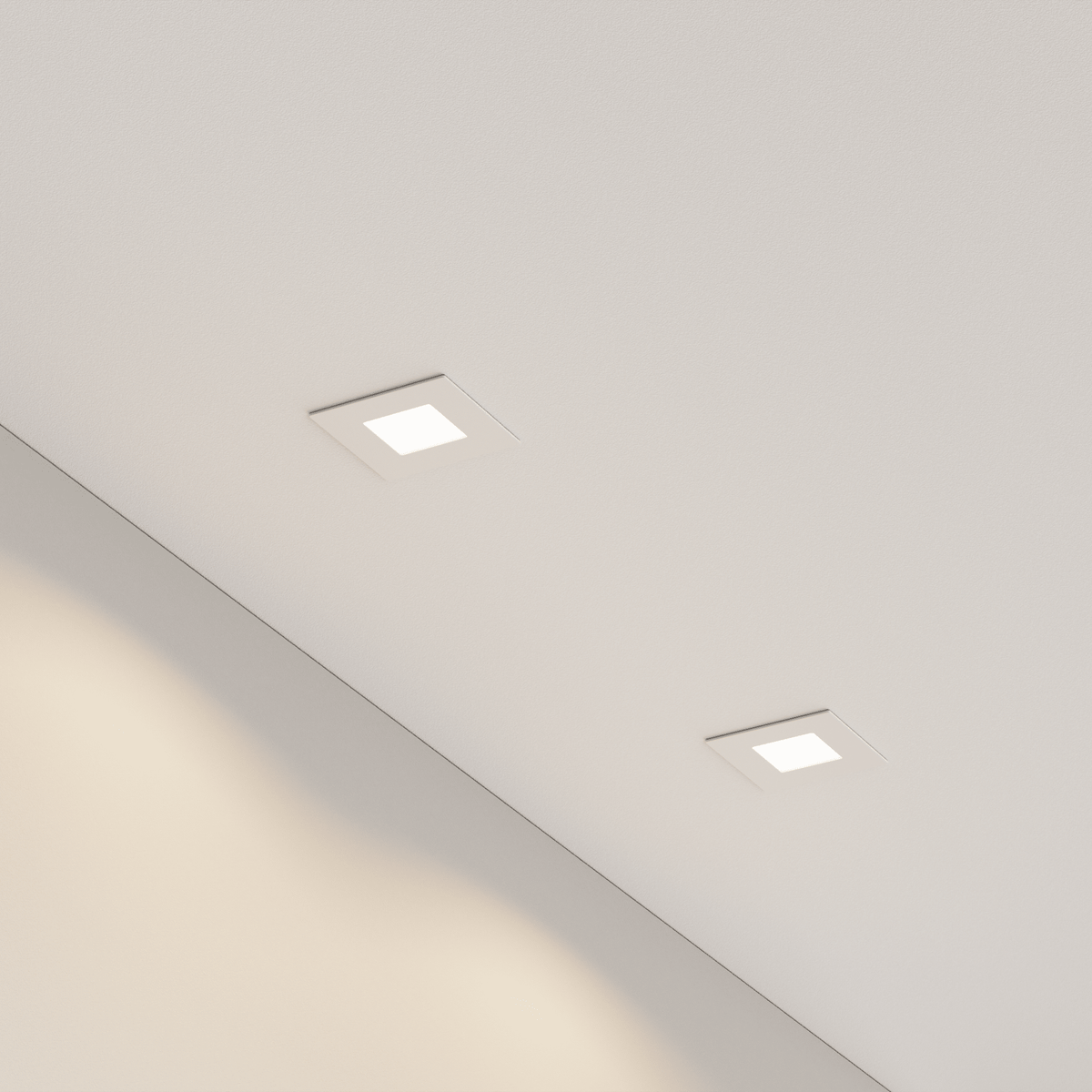

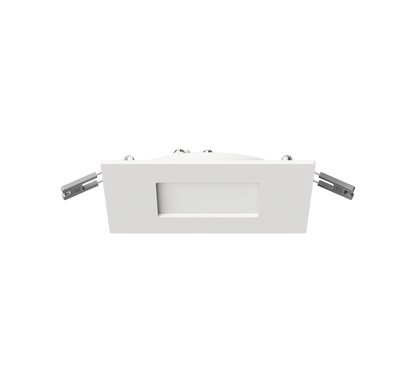

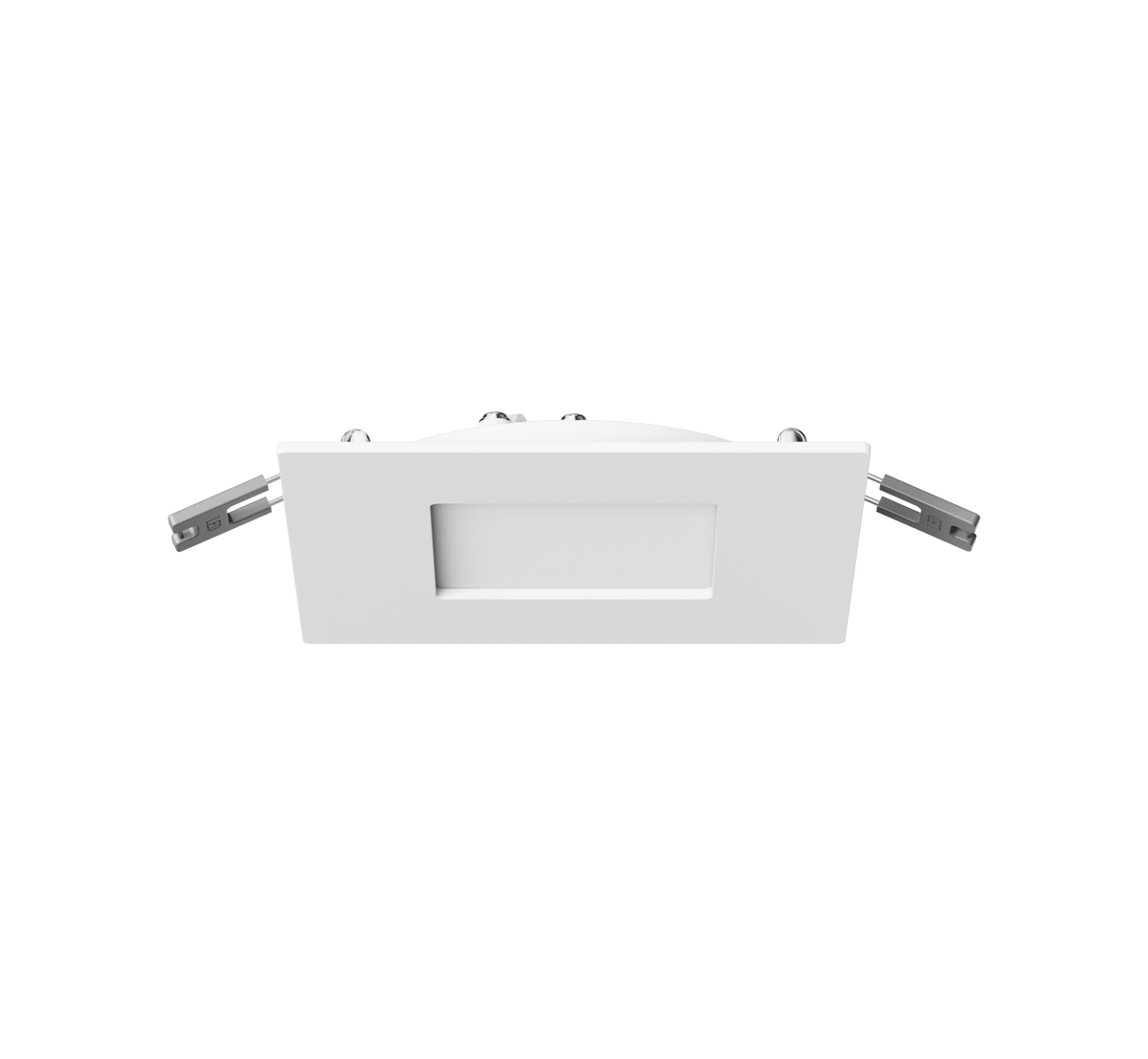

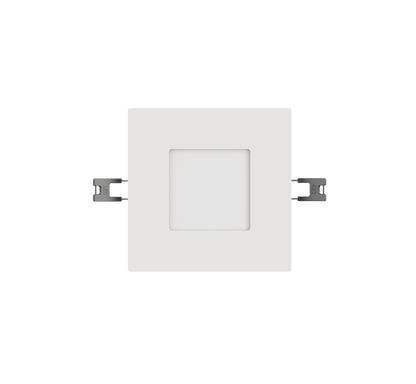

Lucid Square 4" Recessed LED Wafer Downlight
The Rayhil Lucid LCD-SQ-9 is a slim 4" square recessed LED wafer downlight with edge-lit technology. It delivers 900 lumens at 9W with 90+ CRI and 5CCT selectable color temperature (2700K-5000K). It is suitable for wet locations, dims down to 10% on Triac dimmers, and has a 50,000 hour lifetime.
- Edge-lit technology
- Dimming: Triac down to 10%
- Suitable for wet location
- 50,000 Hour lifetime
- 5 CCT Selectable
Spec Sheets
Spec Sheet
Installation Instructions
Info
| Model | LCD-SQ-9 |
| Wattage | 9W |
| Lumens | 900LM |
| Input Voltage | 120-277V / 120V |
| CCT | 2700K/3000K/3500K/4000K/5000K - 5CCT Selectable |
| CRI | 90 |
| Beam Angle | 120° |
| Cut Out | 4" |
Additional Info
| Dimming | Triac |
| Environment | Wet Location |
| Material | Aluminum |
| Operating Temp | -20°C - 40°C |
| Certification | ETL |
| New Construction Plate | Optional (LB15156) |
