RAYHIL RAD35 12W 3.5" Recessed Gimbal LED Downlight Selectable CCT

RAYHIL RAD35 12W 3.5" Recessed Gimbal LED Downlight Selectable CCT

$75.99
$79.99 $75.99
Sale Sold out
Shipping calculated at checkout.
Size
Color
Color Temperature

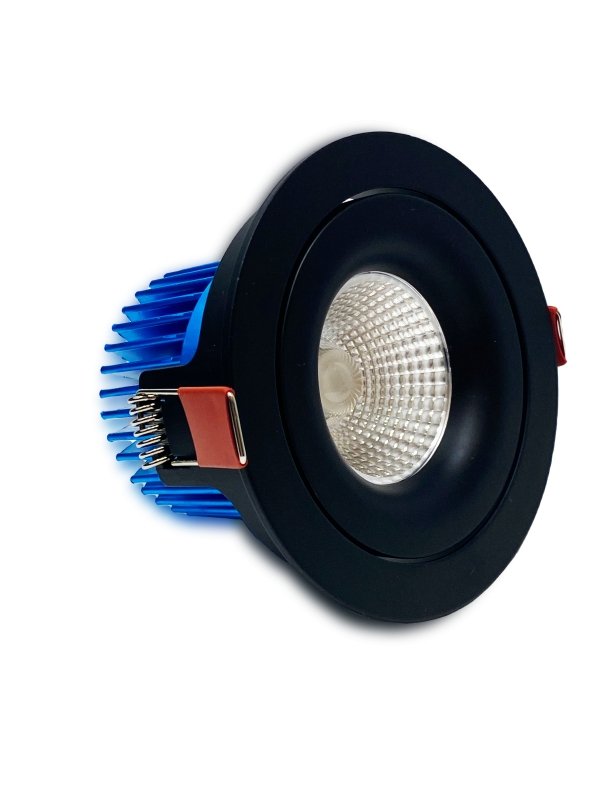

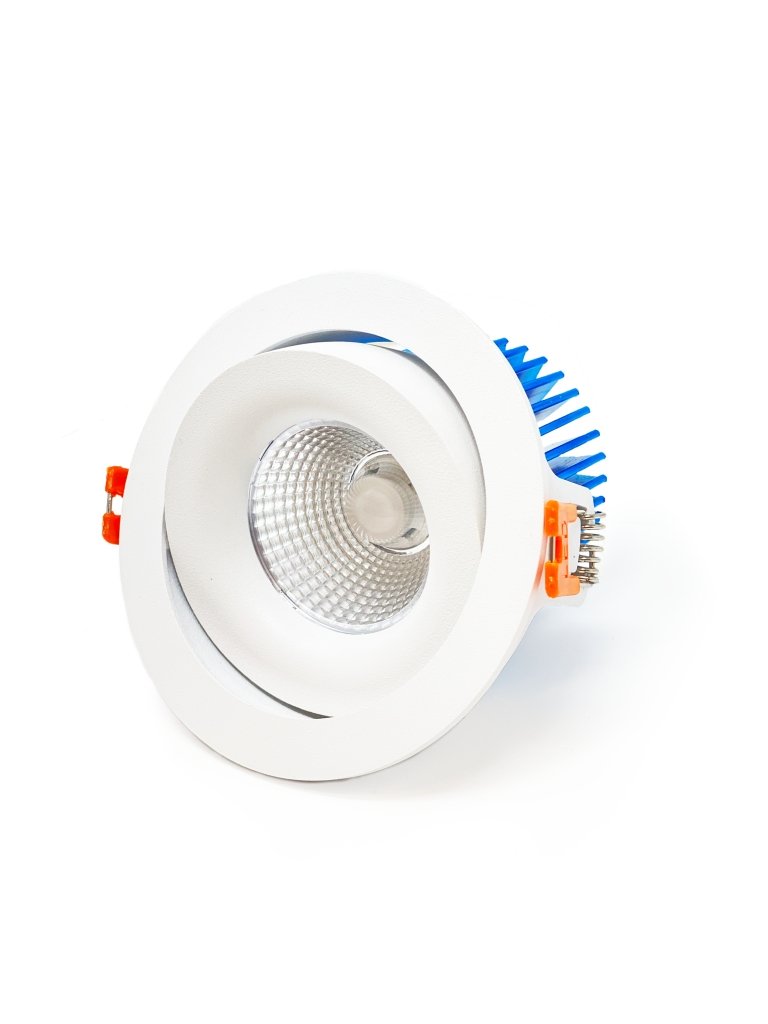

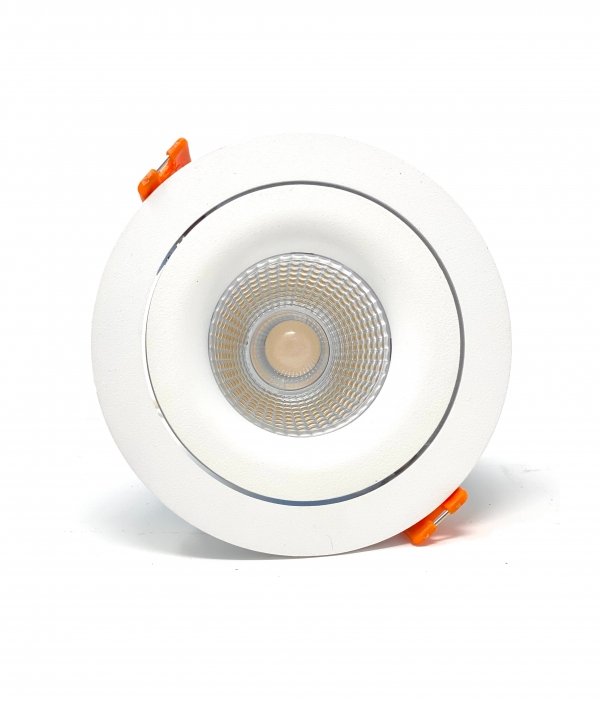

Rayhil RAD35 12W 3.5" Recessed Gimbal LED Downlight Selectable CCT

The Rayhil RAD35 12W is a 3.5" recessed gimbal LED downlight in round or square with selectable CCT (30K, 35K, 40K). It is air-tight and wet location approved and Type IC rated for direct contact with insulation, with an isolated driver inside a junction box and spring loaded clips for fast installation.


  • Air-tight and wet location approved
  • Type ic rated - approved for direct contact with insulation
  • Spring loaded mounting clips
  • Selectable CCT (30K, 35K, 40K)
  • Quick connect wire allows for efficient installation
  • Isolated driver inside junction box
  • New construction plate available (NCH350*)
  • Round/Square
  • Optional Emergency Backup
  • 5 year warranty
*Click Here for Construction Plates
    Square Dimensions
    Length (in.) 4.40"
    Width (in.) 4.40"
    Height (in.) 3.75"
    Round Dimensions
    Circ. (in.) 4.40"
    Height (in.) 3.75"


    Spec Sheets

    Spec Sheet

    Installation Instructions

    Installation Video

    Info
    Wattage 12W
    Lumen 850lm
    Efficacy(LPW) >70 lm/W
    Color Temp 30K, 35K, 40K
    CRI >90
    Dimming Triac/ 0-10V
    Lamp Life 50,000hr
    Environment IP65 Wet Location
