Rayhil

RAYHIL RAD35 23W 3.5" Recessed LED Downlight Selectable CCT High Lumen

RAYHIL RAD35 23W 3.5" Recessed LED Downlight Selectable CCT High Lumen

$129.99
$135.99 $129.99
Sale Sold out
Shipping calculated at checkout.
Size
Style
Color Temperature

3.5" RECESSED LED DOWNLIGHT


  • Air-tight and wet location approved
  • Type ic rated - approved for direct contact with insulation

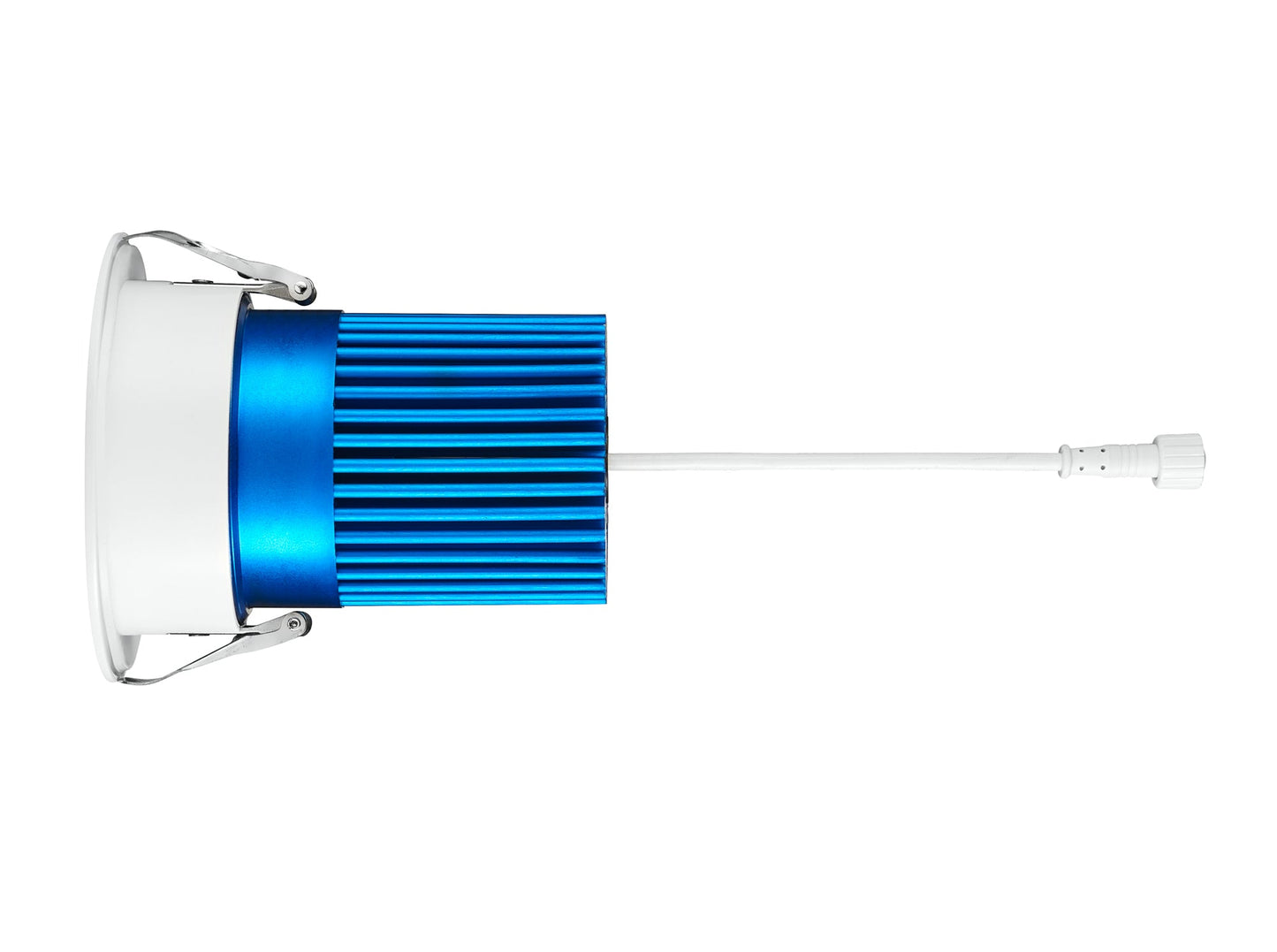

  • Spring loaded mounting clips
  • Selectable CCT (27K, 30K, 35K, 40K, 50K)
  • Quick connect wire allows for efficient installation
  • Isolated driver inside junction box
  • New construction plate available (NCH350*)
  • Round/Square
  • Optional Emergency Backup
  • 5 year warranty
*Click Here for Construction Plates

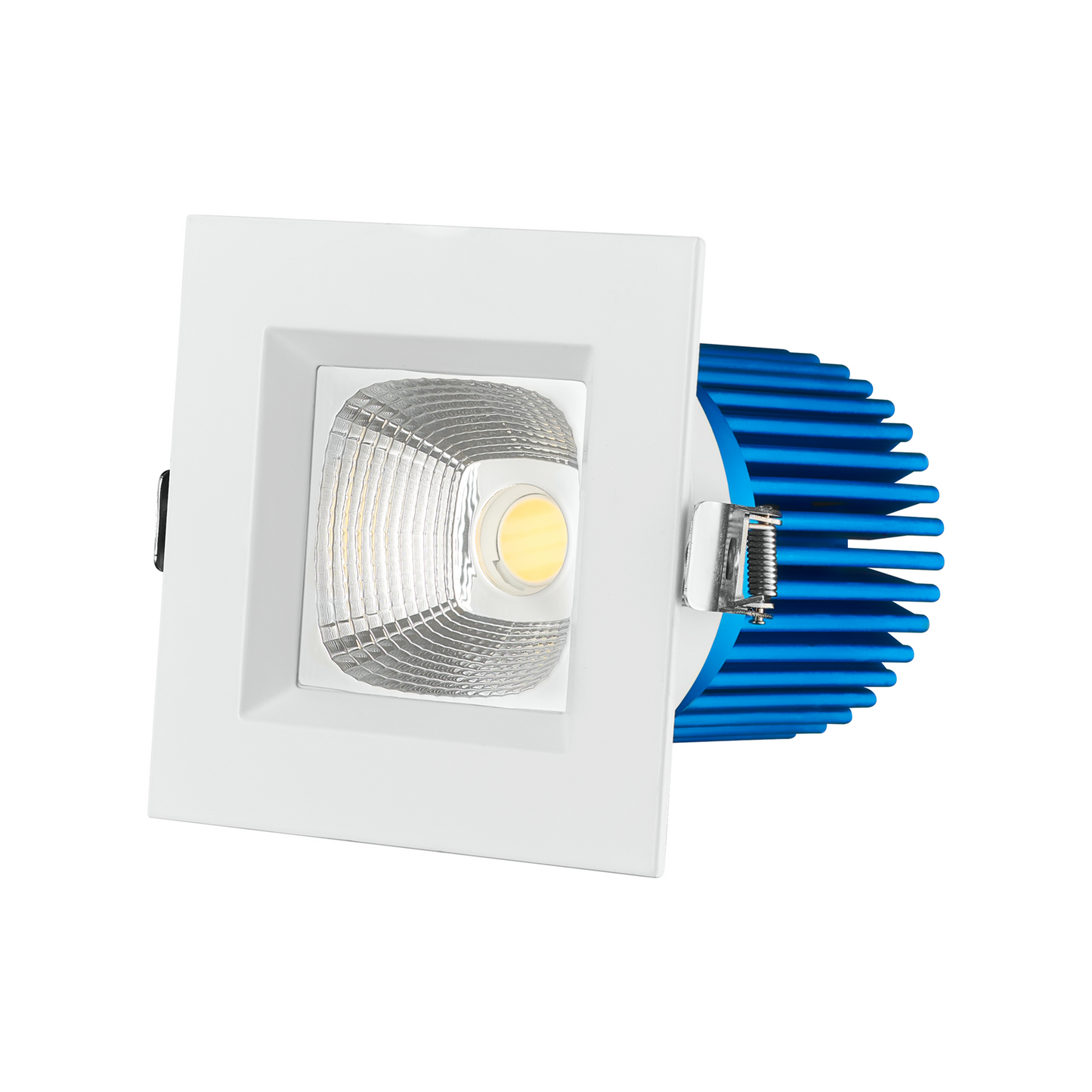

    Square Dimensions
    Length (in.) 4.40"
    Width (in.) 4.40"
    Height (in.) 4.72"

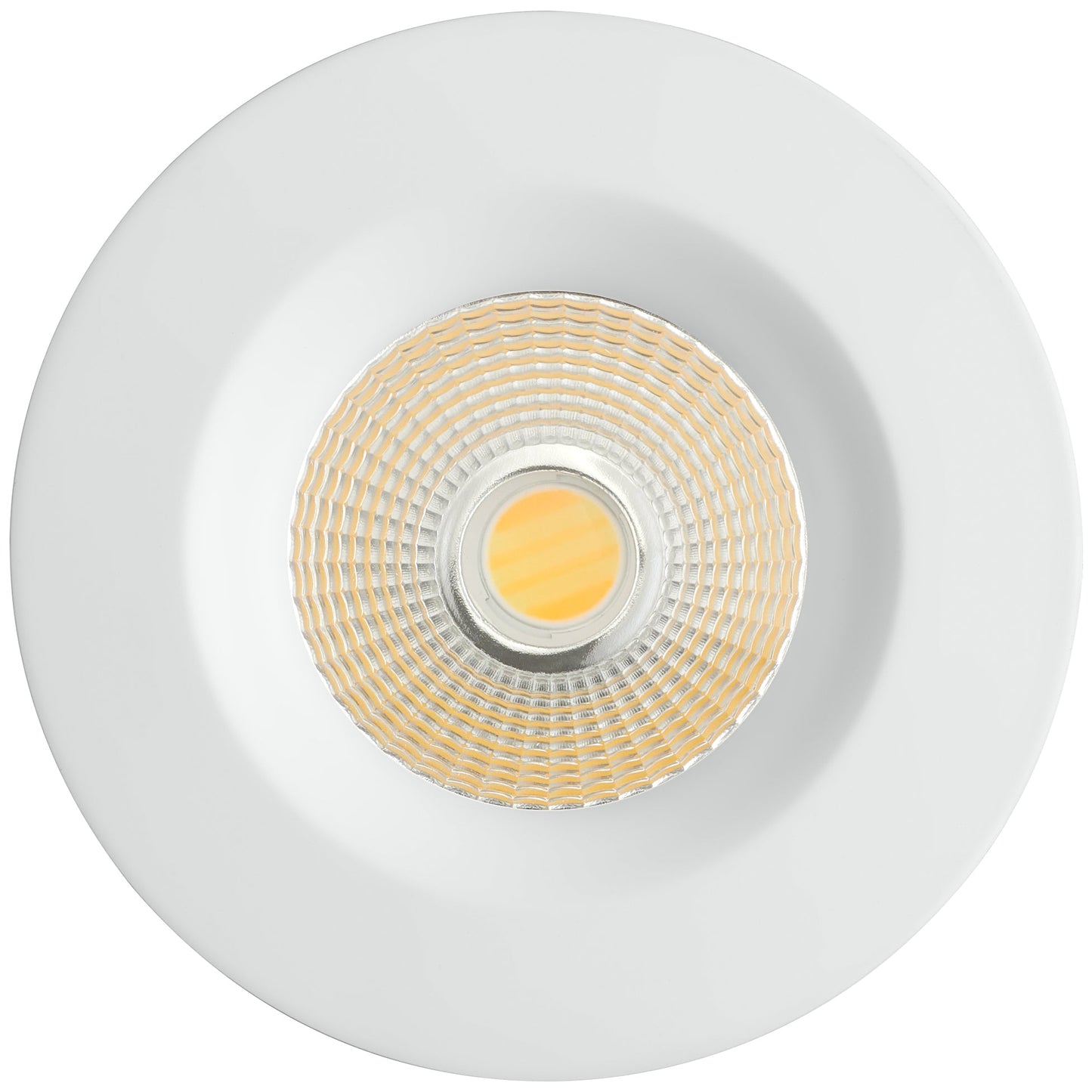

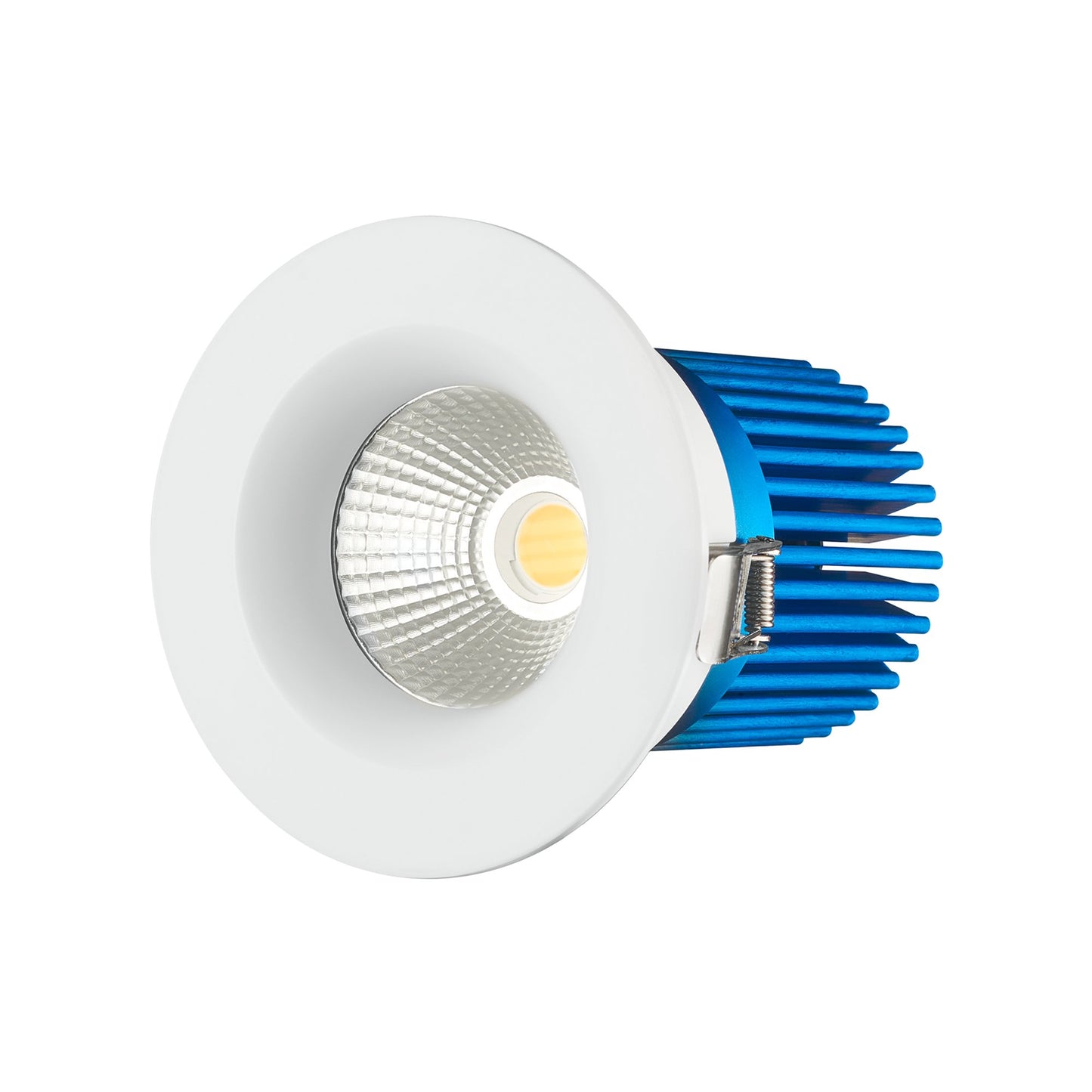

    Round Dimensions
    Circ. (in.) 4.40"
    Height (in.) 4.72"


    Spec Sheet

    Spec Sheet

    Installation Instructions

    Info
    Wattage 23W
    Lumen 2000lm
    Efficacy(LPW) >87 lm/W
    Color Temp 27K, 30K, 35K, 40K, 50K
    CRI >90
    Dimming Triac/ 0-10V
    Lamp Life 50,000hr
    Environment IP65 Wet Location
    View full details
